Description

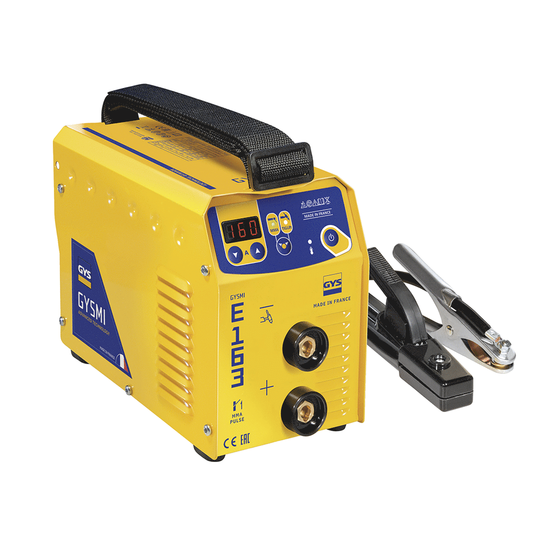

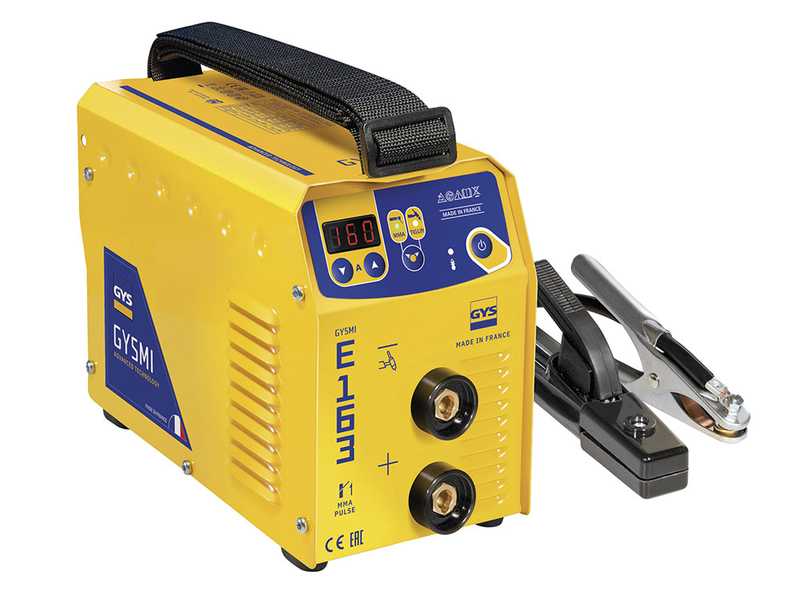

Inverter welder Gys Gysmi E163

The GYS Gysmi E163 Inverter Welding Machine is a versatile and professional solution for welding work on various materials, including steel, cast iron and stainless steel.

This model is equipped with advanced technology that enables precise, high-quality welds up to a thickness of 10 mm.

With a compact design and a weight of only 4.6 kg, it is extremely handy and easy to transport, ideal for use on the job site or in the workshop.

The Gysmi E163 offers three soldering modes: MMA, pulsed MMA and TIG Lift DC.

The pulsed MMA mode is particularly useful for vertical welds, ensuring optimum arc control and reducing the risk of bead defects.

The TIG Lift mode, on the other hand, allows refined and precise welding on thin sheets, thanks to the Auto down Slope function, which automatically switches off the arc gradually.

The digital control panel simplifies the setting of welding parameters, ensuring intuitive and fast operation.

Among the integrated functions, the adjustable Hot Start, which facilitates arc triggering, theAnti Sticking, which minimizes the risks of electrode binding, and theArc Force, which maintains arc stability even with varying lengths.

The Gysmi E163 is powered by a single phase 230V source with an adjustable welding power between 10 and 160A, making it suitable for multiple applications.

In addition, with surge protection up to 400V (PROTEC 400), it is compatible with the use of generators, ensuring maximum safety and reliability.

Distinctive features:

Welding mode: MMA, pulsed MMA, TIG Lift DC
Current adjustment: 10-160 A
Weld aid functions: Adjustable Hot Start , Anti-sticking , Arc Force.
Weight and size: 4,6 kg(12x21x27 cm)
Generator compatibility: PROTEC 400
Digital interface for intuitive settings

GYS Gysmi E163 - Inverter Welding Machine (MMA, TIG Lift) - Direct Current (DC) - Case

Technical features

The GYS GYSMI E163 FV inverter welding machine is designed to deliver high performance in a compact, lightweight package, combining advanced technology and ease of use for a wide range of welding applications on steel, cast iron and stainless steel .

This model stands out for its versatility, thanks to the possibility to use both the MMA (coated electrode) mode and the TIG lift DC mode , which allow you to successfully tackle both precision welding jobs and more complex applications.

Here are the key technical data and details that highlight the capabilities of the device:

Welding current: Adjustable from 10 to 160 A, suitable for various types and thicknesses of electrodes, including those for steel, stainless steel and cast iron.
Open circuit voltage: 72V, for quick and safe arc initiation.
Power supply: Single-phase 230 V – 16 A, compatible with standard electrical installations, with integrated protection against surges up to 400 V (PROTEC 400).
Electrode Diameter: Electrode diameter: Accepts electrodes from Ø 1.6 mm to Ø 4 mm, including rutile, basic, stainless steel and cast iron.
Weight: 4,6 kg: easy to carry, ideal for use on the move.
Overall size: 46 x 36 x 17 cm, compact and ideal for transport and storage in confined spaces.

Functionality and security:

Hot start: Increased power at ignition to facilitate arc ignition and prevent initial problems.
Arc force: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
Anti sticking: Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
Auto down Slope: A tear-free function during the arc-off phase for a quality finish.

Accessories included:

Earth cable with clamp (1.6m / Ø16mm²).
Electrode holder with cable (2m / Ø16mm²).
Rugged carrying case for easy carrying of the device.

Free items & Standard equipment

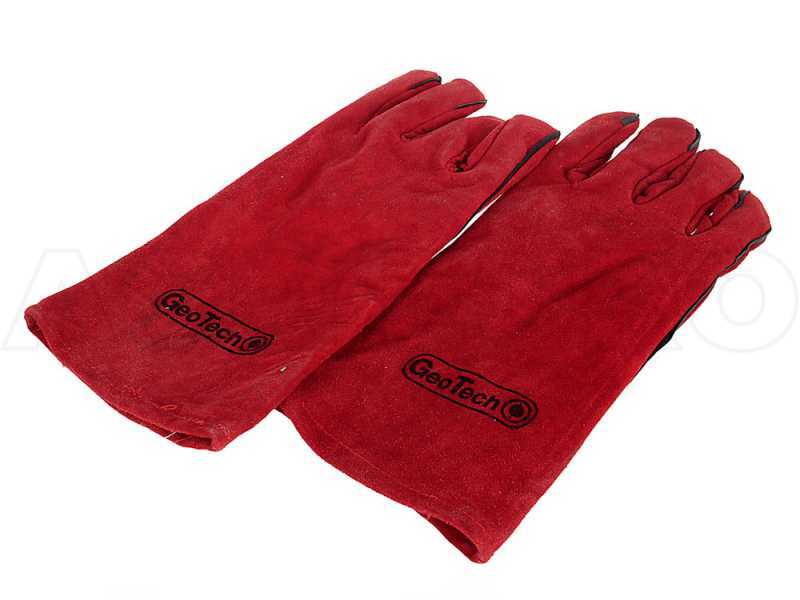

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

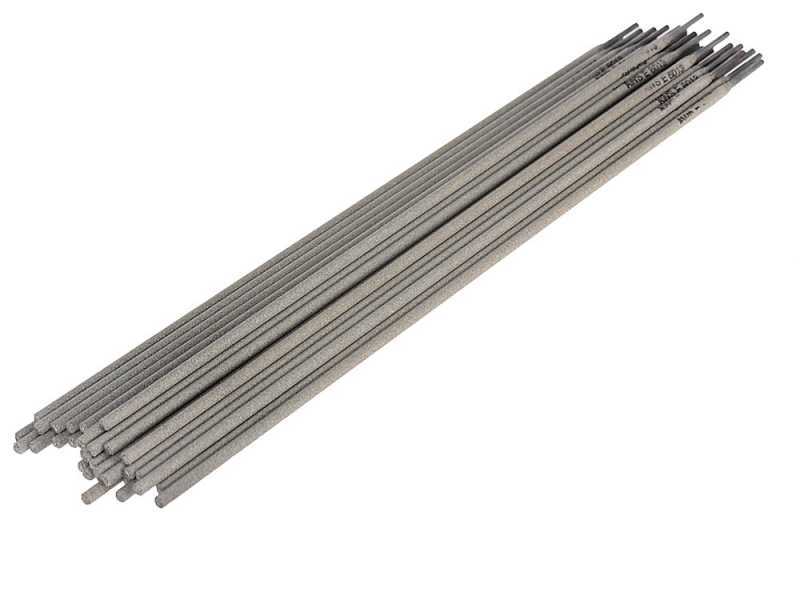

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
