Description

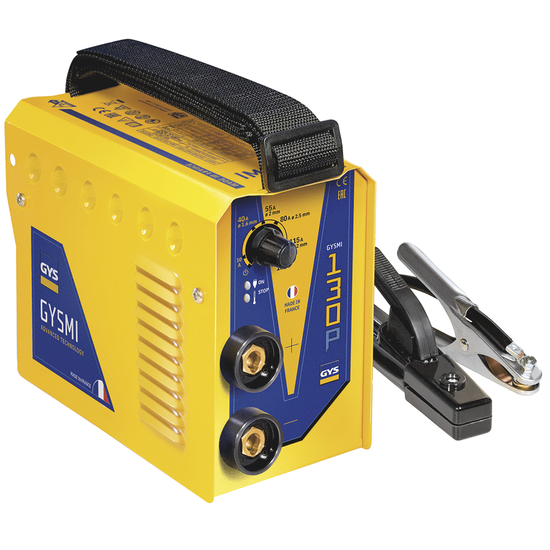

Gys GYSMI 130P inverter welder

The Gys Gysmi 130P inverter welding machine is a compact and versatile device, ideal for both at home and professional use.

Equipped with inverter technology controlled by a microprocessor, this welding machine guarantees an innovative and unique arc dynamic within the market.

The Gysmi 130P is capable of soldering a wide range of electrodes, including rutile, basic, stainless steel and cast iron, all in direct current.

Single 2.9 kg light weight and low volume make it extremely handy and easy to handle, making it easy to carry and use in confined spaces.

Low power consumption is an added benefit, allowing you to operate efficiently even with limited power supplies.

This welder is equipped with advanced features such as HOT start, which increases the power on ignition for immediate start-up, ANTI sticking, which reduces the risk of electrode sticking to the workpiece, and ARC FORCE, which guarantees an instantaneous increase in current in difficult welding situations.

Due to the very high no-load voltage, firing is immediate, ensuring constant welding power and smooth fusion thanks to direct current.

Furthermore, the Gysmi 130P is insensitive to local current fluctuations and arc length, ensuring excellent penetration and perfect arc stability.

Distinctive features:

Microprocessor inverter technology for advanced management.
Compatibility with various electrodes (rutile, basic, STAINLESS STEEL, cast iron) in direct current.
Advanced functions (HOT start, ANTI STICKING, ARC FORCE) for optimum control of the arc.
Light and compact: only 2.9 kg, easy to transport.
High stability and arc penetration due to direct current.

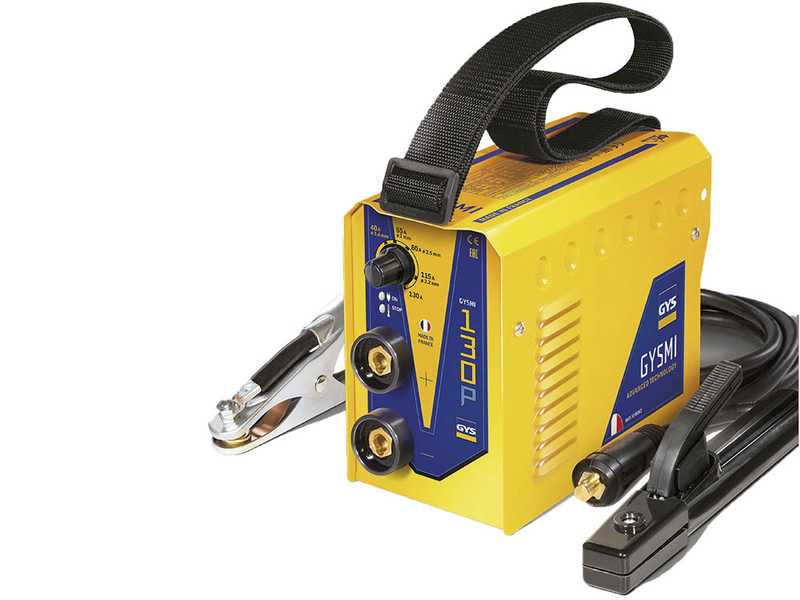

GYS GYSMI 130P - Inverter (MMA) welding machine - direct current (DC) - Case

Technical features

The GYS GYSMI 130P FV inverter welding machine is designed to deliver high performance in a compact, lightweight package, combining advanced technology and ease of use for a wide range of welding applications on steel, cast iron and stainless steel .

Here are the key technical data and details that highlight the capabilities of the device:

Welding current: Adjustable from 10 to 130 A, suitable for various electrode types and thicknesses.
Open circuit voltage: 75V, for quick and safe arc initiation.
Power supply: Single-phase 230 V – 16 A, compatible with standard electrical systems.
Electrode Diameter: Electrode diameter: Accepts electrodes from Ø 1.6 mm to Ø 3.2 mm, including rutile, basic, stainless steel and cast iron.
Power consumption: 2.5 kW, also suitable for use with compatible generators.
Weight: 2.9 kg, extremely light and easy to carry.
Overall size: 13 x 22 x 27 cm, compact and ideal for transport and storage in confined spaces.

Functionality and security:

Hot start: Increased power on ignition to facilitate arc ignition.
Arc force: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
Anti sticking: Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
Insensitivity to current fluctuations: Ensures constant welding power even under unstable voltage conditions.
EN60974-1 Compliant: Safety standard that ensures safe operation even at high temperatures (40°C).

Accessories included:

Earth cable with clamp (1.6m / Ø10mm²).
Electrode holder with cable (1.6m / Ø10mm²).
Welding mask:
Hammer-Brush.

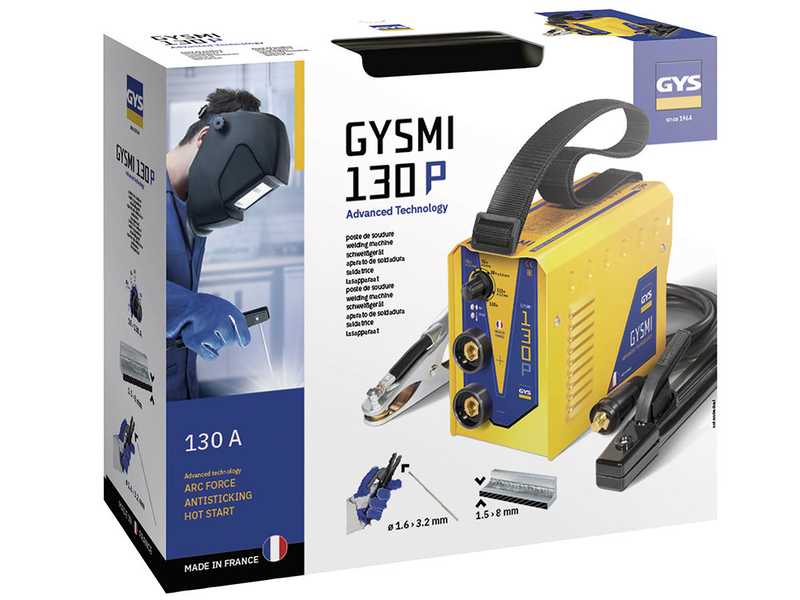

It facilitates transport and storage.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

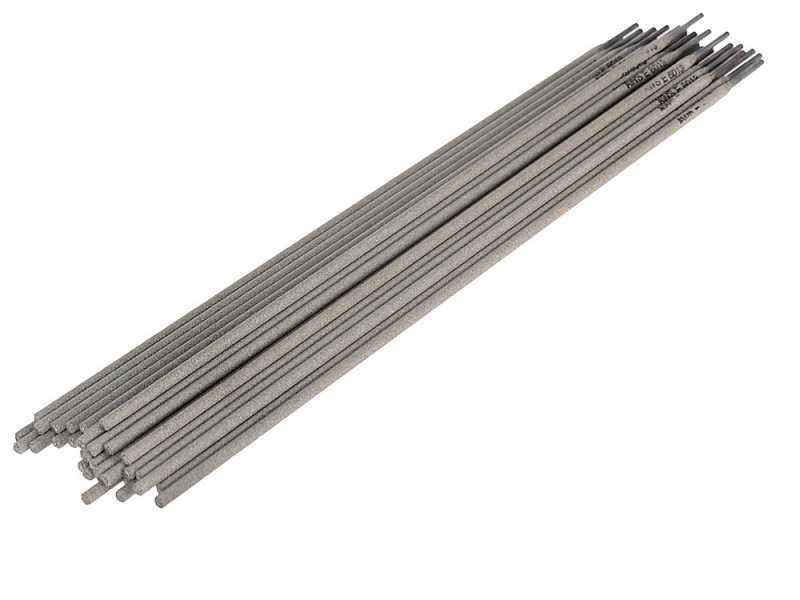

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
