Description

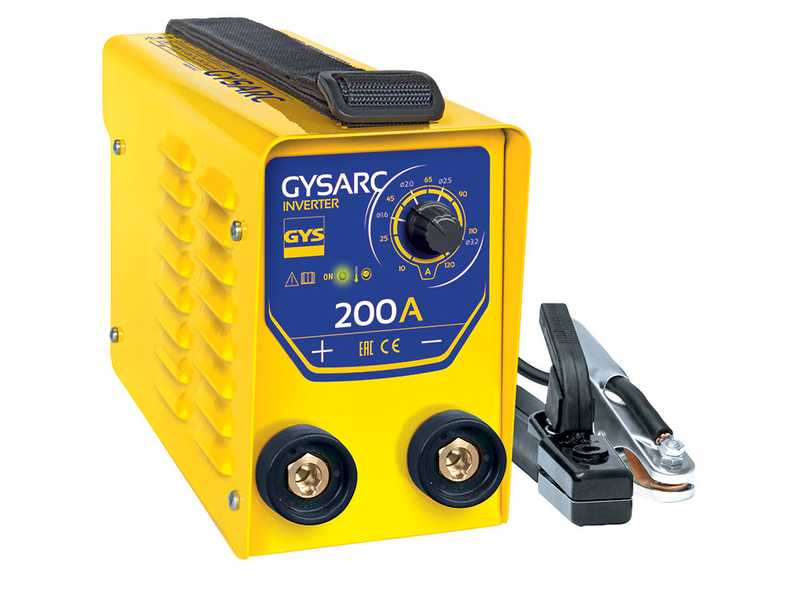

Inverter electrode welder GYS gysarc 200

The GYS GYSARC 200 Inverter Soldering Machine is a single phase device designed to deliver high performance and reliability in a wide range of soldering applications.

Thanks to its inverter technology, this welding machine ensures constant welding power and smooth fusion, ensuring high-quality welding with exceptional arc dynamics.

The device operates on Direct current (DC), ensuring optimum current stability even under voltage variations in the power supply.

The GYSARC 200 is extremely compact and lightweight, weighing only 3.6 kg, making it easy to transport.

Its small size (27x11x16.5 cm) allows it to be placed comfortably on shelves or trolleys, facilitating storage and use in confined spaces.

It also features a handle and shoulder strap for easy carrying.

This model is compatible with a wide range of coated electrodes , including rutile, stainless, cast iron and basic electrodes , with diameters from 1.6 to 5.0 mm, making it versatile for different welding needs.

The welder is also safe and protected, thanks to the thermal protection and the PROTEC 400 system , which protects it from surges up to 400V, making it suitable for use with generator sets .

Distinctive features:

Power: 20 to 200 A .
Portability: Weight 3.6 kg and compact dimensions:
Versatility. Compatible with electrodes Ø 1.6-5.0 mm.
Safety: Thermal and surge protection up to 400V.

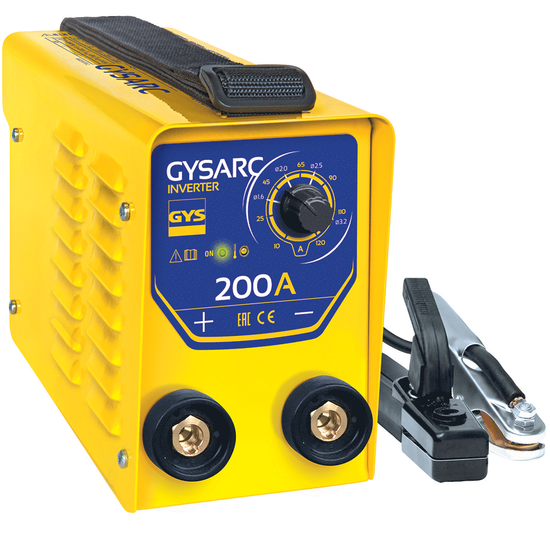

GYS GYSARC 200 - Inverter (MMA) welding machine - direct current (DC)

Technical features

The GYS GYSARC 200 Electrode Inverter Welder (MMA) is designed for high performance and great versatility due to its advanced technical specifications.

Here are the key technical data and details that highlight the capabilities of the device:

Type: Single-phase inverter coated electrode welder (MMA)
Technology: Inverter, for stable soldering and smooth fusion due to direct current (DC)
Welding current: Adjustable from 10 to 200 A, suitable for various electrode types and thicknesses.
No-load voltage: 64V, for quick and safe arc initiation.
Power supply: Single phase 230 V – 32 A, compatible with domestic and professional installations
Diameter of electrodes: Accepts electrodes from Ø 1.6 mm to Ø 5.0 mm, including rutile, basic, stainless steel and cast iron.
Welding Thickness : Up to 10 mm on materials such as steel, cast iron and stainless steel
Weight: 3.6 kg, extremely light and easy to carry.
Size: 27 x 11 x 16.5 cm, ideal for placing on shelves or trolleys

Functionality and security:

Hot start: Facilitates initial priming, improving the efficiency of the welding process
Arc force: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
Anti sticking Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
Thermal protection Optimized cooling to prevent overheating
Surge Protection : Safeguard your device from voltage spikes up to 400V with PROTEC 400 technology

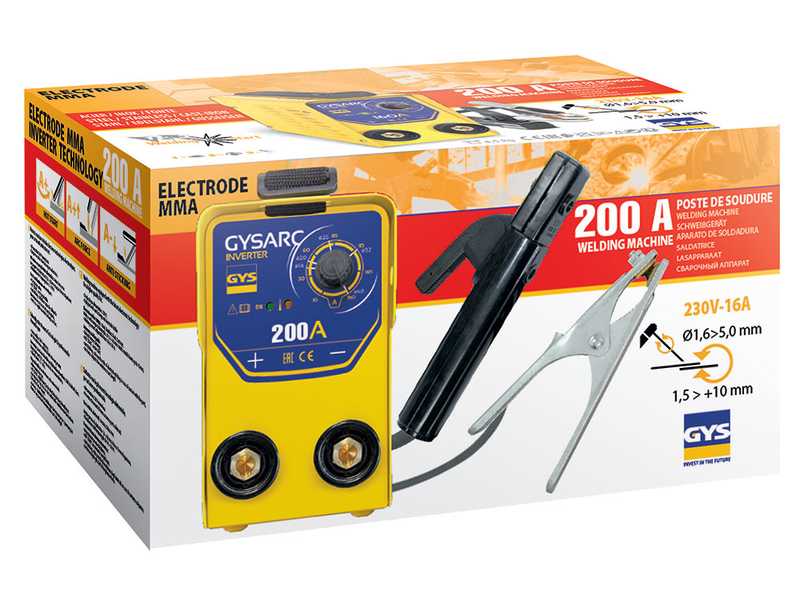

Included accessories:

Ground cable
Electrode holder
Handle and shoulder strap for easy and convenient carrying

-------------------------------------------------------------------

The product is shipped in its original packaging along with the instruction manual.

Wide range of accessories provided on standard equipment:

Earth clamp with 1.6 m power cable ø16 mm

Electrode holder clamp with 2 m cable ø16 mm

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
