GYS Easymig 130 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)

Questions & Answers (1)
ID: K609011

EAN: 3154020032231

MPN: 032231

GYS Easymig 130 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)
Special offer
Free gifts from AgriEuro
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 19/03/2026 - 23/03/2026
Lowest price:
€ 430,09
-3 %
€ 417,19
Vat included
Technical data
Type
Wire transformer
Gas / no gas wire (MIG-MAG)
yes
Welding current range (A)
30-120 A
Open circuit voltage
62 Volt
Suitable MMA electrodes
1 - 3.2
40°C duty cycle
20 %
Aluminium Welding (optional)
Yes
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
yes
Product Features
Model
Easymig 130
Type
Wire transformer
Gas / no gas wire (MIG-MAG)
yes
Power supply
Single-phase electric
Fuse
16 Amp
Suitable MMA electrodes
1 - 3.2
IP
21
Open circuit voltage
62 Volt
220 V max absorbed power
2.9 KW
Min. required generator power
4.3 KW
40°C duty cycle
20 %
40°C duty cycle
20%@120 A
Welding current range (A)
30-120 A
Suitable cored wire
0.8 - 0.9
Suitable steel wire
0.6 - 0.8
Suitable stainless steel wire
0.8
Suitable aluminium wire
0.8
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
yes
Aluminium Welding (optional)
Yes
Synergic welding
No
Manufacturing country
China
Free gifts/extra features
Welding machine equipment
Standard supplied accessories
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
38x16x35cm
Net weight
8.6 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
42x41x19 cm
Weight including packaging
10 Kg
Assembly time
5 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

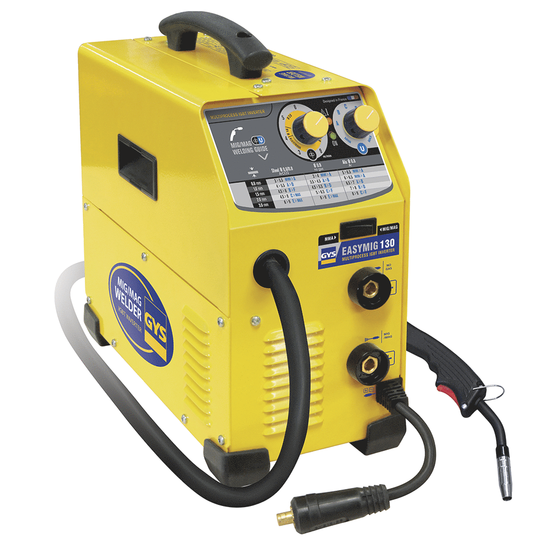

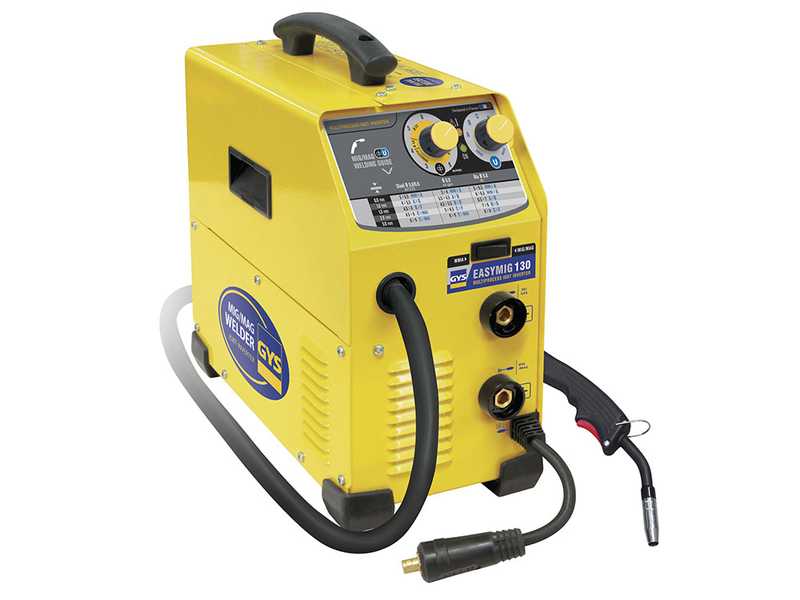

Inverter wire welding machine (MIG/MAG: GAS, NO GAS and MMA) GYS Easymig 130

The GYS Easymig 130 wire welder is a multi-functional device capable of MIG/MAG, solid wire, and MMA welding.

This model is designed for versatility and performance, thanks to the use of inverter technology and the ability to operate in GAS or NON-GAS mode.

With precise adjustment of wire tension and speed, it is suitable for work on steel, stainless steel and aluminum.

Its compact and robust design makes it ideal for domestic, professional and maintenance applications, with a weight of just 8.6 kg making it easy to transport.

Thanks to the intuitive interface , the operator can easily adjust the voltage with a selector switch from 15 to 20 V and the wire speed between 3 and 9 m/min, resulting in precise and reliable soldering .

The GYS Easymig 130 is also equipped with an integrated wire feed system that supports 100 mm coils , with specific rollers for welding with both steel wire and cored wire for NON-GAS operation .

The MAG fixed torch , with a length of 2.20 meters, allows you to work with great freedom of movement.

The GYS Easymig 130 welder also includes safety LEDs for monitoring temperature and thermal protection, ensuring maximum safety during use.

The polarity reversal cable allows a quick switch from GAS to NO GAS mode , providing maximum operational flexibility .

Distinctive features:

  • Lightweight and portable: weighs only 8.6 kg, with ergonomic handle.
  • Intuitive adjustment : voltage selection between 15 and 20 V, wire speed adjustable from 3 to 9 m/min.
  • Compatible with MMA and MIG/MAG: uses 0.6 to 0.9 mm wires and 1.6 to 3.2 mm electrodes.
  • GAS-free system : ready for gas-free welding with cored wire.

Technical Features and Details

The GYS Easymig 130 is distinguished by a set of technical features that make it extremely efficient and versatile.

Thanks to its robust construction, lightweight design and state-of-the-art technology , this welding machine is suitable for both hobby and semi-professional use. The versatility between MIG/MAG, NO GAS and MMA modes ensures optimum performance on a variety of materials, such as steel, stainless steel and aluminum.

Below, let's take a closer look at the key technical specifications:

Inverter technology : Inverter technology significantly improves energy efficiency, enabling precise control of welding current and providing lower power consumption than traditional transformer welders. This system enables a high quality weld with a stable duty cycle.

Welding current :

  • Supply voltage: Single-phase motor, 230 V
  • Welding current : variable from 30 to 120 A for MIG/MAG and from 10 to 130 A for MMA, providing the flexibility to work on different thicknesses of material.
  • Frequency: 50/60 Hz with a 16 A fuse .

Wire Capacity and Electrode Diameter :

  • For MIG/MAG welding : uses wire with a diameter of 0.6 to 0.9 mm.
  • For MMA soldering : supports electrodes with a diameter of 1.6 to 3.2 mm, allowing a wide range of applications on different types of metal.

Working cycle: The duty cycle will vary depending on the amperage chosen. For example, at maximum power of 120A in MIG/MAG, the cycle is 15% at 40°C, ensuring work continuity for less demanding applications.

Size and weight:

  • Size: 38.6 x 16.5 x 36.5 cm, making it extremely compact and easily positioned in small spaces.
  • Weight: only 8.6 kg, ideal for mobile work or frequent travel.
Free items & Standard equipment

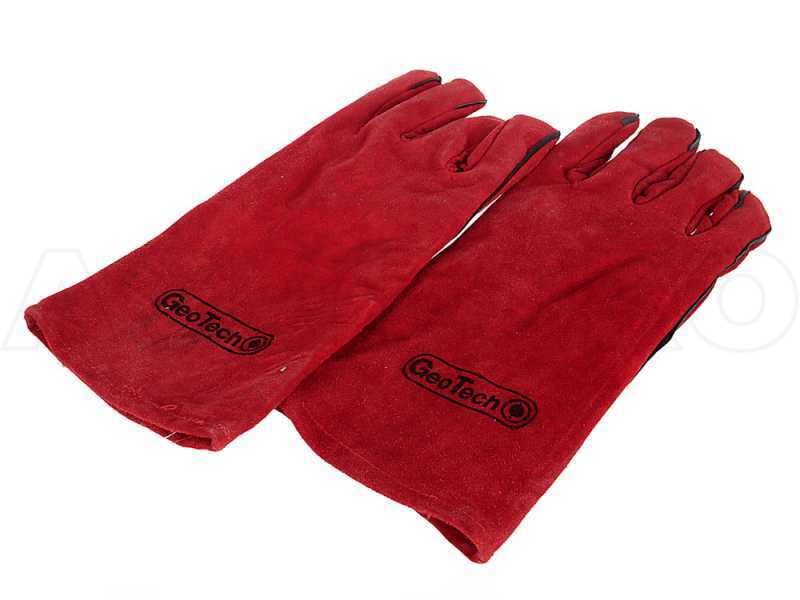

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Standard Equipment

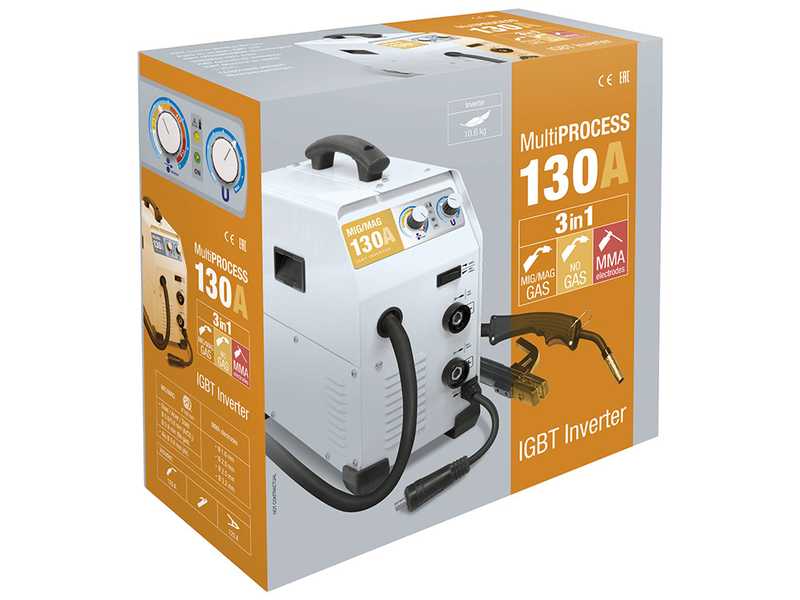

The product is shipped in its original packaging along with the instruction manual.

Standard equipment:

  • mag torch connected to machine
  • ground clamp with cable
  • Electrode holder clamp
  • bag of accessories
    • 0.9mm bit
    • gas line
    • bit tightening wrench
    • 1 m gas hose
    • 2 gas pipe clamps
