Description

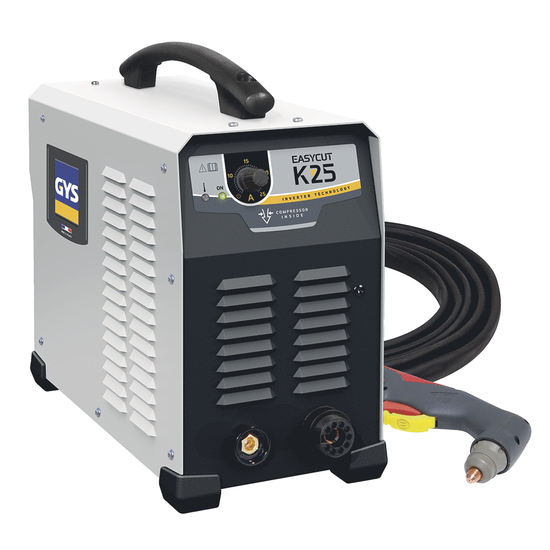

Gys Easycut K25 - Inverter plasma cutting

GYS EASYCUT K25 plasma cutting is a versatile and powerful solution for cutting different types and thicknesses of metals.

Thanks to its advanced technology and HF-free firing, the EASYCUT K25 allows you to work without electromagnetic interference, making it ideal for environments with sensitive equipment such as computers, radios and medical instruments.

This tool offers high performance for both hobby and professional applications, ensuring quality cutting up to 8 mm thick for steel, stainless steel and cast iron, and up to 6 mm thick for aluminum and copper.

One of the distinguishing features of the GYS EASYCUT K25 is the integrated air compressor, making it independent of external sources of compressed air, making it ideal for working in remote areas or outdoors.

In addition, thanks to the Arc Pilote system, the torch is activated without the need for contact with the material, ensuring precision and reducing the risk of errors or damage.

The compact size and 15 kg weight ensure easy portability, making this machine suitable for mobile workers.

The low sound level of the compressor (60/70 dB) also makes it usable without disturbing the surroundings excessively.

Main technical features:

Voltage: 230 V / (1~)
Power supply: 10-25 A
Maximum cut: 8 mm for steel, 6 mm for aluminum
Clean cut : 6 mm for steel, 4 mm for aluminum
Weight: 15 kg
Size: 41 x 36 x 20 cm
Protection class: IP21S
Priming without HF: Prevents electromagnetic disturbances
Integrated compressor : Stand-alone operation even without compressed air

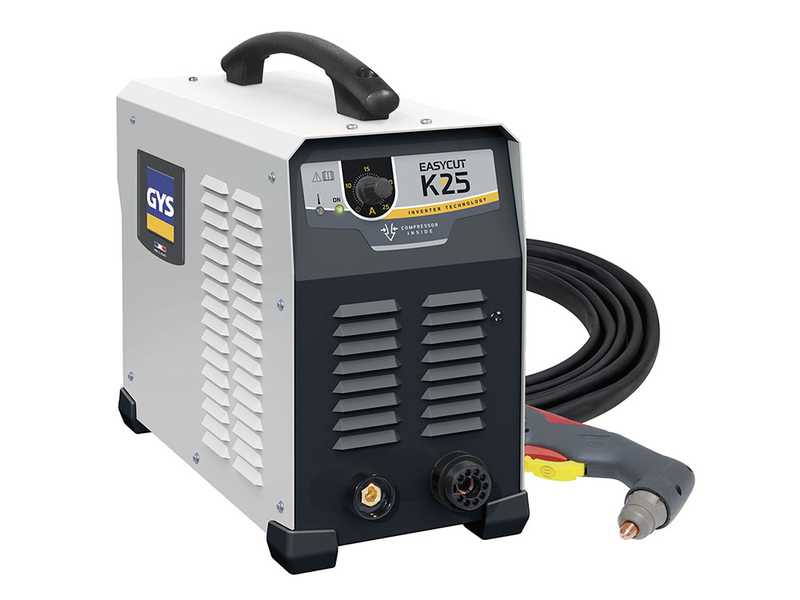

Gys Easycut K25 - Inverter plasma cutting

Technical Features and Details

The GYS EASYCUT K25 stands out for its technical characteristics, making it a reliable and high-performance tool for precise cutting on different types of metals.

Thanks to its compact design and the integrated compressor , it is ideal for working outdoors or without compressed air sources.

Technical features:

Power supply: 230V (1~) - the device operates on a common single phase power supply, making it compatible with most electrical systems.
Cutting current: 10-25A - this current range allows the power to be adjusted to the material being cut.
Maximum cutting diameter: 8 mm for steel, 6 mm for aluminum - ensures high performance on various metals, ensuring clean and precise cuts.
Cutting thickness : 6 mm for steel, 4 mm for aluminum - burr-free cuts, ideal for jobs that require precision finishing.
Working cycle: 15 A @ 60%, 25 A @ 35% - provides operational continuity even under heavy usage.
Size: 41 x 36 x 20 cm - compact and easy to carry.
Weight: 15 kg - its low weight makes it easy to handle and carry.
Sound level: 60/70 dB - the integrated compressor operates at a low noise level, allowing it to be used even in environments where noise is to be contained.

Further details:

Priming without HF: The absence of high frequency in the trigger prevents electromagnetic interference with sensitive electronic equipment.
TPT25 torch: Including a 4 meter torch with safety device to prevent accidental activation.
Arc Pilote System : Enables arc firing without touching the workpiece, ensuring accuracy and durability.
Compatibility with Generator Sets : With surge protection up to 400V, it can be safely used with generators.
