GTM Professional GTS 1800 PTO - Tractor-mounted shredder - Roller rotor

Add a question
ID: K607642

EAN: 8033655612801

MPN: 061280

GTM Professional GTS 1800 PTO - Tractor-mounted shredder - Roller rotor
FREE
FOR FREE: BlackStone LCS 52-18 Cutting ChainsawFOR FREE: BlackStone LCS 52-18 Cutting Chainsaw
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Cotton glovesCotton gloves
AgriEuro BandanaAgriEuro Bandana
Operating mode
Tractor-driven PTO
Tractor power
From 15 to 45 HP
Cutting Rotor Type
Roller
No. of blades
2
Max. Branch Diameter
140 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety Lever
Yes
Discharge chute rotation
Manual
Transmission type
Belt
Cardan shaft
Yes
Product Features
Model:
GTS 1800 PTO
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
No
Discharge chute:
High
N° of hoppers :
1
Hopper opening size (height):
38 cm
Hopper opening size (width):
56 cm
Electric start:
No
3-point hitch category:
Second
Min. power:
15 Hp
Max. power:
45 HP
Tractor power:
From 15 to 45 HP
Safety Lever:
Yes
Manufacturing country:
China
Transmission data
Gear shifting system:
Belt reverser
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
140 mm
Cutting Rotor Type:
Roller
No. of blades:
2
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Discharge chute rotation:
Manual
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

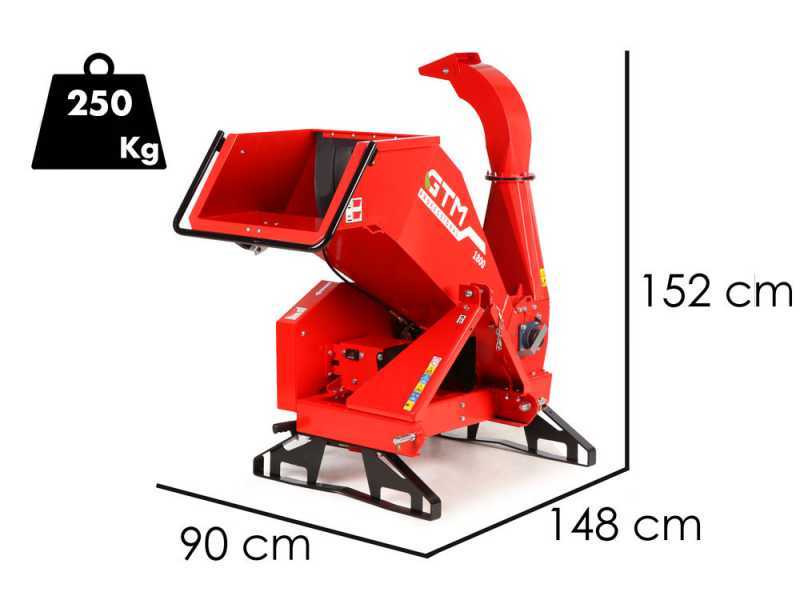

Product dimensions in cm (L x W x H):
152x148x90
Net weight:
250 Kg
Original packaging/s dimensions in cm (L x W x H):
135x110x85
Gross weight (packaging included) :
270 Kg
Assembly time:
over 90 minutes
Out of stock
Free Shipping
€ 4.619,35
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

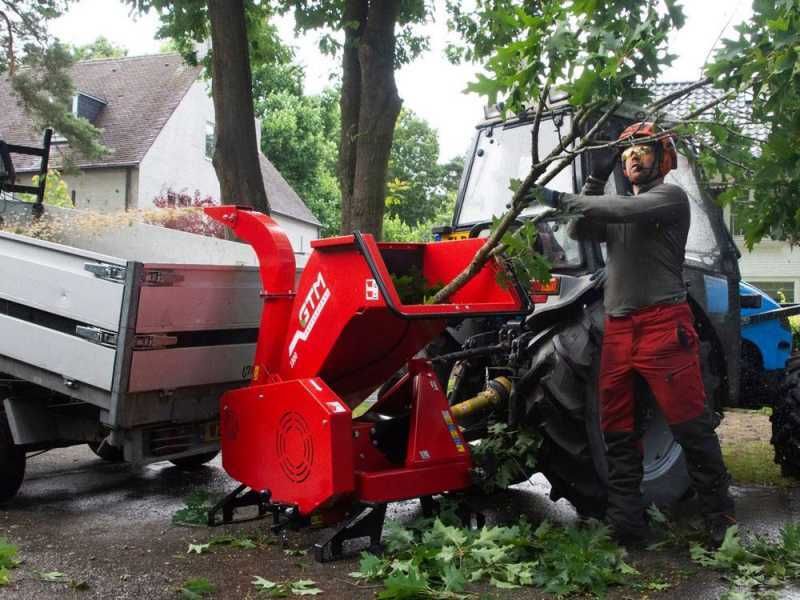

GTM Professional GTS 1800 PTO tractor-mounted shredder

The GTM Professional GTS 1800 PTO bio-shredder is designed to offer an efficient solution for handling and disposing of plant waste, with the ability to shred branches and logs up to a diameter of 140 mm.

This makes the device ideal for cleaning green spaces and removing biodegradable waste.

Easy to use and maintain, the shredder features a loading height of 100 cm, which facilitates the loading of materials to be shredded. Safety is ensured by the presence of a safety lever, which is essential to prevent accidents during machine operation.

The roller, equipped with two blades and a counter-blade, is designed to operate at a speed of 2500 RPM, ensuring high efficiency in shredding vegetable waste.

The discharge deflector, which is adjustable by 100°, offers the flexibility of directing the shredded material directly into the skips, facilitating the disposal process. In addition, the machine comes with a gimbal, increasing its practicality and usability.

This bio-shredder is a reliable and efficient solution for those who need an effective system for plant waste reduction and disposal, combining ease of use, high safety and simple maintenance.

Cardan shaft included.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

Central rotor and crushing chamber

2 horizontal blades that allow a cutting diameter of 140 mm

The machine allows carrying out inspection operations of both the hopper and the roller.

The double-blade system is complemented by the counter-blade in the shredding chamber.

The large flywheel
is crucial for storing kinetic energy, allowing the rotor to reach high speeds (up to 2500 rpm) and maintain efficiency even at low tractor engine speeds.

A larger flywheel also helps stabilise rotor speed, reducing load surges on the engine and increasing the longevity of the transmission.

The drum brake provides a reliable and effective method of quickly and safely stopping the rotor

The rotor is equipped with an external protection bracket

3-belt drive system with protective casing that can be easily inspected with 3 handy screws

This allows operators quick access to internal components for inspection, cleaning or parts replacement without having to dismantle complex parts. By reducing the time and effort required for maintenance, machine availability is increased and downtime is reduced.

A drive system using three belts provides a more balanced load distribution between the belts, improving the efficiency of power transmission from the motor to the rotor

All roller shredders like this one allow high performance by entering leafless and cleaned branches (not thick and with too twigs);
they are ideal for quite large branches and not for many thin or green branches featuring many twigs; this is because the roller system is technically unsuitable for grinding small diameters branches, or green material in general, while they really give their best with larger branches.
This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

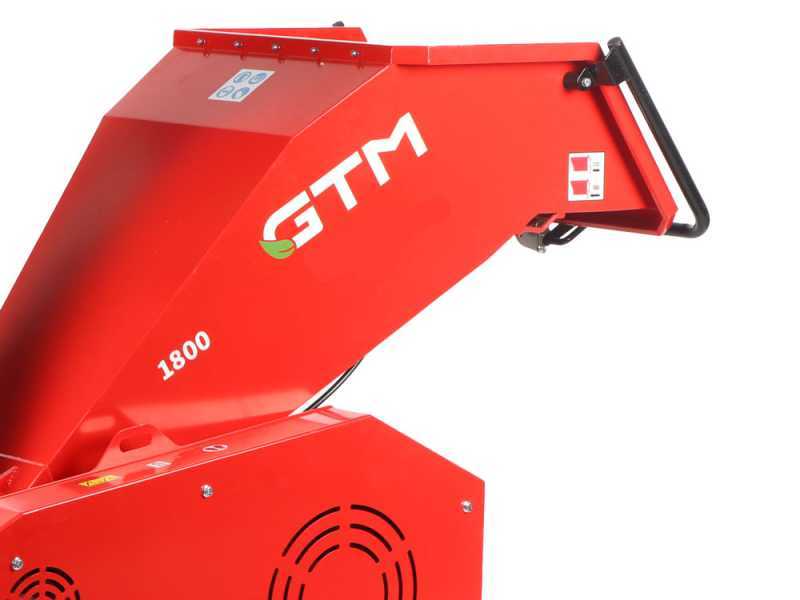

Unified hopper

The machine of large-sized is able to process even very bulky branches and leaves, without having to pre-shred them. Thus, it also features a higher capacity that allows entering a large amount of material at a time.

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It eliminates the constant operation of dividing (before grinding) the material between the large, woody sections and the smaller, green sections, each of which must be placed in its own hopper (an operation required by all classic bio-shredders with 2 hoppers)

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded. WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Focus on the transparent rubber bulkheads placed on hopper opening.

Hopper size: (Width x Height) 56 x 38 cm

Load height: 1 metres

SAFETY SYSTEMS: Detail of the safety lever that guarantees an immediate stop in case of need.

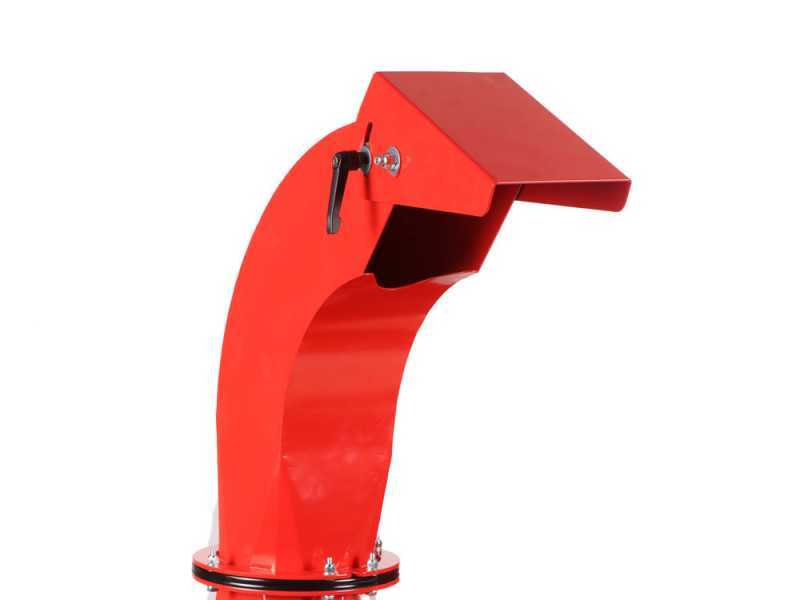

360° Rotating discharge chute

The exhaust chimney, with which this shredder is equipped, can be rotated through 360°.

Thanks to a practical screw system, the discharge direction can be adjusted, here are some examples:

Example 1

Example 2

Example 3

Example 4

The discharge angle can also be adjusted to control the ejection distance of the wood chips (up to 12 metres), thanks to a practical knob.

Here are some examples:

Example 1

Example 2

Example 3

Example 4

Example 5

Overall Features

Detail of the protective rubber bulkheads located at the hopper inlet.

Tractor PTO socket for operating the bio-shredder.

Second-category 3-point hitch with a wheelbase measurement of 62 cm

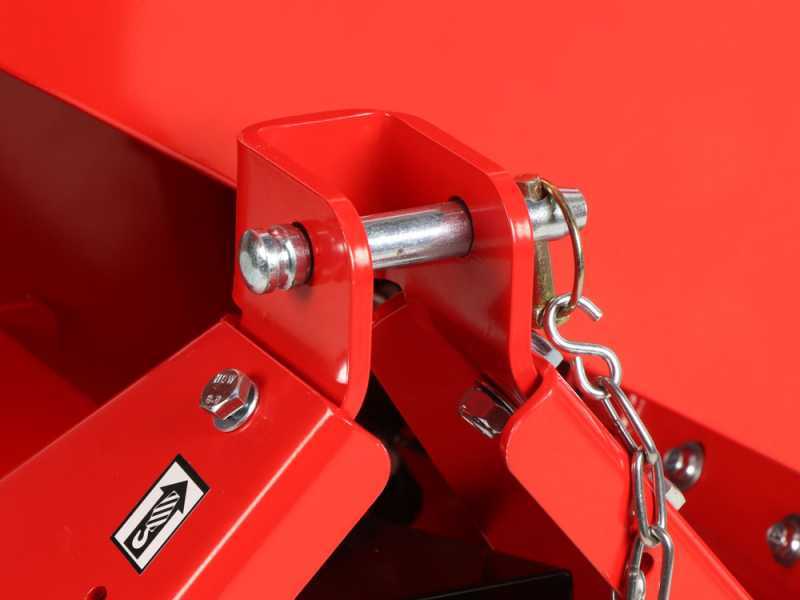

Detail of upper pin, 13 cm long, with a ground clearance of 80 cm

Detail of one of the two lower pins, 14 cm long, with a ground clearance of 30 cm

Device with display to monitor the Cardan shaft's rotational speed and working hours.

Drive handle to put the belt under pressure after the panic bar has been activated

Detail of one of the machine's two ground supports

Towing hitch for connection to a trailer

Free items & Standard equipment

1° GIFT: SAFETY KIT

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

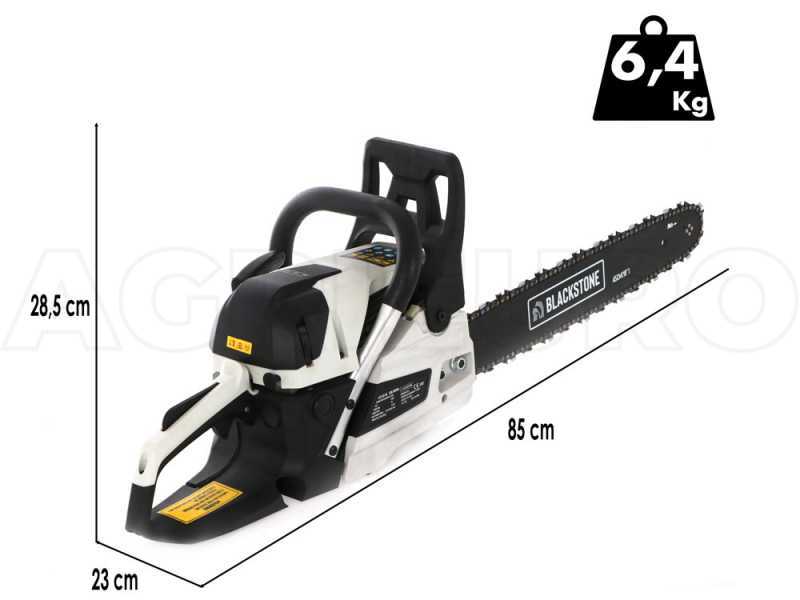

COMPLIMENTARY: BlackStone Cutting Chainsaw

The BlackStone LCS 52-18 chainsaw is a cutting tool that stands out to be reliable, easy to use and efficient in the type of work to be done.

This machine is particularly suitable for the user who has to carry out professional work and requires reliable and powerful machines.

Here are some of the highlights of this chainsaw:

  • Anti-vibrating
  • 45 cm Standard bar, which allows quick and easy cuts.
  • 2-stroke engine (52 cc), that delivers 2.5 HP power
  • Double rubber handle, which makes the machine easy to use and comfortable for the operator.
  • Weight 6.4 Kg

A chainsaw that is designed to be practical, functional and that provides great cutting performance, a very great value for money.

Free items included

The machine is shipped on a pallet.

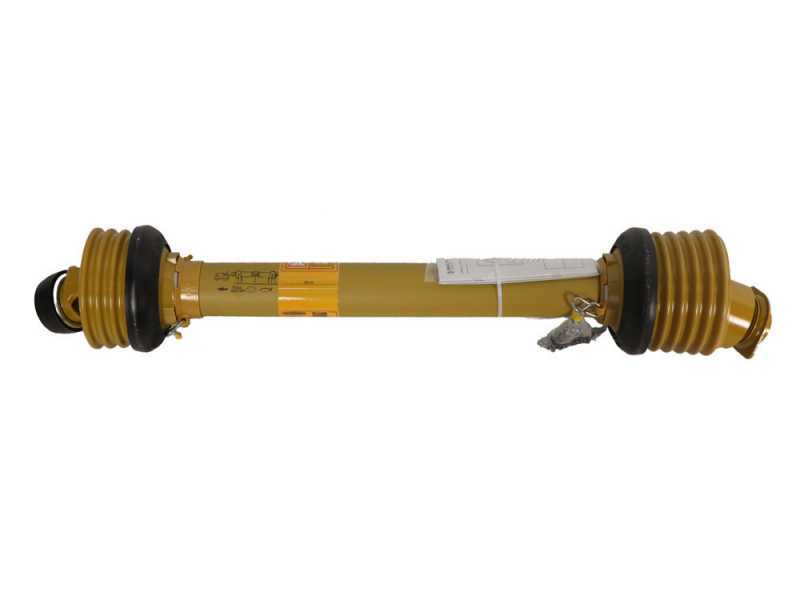

Cardan shaft included in the package.

Instruction and assembly booklet.
