GreenBay GB-LM 51 BS Self-propelled Lawn Mower - 4 in 1 - B&S 750EX petrol engine - 51 cm cutting width

GreenBay GB-LM 51 BS Self-propelled Lawn Mower - 4 in 1 - B&S 750EX petrol engine - 51 cm cutting width
Double ECO packaging
Grass collector
Side discharge
Mulching system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Briggs&Stratton
Engine Model
750EX
Cubic Capacity
161 cm³
Rated output
5.5 HP
Surface recommended
1300 m²
Cutting width
51 cm
Self-propulsion
rear wheel traction
Cutting height adjustment
Centralized (1 lever)
High rear wheels
Yes
Motor/blade transmission
Drive belt
FREE:
Free items: 2 bottles of 600 ml engine oil each
FREE:
Free items: 2 bottles of 600 ml engine oil each
€ 492,39
VAT Included
Prompt Delivery
117 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602703

EAN: 8054141541566

MPN: 107101

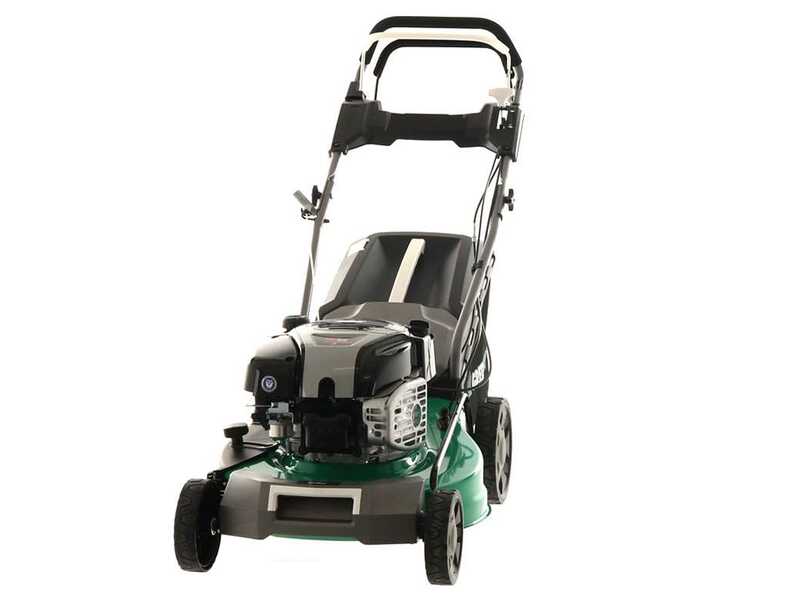

GreenBay GB-LM 51 BS lawn mower

The GreenBay GB-LM 51 H lawn mower stands out to be a powerful, reliable and really versatile machinery, which is powered by a heavy-duty B&S engine 4 hp that features a real power of 161cc.

HIGH VERSATILITY: Possibility to collect grass in the reinforced grass collector, select the mulching mode or the side or rear discharge cutting system in order to drop the grass clippings from the rear side of the mower. The grass cutting system can be quickly changed without the need of any extra assembly tool. Large-sized 60 L grass collector, with 230 mm rear wheels, which are mounted on ball bearings. Mulching kit included.

Self-propelled lawn mower GreenBay GB-LM 51 BS a 4 in 1 machinery, which is intended for all the mowing options:

  • Grass collection system: 60 L grass collector
  • Standard-supplied mulching plug
  • Side discharge
  • Rear discharge

Centralized height adjusting system: possibility to adjust the cutting height by means of a single lever.

Rear-wheel drive self-propelled lawn mower, less effort, reduced time, improved efficiency and results.

This lawn mower model consists of 51 cm cutting width. It? also adjusted through a centralized lever in 7 different positions 25 mm to 75 mm.

The motor and blade connection is given by the belt.

High rear wheels, designed to enhance the mowing operation and make them easy, fast and efficient. The rear-wheel traction makes the mowing operation even more efficient on every lawn.

Equipped with a foldable handlebar, which reduces the required space and ensures an easy transport and storage.

This lawn mower is suitable for surfaces up to 1500 s.q. m.

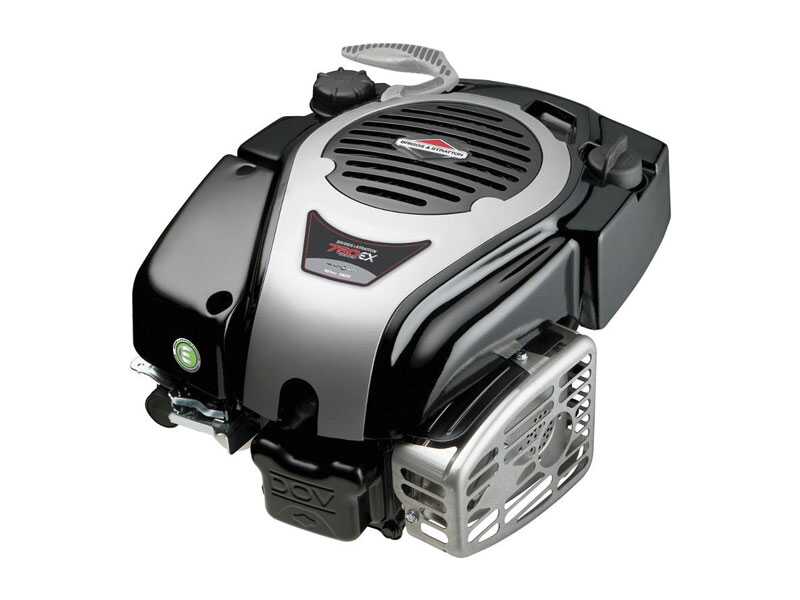

Briggs&Stratton 750EX DOV Series Engine

Briggs&Stratton 750EX Series DOV is an engine which guarantees high performances, and it is suitable for works that require high reliability and durability, thanks to its remarkable 161 cc.


Features:

Engine Type
Single-cylinder 4-stroke - DOV
Cylinder type:
Aluminium
Cubic Capacity:
161 cm
Fuel:
Petrol
Activation:
Manual



Four-stroke petrol engine belonging to the latest generation with overhead valve technology “DOV” (Direct Overhead Valve) with direct control, which ensures high performance, lower noise emissions and faster operation.
Designed for offering reliability and unprecedented performances, the Briggs Series is renowned as one of the top-quality engines for this machinery.

Easy recoil start thanks to the automatic fuel priming system.




WARNING!

The engine is PROVIDED WITHOUT OIL.
Before starting, please read the instruction manual.

Rated Power: 5 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 3.4 HP (a rotation speed of 3600 rpm)
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

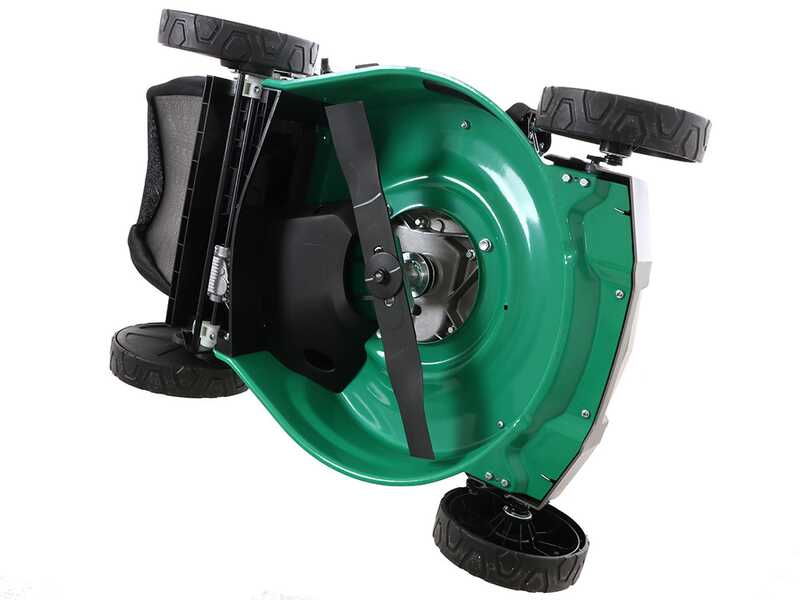

Steel deck and blade

Real blade cutting width: 51 cm

.Universal hardened steel blade, which is suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

The 50 cm steel housing gives to this machine a high sturdiness, combined with an excellent lightness.

Focus on the washing joint.

6 centralized cutting height options and high-wheel system

This lawn mower offers 7 adjustment cutting height options. They differ from a minimum of 25 mm up to a maximum of 75 mm.

The centralized adjustment is incredibly quick and intuitive: possibility to adjust the cutting height by means of a single lever.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.


High-wheel system, mounted on ball bearings that guarantee greater manoeuvrability and sturdiness to the machinery.

Wheels size:

  • Rear wheels: 23 cm (9")
  • Front wheels: 18 cm (7")

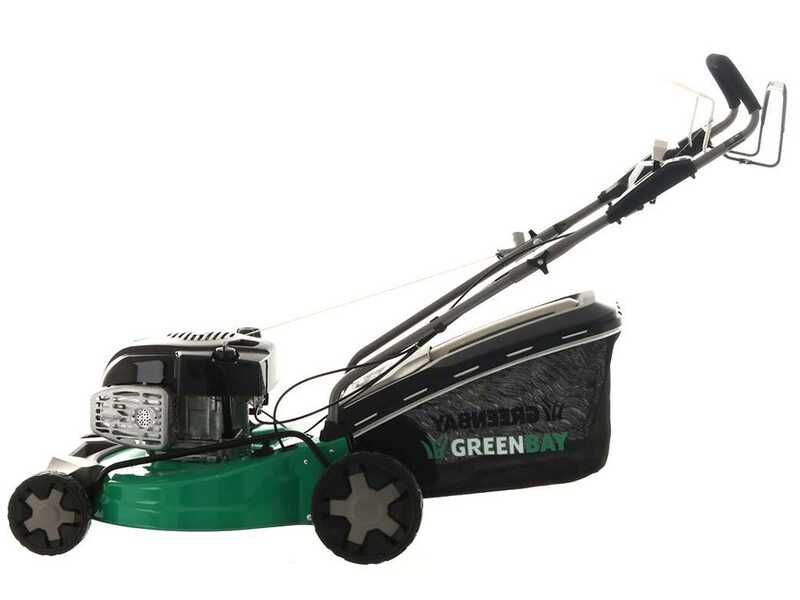

Four mowing options: grass collection

CUTTING SYSTEM WITH GRASS COLLECTOR
Provided with a large 60 L hybrid grass collector , which is easy to remove and empty.

The grass collector is made of reinforced double plastic-layer on the upper side. This important feature is responsible for its high sturdiness and resistance.

The lower side of the collector is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle, which is located on the upper side of the grass collector in order to facilitate the collector removal.

Focus on thefull-grass collector indicator.

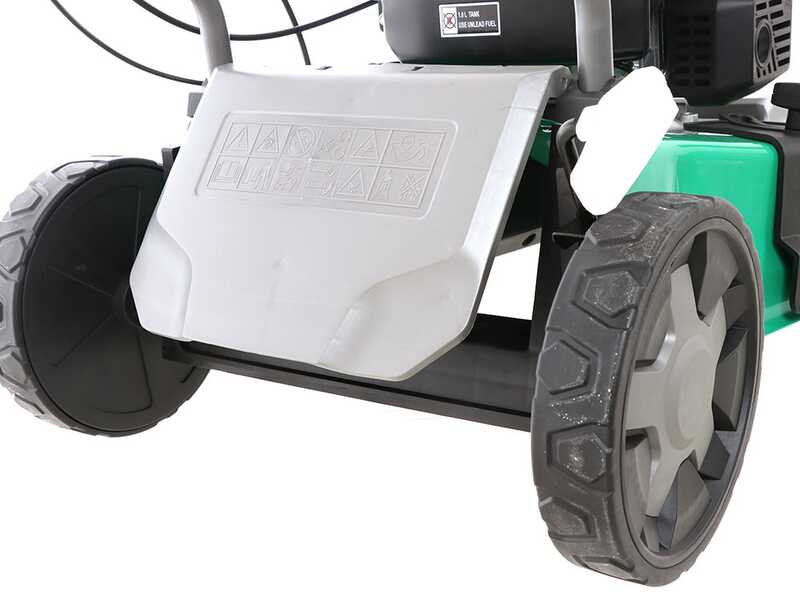

Four mowing system: rear discharge

REAR DISCHARGE SYSTEM:
this system allows mowing grass without the grass collector, and discharging the grass clippings from the back of the lawn mower.

You will just need to fix the proper locking device, which keeps open the rear side of the lawn mower.

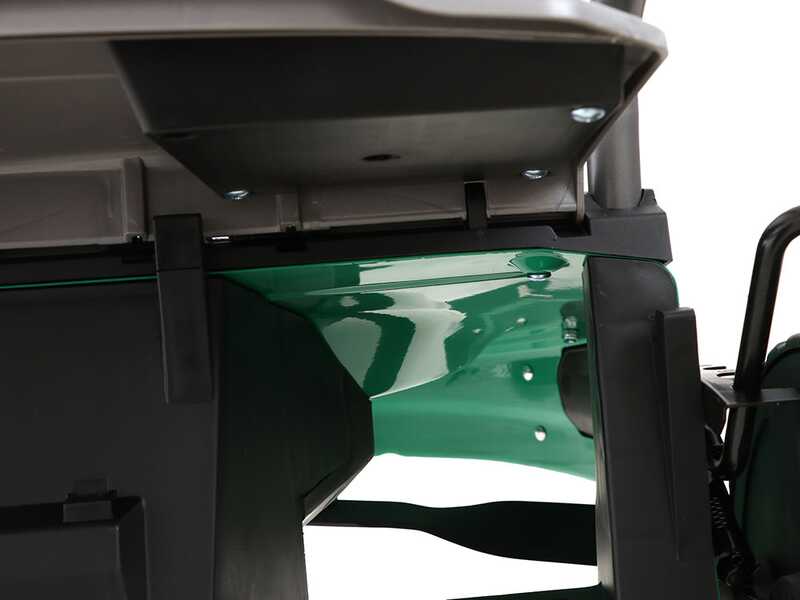

Four mowing systems: mulching plug

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Integrated mulching plug located on the rear deflector. Indeed, it is simply needed to close the deflector in order to operate the mulching option.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

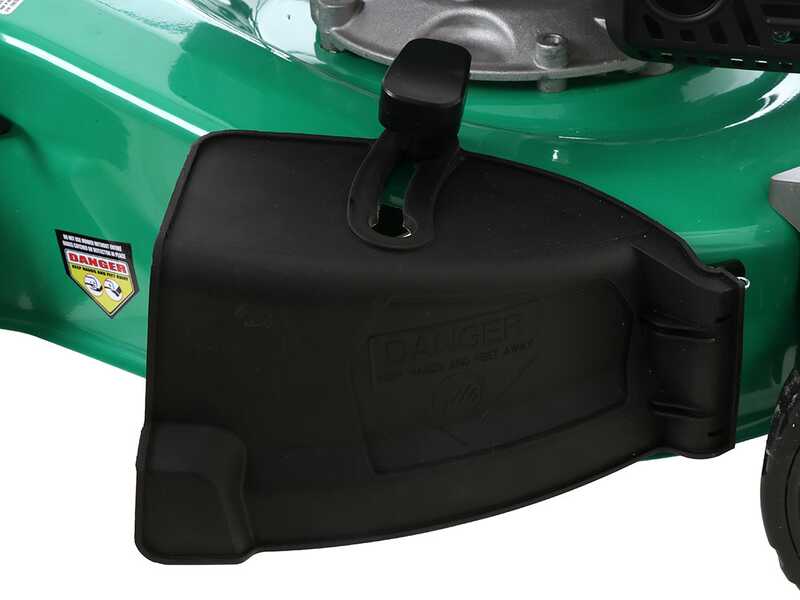

Four mowing systems: side discharge

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side exhaust deflector).

Leaving lowered the rear deflector as to close the rear grass discharge. After that, you will just need to open the side cover by means of the proper lever.

Controls and settings

Coated handlebar to ensure the highest comfort to the Operator while working.

Simple and user-friendly controlsplaced on the handlebar.

Focus on the engine rev throttle lever

Blade brake lever (in front of the handlebar) - necessary to start the lawn mower, it must be pulled constantly for safety reasons; once released, it automatically switches the engine off and stops the blade.

Drive engaging lever (the lever behind the handlebar)

Detachable handlebar for easy storing.

Product Features
Model:
GB-LM 51 BS
Body material:
Enamelled steel
Activation:
spark ignition
Self-propulsion:
rear wheel traction
Deck width:
50 cm
Grass collector:
Standard equipment
Side discharge:
Standard equipment
Mulching system:
Standard equipment
Rear discharge:
Standard equipment
Type:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Grass collector capacity:
60 l
Surface recommended:
1300 m²
Foldable:
Yes
Start:
Recoil
Manufacturing Country:
China
Motor data
Motor/Engine brand:
B&S
Engine Model:
750EX
Motor type:
4 stroke
Cubic Capacity:
161 cm³
Number of pistons:
1
Rated output:
5.5 HP
Real power:
3.35 HP
Fuel:
gasoline
Power supply:
Overhead valve
Engine lubrication type:
Oil bath
Tank capacity:
1 L
Oil tank capacity:
0.6 L
Noise level:
96 dB(A)/7m
Motor/blade transmission:
Drive belt
Manufacturing Country:
USA
Transmission data
Throttle lever:
Yes
Traction:
rear wheels
Actioning :
lever on the handle
Cutting data
Housing material:
Enamelled steel
Cutting width:
51 cm
Number of blades:
1
Blade type:
multi purpose
Blade security brake:
Yes
Cutting height adjustment :
Centralized (1 lever)
Maximum cutting height:
75 mm
Minimum cutting height:
25 mm
Nr. of Cutting positions:
7
Water hose connection:
yes
Cutting width:
51 cm
Equipment
Collector:
Standard equipment
Grass side discharge deflector:
yes
Recoil Starter (cord):
Yes
Rear wheels size:
230 mm
Front wheels size:
180 mm
High rear wheels:
Yes
Wheels mounted on ball-bearings:
Yes
Wheels type:
Plastic wheels mounted on ball-bearings
Rubber-coated soft grip:
Yes
Foldable/collapsible handlebar/s:
Yes
Free gifts/extra features
Kit mulching:
On standard equipment
Engine maintenance kit:
No
Free engine oil bottles :
2
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
156X50,5X104
Net weight:
29.9 Kg
Packaging:
Original packaging on pallet
Packaging dimensions cm (LxWxH):
8,5X57,2X50
Gross weight (packaging incuded) :
32 Kg
Assembly time:
15 minutes

FORE FREE: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items / Extra features

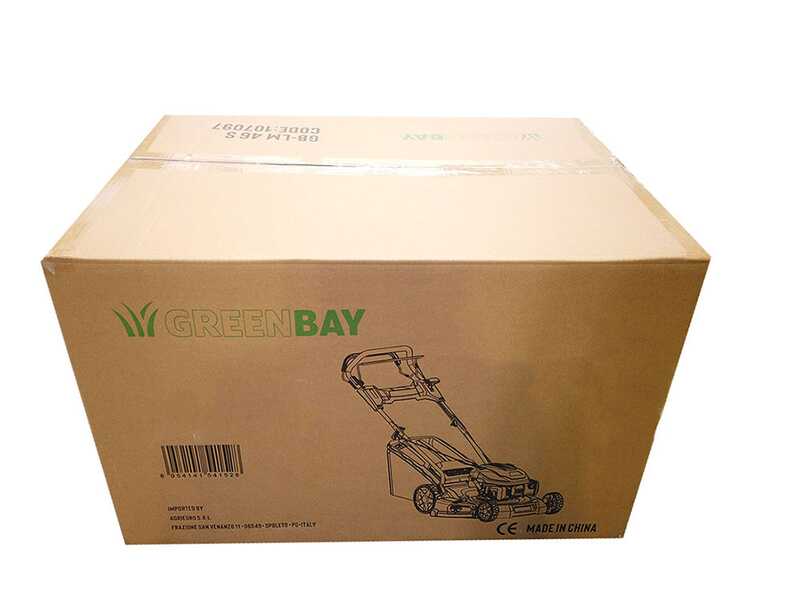

The lawn mower is shipped in its original packaging.

Rear grass collector: 60 L

The Instruction manual is included in the packaging
