Description

Haiti Ovale 915 X 470 cm Pool

The Haiti Ovale 915 x 470 cm pool is an above-ground steel pool from the Gre line. This model features a steel frame with a white finish and an oval shape, guaranteeing stability and durability. The dimensions of the pool are 915 cm in length, 470 cm in width and 132 cm in height. The volume of water is 43.59 m³, while the external dimensions are 920 x 505 x 132 cm.

The filtration system is sand-based with a flow rate of 8 m³/h, and comes with a blue PVC liner with anti-UV treatment. The equipment includes a safety ladder with platform and six steps, polyethylene protective mat, galvanised steel container structure and profiles, as well as a skimmer unit.

Installation is performed using the Omega System, based on burying bars that will support the structure, thus eliminating the need for side posts. The Haiti pool is ideal for those looking for a robust and durable solution, with components that comply with European standards, guaranteeing safety and quality.

Attention: please assess eventual need for permits to the local municipality.

Gre Haiti Oval 915x470x132cm - Above-ground Pool - In-ground Crossbeams

Omega System

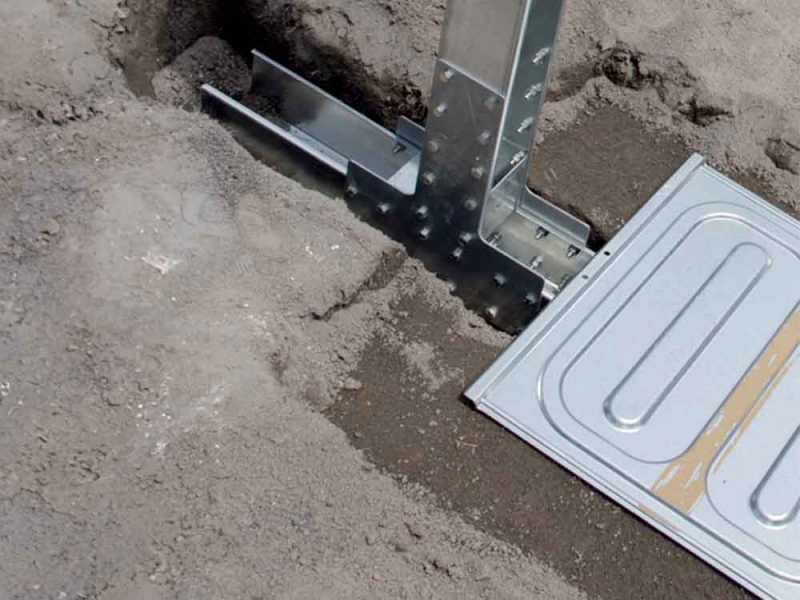

The Omega system, used to assemble the Haiti line of swimming pools, is a feature of the Gre brand that provides a system with in-ground crossbeams.

To install a swimming pool with the Omega system, simply prepare the ground so that it is completely levelled and dig about 15 cm to bury the steel beams. These beams support the weight of the pool once it is filled with water and prevent the walls from deforming. Thanks to their placement under the ground, the beams guarantee the stability of the ground and the pool itself, ensuring a solid and durable structure.

In addition, for installation, a reinforced concrete slab can optionally be inserted for added strength.

The models in the Haiti range are designed to facilitate the installation process, including all the necessary components: a robust steel frame, a high-quality liner, a skimmer to keep the water clean, an efficient sand filter, a protective mat and a ladder for easy access. Such completeness allows anyone to enjoy a well-built and functional pool in their own garden.

Other Features

The Gre Haiti Ovale 915 x 470 cm pool features a durable steel structure and is quick and easy to install, guaranteeing relaxation and fun for the whole family. In addition, the pool is assembled using the omega system, giving it greater stability.

Shape: Oval
Bulk: 920 x 505 x 132 cm
Inner measurements: 901 x 465 x 130 cm
Water line height: 117 cm
Capacity: 43,590 L
Swimming surface: 37.26m².

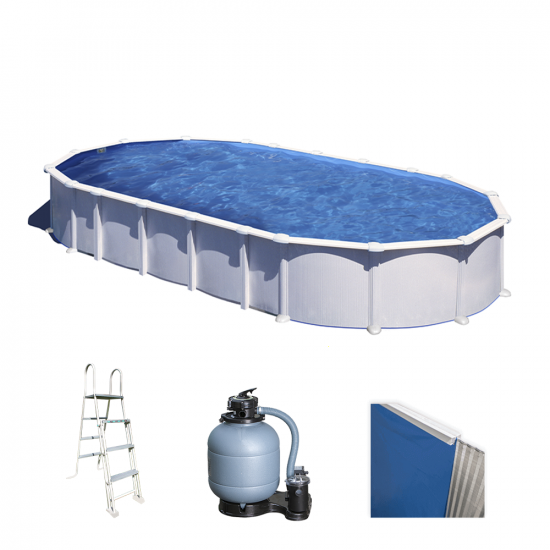

The equipment supplied for Gre’s Haiti Ovale Pool 915 x 470 cm are:

PVC liner: Blue UV-treated, with a thickness of 40/100, it guarantees greater durability and resistance to weathering.
Sand purifier: With a flow rate of 8 m³/h, includes silex sand (approx. 85 kg). The filters comply with European regulations.
Safety ladder: Equipped with a platform and 6 steps (3 on each side), that can be removed on one side to prevent children from entering the pool and avoiding accidents. Compliant with European regulations.

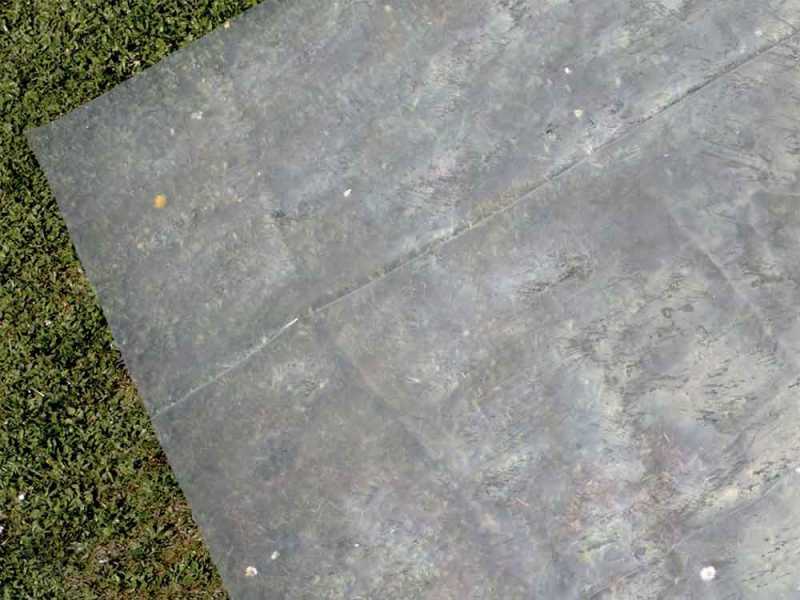

Protective mat: Made of polyethylene, it protects the base of the pool.
Container structure:: Consisting of galvanised steel profiles, with injection moulded protectors for the joints between the horizontal profiles.
Included accessories: Includes skimmer unit and connection pipes for complete handling of the filtration system.

Installation method and warranty

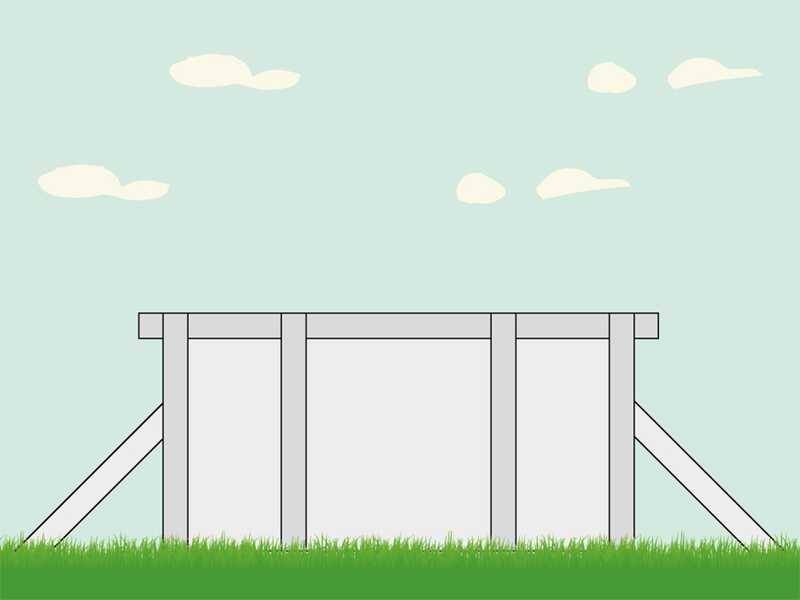

The pool can be installed in three ways: above ground, semi-inground or inground. In all cases, specific installations instructions must be followed to ensure safety and durability.

Concrete base required:
The pool must be installed on a concrete slab in all installation modes (above-ground, semi-inground, inground) to ensure stability and prevent damage.

Retaining walls and insulation for inground sheet metal:
For the inground parts of the pool, retaining walls and insulating material must be installed between the wall and the sheet metal to prevent damage caused by moisture and soil pressure.

Complete installation without modifications:
The pool must be assembled with all components supplied, without modifications or omissions, to avoid safety risks.

If the installation conditions are not met, the 5-year extended warranty on the sheet metal will be void, and only the 2-year legal warranty from the date of purchase will apply.
