Gre Haiti Oval 800x470x132cm - Above-ground Pool - In-ground Crossbeams

Add a question
ID: 114351

EAN: 8412081224633

MPN: KITPROV8188

Gre Haiti Oval 800x470x132cm - Above-ground Pool - In-ground Crossbeams
Shape
Oval
Fixing system
In-ground crossbeams
Pool Colour
White
Seating capacity
16-20 people
Pool length
800 cm
Pool width
470 cm
Pool height
132 cm
Max. water height
117 cm
Pool capacity
37470 L
Max. flow rate per hour
8000 L/h
Filter
Sand
Standard tarpaulin (supplied)
Yes
Ladder (supplied)
yes
Manufacturing country
Spain
Product Features
Model:
Haiti Ovale
Shape:
Oval
Seating capacity:
16-20 people
Pool length:
800 cm
Pool width:
470 cm
Pool height:
132 cm
Max. water height:
117 cm
Fixing system:
In-ground crossbeams
Pool Colour:
White
External structure material:
Galvanised steel
Pool material:
Steel
Pool capacity:
37470 L
Manufacturing country:
Spain
Pump data
Max. flow rate per hour:
8000 L/h
Filter:
Sand
Equipment
Standard tarpaulin (supplied):
Yes
Ladder (supplied):
yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
800x470x132 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x169 cm
Weight including packaging:
473 Kg
Assembly time:
over 90 minutes
Out of stock
Free Shipping
Suggested price:
€ 5.101,23
€ 4.221,97
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

Haiti Ovale 800 X 470 cm Pool

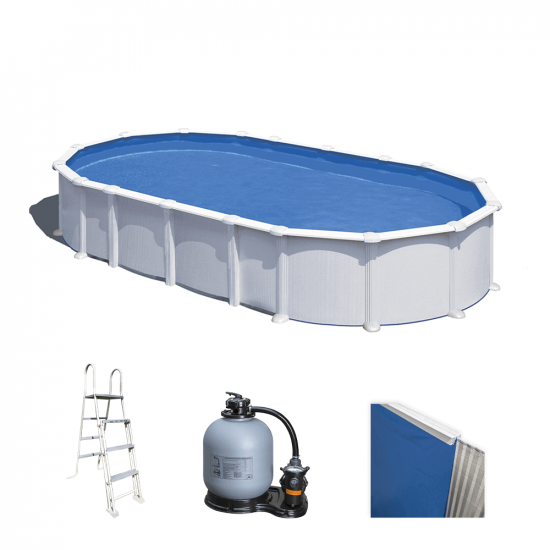

Gre’s Haiti Ovale 800 x 470 cm pool is a robust, quality structure made of galvanised steel with a white finish. This above-ground pool is installed using the Omega System, i.e. fixing with in-ground cross-pieces, which eliminates the need to insert lateral posts, excellent for any type of ground, previously levelled.

With a water capacity of 37.47 m³, the pool offers plenty of space for swimming and fun. The blue PVC liner with anti-UV coating protects the liner from sun damage, extending the pool's longevity. The sand filtration system, with a flow rate of 8 m³/h, ensures effective cleaning in compliance with European standards, keeping the water crystal clear at all times.

The equipment includes a safety ladder with a platform and six steps, allowing comfortable and safe access to the pool. The polyethylene protective mat guards the pool base from wear and tear, increasing its longevity. The container structure and galvanised steel profiles are designed for maximum strength and stability, while the overall dimensions of the assembled product are 815 x 470 x 132 cm.

Attention: assess possible need for permits at the municipality of residence.

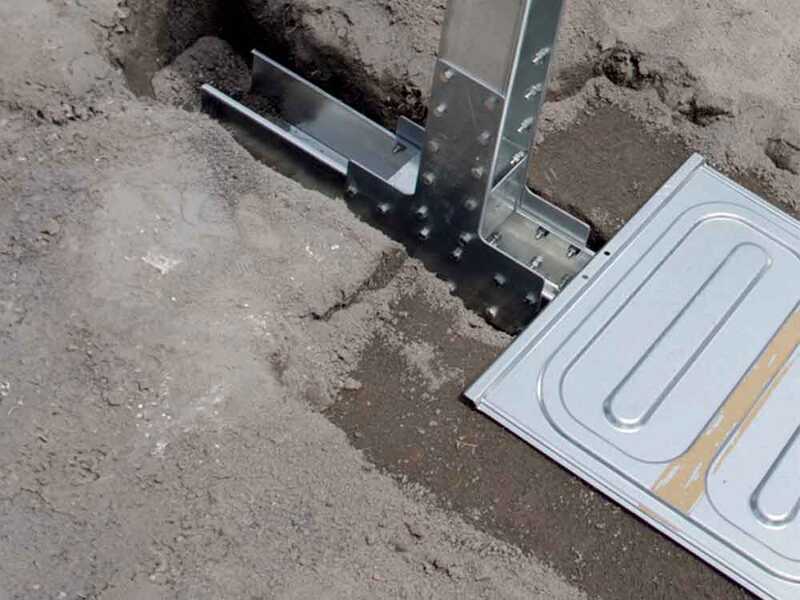

Omega System

The Omega system, used to assemble the Haiti range of swimming pools, is a feature of the Gre brand that provides a system with inground bars.

To install a swimming pool with the Omega system, simply prepare the ground so that it is completely levelled and dig about 15 cm to bury the steel beams. These beams support the weight of the pool once it is filled with water and prevent the walls from deforming. Thanks to their placement under the ground, the beams guarantee the stability of the ground and the pool itself, ensuring a solid and durable structure.

In addition, for installation, a reinforced concrete slab can optionally be inserted for added strength.

The models in the Haiti range are designed to facilitate the installation process, including all the necessary components: a robust steel frame, a high-quality liner, a skimmer to keep the water clean, an efficient sand filter, a protective mat and a ladder for easy access. Such completeness allows anyone to enjoy a well-built and functional pool in their own garden.

Other Features

The Gre Haiti Ovale 800 x 470 cm pool features a durable steel structure and is quick and easy to install, guaranteeing relaxation and fun for the whole family. In addition, the pool is assembled using the omega system, giving it greater stability.

  • Shape: Oval

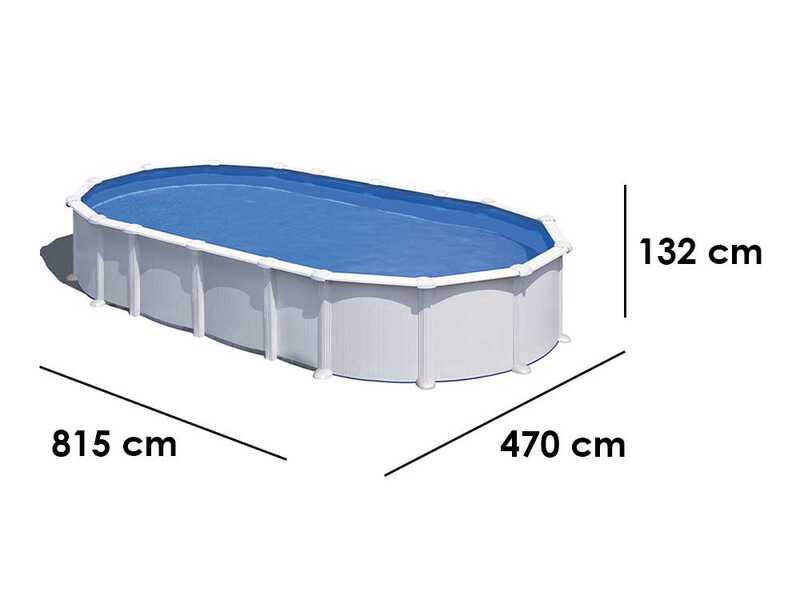

  • Bulk: 815 x 470 x 132 cm
  • Inner measurements: 790 x 465 x 130 cm
  • Water line height: 117 cm
  • Capacity: 37,470 L
  • Swimming surface: 32.03m².

The equipment supplied for Gre’s Haiti Ovale Pool 800 x 470 cm are:

  • PVC liner: Blue UV-treated, with a thickness of 40/100, it guarantees greater durability and resistance to weathering.
  • Sand purifier: With a flow rate of 8 m³/h, includes silex sand (approx. 85 kg). The filters comply with European regulations.
  • Safety ladder: Equipped with a platform and 6 steps (3 on each side), that can be removed on one side to prevent children from entering the pool and avoiding accidents. Compliant with European regulations.

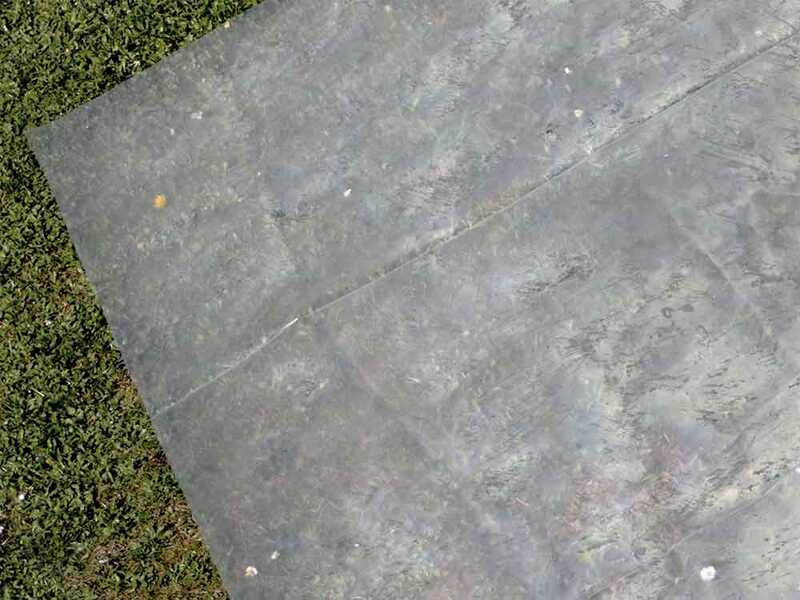

  • Protective mat: Made of polyethylene, it protects the base of the pool.
  • Container structure:: Consisting of galvanised steel profiles, with injection moulded protectors for the joints between the horizontal profiles.
  • Included accessories: Includes skimmer unit and connection pipes for complete handling of the filtration system.
Free items & Standard equipment

Standard Equipment

The pool is shipped in its original packaging together with the instructions manual and:

  • PVC liner
  • Sand purifier
  • Safety ladder
  • Protective mat
  • Container structure
  • Injection moulded joint protectors
  • Skimmer
  • Connecting pipes
