Description

Haiti Ovale 730 X 375 cm Pool

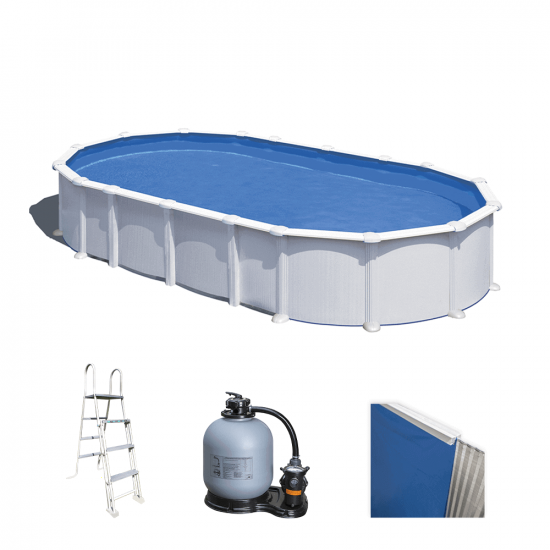

Gre’s Haiti Ovale 730 x 375 cm pool is a high-quality solution for those looking for a spacious and durable above-ground pool that can be used to share moments of relaxation and fun. This pool features a robust galvanised steel structure with a white finish, which guarantees durability.

The pool dimensions are 730 x 375 x132 cm, with a water capacity of 28.21 m³, while the external dimensions are 744 x 400 x 132 cm. The pool is installed using the Omega System, consisting of burying crossbars, facilitating the process. This process gives the pool greater stability without the need for side posts.

The 6 m³/h sand filtration system, which complies with European standards, ensures clean water at all times. The pool is supplied with a 40/100 thick UV treated blue PVC liner. It includes a safety ladder with a platform and six steps, which can be removed on one side to prevent unauthorised access. It is also supplied with a protective polyethylene mat for the base and a skimmer unit complete with connecting pipes for the filtration system.

Attention: assess possible need for permits at the municipality of residence.

Gre Haiti Oval 730x375x132cm - Above-ground Pool - In-ground Crossbeams

Omega System

The Omega system, used to assemble the Haiti range of swimming pools, is a feature of the Gre brand that provides a system with inground bars.

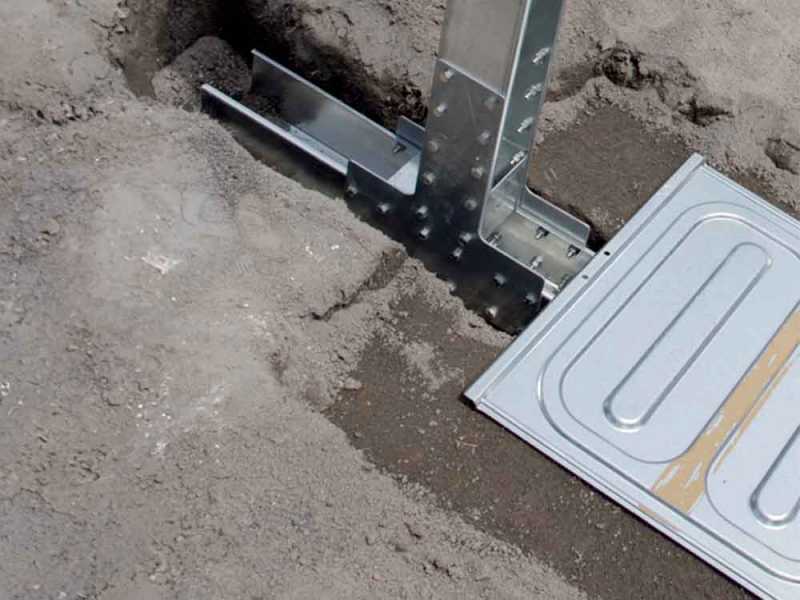

To install a swimming pool with the Omega system, simply prepare the ground so that it is completely levelled and dig about 15 cm to bury the steel beams. These beams support the weight of the pool once it is filled with water and prevent the walls from deforming. Thanks to their placement under the ground, the beams guarantee the stability of the ground and the pool itself, ensuring a solid and durable structure.

In addition, for installation, a reinforced concrete slab can optionally be inserted for added strength.

The models in the Haiti range are designed to facilitate the installation process, including all the necessary components: a robust steel frame, a high-quality liner, a skimmer to keep the water clean, an efficient sand filter, a protective mat and a ladder for easy access. Such completeness allows anyone to enjoy a well-built and functional pool in their own garden.

Other Features

The Gre Haiti Ovale 730 x 375 cm pool features a durable steel structure and is quick and easy to install, guaranteeing relaxation and fun for the whole family. In addition, the pool is assembled using the omega system, giving it greater stability.

Shape: Oval

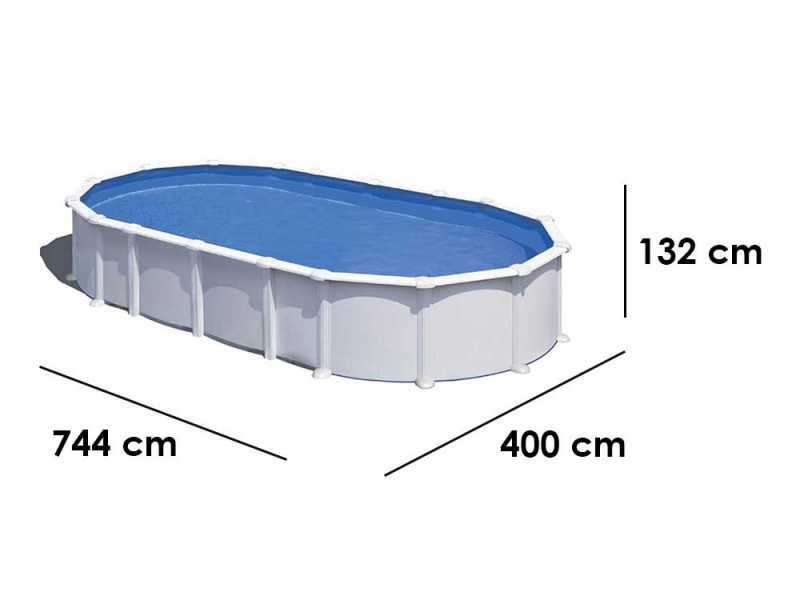

Bulk: 744 x 399 x 132 cm
Inner measurements: 730 x 375 x 130 cm
Water line height: 117 cm
Capacity: 28,210 L
Swimming surface: 24.12m².

The equipment supplied for Gre’s Haiti Ovale Pool 730 x 375 cm are:

PVC liner: Blue UV-treated, with a thickness of 40/100, it guarantees greater durability and resistance to weathering.
Sand purifier: With a flow rate of 6 m/h, it includes silex sand (approx. 40 kg). The filters comply with European regulations.
Safety ladder: Equipped with a platform and 6 steps (3 on each side), that can be removed on one side to prevent children from entering the pool and avoiding accidents. Compliant with European regulations.

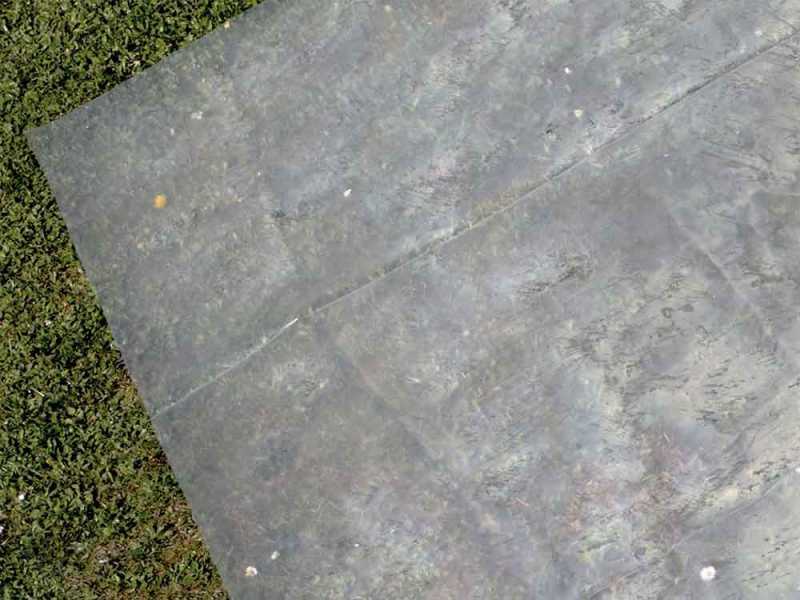

Protective mat: Made of polyethylene, it protects the base of the pool.
Container structure:: Consisting of galvanised steel profiles, with injection moulded protectors for the joints between the horizontal profiles.
Included accessories: Includes skimmer unit and connection pipes for complete handling of the filtration system.

Installation method and warranty

The pool can be installed in three ways: above ground, semi-inground or inground. In all cases, specific installations instructions must be followed to ensure safety and durability.

Concrete base required:
The pool must be installed on a concrete slab in all installation modes (above-ground, semi-inground, inground) to ensure stability and prevent damage.

Retaining walls and insulation for inground sheet metal:
For the inground parts of the pool, retaining walls and insulating material must be installed between the wall and the sheet metal to prevent damage caused by moisture and soil pressure.

Complete installation without modifications:
The pool must be assembled with all components supplied, without modifications or omissions, to avoid safety risks.

If the installation conditions are not met, the 5-year extended warranty on the sheet metal will be void, and only the 2-year legal warranty from the date of purchase will apply.
