Description

Haiti Ovale 610 X 375 cm Pool

Gre’s Haiti Ovale 610 x 375 cm pool is perfect for those looking for a spacious and durable above-ground pool for moments of relaxation and fun. The galvanised steel structure with white finish guarantees durability. It boasts a water capacity of 23.28 m³ and an external footprint of 634 x 400 x 132 cm.

The installation relies on the Omega System, which installs crossbars for greater stability without side posts. The 6 m³/h sand filtration system, which complies with European standards, keeps the water clean.

The pool includes a blue UV-treated PVC liner with a thickness of 40/100, a safety ladder with a platform and six steps, which can be dismantled to prevent unauthorised access, a polyethylene protective mat for the base, and a skimmer unit with connecting pipes for the filtration system.

This pool allows for easy installation and a stable structure, making it ideal for those looking for a high-quality above-ground solution that can be inserted into any type of garden or ground.

Attention: assess possible need for permits at the municipality of residence.

Gre Haiti Oval 610x375x132cm - Above-ground Pool - In-ground Crossbeams

Omega System

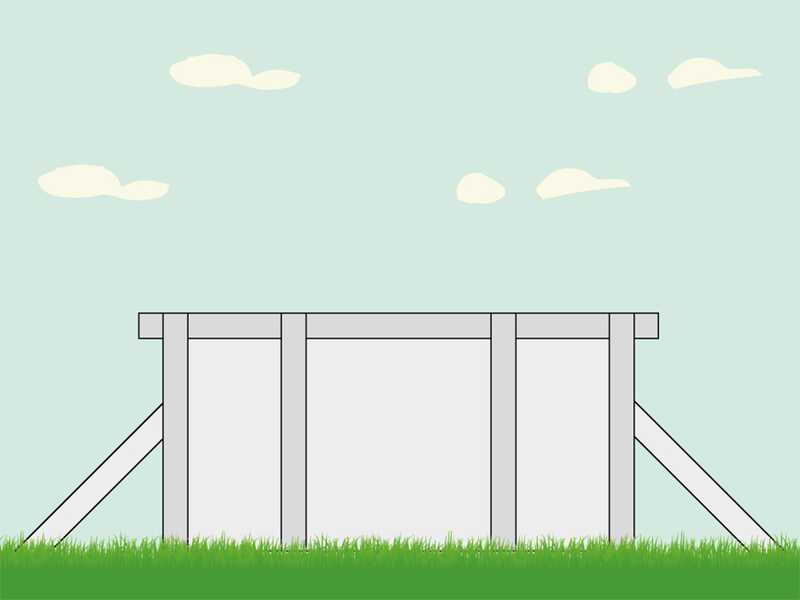

The Omega system, used to assemble the Haiti range of swimming pools, is a feature of the Gre brand that provides a system with inground bars.

To install a swimming pool with the Omega system, simply prepare the ground so that it is completely levelled and dig about 15 cm to bury the steel beams. These beams support the weight of the pool once it is filled with water and prevent the walls from deforming. Thanks to their placement under the ground, the beams guarantee the stability of the ground and the pool itself, ensuring a solid and durable structure.

In addition, for installation, a reinforced concrete slab can optionally be inserted for added strength.

The models in the Haiti range are designed to facilitate the installation process, including all the necessary components: a robust steel frame, a high-quality liner, a skimmer to keep the water clean, an efficient sand filter, a protective mat and a ladder for easy access. Such completeness allows anyone to enjoy a well-built and functional pool in their own garden.

Other Features

The Gre Haiti Ovale 610 x 375 cm pool features a durable steel structure and is quick and easy to install, guaranteeing relaxation and fun for the whole family. In addition, the pool is assembled using the omega system, giving it greater stability.

Shape: Oval

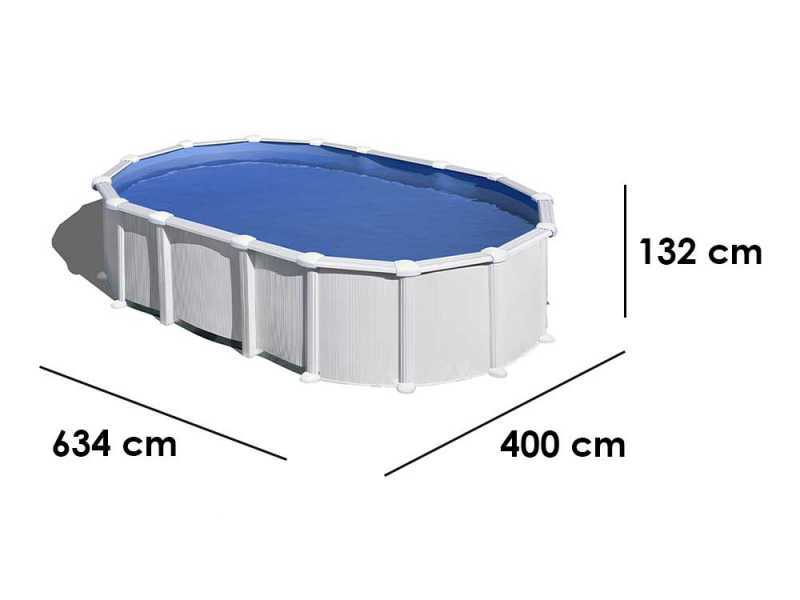

Bulk: 634 x 400 x 132 cm
Inner measurements: 610 x 375 x 130 cm
Water line height: 117 cm
Capacity: 23,280 L
Swimming surface: 23.28m².

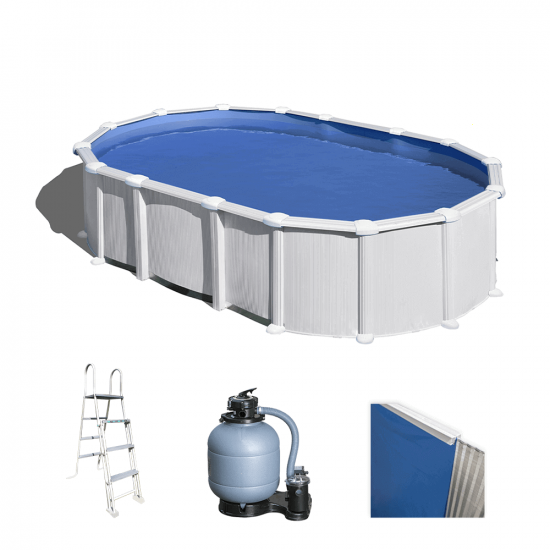

The equipment supplied for Gre’s Haiti Ovale Pool 610 x 375 cm are:

PVC liner: Blue UV-treated, with a thickness of 40/100, it guarantees greater durability and resistance to weathering.
Sand purifier: With a flow rate of 6 m/h, it includes silex sand (approx. 40 kg). The filters comply with European regulations.
Safety ladder: Equipped with a platform and 6 steps (3 on each side), that can be removed on one side to prevent children from entering the pool and avoiding accidents. Compliant with European regulations.

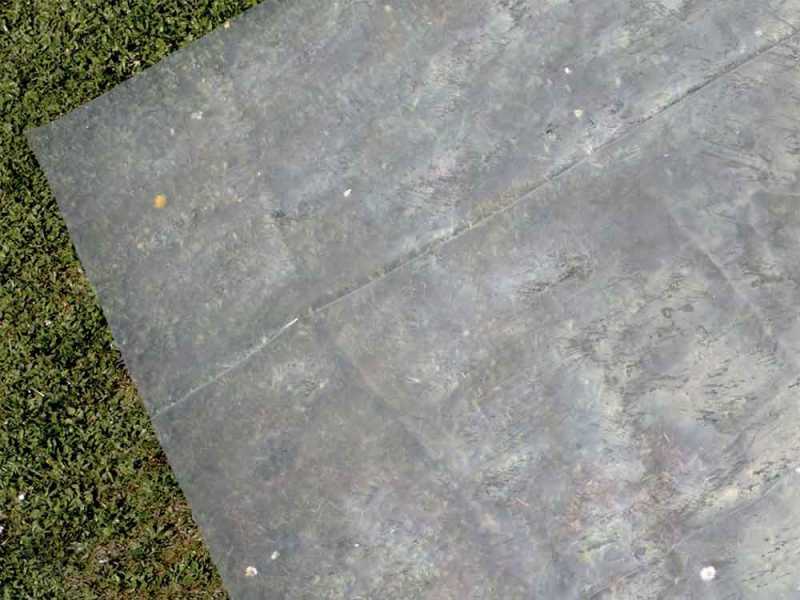

Protective mat: Made of polyethylene, it protects the base of the pool.
Container structure:: Consisting of galvanised steel profiles, with injection moulded protectors for the joints between the horizontal profiles.
Included accessories: Includes skimmer unit and connection pipes for complete handling of the filtration system.
