GoodYear GY2510OF Electric Air Compressor - 24 L Tank - 8 Bar Pressure

Compressor tank
24 l
Max. operating pressure
8 bar
Air displacement
150 L/min
Pump unit revolutions per minute
1750 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
yes
Rated output
1 HP
Activation
Single-phase
FREE:
FOR FREE: no. 8 compressor connections
FREE:
FOR FREE: no. 8 compressor connections
€ 171,33
VAT Included
Prompt Delivery
9 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602001

EAN: 8434691081727

MPN: GY251OF

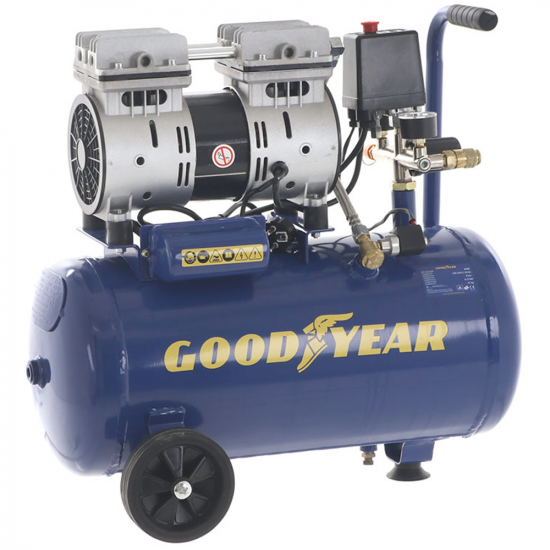

GoodYear GY2510OF Electric Air Compressor

The GoodYear GY2510OF silenced air compressor, thanks to its 2 powerful heads, can be used for a variety of purposes. It’s the ideal tool for all semi-professional works and for professionals who want a powerful and reliable equipment. It is also equipped with practical anti-vibration pads placed at the front for easy movement and to reduce noise emissions and vibrations.

Its large capacity (24 L) allows it to be used even for extended working time, slightly above the standard average. It’s a very innovative product, one of the first silenced oilless electric 50 L air compressors that feature 2 pumping heads.

It has a large-sized compressed air storage tank of 24 liters. It weighs only 20 kg and can be easily transported thanks to its large wheels and upper handle.
It mounts 2 silenced pumping heads with a power of 1 HP, this air compressor has a 150 L/min compressed air suction capacity. It’s capable of reaching a 8 bar Max pressure. The particular structure allows it to be used without oil (oilless).

Suitable for a number of applications:

  • Air-blowing
  • Inflation
  • Airbrushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional Painting
  • Screw Driving
  • Washing operations
  • Chiselling
  • Polishing
  • Grinding

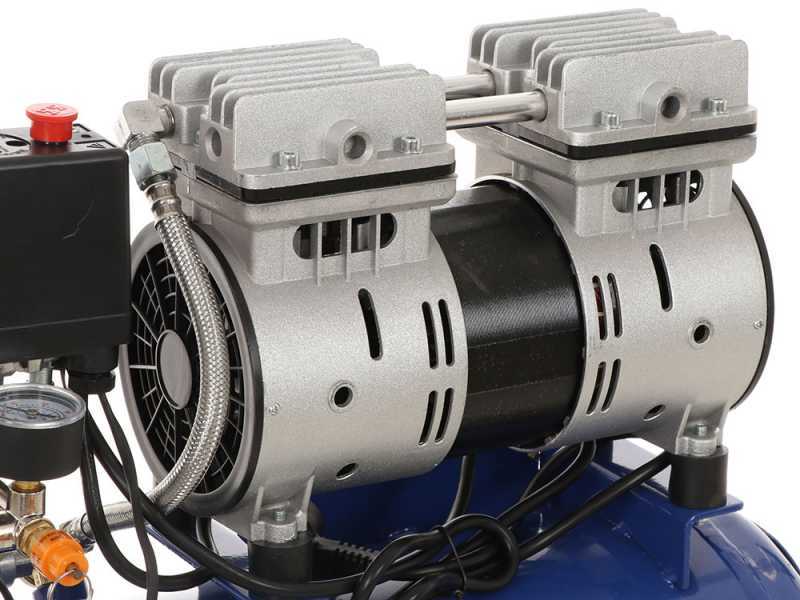

Technical features

This air compressor, while remaining compact in size, offers high performance thanks to the 2 pumping units


Pump type: coaxial

Suction air capacity: 150 L/min


Pressure: 8 bar

Electric motor power: 1 HP

Tank: 24 L


Size:

Length: 530 mm

Width: 320 mm

Height: 520 mm

Weight: 20 kg

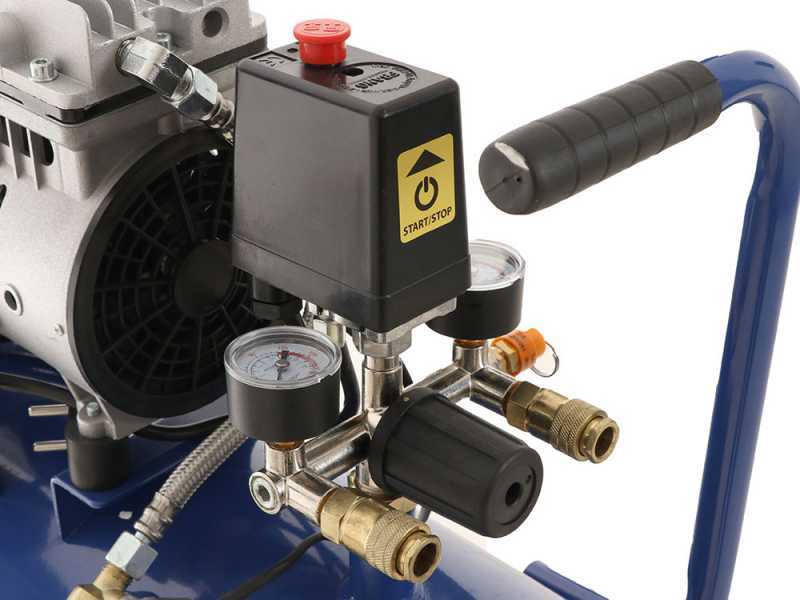

Controls

Easy and user-friendly controls, which are divided into:

Output air pressure gauge

Tank air pressure gauge

Female outlet fittings

Pressure adjusting knob

Power switch

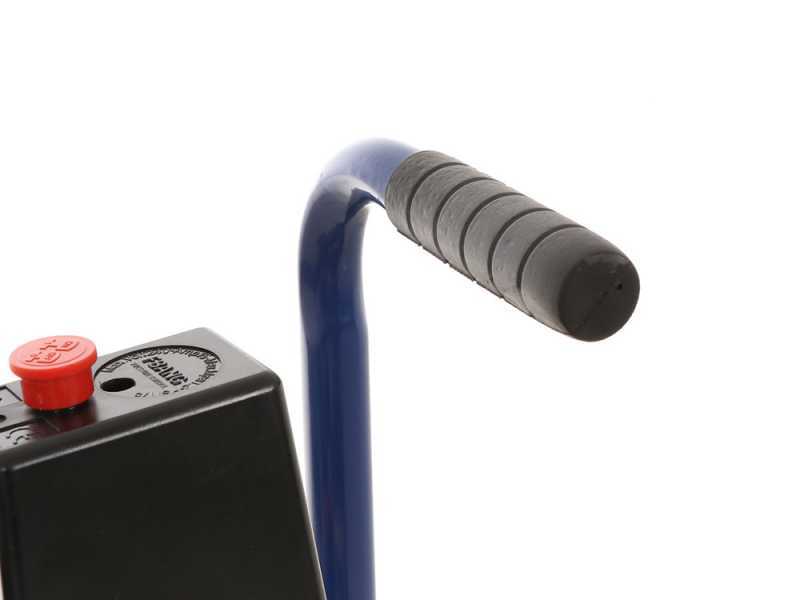

Other features

Schuko socket

Ergonomic handle

Durable plastic wheels

Front anti-vibration pads

Air drain valve

Anti-vibration pads placed under the heads

Product Features
Model:
GY2510OF
Compressor types:
horizontal
Typology:
coassiale
Activation:
Single-phase
Activation:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Compressor tank:
24 l
Manufacturing Country:
China
Motor data
Motor type:
Electric single-phase
Rated output:
1 HP
Silenced:
yes
Power supply:
220V power supply
Tank capacity:
24 L
Manufacturing Country:
China
Pump data
Pump brand:
Miralbueno
Air displacement:
150 L/min
Pumping unit:
Piston
Pump type:
Single-stage
Lubrication:
Oil-less
Number of cylinders:
2
Cooling down side collector:
no
Transmission data
Transmission type:
direct coaxial type
Pump unit revolutions per minute:
1750 RPM
Equipment
Number of exits:
2
Front Handle:
Yes
Rubber-coated soft grip:
Yes
Handle for lifting the machine:
Yes
Free gifts/extra features
Wooden pallet (Safe shipment):
yes
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
53x32x52 cm
Net weight:
20 Kg
Packaging:
On pallet
Packaging dimensions cm (LxWxH):
58x25x59 cm
Gross weight (packaging incuded) :
21.5 Kg
Assembly time:
15 minutes

Free items: air compressor maintenance kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick-action coupling for the transformation of the quick coupling female supplied on the compressor in the traditional bayonet coupling (also allows use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging

Instruction manual included.
