GeoTechPro BHF 225 - Backhoe for stationary tractor

Questions & Answers (1)
ID: 111868

EAN: 8053435095112

MPN: BHM225

GeoTechPro BHF 225 - Backhoe for stationary tractor
Body material
Steel
Tractor power
From 45 to 80 HP
Independent Oil Tank
Yes
Bucket width
40 cm
Digging force
1100 Kg
Indipendent stabiliser
2
Stabiliser length
52 cm
180° arm rotation
yes
Reach
391 cm
Excavation depth
225 cm
Maximum height
310 cm
Arm piston diameter
70 mm
Cardan shaft
Yes
Product Features
Model:
BHF 225
Tractor power:
From 45 to 80 HP
Body material:
Steel
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Bucket width:
40 cm
Digging force:
1100 Kg
Indipendent stabiliser:
2
Stabiliser length:
52 cm
180° arm rotation:
yes
Reach:
391 cm
Excavation depth:
225 cm
Maximum height:
310 cm
Arm piston diameter:
70 mm
No Displacement:
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
205x195x105 cm
Net weight:
800 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
210x200x110 cm
Gross weight (packaging included) :
830 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 6.031,61
€ 5.126,87
VAT Included
You're viewing:
Customers also viewed:
Description

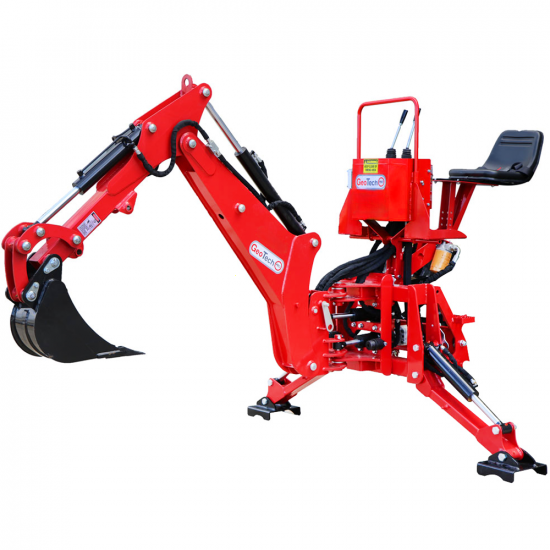

GeoTech-Pro BHF 225 backhoe

The BHF 225 backhoe was developed for both agricultural and construction projects, guaranteeing a first-class level of efficiency and operational versatility.

Main features of the BHF 225 Backhoe:

  1. Wide Versatility of Use: The BHF 225 is designed to perform a wide range of tasks, including transplanting, creating drainage systems, creating steps in sloping terrain, and removing stones and debris. Its ability to adapt to different tasks also makes it ideal for the maintenance of ditches and canals, thus meeting a wide range of operational needs.

  2. Efficiency in Various Terrain Conditions The backhoe is particularly effective on a variety of soil types, both hard and soft. This feature is crucial to ensure high performance and constant reliability, regardless of ground conditions.

  3. Autonomous hydraulic system: Equipped with an independent hydraulic system, the BHF 225 offers optimum performance and complete operational autonomy. This feature allows efficient use of the backhoe.

  4. Universal compatibility with various tractors: Designed to be mounted on tractors with a minimum power output of 45 HP, the BHF 225 fits a wide variety of medium tractors. This makes it a versatile option suitable for a wide range of agricultural machinery.

  5. Mobility and Operational Accuracy: The arm of the BHF 225 can rotate up to 180°, providing exceptional mobility and facilitating access to hard-to-reach work areas. The rotation capability greatly improves accuracy and flexibility in digging operations.

  6. Robustness and Durability: The key components of the backhoe are made of hardened, tempered and ground steel pins and bushings, and are equipped with a lubrication system with greaser. This solid construction guarantees long life and reliable performance.

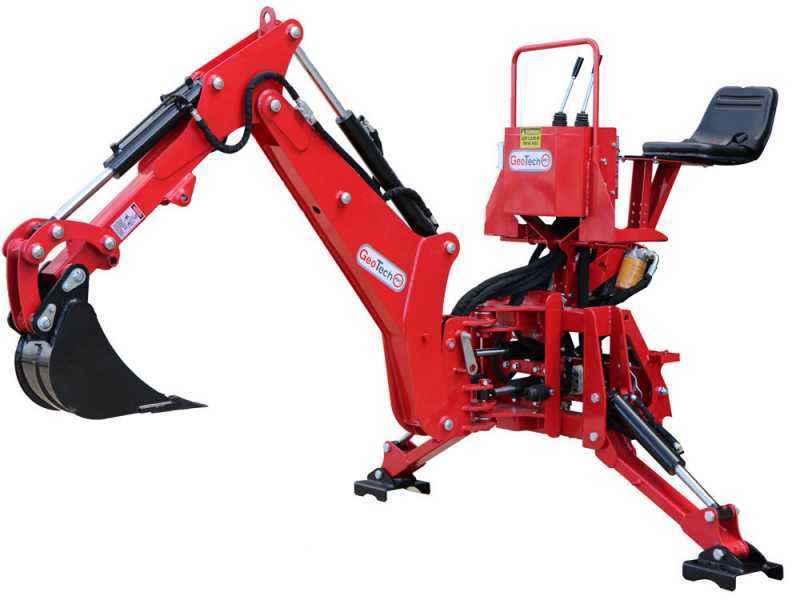

Section arm

The section arm of this backhoe is designed for maximum efficiency and durability even in unfavourable working conditions. Made of high-strength steel, this arm can withstand heavy loads and resist wear and corrosion.

Its ergonomic design and reinforced structure ensure greater stability and precision when lifting and digging. The arm offers a wide range of movement, allowing the operator to reach and work in confined spaces with ease.

In addition, the intuitive and responsive control system ensures smooth and controlled operation, reducing operator fatigue and increasing overall productivity.

Arm extension measurements:

Digging force: 1100 Kg

Arm opening up to 180°

Excavation depth (A): 225 cm

Reach (B): 391 cm

Maximum height (C): 310 cm

Arm fully to the left

Arm fully to the right

Central arm

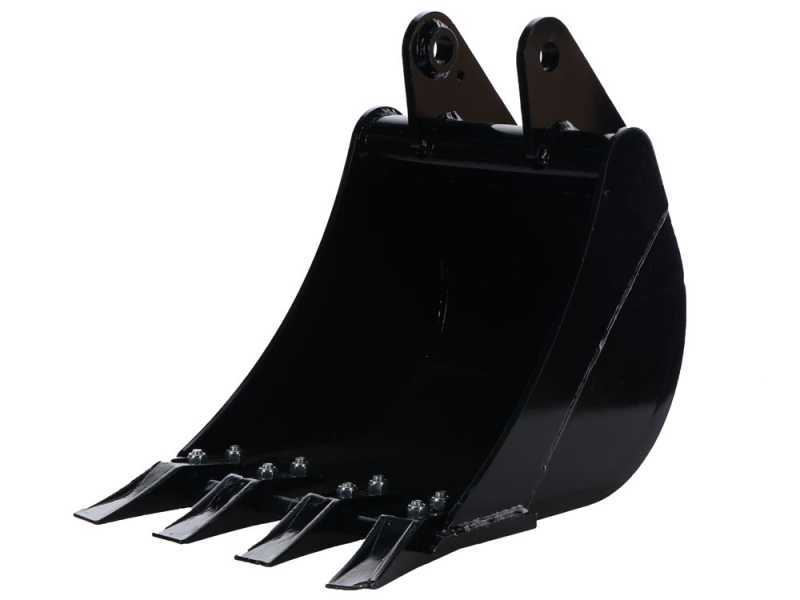

40 cm bucket

The backhoe's bucket with its robust profile and optimised shape ensures excellent ground penetration and efficient material collection.

Equipped with teeth made to keep its sharpness for a long time, reducing the need for frequent maintenance.

Bucket width: 40 cm

Bucket position 1

Bucket position 2

Bucket position 3

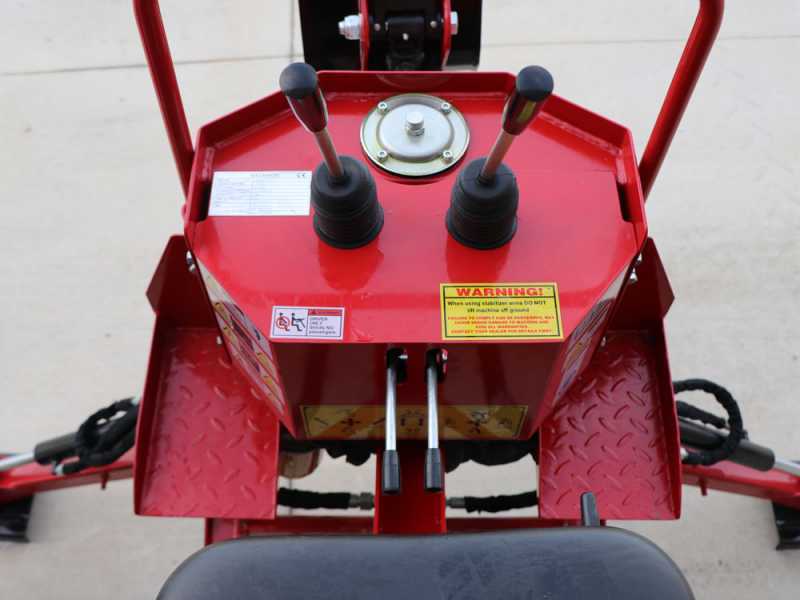

Control station

The control station is designed for maximum operator comfort.

The adjustable seat with attached safety belts is well elevated for good visibility while working.

Distributor with cloche levers to direct the arm and bucket

Levers for adjusting the support feet.

Other features

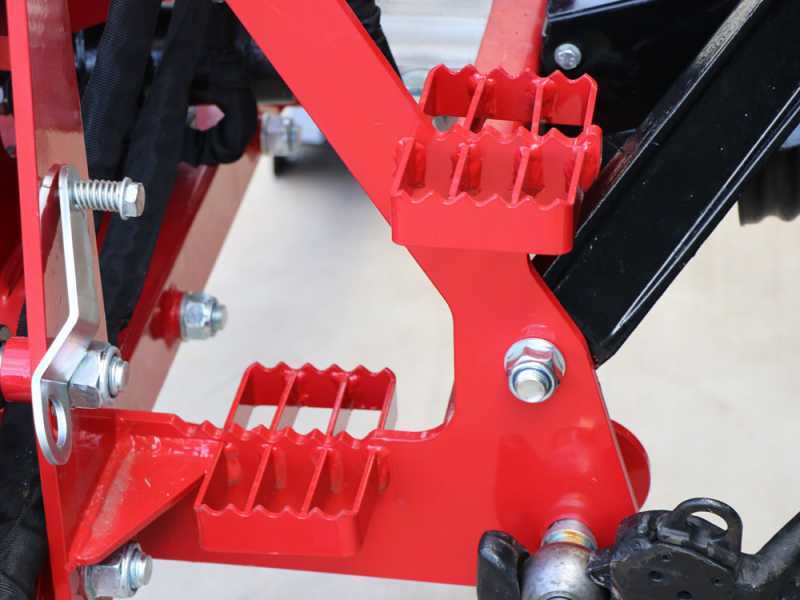

Supports for climbing onto the workstation

Independent support feet 52 cm long.

Hydraulic oil pump

Safety hooks for accidental opening of the arm

Hydraulic oil thermometer

Detail of the hydraulic distributor

Length spacing between the two pins: 60 cm

Free items & Standard equipment

Equipment

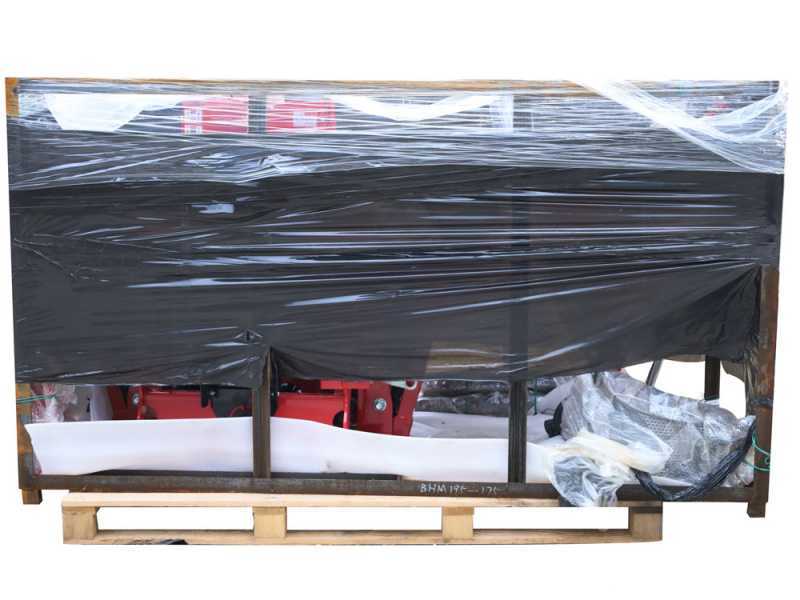

The product is delivered in its original cage with Cardan shaft.
