GeoTechPro BHF 195 - Backhoe for stationary tractor

Questions & Answers (5)
ID: 111867

EAN: 8053435095105

MPN: BHF195

GeoTechPro BHF 195 - Backhoe for stationary tractor
Body material
Steel
Tractor power
From 30 to 45 HP
Independent Oil Tank
Yes
Bucket width
30 cm
Digging force
1100 Kg
Indipendent stabiliser
2
Stabiliser length
63 cm
180° arm rotation
yes
Reach
338 cm
Excavation depth
195 cm
Maximum height
280 cm
Arm piston diameter
60 mm
Cardan shaft
Yes
Product Features
Model:
BHF 195
Tractor power:
From 30 to 45 HP
Body material:
Steel
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Bucket width:
30 cm
Digging force:
1100 Kg
Indipendent stabiliser:
2
Stabiliser length:
63 cm
180° arm rotation:
yes
Reach:
338 cm
Excavation depth:
195 cm
Maximum height:
280 cm
Arm piston diameter:
60 mm
No Displacement:
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

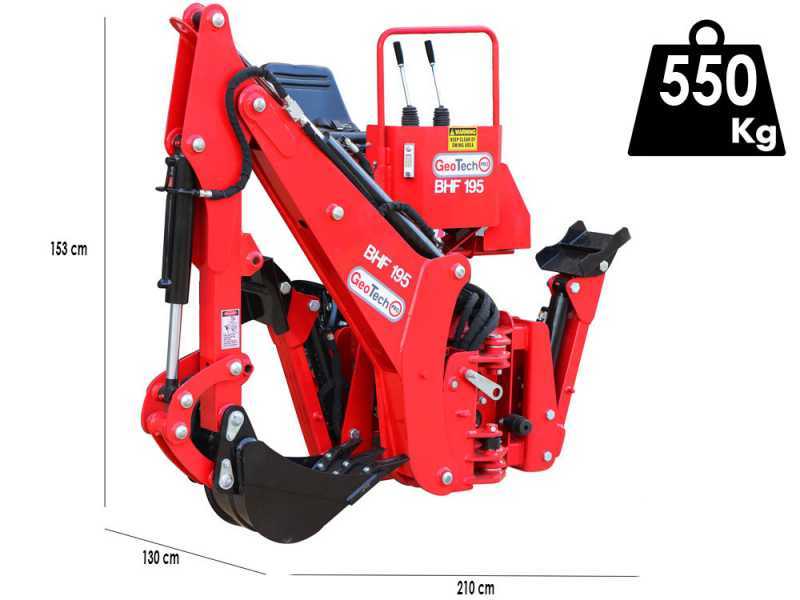

Product dimensions in cm (L x W x H):
210x130x153 cm
Net weight:
550 Kg
Original packaging/s dimensions in cm (L x W x H):
227x95x141,5 cm
Gross weight (packaging included) :
580 Kg
Assembly time:
60 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 31/05/2024 - 04/06/2024
Suggested price:
€ 5.109,14
€ 4.342,77
VAT Included
You're viewing:
Customers also viewed:
Description

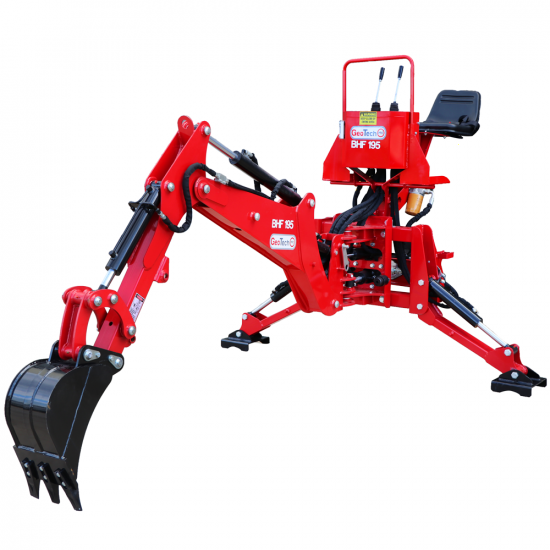

Backhoe GeoTech-Pro BHF 195

The Geotech Pro Series BHF 195 backhoe is a versatile and reliable work tool designed to tackle a wide range of excavation and earthmoving operations. Its robust construction and advanced features make it suitable for many different areas, both in agricultural and construction projects, ensuring maximum versatility and efficiency.

Main features:

  1. Wide Range of Applications: The BHF 195 is designed to perform a variety of jobs, such as transplanting, creating drainage systems, landscaping terrain steps, and removing stones and debris. Its versatility also makes it ideal for cleaning ditches and watercourses, thus covering a wide range of operational needs.

  2. Efficacy in Different Ground Conditions With its flexibility and adaptability, the BHF 195 proves to be effective in various types of terrain, both hard and soft. It offers consistently reliable and good performance, regardless of ground conditions.

  3. Autonomous Hydraulic Footprint: Equipped with an autonomous hydraulic system, the BHF 195 guarantees optimal performance and operational independence. This feature allows efficient use of the backhoe without the need for other energy sources, further increasing its versatility in the field.

  4. Universal compatibility: Designed to be mounted on tractors with a minimum power output of 30 HP, the BHF 195 is compatible with a wide variety of tractors with a medium displacement. This makes it a versatile and appropriate choice for a wide range of agricultural equipment.

  5. Optimal Mobility: The arm of the BHF 195 can rotate up to 180°, providing excellent mobility and facilitating access to critical work points. The rotation capability significantly improves accuracy and flexibility in digging operations.

  6. Robustness and Durability: The main joints of the backhoe are equipped with pins and bushings made of hardened, tempered and ground steel, and are lubricated with greaser. This solid construction guarantees durability and consistently reliable performance.

The BHF 195 backhoe from the Geotech Pro series is an excellent, easy-to-use solution for a wide variety of agricultural and earthmoving applications, making it an indispensable tool for professionals.

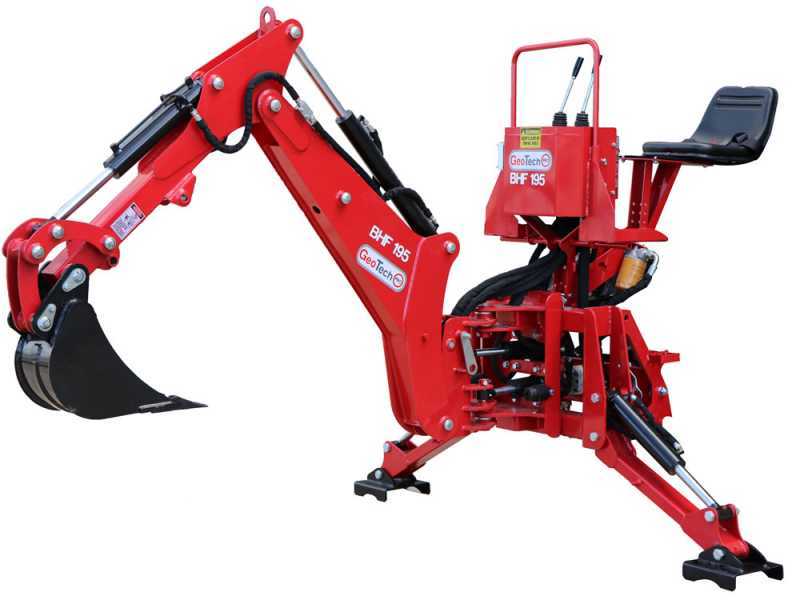

Section arm

The section arm of this backhoe is designed for maximum efficiency and durability even in unfavourable working conditions. Made of high-strength steel, this arm can withstand heavy loads and resist wear and corrosion.

Its ergonomic design and reinforced structure ensure greater stability and precision when lifting and digging. The arm offers a wide range of movement, allowing the operator to reach and work in confined spaces with ease.

In addition, the intuitive and responsive control system ensures smooth and controlled operation, reducing operator fatigue and increasing overall productivity.

Arm extension measurements:

Digging force: 1100 Kg

Arm opening up to 180°

Excavation depth (A): 195 cm

Reach (B): 338 cm

Maximum height (C): 280 cm

Arm fully to the left

Arm fully to the right

Central arm

Fully extended arm

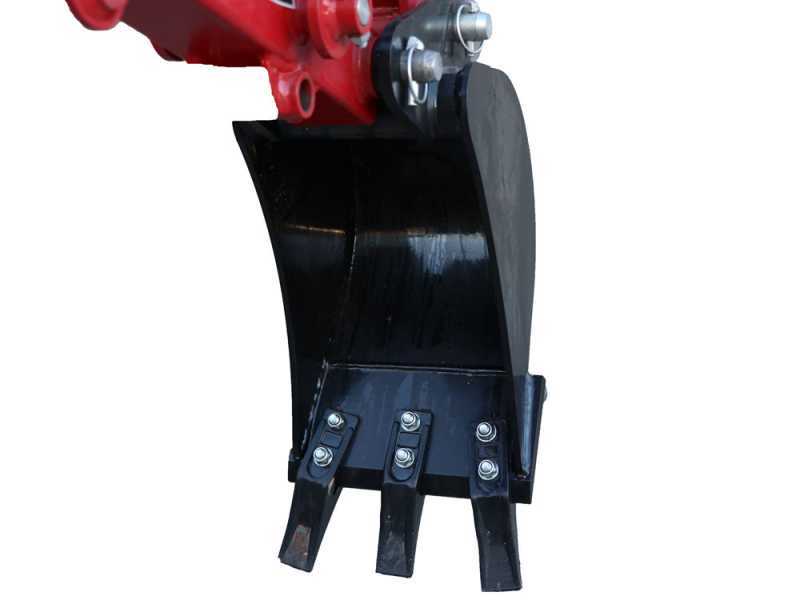

30 cm bucket

The backhoe's bucket with its robust profile and optimised shape ensures excellent ground penetration and efficient material collection.

Equipped with teeth made to keep its sharpness for a long time, reducing the need for frequent maintenance.

Bucket width: 30 cm

Bucket position 1

Bucket position 2

Bucket position 3

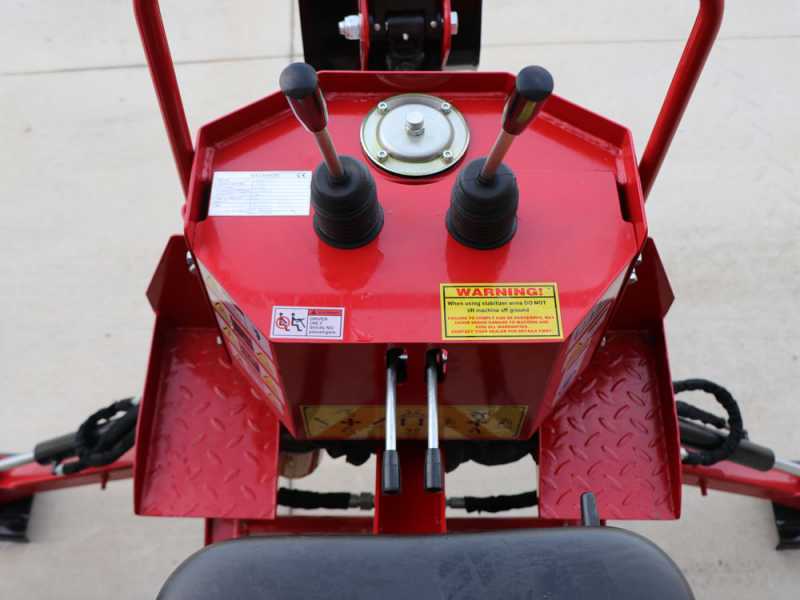

Control station

The control station is designed for maximum operator comfort.

The adjustable seat with attached safety belts is well elevated for good visibility while working.

Distributor with cloche levers to direct the arm and bucket

Levers for adjusting the support feet.

Other features

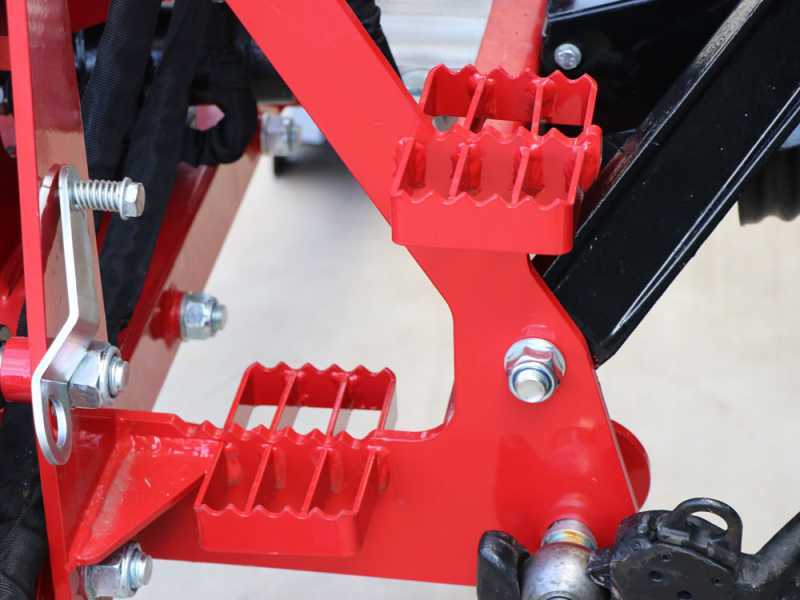

Supports for climbing onto the workstation

Independent support feet 63 cm long.

Hydraulic oil pump

Safety hooks for accidental opening of the arm

Hydraulic oil thermometer

Detail of the hydraulic distributor

Length spacing between the two pins: 60 cm

Free items & Standard equipment

- - -

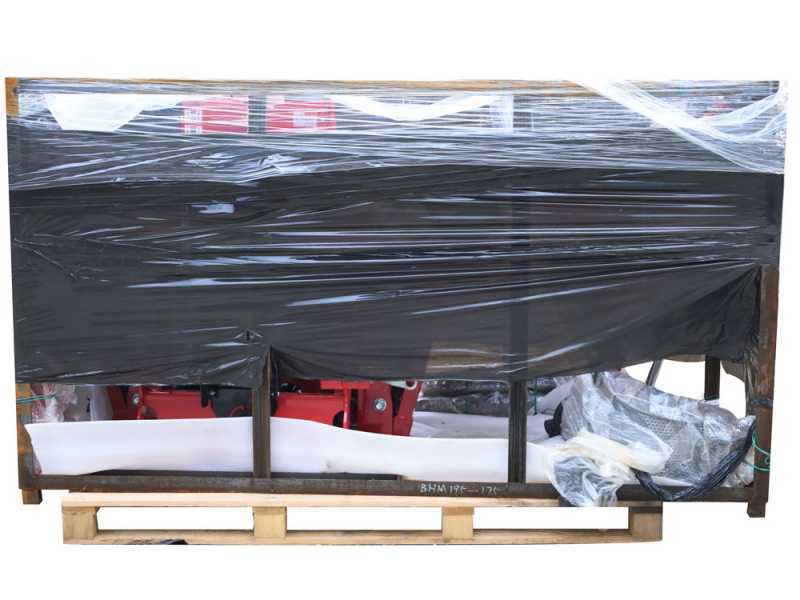

The product is delivered in its original cage with Cardan shaft.
