GeoTechPro BHF 175 - Backhoe for stationary tractor

Questions & Answers (1)
ID: 111866

EAN: 8053435095099

MPN: BHM175

8,9/10
After-sales assistance & Spare parts
GeoTechPro BHF 175 - Backhoe for stationary tractor
Body material
Steel
Tractor power
From 30 to 45 HP
Independent Oil Tank
Yes
Bucket width
30 cm
Digging force
1100 Kg
Indipendent stabiliser
2
Stabiliser length
63 cm
180° arm rotation
yes
Reach
313 cm
Excavation depth
175 cm
Maximum height
260 cm
Arm piston diameter
60 mm
Cardan shaft
Yes
Product Features
Model:
BHF 175
Tractor power:
From 30 to 45 HP
Body material:
Steel
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Bucket width:
30 cm
Digging force:
1100 Kg
Indipendent stabiliser:
2
Stabiliser length:
63 cm
180° arm rotation:
yes
Reach:
313 cm
Excavation depth:
175 cm
Maximum height:
260 cm
Arm piston diameter:
60 mm
No Displacement:
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes

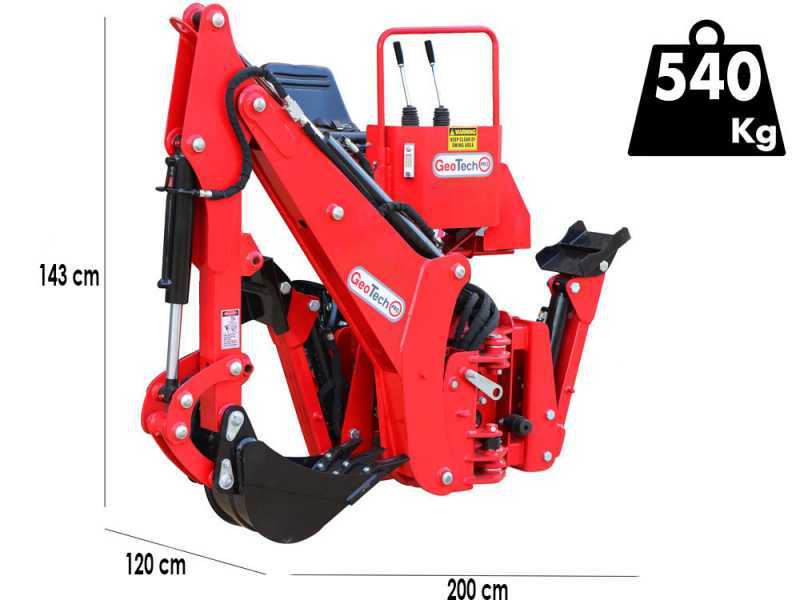

Dimensions and logistics
Product dimensions in cm (L x W x H):
200x120x143 cm
Net weight:
540 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
227x95x141,5 cm
Gross weight (packaging included) :
570 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 06/08/2024 - 08/08/2024
Suggested price:
€ 4.735,68
€ 4.025,33
VAT Included
You're viewing:
Customers also viewed:
Description

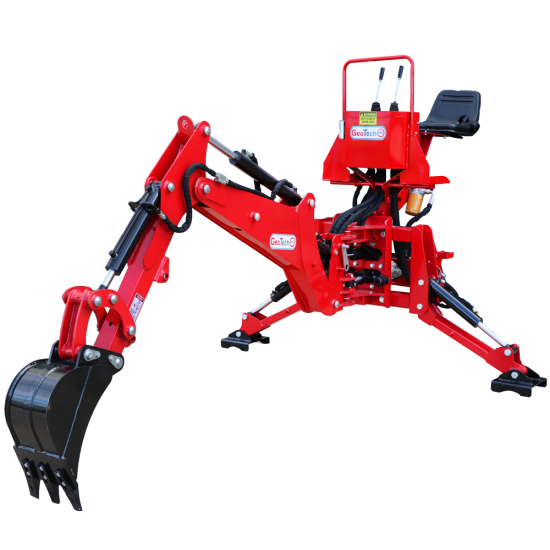

Backhoe GeoTech-Pro BHF 175

The BHF 175 backhoe has been designed with a focus on versatility and reliability, making it suitable for a wide range of tasks in both agricultural and construction projects, ensuring unparalleled efficiency and operational versatility.

Distinctive features of the BHF 175 Backhoe:

  1. Application versatility: The BHF 175 is a multipurpose implement, designed to perform a variety of operations including transplanting, creating drainage systems, forming steps on steep terrain, and removing stones and debris. Its adaptability also makes it perfect for the maintenance of ditches and canals, thus meeting a wide range of operational needs.

  2. Performance in Different Soil Conditions: The backhoe proves effective on different types of soil, from the most compact to the softest. This feature ensures a high level of performance and constant reliability, regardless of environmental conditions.

  3. Autonomous hydraulic system: Equipped with an independent hydraulic system, the BHF 175 guarantees optimal performance and operational autonomy. This feature allows efficient use of the backhoe without relying on external energy sources, further increasing its flexibility in the field.

  4. Universal compatibility with tractors: Designed to be mounted on tractors with a minimum power output of 30 HP, the BHF 175 is perfectly suited to a wide variety of medium tractors. This feature makes it a versatile choice, suitable for a wide range of agricultural machinery.

  5. Mobility and Operational Accuracy: The arm can rotate up to 180°, offering exceptional mobility and facilitating access to complex work areas. The rotation capability greatly improves accuracy and flexibility in digging operations.

  6. Robust and Durable Construction: The main components of the backhoe are made from hardened, tempered and ground steel pins and bushings, and are equipped with a lubrication system with greaser. This robust construction ensures a long service life and consistently reliable performance.

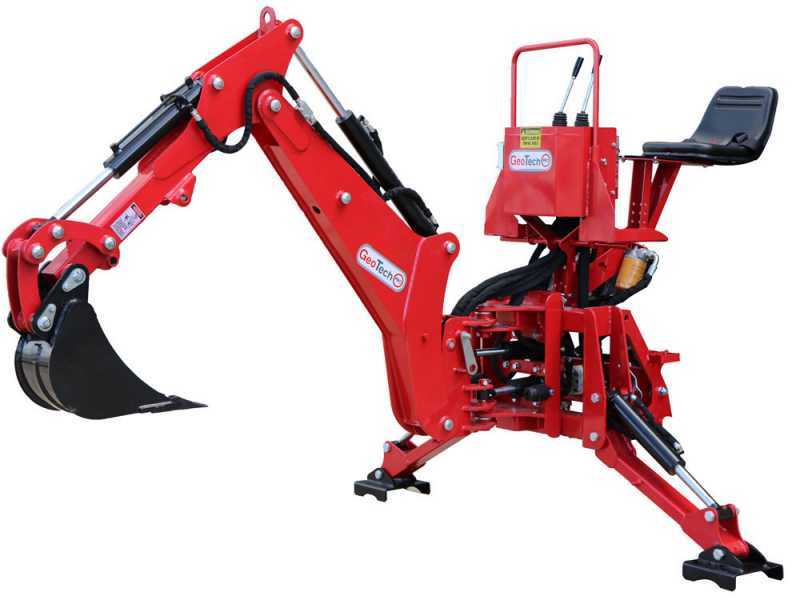

Section arm

The section arm of this backhoe is designed for maximum efficiency and durability even in unfavourable working conditions. Made of high-strength steel, this arm can withstand heavy loads and resist wear and corrosion.

Its ergonomic design and reinforced structure ensure greater stability and precision when lifting and digging. The arm offers a wide range of movement, allowing the operator to reach and work in confined spaces with ease.

In addition, the intuitive and responsive control system ensures smooth and controlled operation, reducing operator fatigue and increasing overall productivity.

Arm extension measurements:

Digging force: 1100 Kg

Arm opening up to 180°

Excavation depth (A): 175 cm

Reach (B): 313 cm

Maximum height (C): 260 cm

Arm fully to the left

Arm fully to the right

Central arm

Fully extended arm

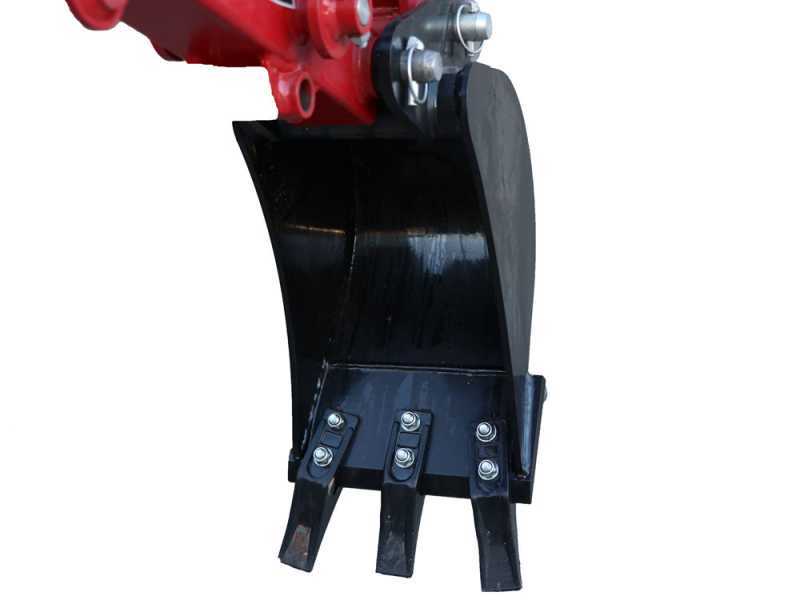

30 cm bucket

The backhoe's bucket with its robust profile and optimised shape ensures excellent ground penetration and efficient material collection.

Equipped with teeth made to keep its sharpness for a long time, reducing the need for frequent maintenance.

Bucket width: 30 cm

Bucket position 1

Bucket position 2

Bucket position 3

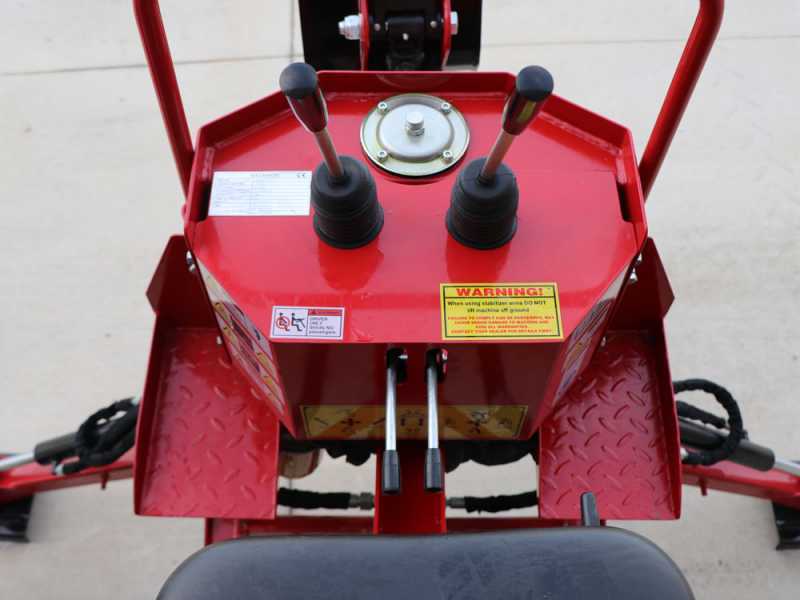

Control station

The control station is designed for maximum operator comfort.

The adjustable seat with attached safety belts is well elevated for good visibility while working.

Distributor with cloche levers to direct the arm and bucket

Levers for adjusting the support feet.

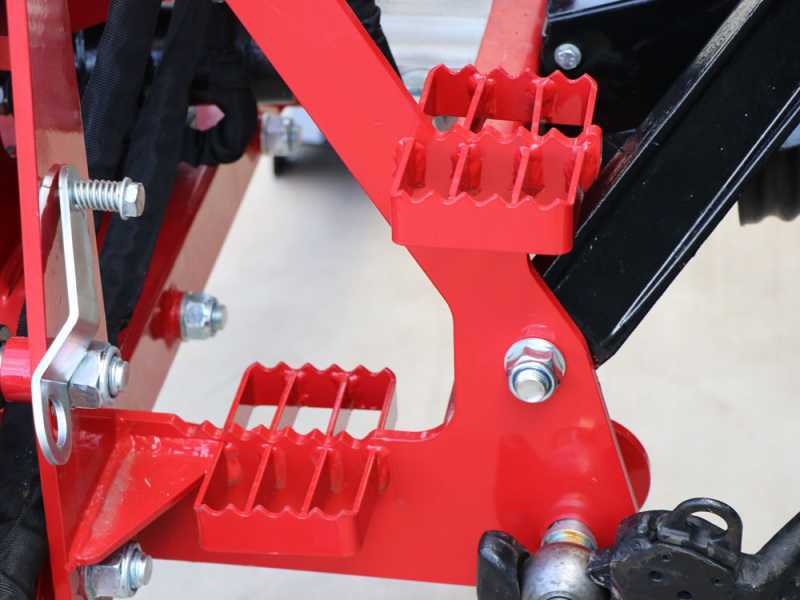

Other features

Supports for climbing onto the workstation

Independent support feet 63 cm long.

Hydraulic oil pump

Safety hooks for accidental opening of the arm

Hydraulic oil thermometer

Focus on the removable cutting plate.

Length spacing between the two pins: 60 cm

Free items & Standard equipment

Equipment

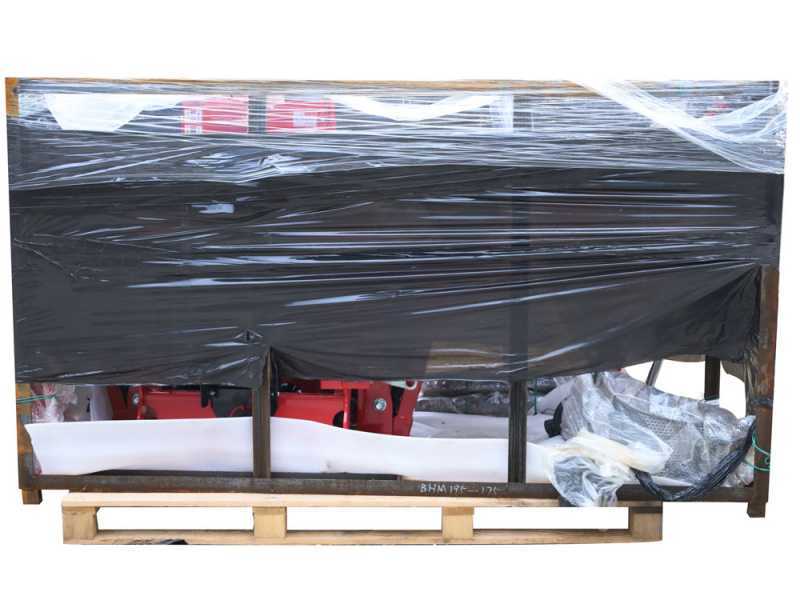

The product is delivered in its original cage with Cardan shaft.
