GeoTech TRP 200 Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panles

Questions & Answers (1)
ID: 102104

EAN: 8053435090131

8,9/10
After-sales assistance & Spare parts
GeoTech TRP 200 Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panles
+90 sold
Body material
Enamelled steel
Sturdiness/Series
Heavy
Load capacity
700 Kg
Body tipping
Manual
Bucket width
200 cm
Bucket depth
110 cm
Product Features
Model:
TRP 200
Type:
Transporter - Transport Box
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Load capacity:
700 Kg
Body tipping:
Manual
Bucket width:
200 cm
Bucket depth:
110 cm
Manufacturing country:
China
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
210 x 140 x 100 cm
Net weight:
187 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
128 x 210 x 70 cm
Gross weight (packaging included) :
207 Kg
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 30/07/2024 - 01/08/2024
€ 1.352,19
VAT Included
You're viewing:
Customers also viewed:
Description

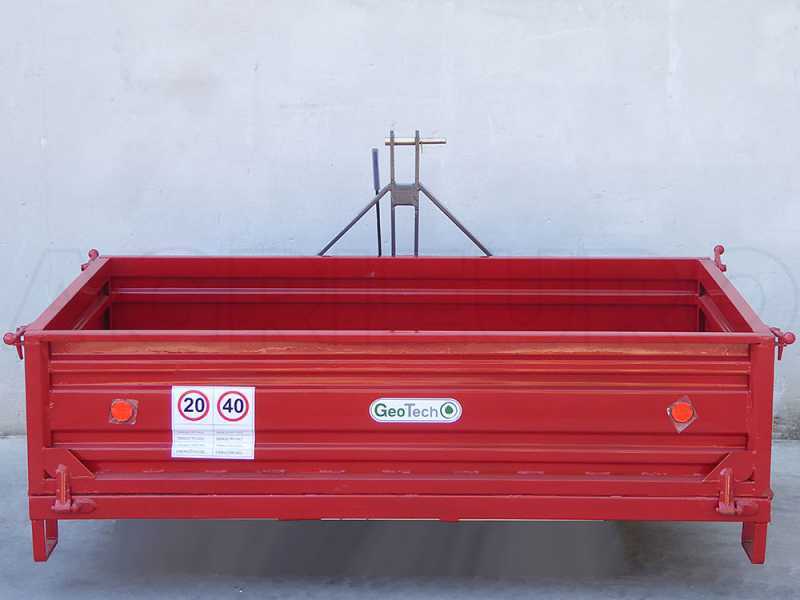

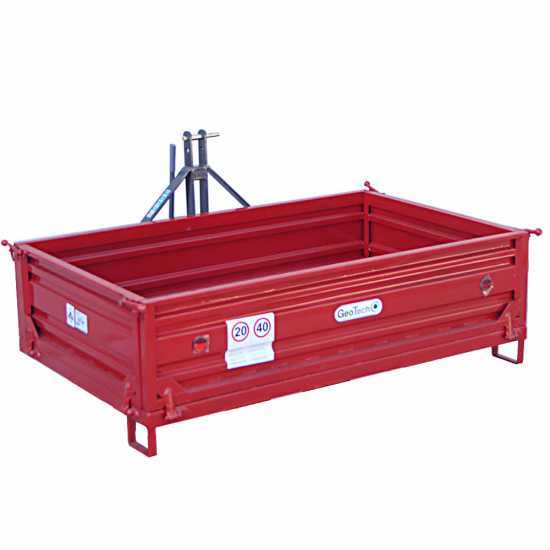

GeoTech TRP200 tipping transport box

The GeoTech TRP 200 tipping transport box is ideal for transporting goods such as machineries, grain, wood, manure, compost, and many others.

The box is equipped with 3 swinging opening side panels, both in the rear and in the sides.

Main features:

  • 3 x 40 cm high sides that can be opened and removed
  • Quick-release overturning lever
  • Easy to store
  • Sturdy construction

Capacity: 800 L

Maximum load capacity: 700 Kg

Box width: Approx. 200 cm

Weight: 187 Kg

3-Point hitch for tractors

TRP Transport Box overall dimensions:

  • Useful inside box: 192x104x40 cm
  • Maximum overall space required: 210x140x100 cm
  • Sheet metal thickness: 2 mm
  • 3-Point hitch Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
  • Three-point hitch frame thickness: 11 mm
  • Gap between the 2 lower hitches: 500-765 mm
  • Loading volume: 0.78 m3

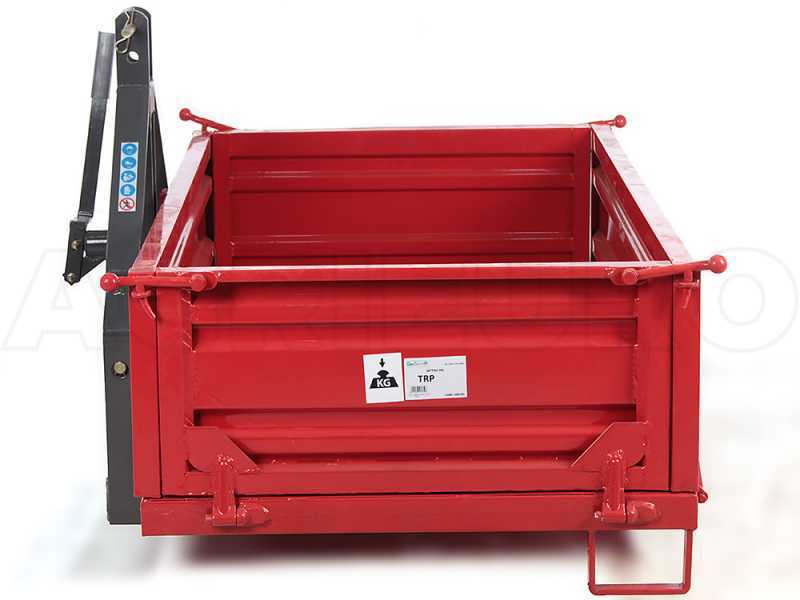

Manual tipping

This GeoTech tractor transport box is equipped with a quick-release tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box
  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

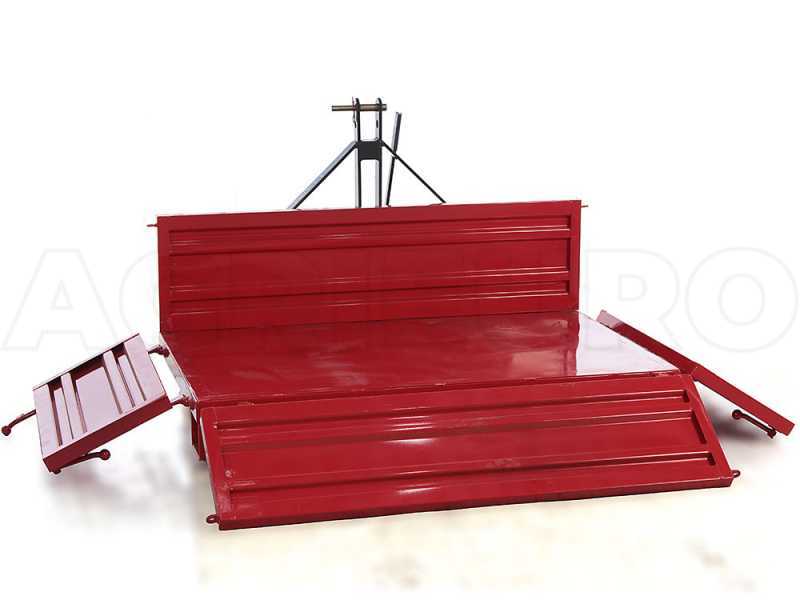

3 removable panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Focus on the side panel engagement / disengagement
  • Focus on the hinges that allow removing the side panels
  • Focus on the hinge
  • Focus on the reflectors supplied

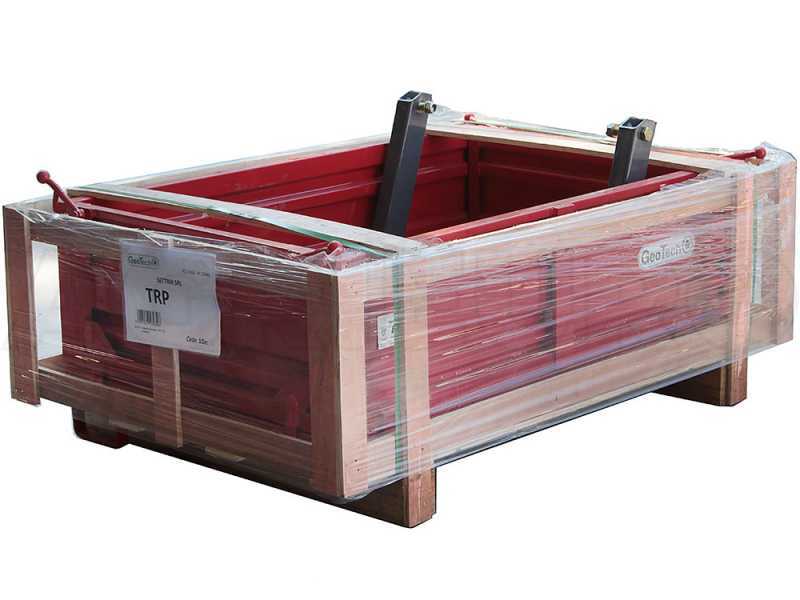

Free items & Standard equipment

Standard equipment

The transport box is shipped on pallet.

Instructions and assembly manual included in the package.
