GeoTech TRP 180 Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panles

Questions & Answers (1)
ID: 102103

EAN: 8053435090124

After-sales assistance & Spare parts
GeoTech TRP 180 Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panles
+70 sold
Body material
Enamelled steel
Load capacity
700 Kg
Body tipping
Bucket width
180 cm
Bucket depth
110 cm
Product Features
TRP 180
Transporter - Transport Box
Body material:
Enamelled steel
Load capacity:
700 Kg
Body tipping:
Bucket width:
180 cm
Bucket depth:
110 cm
Manufacturing country:
Free gifts/extra features
Instructions manual:
Dimensions and logistics
Product dimensions in cm (L x W x H):
190 x 140 x 100 cm
Net weight:
178 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
128 x 190 x 70 cm
Gross weight (packaging included) :
198 Kg
Assembly time:
15 minutes
Out of stock
Free Shipping
€ 1.262,64
VAT Included
You're viewing:
Customers also viewed:

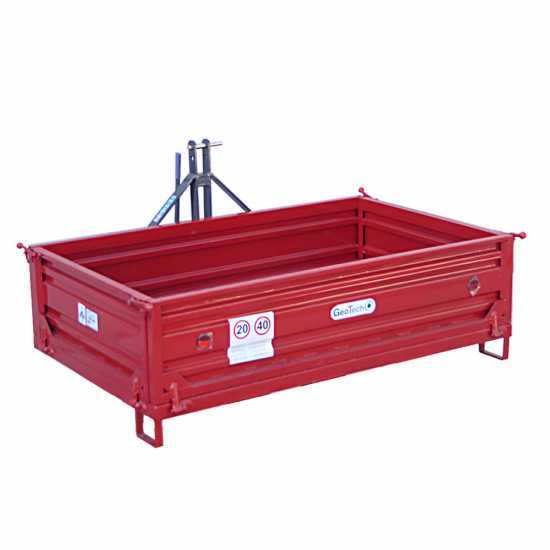

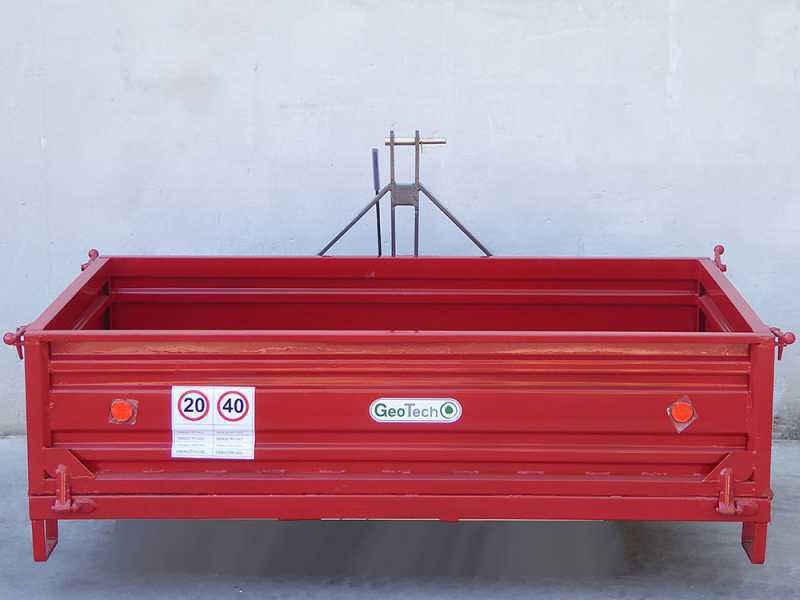

GeoTech TRP180 tipping transport box

The GeoTech TRP 180 tipping transport box is ideal for transporting goods such as machineries, grain, wood, manure, compost, and many others.

The box is equipped with 3 swinging opening side panels, both in the rear and in the sides.

Main features:

  • 3 x 40 cm high sides that can be opened and removed
  • Quick-release overturning lever
  • Easy to store
  • Sturdy construction

Capacity: 700 L

Maximum load capacity: 700 Kg

Box width: Approx. 180 cm

Weight: 178 Kg

3-Point hitch for tractors

TRP Transport Box overall dimensions:

  • Useful inside box: 172x104x40 cm
  • Maximum overall space required: 190x140x100 cm
  • Sheet metal thickness: 2 mm
  • 3-Point hitch Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm)
  • Three-point hitch frame thickness: 11 mm
  • Gap between the 2 lower hitches: 500-765 mm
  • Loading volume: 0.7 m3

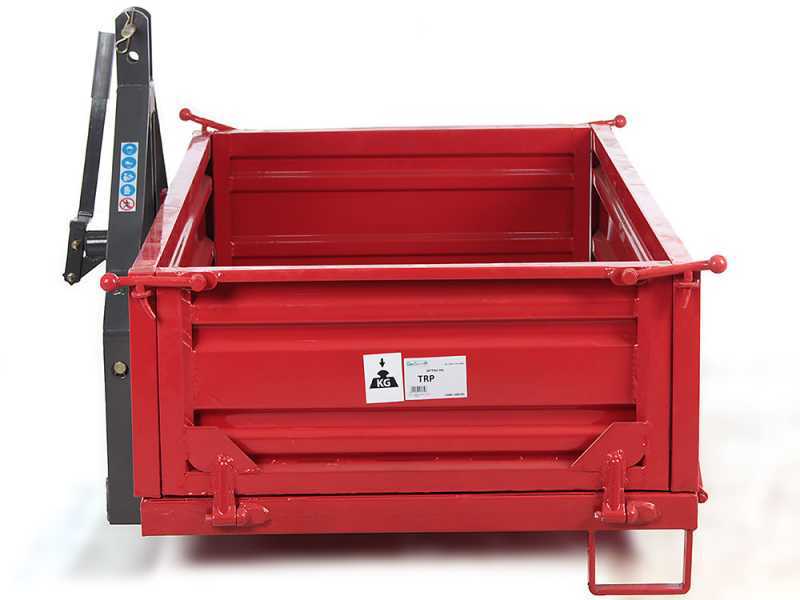

Manual tipping

This GeoTech tractor transport box is equipped with a quick-release tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box
  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

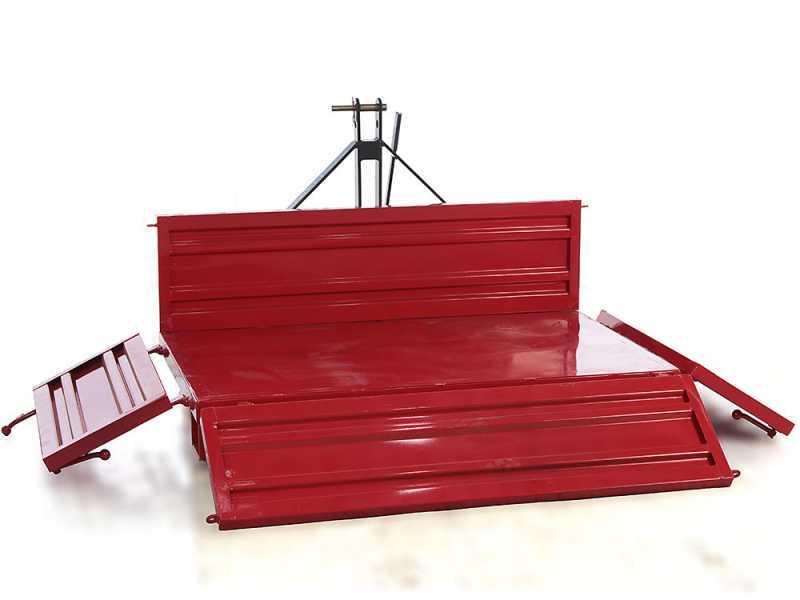

3 removable panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Focus on the side panel engagement / disengagement
  • Focus on the hinges that allow removing the side panels
  • Focus on the hinge
  • Focus on the reflectors supplied
Free items & Standard equipment

Standard equipment

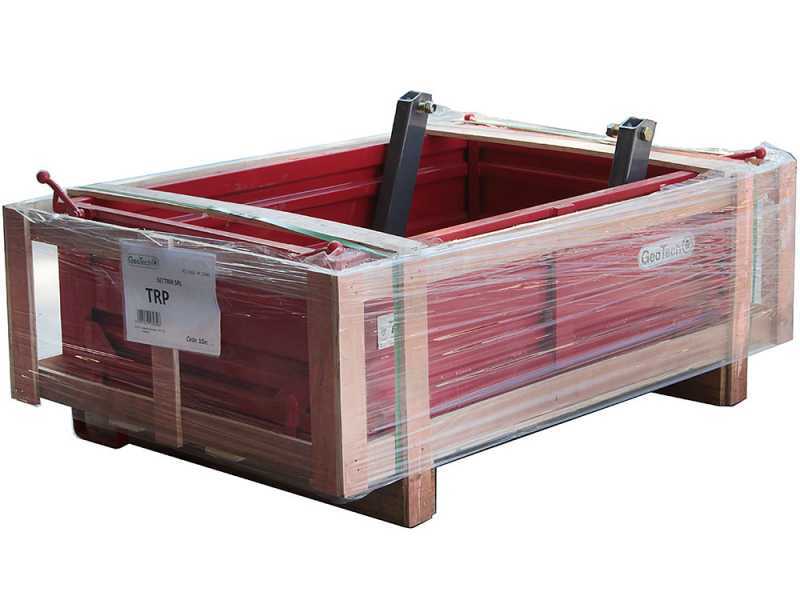

The transport box is shipped on pallet.

Instructions and assembly manual included in the package.
