GeoTech-Pro THT 160 - Hedge trimmer arm for tractor with hydraulic pivoting

Add a question
ID: 111878

EAN: 8053435095211

MPN: THT160

GeoTech-Pro THT 160 - Hedge trimmer arm for tractor with hydraulic pivoting
Body material
Steel
Tractor power
Independent Oil Tank
Yes
Arm piston diameter
60 mm
Cutting blade length
160 cm
Tooth spacing
40 mm
Max. branch cutting diameter
30 mm
Maximum height
550 cm
Maximum length
480 cm
Maximum depth
100 cm
Remote control
Lateral swing
Cardan shaft
Yes
Product Features
Model:
THT 160
Tractor power:
Body material:
Steel
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Arm piston diameter:
60 mm
Maximum height:
550 cm
Maximum length:
480 cm
Maximum depth:
100 cm
Remote control:
Lateral swing:
Cutting data
Cutting blade length:
160 cm
Max. branch cutting diameter:
30 mm
:
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

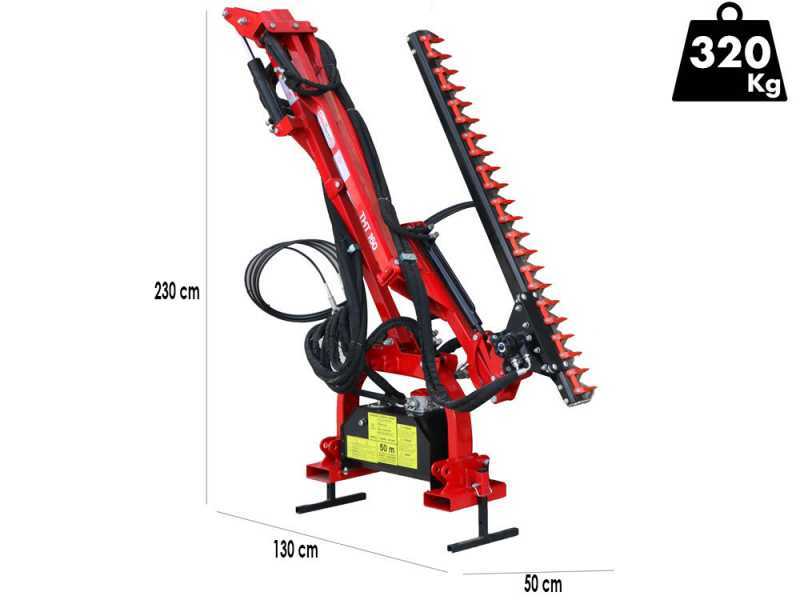

Product dimensions in cm (L x W x H):
130x50x230 cm
Net weight:
320 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
179x44,5x231,5 cm
Gross weight (packaging included) :
350 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 4.350,07
VAT Included
You're viewing:
Customers also viewed:
Description

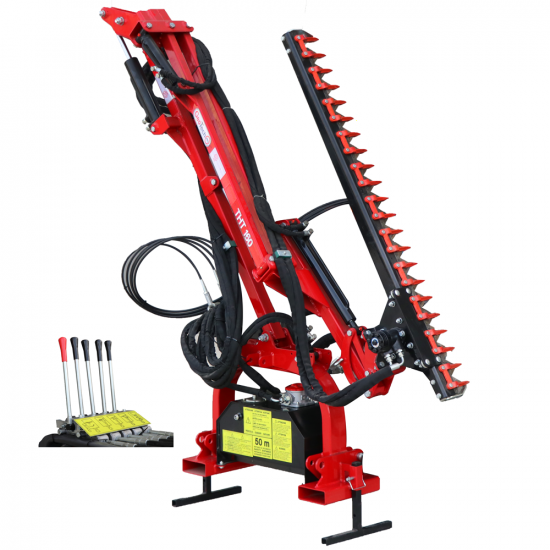

GeoTech-Pro THT 160 - Hedge Trimmer Arm for Tractor

The THT 160 hedge trimmer arm from GeoTech-Pro is an excellent solution for professional hedge and shrub maintenance. Designed for use with small and medium-sized tractors, it combines efficiency and ease of use thanks to its advanced technical features.

Distance Control with 5 Levers and Flexible Hoses: Equipped with a 5-lever remote control system, the THT 160 allows precise and intuitive control of cutting operations. The hoses facilitate the housing of the control unit on the tractor.

HYDROCONTROL hydraulic system (Made in Italy): This model includes a HYDROCONTROL hydraulic system with double hydraulic pump, synonymous with Italian quality and reliability. It ensures efficient power transmission and a long service life.

Oil tank 20 L (supplied already level): The 20-litre oil tank ensures effective cooling of the oil and hydraulic system, even under prolonged working conditions.

160 cm cutter bar with 21 teeth: With a 160 cm long cutter bar and 21 teeth, this model ensures a clean and precise cut, covering large areas in less time and increasing efficiency.

3-Point hitch Cat. 1/ 2 Standard The THT 160 has a universal 3-point hitch in category 1-2, making it compatible with a wide range of small and medium tractors and suitable for different work requirements.

Lateral swing: An additional feature of the THT 160 is its ability to move in depth, allowing the operator to reach otherwise inaccessible areas for this feature greatly increases the versatility and efficiency of the hedge trimmer arm in a variety of work environments.

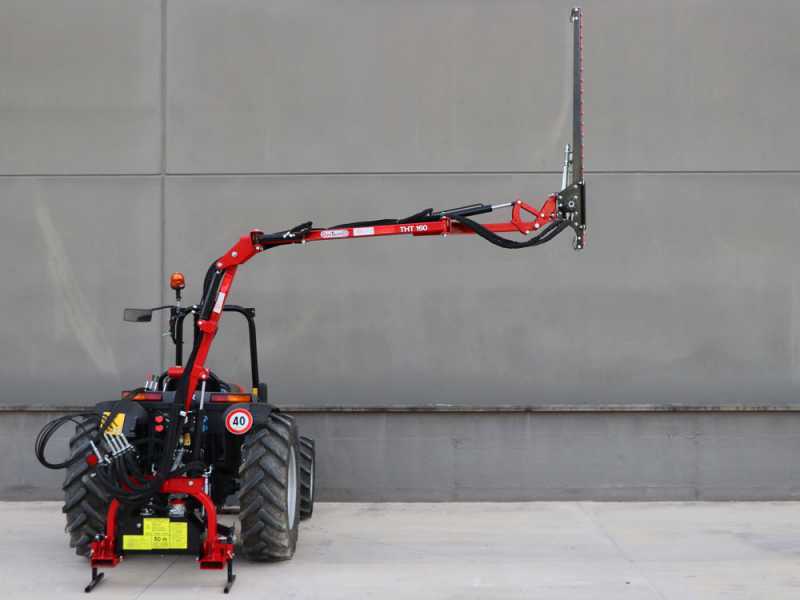

Hedge trimmer arm with side pivoting

The arm length of 3.5 metres allows even the tallest and most difficult-to-access hedges and shrubs to be reached and managed comfortably. This extended length is particularly useful for small and medium-sized tractors, offering optimal coverage without compromising vehicle stability or manoeuvrability.

Arm extension measurements:

A1 480 cm
A2 320 cm
B1 370 cm
B2 550 cm
C1 280 cm
C2 100 cm

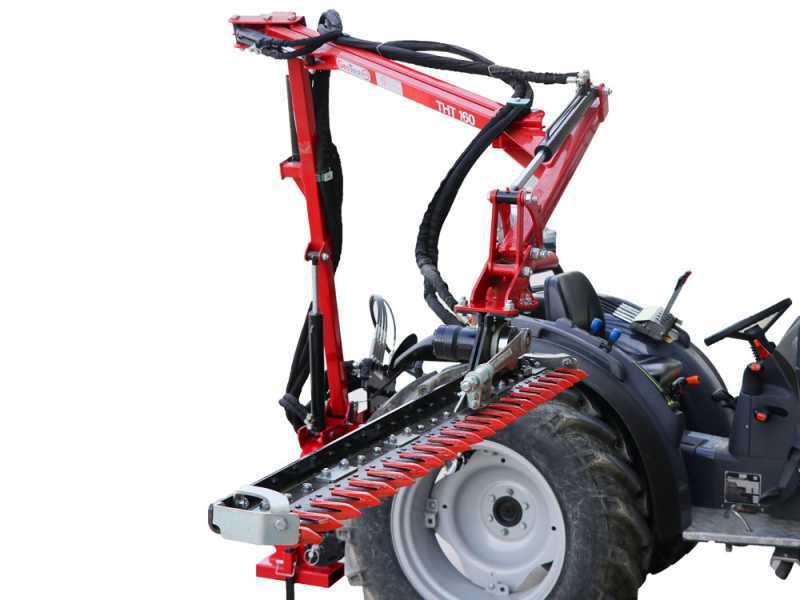

Lateral swing

The boom is equipped with a lateral pivot, which distinguishes it from other models by its ability to move in depth, a feature that greatly extends its range of action. Ensuring the machine works in depth, this aspect contributes to greater operator control over the device, facilitating precision work.

Movement 1

Movement 2

Movement 3

Movement 4

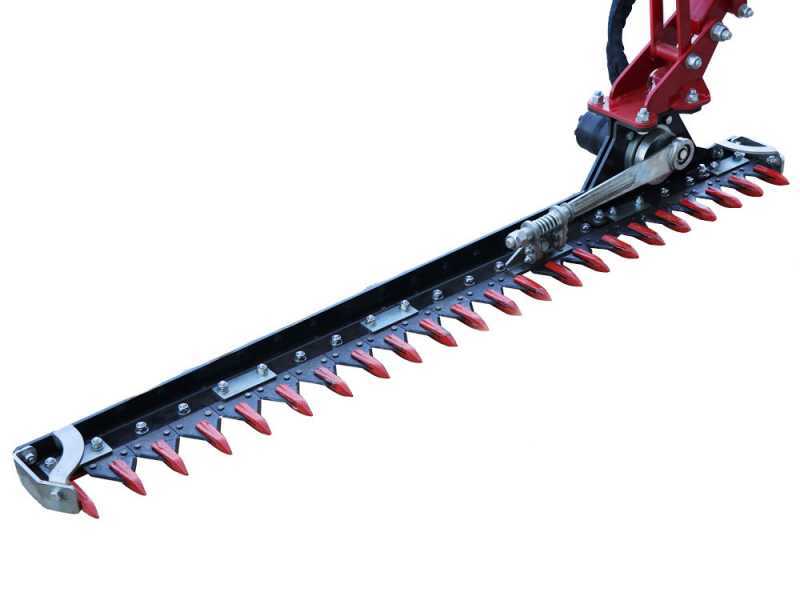

Hedge trimmer bar

With a length of 160 cm, this cutter bar offers a large radius of action, allowing large areas to be covered effectively in less time. This length is optimal for reaching and managing taller hedges and dense shrubs, ensuring an even and precise cut along its entire length.

The bar is equipped with 21 sharp blades designed to provide a clean cut. (Details of blades)

One of the most interesting aspects of this cutter bar is its pivot joint, which allows 270°movement. This feature offers excellent flexibility, allowing the operator to adjust the angle of the boom to suit different hedge shapes and sizes.

The 270° rotation capability is particularly useful for cutting both the sides and top of hedges, greatly improving the efficiency and precision of work.

Connecting rod with damper spring.

Angle 1

Angle 2

Angle 3

Angle 4

Other features

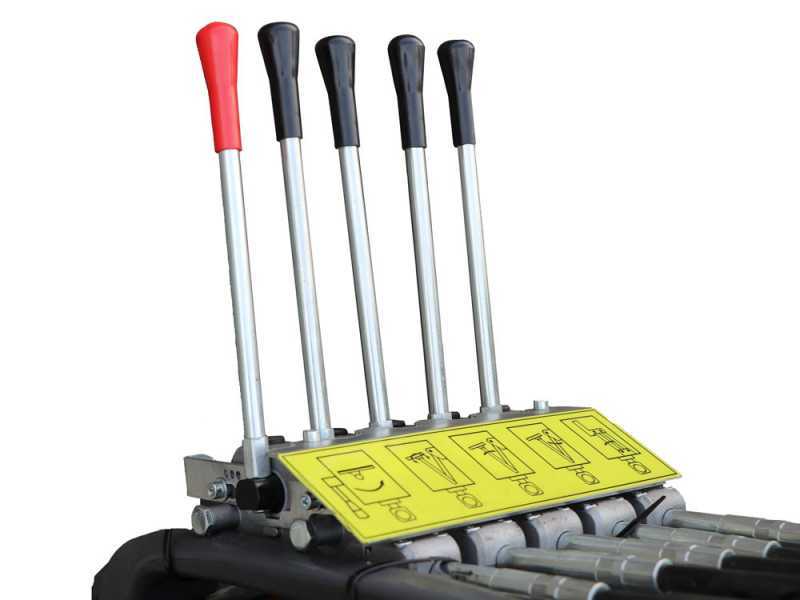

Remote control unit with 5 levers

Hydraulic distributor:

Oil tank: 20L capacity

Safety hooks

Overdrive and double hydraulic pump, with chain anchorage

Adjustable feet for stable ground support of the machine at rest

Distance between the two points: 71 cm

Free items & Standard equipment

Equipment

The product is delivered in its original cage with Cardan shaft.
