GeoTech-Pro THC 160 - Hedge Trimmer Arm for Tractor

Questions & Answers (11)
ID: 111880

EAN: 8053435095235

MPN: THC160

8,9/10
After-sales assistance & Spare parts
GeoTech-Pro THC 160 - Hedge Trimmer Arm for Tractor
+50 sold
Technical data
Body material
Steel
Tractor power
From 25 to 60 HP
Independent Oil Tank
Yes
Arm piston diameter
60 mm
Useful cut
160 cm
Tooth spacing
40 mm
Max. branch cutting Ø
30 mm
Maximum height
550 cm
Maximum length
480 cm
Maximum depth
100 cm
Remote control
Product Features
Model
THC 160
Tractor power
From 25 to 60 HP
Body material
Steel
Operating mode
Tractor-driven PTO
Independent Oil Tank
Yes
3-point hitch category
First and Second
Arm piston diameter
60 mm
Maximum height
550 cm
Maximum length
480 cm
Maximum depth
100 cm
Remote control
Manufacturing country
China
Cutting data
Useful cut
160 cm
Max. branch cutting Ø
30 mm
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

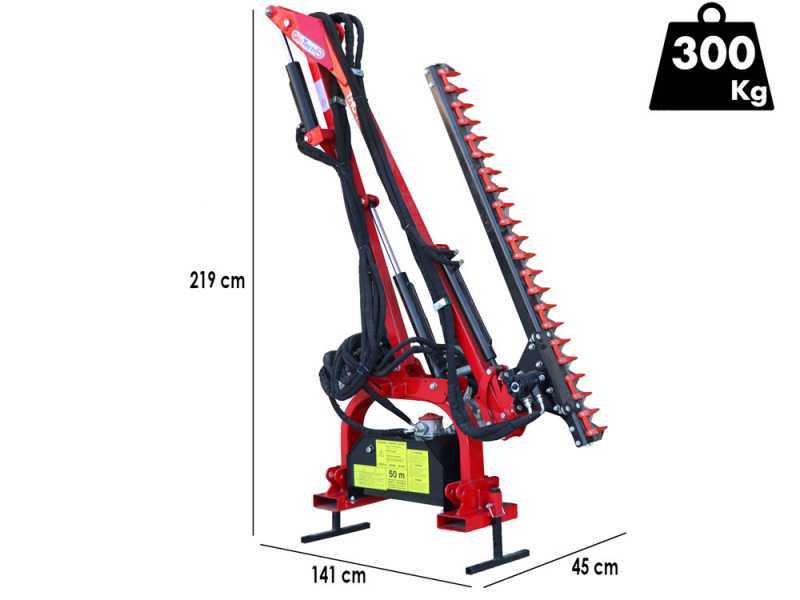

Product dimensions in cm (L x W x H)
141x45x218.5 cm
Net weight
300 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
179x44.5x231.5 cm
Weight including packaging
330 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 30/09/2025 - 02/10/2025
Suggested price:
€ 4.674,10
€ 3.505,58
Vat included
You're viewing:
Customers also viewed:
Description

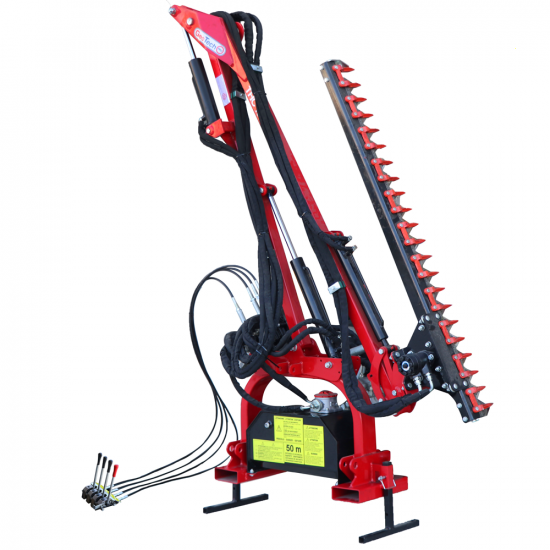

GeoTech-Pro THC 160 - Hedge Trimmer Arm for Tractor

GeoTech-Pro's THC 160 hedge trimmer arm is an excellent solution for professional hedge and shrub maintenance. This implement, designed for use with tractors, small or medium-sized, combines effectiveness and ease of use due to its high-level technical features.

Remote Control with 4 Levers and Flexible Hoses: The THC 160 is equipped with a remote control system with 4 levers, allowing precise and intuitive control of cutting operations. Integrated hoses ensure that the control unit can be housed directly on the tractor.

HYDROCONTROL Hydraulic System (Made in Italy): This model is equipped with a HYDROCONTROL hydraulic system, designed in Italy. Double hydraulic pump, a guarantee of quality and reliability. This system ensures efficient power transmission and long operating life.

20 L Oil Tank (Supplied Already Levelled): The THC 160 is equipped with a 20-litre capacity oil tank. This feature ensures effective and optimal cooling of the oil and hydraulic system even during prolonged work situations.

160 cm mowing bar with 21 Teeth: The cutter bar on this model measures 160 cm effective working length and includes 21 tines designed for a clean and precise cut. This length allows large areas to be covered in less time, increasing efficiency and reducing operator time.

3-Point Attachment Category 1-2 Standard: The THC 160 is equipped with universal 3-point attachment category 1-2, making it compatible with a wide range of small and medium tractors. This versatility makes it a suitable tool for different needs and work contexts.

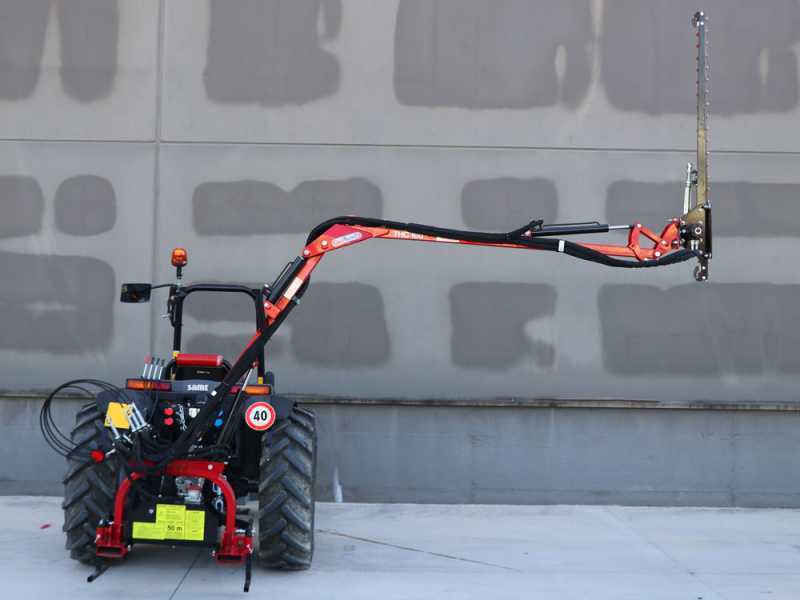

Hedge Trimmer Arm

The arm length of 3.5 meters allows even the tallest and most difficult-to-access hedges and shrubs to be comfortably reached and managed. This extended length is especially useful for small and medium-sized tractors, providing optimal coverage without compromising vehicle stability or manoeuvrability.

Arm extension measurements:

A1 480 cm
A2 320 cm
B1 370 cm
B2 550 cm
C1 280 cm
C2 100 cm

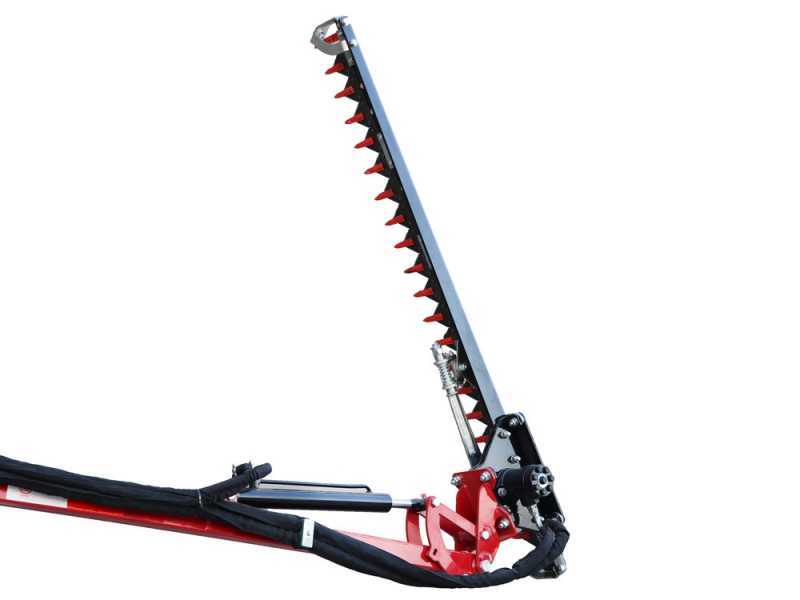

Hedge trimmer bar

With a length of 160 cm, this cutter bar offers a wide reach, allowing large areas to be covered effectively in less time. This length is optimal for reaching and managing taller hedges and denser shrubs, ensuring an even and precise cut along its entire length.

The bar is equipped with 21 sharp blades designed to provide a clean cut. (Detail of the blades)

One of the most interesting aspects of this cutter bar is its pivot joint, which allows 270° movement. This feature offers excellent flexibility, allowing the operator to adjust the angle of the cutter bar to accommodate different hedge shapes and sizes.

The 270° rotation capability is particularly useful for cutting both the sides and top of hedges, greatly improving the efficiency and accuracy of work.

Connecting rod with shock absorber spring.

Angle 1

Angle 2

Angle 3

Angle 4

Other features

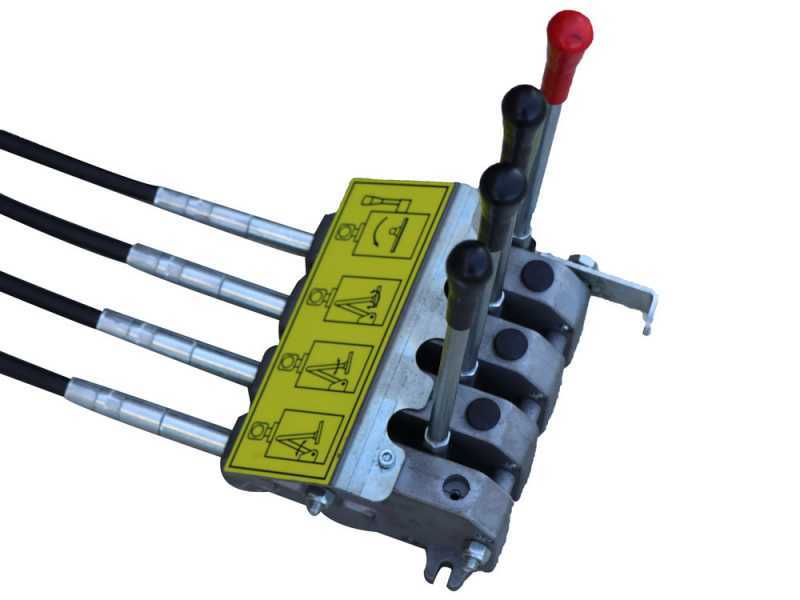

Remote control unit with 4 levers

Oil tank: 20L capacity

Safety hooks

Multiplier and double hydraulic pump, chain-anchored

Adjustable stands for stable grounding of the machine at rest

Distance between the two points: 71 cm

Free items & Standard equipment

Equipment

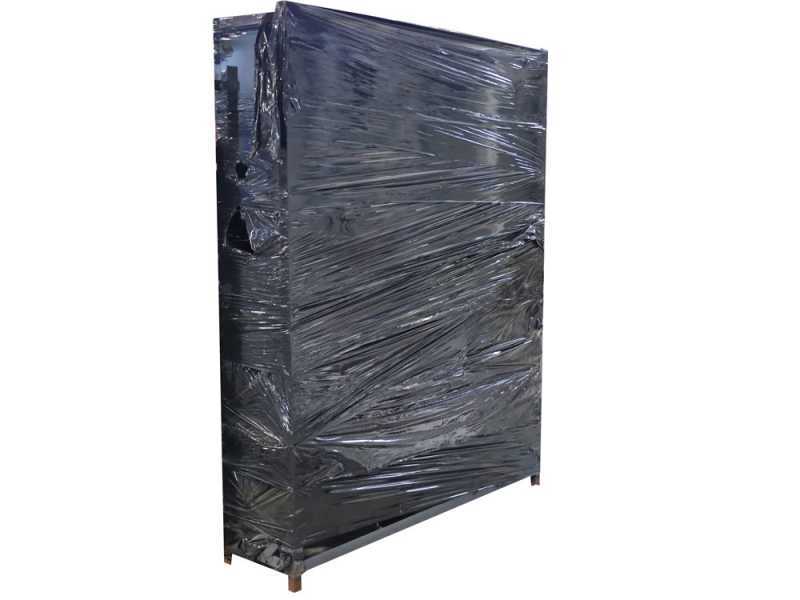

The product is delivered in its original cage with Cardan shaft.
