GeoTech-Pro HRM 100 - Tractor mower arm

Questions & Answers (6)
ID: 111874

EAN: 8053435095174

MPN: AM220-C100

8,9/10
After-sales assistance & Spare parts
GeoTech-Pro HRM 100 - Tractor mower arm
+10 sold
Independent Oil Tank
Yes
Tractor power
Double spiral rotor
Cutting width
100 cm
Standard cutting tools
Knives
Remote control
Cardan shaft
Yes
Product Features
Model:
HRM 100
Tractor power:
Double spiral rotor:
Independent Oil Tank :
Yes
Manufacturing country:
China
Remote control:
Cutting data
Cutting width:
100 cm
Standard cutting tools:
Knives
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

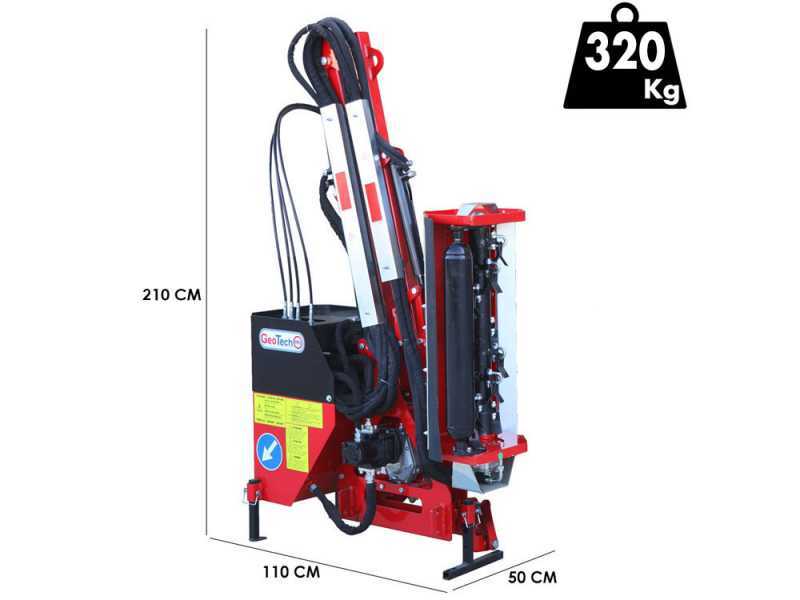

Product dimensions in cm (L x W x H):
110x50x210 cm
Net weight:
320 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
117x54,5x212 cm
Gross weight (packaging included) :
340 Kg
Assembly time:
Assembled
Out of stock
Free Shipping
€ 4.443,22
VAT Included
You're viewing:
Customers also viewed:
Description

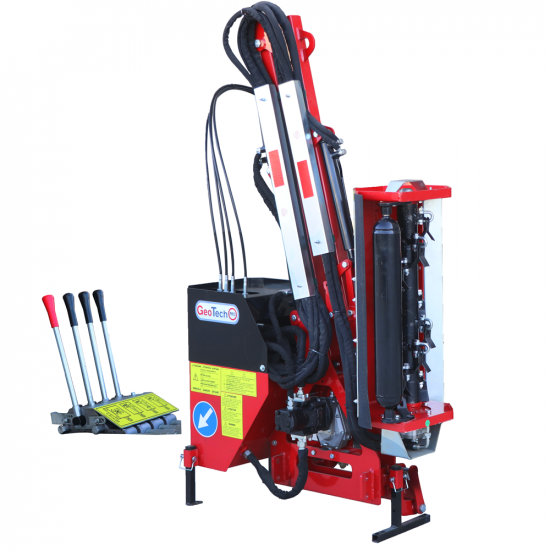

GeoTech-Pro HRM 100 brushcutter arm

The GeoTech-Pro HRM 100 brush cutter arm is designed for the effective management of a wide range of vegetation, including tall grass, plant residues, bushes and pruning. Its versatility makes it ideal for the removal of unnecessary vegetation in areas such as traffic islands, roadside verges and service passages.

Effective Management of Varied Vegetation: Ideal for grass, plant residues, bushes and pruning.

Versatile uses: Perfect for traffic islands, roadsides, service walkways, residential areas, public parks and recreational areas.

High Efficiency and Security: It ensures optimal performance in a variety of conditions.

Reliability and Superior Build Quality: High-end components, designed and manufactured in Italy for durability and excellent performance.

Remote control with 4 levers: It offers precise and intuitive control with hoses for ergonomic positioning on the tractor.

Hydrocontrol hydraulic System: Superior hydraulic distributor for reliable control of operations.

Casappa Double Hydraulic Pump: Efficiency and robustness for simultaneous boom movement and chopping.

Casappa shredder hydraulic motor: High-quality component, ensuring high performance and constant.

Versatility of Functions: Excellent for roadside cleaning with variable configurations and adaptability.

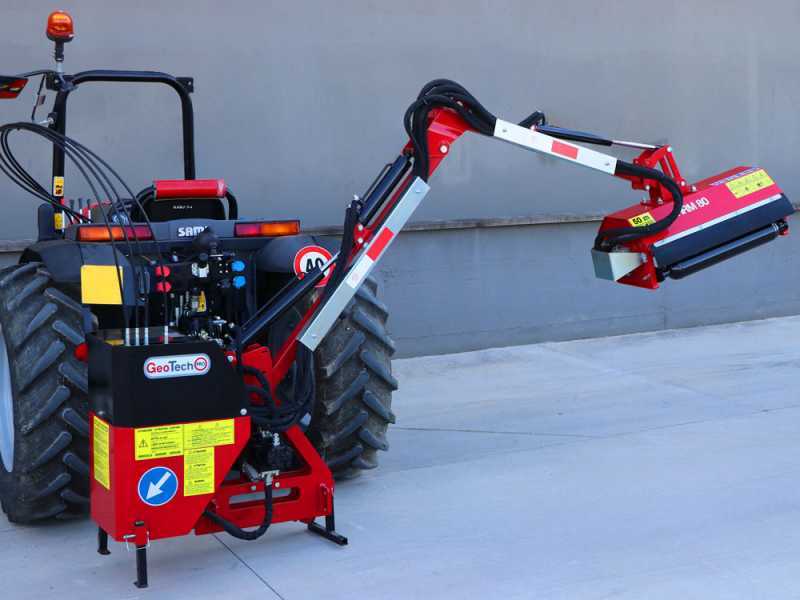

Brushcutter arm

The arm of this brush cutter is designed with a maximum length of 290 cm, which makes it easy to reach hard-to-reach areas. Its adjustable extension allows the operator to adapt the length of the arm to the specific needs of the job.

In addition, the arm can be tilted up to a maximum angle of 123°, allowing the cutting head to be swivelled in various directions to tackle dense vegetation and obstacles efficiently. This versatility allows you to cut grass, shrubs and vegetation even in hard-to-reach places.

Movement 1

Movement 2

Movement 3

Photo diagram

A 290 cm

B 350 cm

C 320 cm

a 176°

b 116°.

y 123°.

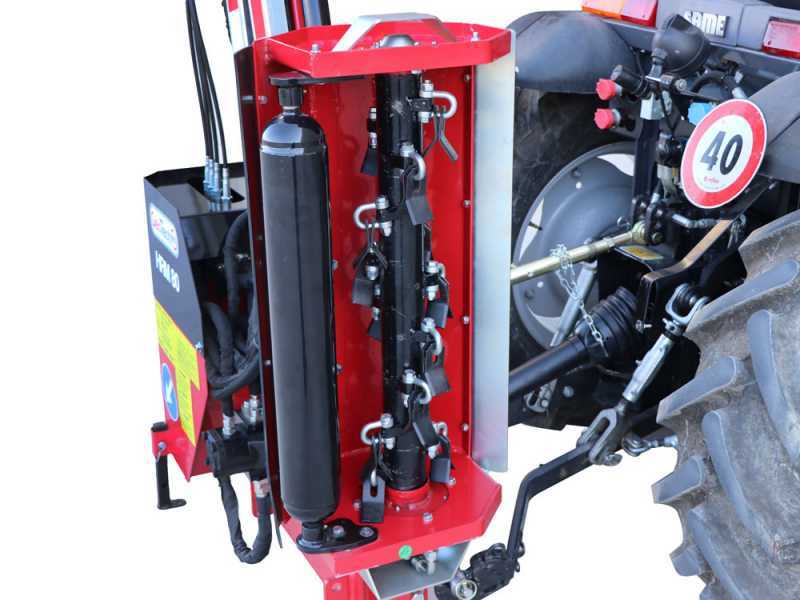

Set-up with Y knives and roller

The brush cutter arm is equipped with a Y-knife rotor, this feature allows the machine to have a cleaner and more uniform cut, reducing the risk of bogging even in dense vegetation conditions. The machine guarantees a cutting width of 100 cm.

The number of knife pairs is 20 with a total of 40 knives.

Support roller

Detail of the mechanism for adjusting the cutting height up to 3 levels

The head can be rotated up to 176° for greater versatility.

Movement 1

Movement 2

Movement 3

Other features

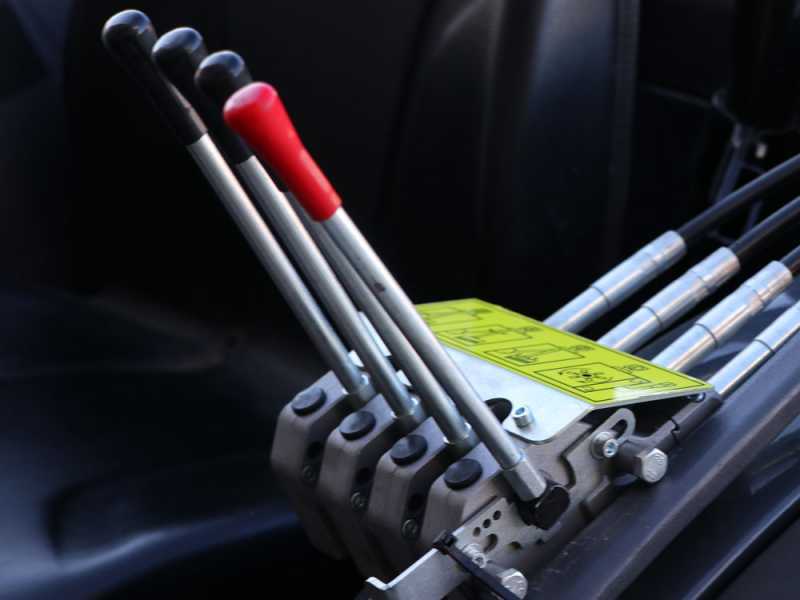

Control unit remote 4 levers

Oil tank with capacity: 55 L

Hydraulic distributor: Hydrocontrol (Made in Italy)

Double hydraulic pump: Casappa (Made in Italy) that allows you to move the arm and shred at the same time.

Safety hooks

Adjustable feet for stable ground support of the machine at rest

Hardened and ground hardened steel pins and bushings, lubricated with greaser

Free items & Standard equipment

Equipment

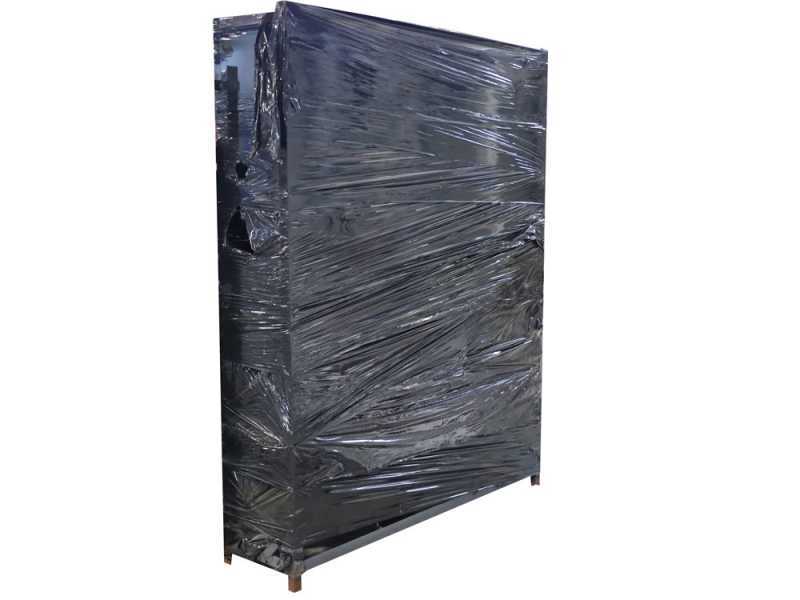

The product is delivered in its original cage with Cardan shaft.
