Description

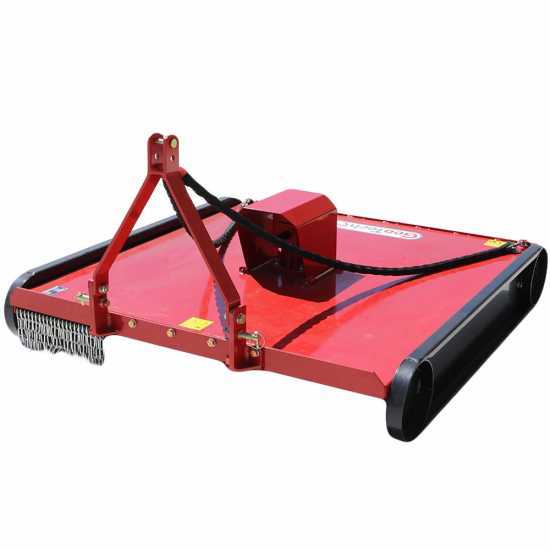

GeoTech SLP 160 tractor mounted rotary slasher SLP 160

The tractor mounted rotary slasher with vertical axis SLP 160 has a light and elastic structure ideal for the cut of grass on parks, gardens, sports fields, green areas in general and on orchards.

Apt for tractors up to max 25 - 45 hp.

It is equipped with 2 swinging blades; thanks to this characteristic the blades ensure a long lasting in time.

TECHNICAL DETAILS (in summary):

Real working width: 160 cm
Real width occupied (with side skids assembled): 171 cm
Weight: 313 kg
Suggested for tractors: from 25 to 45 HP

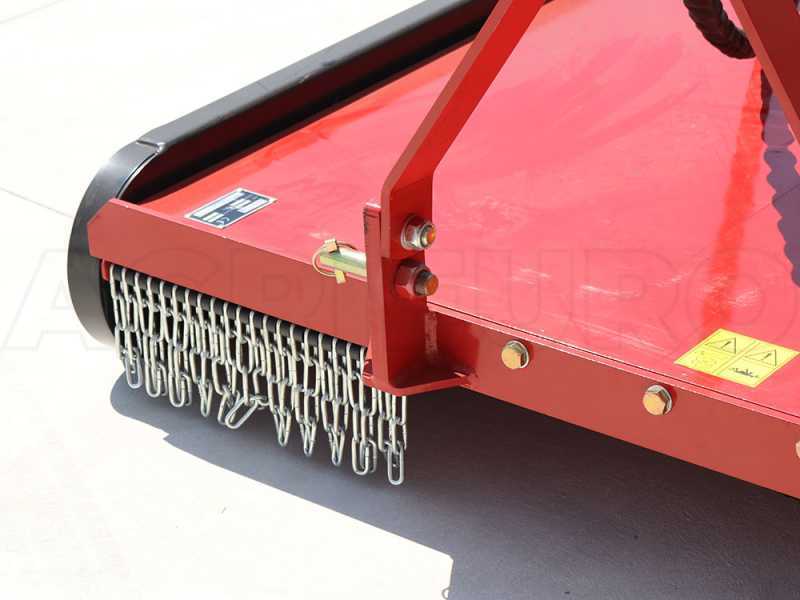

3 point linkage
Direct drive with cast iron gearbox
Hinged rear flap for expulsion
Reversible and adjustable skids

They do not work with left direction of rotation!

GeoTech Pro flat tractor mounted rotary slasher with vertical axis model SLP 160

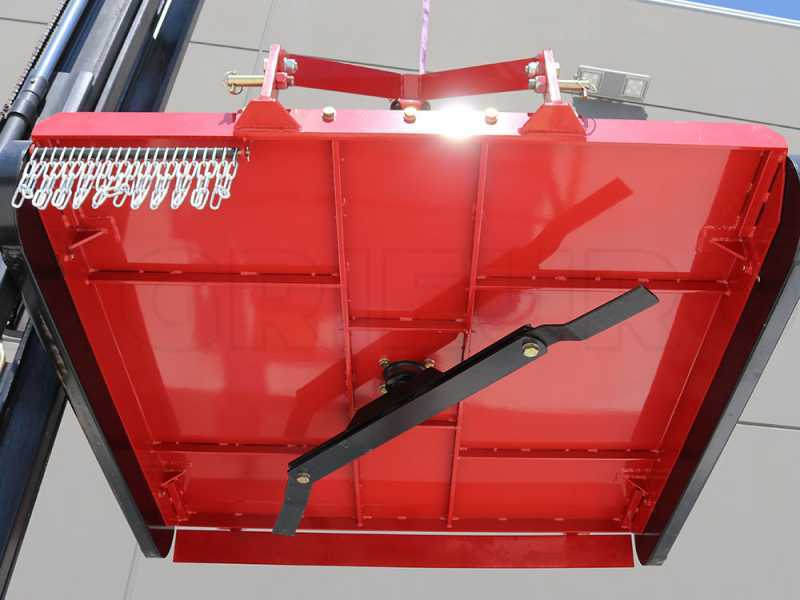

The blades

The blades are able to cut grass, pruning residuals and bushes in medium/difficult conditions, even in slopes but without exagerating.

The most of the times its purchase aim is to chop weeds in orchards, wine yards and olive groves.

Sturdy cast iron gearbox, with direct drive 540/rpm.

Working width: 140 cm

Focus on the knives.

Regulation of the cut height from 1.5 to 10.5 cm.

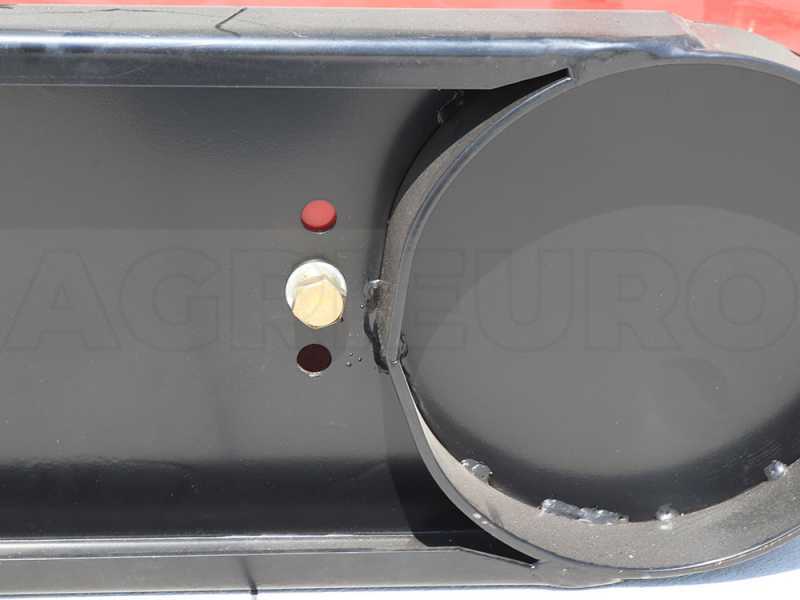

Gearbox and side skids

The drive of this model is direct at 540 g/min with cast iron gearbox.

Focus on the gearbox with cardan protection.

Focus on the cardan protection.

It is possible to regulate the side skids in order to obtain a cut from 3 to 10 cm. This oparation requires just few minutes; it is enough to unscrew and screw again the screws at the height you want. Moreover the skids are reversible, a characteristic that conveys a longer lasting to the chopping.

Focus on the back expulsion.
