GeoTech-Pro BHS 195 - Backhoe for tractor with lateral displacement

Questions & Answers (2)
ID: 111870

EAN: 8053435095136

MPN: BHS195

GeoTech-Pro BHS 195 - Backhoe for tractor with lateral displacement
+10 sold
Body material
Steel
Tractor power
From 30 to 45 HP
Independent Oil Tank
Yes
Bucket width
30 cm
Shift
Hydraulic
Lateral displacement length
90 cm
Digging force
1100 Kg
Indipendent stabiliser
2
Stabiliser length
43 cm
180° arm rotation
yes
Reach
338 cm
Excavation depth
195 cm
Maximum height
280 cm
Arm piston diameter
60 mm
Cardan shaft
Yes
Product Features
Model:
BHS 195
Tractor power:
From 30 to 45 HP
Body material:
Steel
Shift:
Hydraulic
Hydraulic shift:
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Bucket width:
30 cm
Lateral displacement length:
90 cm
Digging force:
1100 Kg
Indipendent stabiliser:
2
Stabiliser length:
43 cm
180° arm rotation:
yes
Reach:
338 cm
Excavation depth:
195 cm
Maximum height:
280 cm
Arm piston diameter:
60 mm
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes

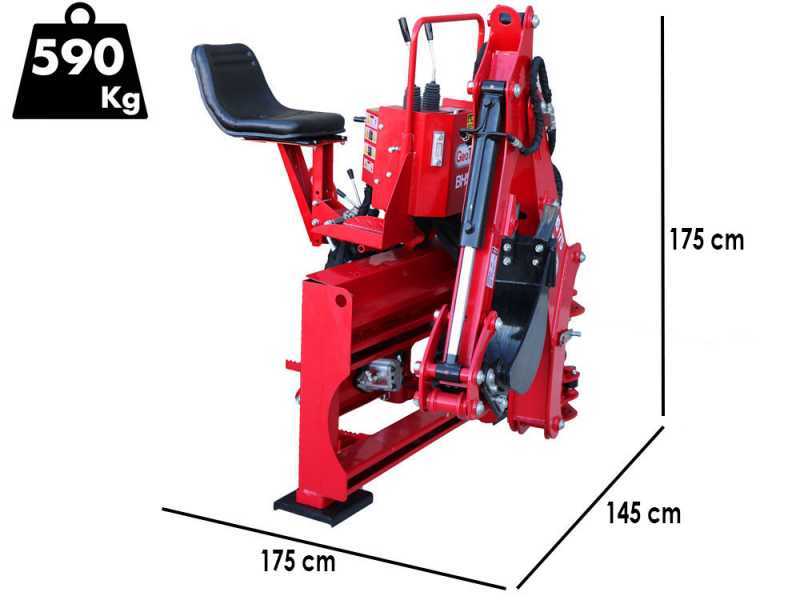

Dimensions and logistics
Product dimensions in cm (L x W x H):
175x145x175 cm
Net weight:
590 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
145x105,5x180 cm
Gross weight (packaging included) :
630 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Out of stock
Free Shipping
Suggested price:
€ 5.914,75
€ 5.027,54
VAT Included
You're viewing:
Customers also viewed:
Description

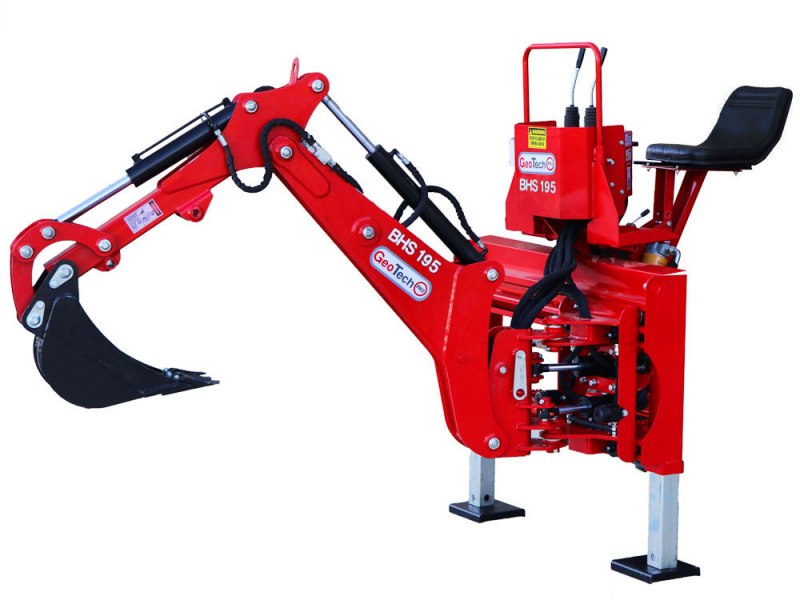

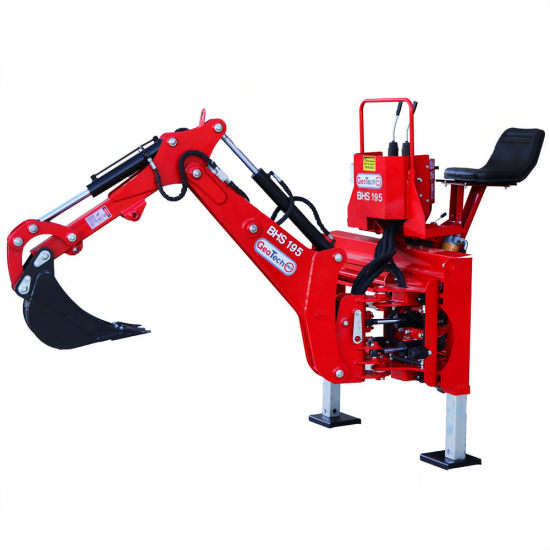

GeoTech-Pro BHS 195 lateral displacement backhoe

The Geotech Pro BHS 195 is a versatile backhoe suitable for a variety of excavation operations. It is ideal for transplanting work, creating drainage systems, fixing soil steps, removing stones and debris, and cleaning ditches and streams.

Its efficiency extends to various types of excavations, adapting to different soil requirements. A notable feature is its side-shift capability on the chassis, which increases the dynamism of the machine and reduces the need to continuously move the tractor.

Equipped with an autonomous hydraulic system, the BHS 195 ensures excellent performance and operational independence. Compatible with tractors of at least 30 hp, it fits all types of tractors, making it an indispensable accessory in agricultural equipment.

The dipper stick of this side-shifting backhoe can rotate up to 180°, providing great mobility.

The main joints are reinforced with pins and bushings in hardened and ground cemented steel, and lubricated with a grease gun.

These features make the BHS 195 a functional and easy-to-use machine that is ideal for a wide range of agricultural and earthmoving applications.

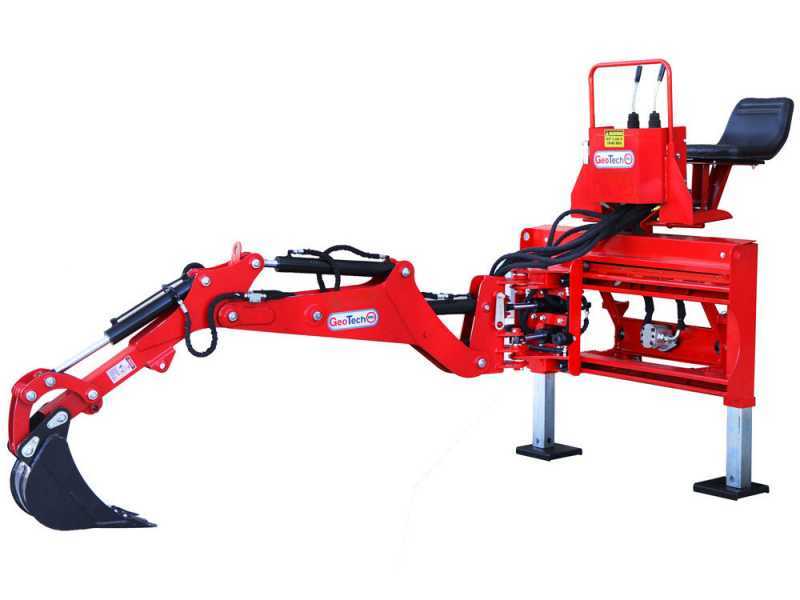

Dipper stick

The dipper stick of this backhoe is designed for maximum efficiency and durability, even in unfavourable working conditions. Made of high-strength steel, this dipper stick can withstand heavy loads and resist wear and corrosion.

Its ergonomic design and reinforced structure ensure greater stability and precision when lifting and digging. The dipper stick offers a wide range of motion, allowing the operator to reach and work in tight spaces with ease.

In addition, the intuitive and responsive control system ensures smooth and controlled operation, reducing operator fatigue and increasing overall productivity.

Dipper stick extension measurements:

Digging force: 1100 kg

Dipper stick opening up to 180°

Excavation depth (A): 195 cm

Dipper stick (B): 338 cm

Maximum height (C): 280 cm

Dipper stick fully to the left

Dipper stick fully to the right

Fully extended dipper stick

Bucket

The backhoe bucket with its robust profile and optimized shape ensures excellent ground penetration and efficient material collection.

Equipped with teeth made to keep its sharpness for a long time, reducing the need for frequent maintenance.

Bucket width: 30 cm

Bucket position 1

Bucket position 2

Bucket position 3

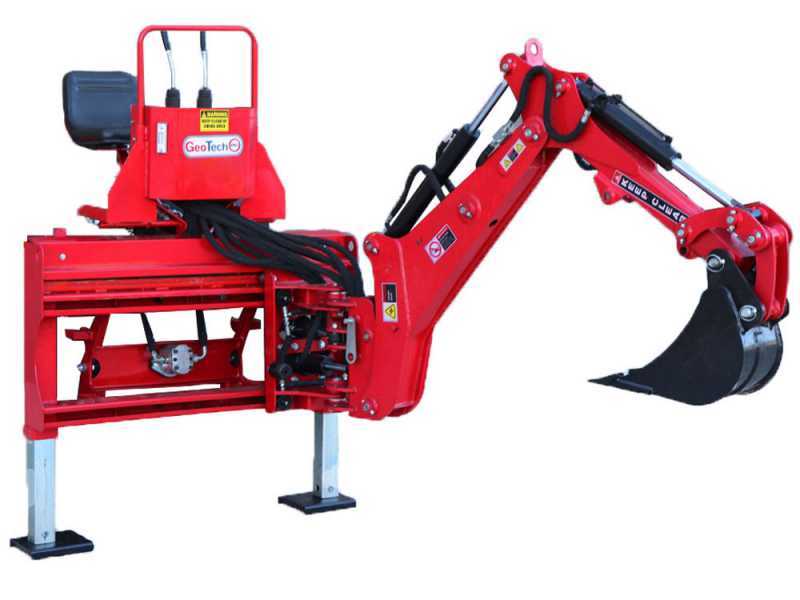

Lateral displacement

The backhoe is equipped with the Lateral Displacement function; this system allows the backhoe dipper stick to move sideways, in addition to the traditional vertical and horizontal movement.

This movement capability greatly increases operational flexibility, allowing the operator to reach and work in hard-to-access areas without having to reposition the entire vehicle.

The robust and durable structure ensures that the system can withstand the stress of continuous operations while maintaining consistent performance over time.

Detail of the lever for lateral displacement

Lateral displacement 1

Lateral displacement 2

Lateral displacement 3

Lateral displacement width: 90 cm

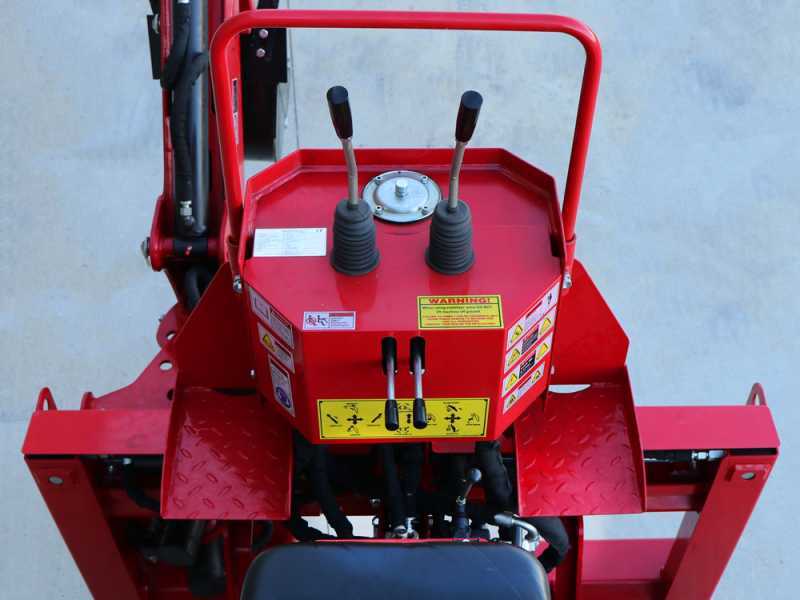

Control station

The control station is designed to ensure maximum comfort for the operator.

The seat is well elevated for good visibility while working.

Levers to direct the arm and bucket

Lateral shift lever (lever for unlocking lateral displacement)

Levers for adjusting the support stands

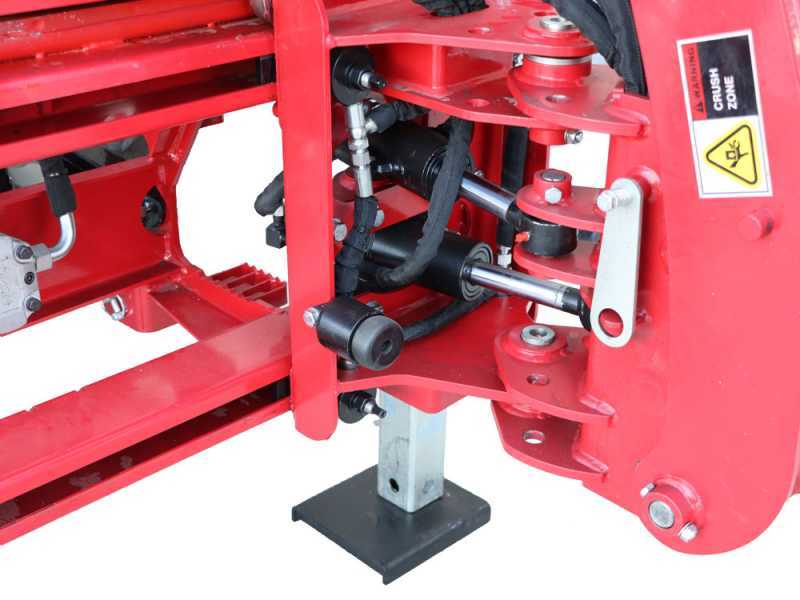

Other features

Freestanding support stands with maximum opening of: 43 cm

Hydraulic oil circuit thermometer

Adjustable tractor hitch

Hydraulic oil pump

Detail of the hydraulic distributor

Props for climbing to the post

Safety hooks for accidental opening of the dipper stick

Oil tank capacity: 40L

Free items & Standard equipment

Equipment

The product is delivered in its original cage with Cardan shaft.
