GeoTech Pro BHF 95 - Backhoe for stationary tractor

Questions & Answers (3)
ID: 111865

EAN: 8053435095082

MPN: BHF95

8,9/10
After-sales assistance & Spare parts
GeoTech Pro BHF 95 - Backhoe for stationary tractor
Body material
Steel
Tractor power
From 18 to 30 HP
Independent Oil Tank
Yes
Bucket width
29 cm
Digging force
1100 Kg
Indipendent stabiliser
2
180° arm rotation
yes
Reach
250 cm
Excavation depth
95 cm
Maximum height
220 cm
Arm piston diameter
50 mm
Cardan shaft
Yes
Product Features
Model:
BHF 95
Tractor power:
From 18 to 30 HP
Body material:
Steel
Independent Oil Tank :
Yes
3-point hitch category:
First and Second
Manufacturing country:
China
Bucket width:
29 cm
Digging force:
1100 Kg
Indipendent stabiliser:
2
180° arm rotation:
yes
Reach:
250 cm
Excavation depth:
95 cm
Maximum height:
220 cm
Arm piston diameter:
50 mm
No Displacement:
Free gifts/extra features
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

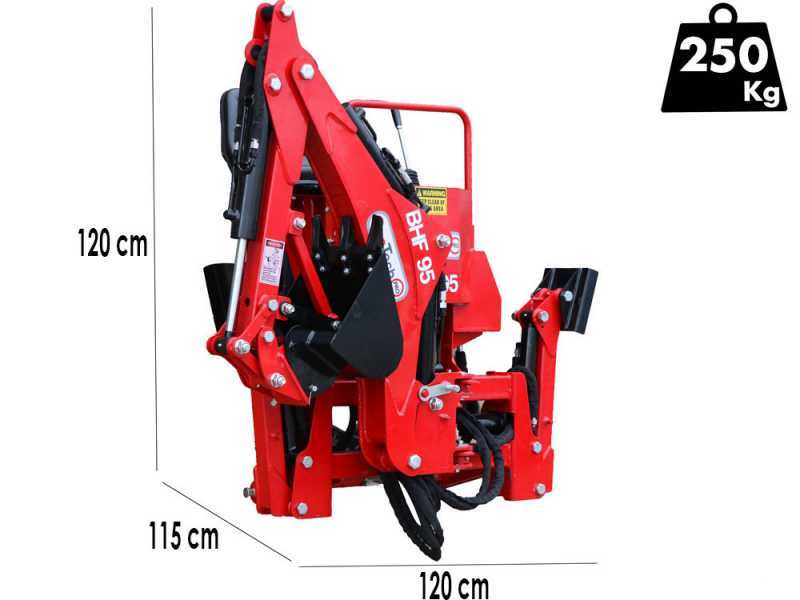

Product dimensions in cm (L x W x H):
120x115x120 cm
Net weight:
250 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
200x99.5x119 cm
Gross weight (packaging included) :
280 Kg
Assembly time:
60 minutes
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 06/08/2024 - 08/08/2024
Suggested price:
€ 3.855,41
€ 3.277,10
VAT Included
You're viewing:
Customers also viewed:
Description

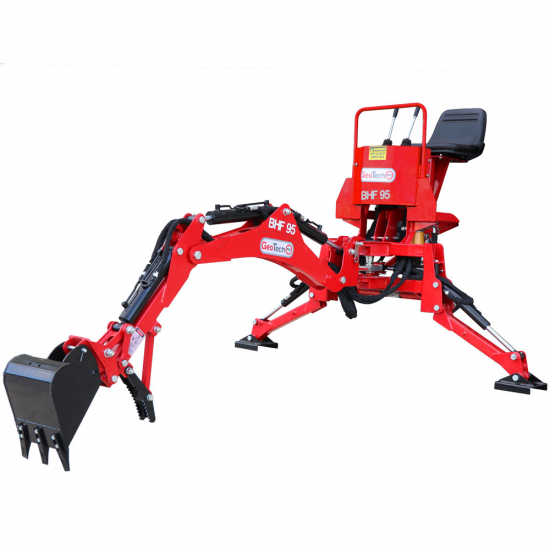

GeoTech-Pro BHF 95 Backhoe

The Geotech Pro Series BHF 95 backhoe is a multipurpose attachment ideal for a wide range of excavation and earthmoving operations. This tool is designed to provide excellent performance in a variety of agricultural and construction settings, ensuring maximum versatility and efficiency.

Main Features:

  • Wide Range of Applications: The BHF 95 is capable of performing a variety of jobs, including transplanting, creating drainage systems, arranging soil steps, and removing stones and debris from the ground. It is also ideal for cleaning ditches and waterways, making it an indispensable tool for many needs.

  • Efficacy in Different Ground Conditions: Due to its flexibility and adaptability, this backhoe proves extremely effective in various types of excavation. Whether in compact or softer terrain, the BHF 95 offers reliable, high-level performance.

  • Autonomous Hydraulic Footprint: The integrated autonomous hydraulic system ensures optimal performance and operational independence. This means that the backhoe can be used efficiently without depending on other power sources, increasing its versatility and usefulness in the field.

  • Universal Compatibility: The BHF 95 can be mounted on tractors with a minimum horsepower of 18, making it compatible with a wide range of small tractors available on the market. This feature makes it a flexible choice suitable for a good deal of agricultural equipment.

  • Optimal Mobility: The dipper stick can rotate up to 180°, providing excellent mobility and making it easier to reach critical work points. This rotational capacity allows for greater precision and flexibility in digging operations.

  • Sturdiness and Durability: The main joints of the backhoe are equipped with hardened and ground case-hardened steel pins and bushings, lubricated with grease gun. This sturdy construction ensures long service life and reliable performance over time.

The Geotech Pro Series BHF 95 backhoe is a good and easy-to-use solution for a wide range of agricultural and earthmoving applications.

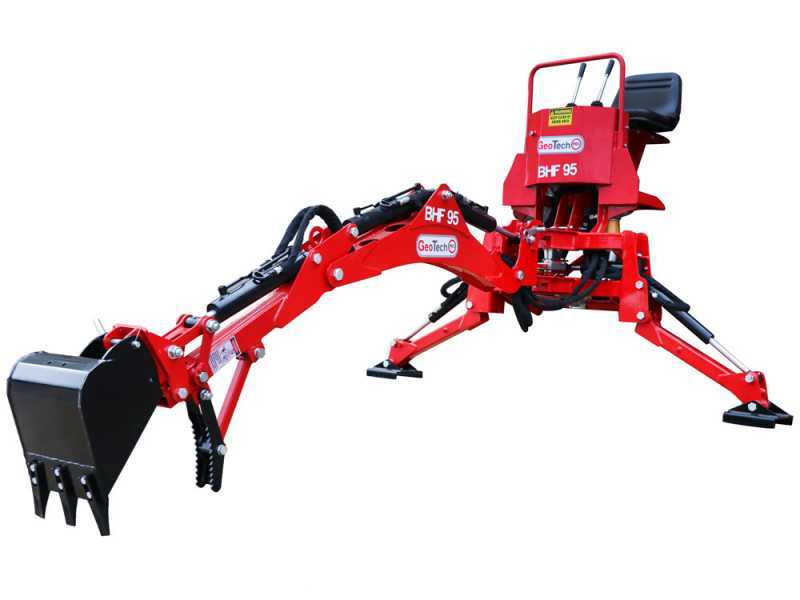

Dipper stick

The dipper stick of this backhoe is designed for maximum efficiency and durability, even in unfavourable working conditions. Made of high-strength steel, this dipper stick can withstand heavy loads and resist wear and corrosion.

Its ergonomic design and reinforced structure ensure greater stability and precision when lifting and digging. The dipper stick offers a wide range of motion, allowing the operator to reach and work in tight spaces with ease.

In addition, the intuitive and responsive control system ensures smooth and controlled operation, reducing operator fatigue and increasing overall productivity.

Dipper stick extension measurements:

Digging force: 550 kg

Dipper stick opening up to 180°

Excavation depth (A): 95 cm

Bucket Reach (B): 250 cm

Maximum height (C): 220 c

Dipper stick fully to the left

Dipper stick fully to the right

Central dipper stick

Fully extended dipper stick

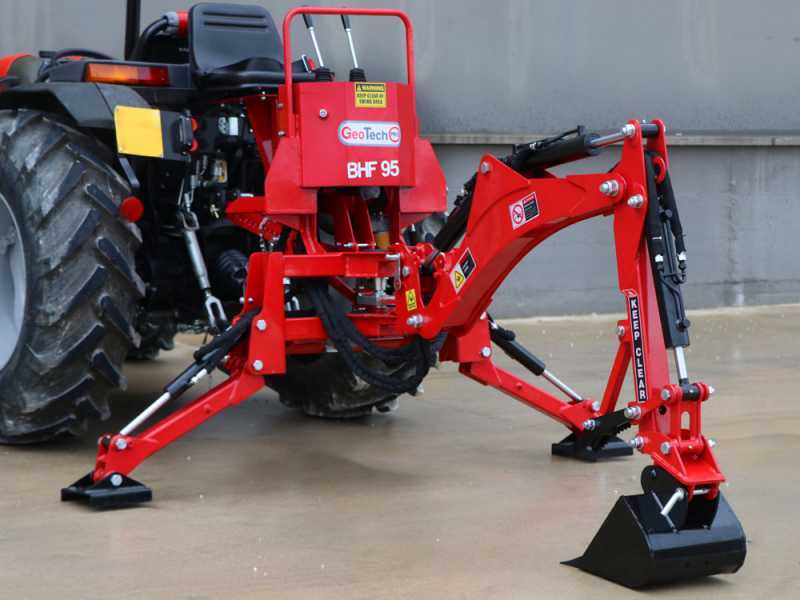

Bucket with mechanical thumb

The backhoe bucket with its robust profile and optimized shape ensures excellent ground penetration and efficient material collection.

Equipped with teeth made to keep its sharpness for a long time, reducing the need for frequent maintenance.

Detail of mechanical thumb useful for grasping various materials such as a log. You can remove it the moment it is not useful during the operation.

Bucket width: 29 cm

Bucket position 1

Bucket position 2

Bucket position 3

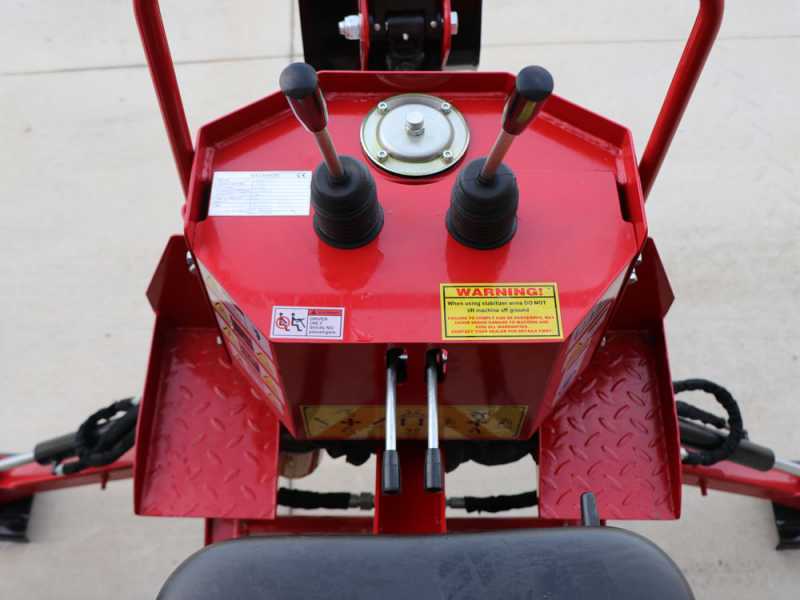

Control station

The control station is designed to ensure maximum comfort for the operator.

The adjustable seat with attached seat belts is well elevated for good visibility while working.

Distributor with cloche levers to direct the dipper stick and bucket

Levers for adjusting the support feet.

Other features

Independent support feet

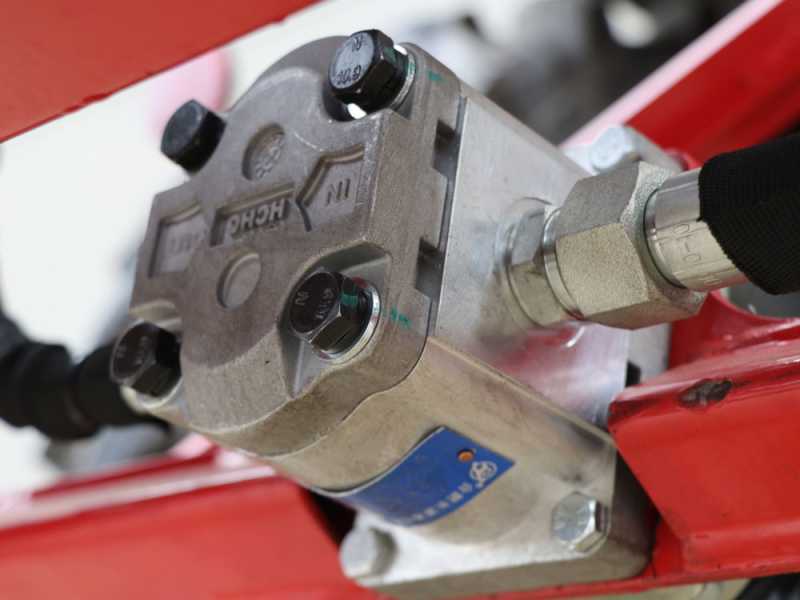

Hydraulic oil pump

Safety hooks for accidental opening of the dipper stick

Detail of the hydraulic distributor

Length spacing between the two pins: 83

Free items & Standard equipment

Equipment

The product is delivered in its original cage with Cardan shaft.
