GeoTech LV650 SPBS Deluxe - Self-propelled leaf vacuum-garden shredder - B&S Vanguard

Questions & Answers (9)
ID: K4936

EAN: 8054141540866

GeoTech LV650 SPBS Deluxe - Self-propelled leaf vacuum-garden shredder - B&S Vanguard
+400 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Tubo aspirafoglie in omaggioTubo aspirafoglie in omaggio
Power supply
Petrol
Self-propelling
Traction / self-propelled
Vacuum function
Yes
Shredding (while vacuuming)
Yes
Cubic capacity
205 cm³
Nominal power
6.5 HP
Gears
2+2
Motor Model
Vanguard
Product Features
Model:
LV650 SPBS Deluxe
Power supply:
Petrol
Type:
Wheeled
Self-propelling:
Traction / self-propelled
Vacuum function:
Yes
Shredding (while vacuuming):
Yes
Collection bag capacity:
120 L
Manufacturing country:
China
Motor data
Motor brand:
Briggs & Stratton
Motor Model:
Vanguard
Cubic capacity:
205 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Manufacturing country:
USA
Transmission data
Gears:
2+2
Equipment
Recoil start system (with rope):
Yes
Rear wheels size:
13 x 5 - 6
Free gifts/extra features
Connecting hose kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
76x69x102 cm
Net weight:
82 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
135x95x110 cm
Gross weight (packaging included) :
85 Kg
Assembly time:
60 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 1.333,61
VAT Included
You're viewing:
Customers also viewed:
Description

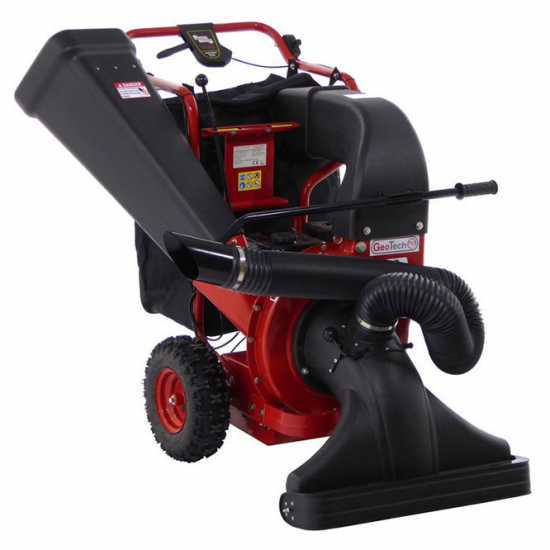

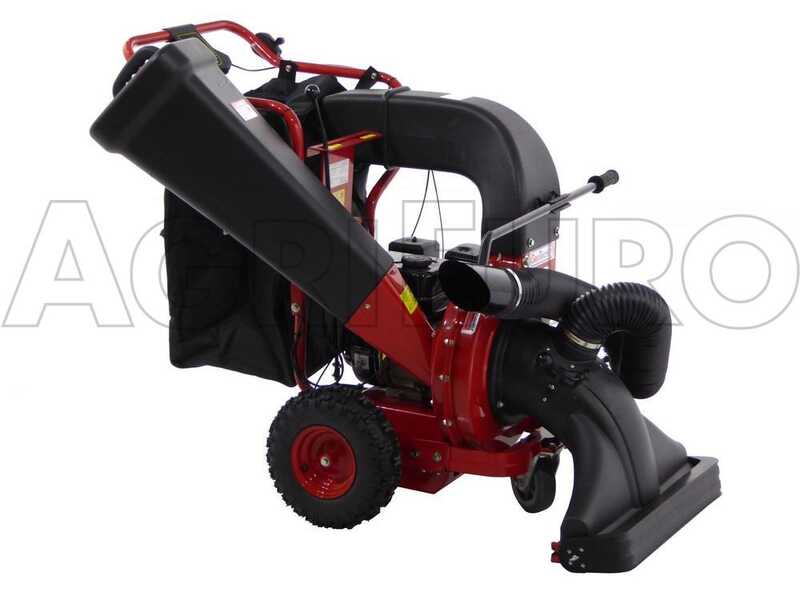

GeoTech Pro LV650 SPBS Deluxe leaf vacuum - garden shredder

GeoTech Pro LV650 SPBS Deluxe leaf vacuum - garden shredder overview:

LV: Leaf Vacuum
6:
nominal power 6.5 Hp (lower real power)
50: shredder max. cutting diameter 50 mm
SP: stands for Self-propelled.
L: stands for Loncin, the engine brand.

This new GeoTech Pro model is a 3 in 1 machine:

  1. Leaf vacuum
  2. Garden shredder
  3. Leaf vacuum with hose

Furthermore, this is a self-propelled machine and the wheel drive can be engaged directly from the handlebar.

It is fitted with a powerful 6.5 Hp Briggs&Stratton engine Vanguard Series.

The gearbox is a 2+2 gearbox, featuring 2 forward and 2 reverse speeds.

It is fitted with a large and sturdy 120 L canvas leaf collector for long operations.

The GeoTech Pro LV650 SPBS Deluxe leaf vacuum - garden shredder is an easy-to-use and very versatile tool for cleaning large paved outdoor areas. In addition, the innovative suction tube function allows you to clean under hedges, behind pots and in all hard-to-reach areas. The suction hose is removable.

These machines, even if hand-pushed, are suitable for flat terrain or with very low slopes. They are therefore not suitable for working on hard slopes.

How to properly use the machine

The wheeled leaf vacuum ensures great performance as long as it is used properly, in residential areas and in the following working conditions:

It is necessary to consider:

  • Surfaces suitable for leaf vacuum use (well-kept lawn, asphalt, concrete or paved surfaces and surfaces with non-dusty debris)
  • Surfaces NOT suitable for leaf vacuum use (rough terrain, unkempt grass, wet surfaces, wooded areas)

First of all, the surfaces must be well levelled and well-kept:

  • Gardens with mown and well-kept lawn
  • Asphalted or concrete surfaces used for parking, courtyard, etc ...
  • Sidewalks as long as they are free of disconnections, barriers and steps
  • Surfaces and squares with debris/stones only if not dusty

Surfaces not suitable for using a leaf vacuum:

  • Agricultural soils
  • Wild land with wild and untended grasses
  • Thickets or other areas with a dense layer of settled undergrowth

Intended use:

  • On recently fallen dry leaves (not stuck to the ground because of moisture and decomposition cycle due to long standing)
  • No damp leaves or leaves that have settled on the ground for a long time
  • No steep areas
  • No piles of leaves, no undergrowth
  • No pine needles or other needle-like plants

SPEED:

  • In case of large quantity of leaves, use the slowest forward speed

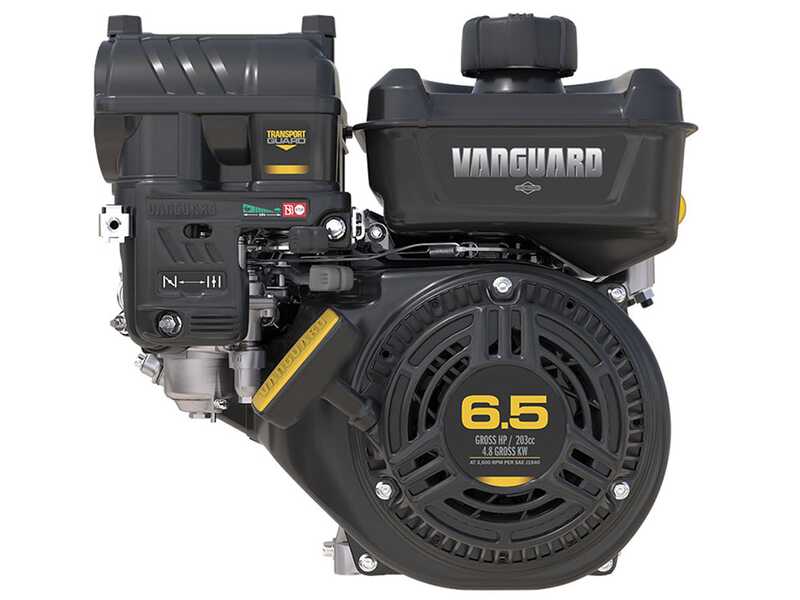

B&S Vanguard petrol engine 6.5 Hp

The GeoTech Pro leaf vacuum - garden shredder is powered by a powerful 205 cc Briggs & Stratton Vanguard Series 4-stroke air-cooled engine with overhead valves with aluminium cylinder.

It develops a maximum power of 6.5 Hp (4.1 kW) at 3600 rpm.

Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cooling system: air-cooled
Cubic capacity: 205 cm³
Fuel: Petrol
Power: 6.5 Hp
Starting: Recoil start
Tank capacity: 3.6 L

Focus on the engine adjustments and setting area

WARNING!
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

N.B.

Latest generation engine, see the first 3 pic. of the paragraph.

Vacuum mode

Traditional vacuum system through the 60 cm front opening: with this operating mode, the flow-diverting knob must be set to the high position.

The suction opening is adjustable in 5 different positions, from 0.5 to 3 cm away from the ground in order to guarantee optimal performance with respect to the ground and the material.

The opening can be adjusted by means of proper levers on the side of the machine.

Among the few self-propelled leaf vacuum machines on the market also featuring the shredding mode of the material collected. Thus it doesn’t simply collect but also shreds finely and then deposits the material in the rear collector.

Shredding is performed by a special high-strength steel disc with 6 steel blades. Shredding ratio: 7/1

Shredding the leaves collected guarantees many advantages:

  • It reduces the volume of collected material by up to 4 times and allows the 120L collector volume to provide a far greater material capacity than standard.
  • Easier emptying of the collector.
  • Less material to be disposed of.
  • Shredded material suitable for composting and for recovery as fertiliser.

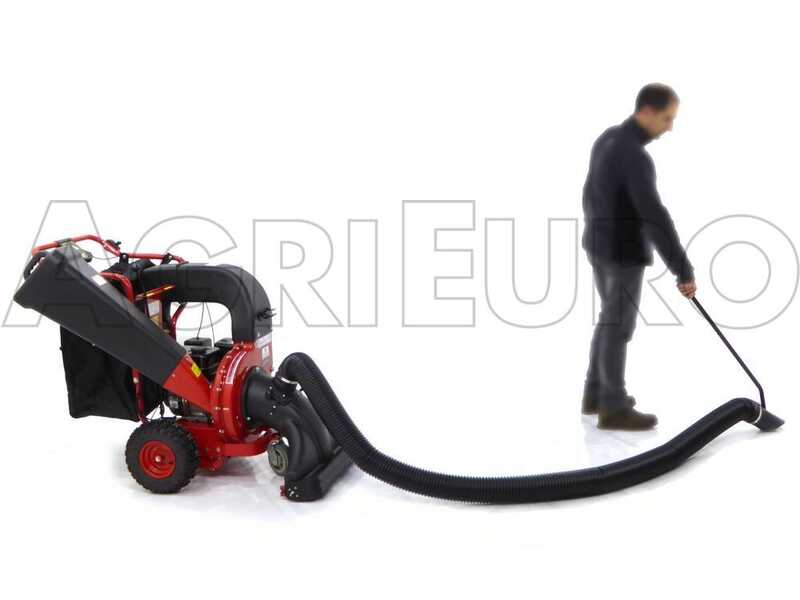

Vacuum mode by means of the suction hose

Traditional vacuum system through the hose extendable up to 3 m: with this operating mode, the flow-diverting knob must be set to the low position.

The suction hose function allows you to clean of leaves under hedges, behind pots and in all hard-to-reach areas. Ideal for reaching tight corners, borders and flower beds. Equipped for this purpose with a long ergonomic steel handle. All the suction power of the machine is concentrated on the inlet nozzle of the hose, ensuring it great suction power.

The suction hose is made of a reinforced metal spiral, specially designed for suction and transport operations.

It can be extended and folded very quickly, reducing bulk when not in use.

The hose can be easily extended up to a max. of 3 m when needed thanks to the handle on which it is fixed.

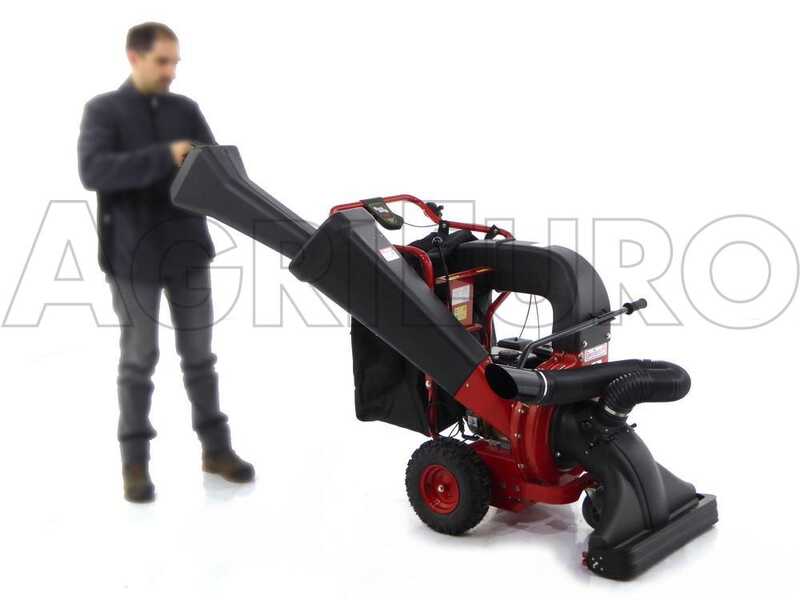

Shredding mode

The shredding mode allows shredding and crushing wood plant waste.

Maximum cutting diameter for shredding mode: 50 mm

Shredding is performed by means of:

  • 2 front blades: placed at the shredding chute opening, it is mounted on a rotating steel disc at the end of the hopper. They pre-shred the wood into the hopper reducing it in coarse wood chips.
  • 3 rear blades rotating at high speed (placed behind the 2 blades). They further shred the wood residues.

Heavy-duty pusher provided on standard equipment

Square feeding hopper 25 x 25 cm

Controls and additional features

Pair of rear pneumatic wheels with air chamber, size 13 x 5 - 6.

Focus on the front pivoting wheel

Focus on the exceptionally sturdy front arm made of cast steel.

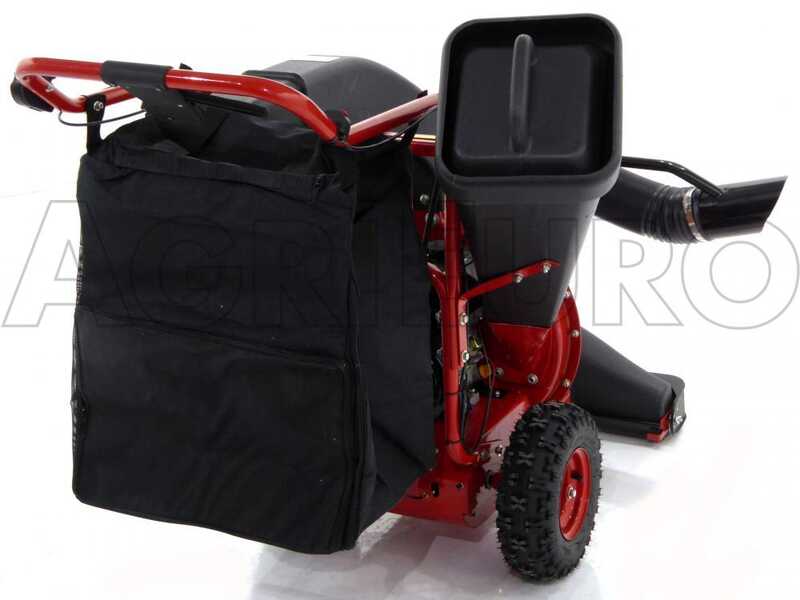

120 L extremely sturdy canvas grass collector. The leaf collector can be emptied also by means the lower zipper.

Focus on the gear lever with the 4 positions according to the selected gear, 2 forward and 2 reverse gears.

Focus on the motion engagement lever: by pulling the lever, the leaf vacuum will move forward or reverse according to the selected gear.

Focus on the throttle lever.

Focus on the emergency stop button

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items included

The machine is shipped in its original packaging on pallet.

The package includes:

  • Assembly and maintenance instructions
  • Maintenance keys
