Name: GeoTech IDH 3000 - Diesel Hot Air Generator - Indirect Heating - Trolley
Brand: GeoTech
Price: 685.87 EUR
Availability: InStock
Rating: 3.71 (7 reviews)

Description

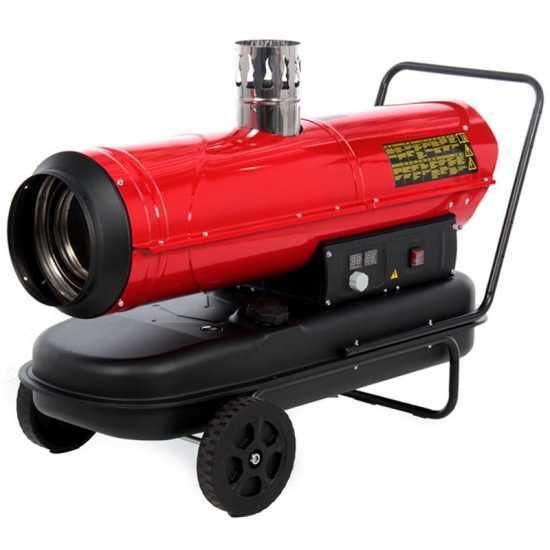

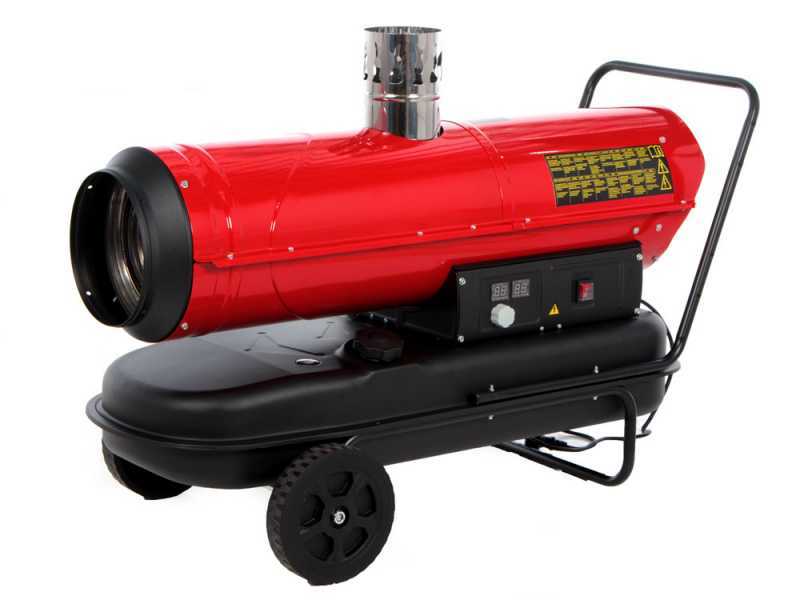

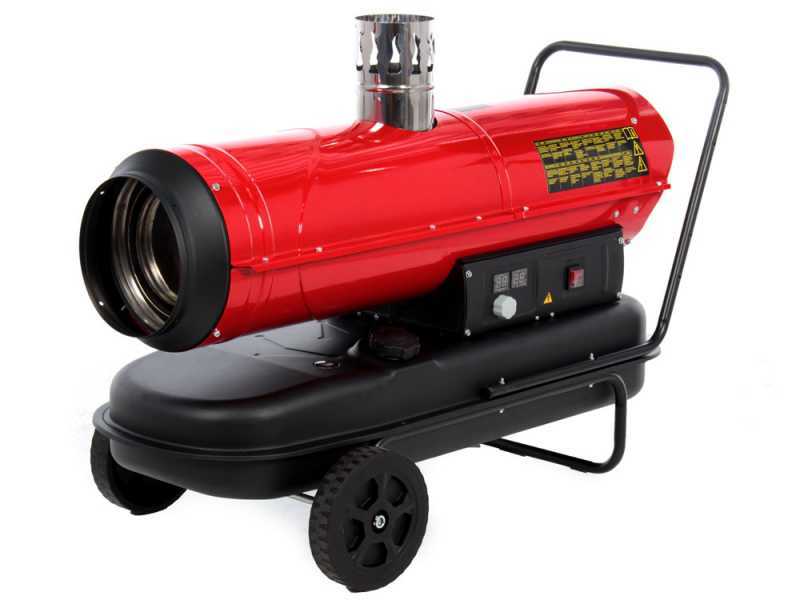

GeoTech IDH 3000 Hot Air Generator

The GeoTech IDH 3000 is a portable indirect heat hot air generator powered by diesel motor. It provided indirect heating with heat exchanger by means of smoke discharge chimney.

Hot air generator ideal to heat large areas, which are difficult to warm up like workshops, construction sites, greenhouses, farms.

This model is provided with fumes discharge chimney so the exhaust fumes come out separately from the warm air produced through the specific discharge pipe.

The GeoTech IDH 3000 I hot air generator is able to produce high volumes of instant heat thanks to the 30 kW Max heat rating it provides and to the high 750 m³/h air displacement.

The gas heater we are focusing on is a portable and versatile machine. It is known to be extremely easy to use and transport thanks to the wheels and comfortable handle provided on standard kit, which are easily assembled by screwing two bolts.

This sturdy and long-lasting machine consists of a painted steel body. It joins together high performances together with ease of use and transport.

The hot air generator requires easy and quick maintenance. It allows to quickly heat up different kind of areas.

GeoTech IDH 3000 - Diesel Hot Air Generator - Indirect Heating - Trolley

How to select the ideal hot air generator

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up.

Dimensions of the area that has to be heated up[V].
The ideal temperature [ΔT] that has to be reached.
Room thermal insulation [K].

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

Example:

V = 4 mt width, 12 mt length, 3 mt height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal/h, which has to be compared with the data written on the machine label, which highlights this gad heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW
