GeoTech GWPM150 - Petrol Wood Pellet Machine - Home Production of Pellet for Heating

Questions & Answers (19)
ID: K500142

EAN: 8053435090674

MPN: 500142

8,9/10
After-sales assistance & Spare parts
GeoTech GWPM150 -  Petrol Wood Pellet Machine - Home Production of Pellet for Heating
+500 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Output capacity
35 - 65
Motor type
4-stroke
Nominal power
7 HP
Motor Model
WM170F/P
Weight
115 Kg
Product Features
Model:
GWPM150
Operating mode:
Spark ignition
Operating mode:
Spark ignition
Pellet diameter:
6 mm
Max. hourly output:
65 kg/h
Output capacity:
35 - 65
Manufacturing country:
China
Motor data
Motor Model:
WM170F/P
Motor type:
4-stroke
Nominal power:
7 HP
Max. engine rpm:
1800
Fuel:
Petrol
Power supply:
Overhead valve OHV
Manufacturing country:
China
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

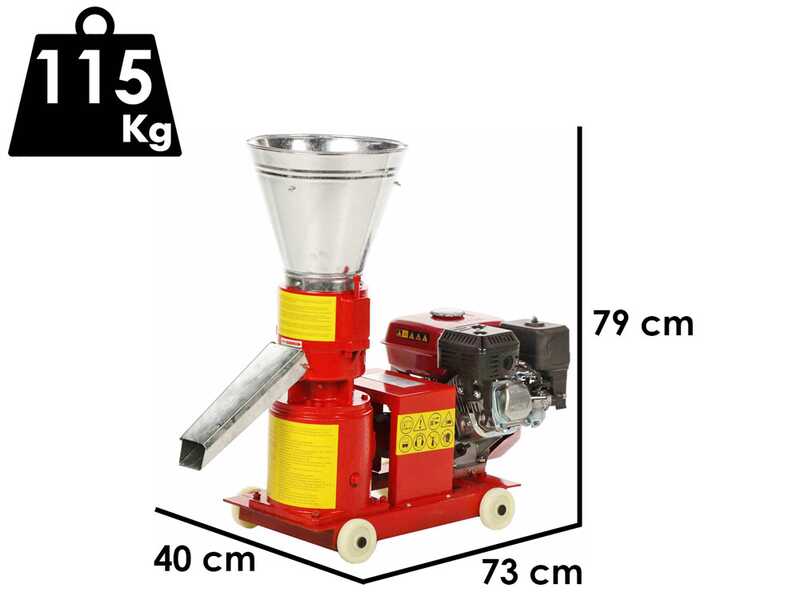

Product dimensions in cm (L x W x H):
40x73x79 cm
Net weight:
115 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
42x57x70 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
97 items in stock
Free Shipping
Estimated delivery: 22/10/2024 - 24/10/2024
Suggested price:
€ 1.239,13
€ 1.078,06
VAT Included
You're viewing:
Customers also viewed:
Description

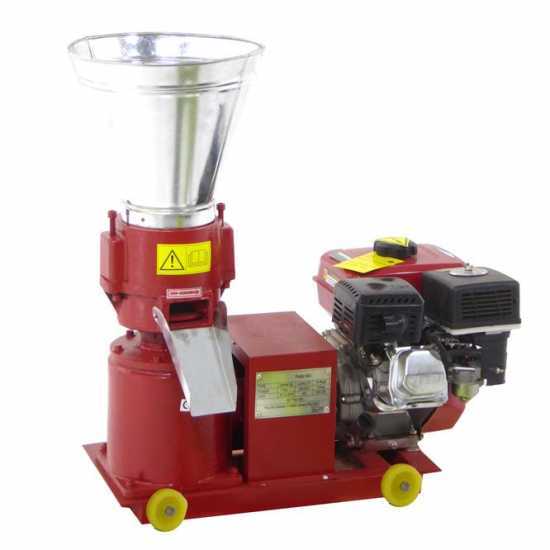

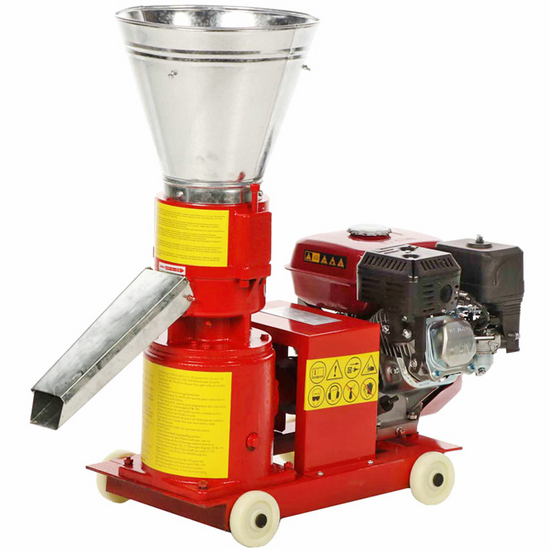

GeoTech GWPM150 petrol wood pellet machine 7 Hp

Thanks to this wood pellet machine, you can produce pellet at home whenever you need!

This machine will enable you to recycle the wood chips produced by your garden shredder in an extremely profitable way: You’ll be able to easily produce a high-quality energy-efficient fuel.

The GeoTech wood pellet machine with petrol engine is petrol-powered and features 7 Hp. This allows producing pellets even when electricity main is no available.

A die featuring 6 mm holes is included in the package.


ATTENTION: the pellet machine must be fed with small-sized wood chips produced by a garden shredder. We therefore recommend a wood chipper with an interchangeable sieve in the discharge chute that allows sufficiently small wood chips, as well as sufficiently similar and regular sizes (the Ceccato Tritone and Tritone Maxi models, or the AgriEuro 7 Hp and 15 Hp garden shredders have been tested and are therefore fully compatible with this need).

How to make pellet at home?

  1. First wood shredding: the first thing to do is to shred the wood coarsely with the garden shredder without using any sieve.
  2. Second wood shredding: Re-enter the wood chips into the garden shredder. Use the sieve most suitable to your needs according to the garden shredder model in order to reduce the wood chips size for allowing the pellet machine to process it.
  3. Since the wood to be shredded must be green, it will be necessary to let it dry before entering it into the wood pellet machine. Note that the optimum moisture content for pellets that do not crumble is between 10 and 14%.
  4. Once the wood chips have been dried, simply enter them into the hopper of the pellet mill to finally turn them into pellets.

It is recommended to check that no material (such as plastic or metal) except wood chips is entered into the machine). Results may change depending on the type of wood and the wood chips drying level.

It is necessary for the Operator to be present at all times during the pellet production process in order to continuously feed the machine with wood chips.

Examples of garden shredders suitable for the production of wood chips for pellet mills: these machines can be equipped with a 8 mm or 10 mm chopping sieve, depending on the model, to reduce the wood chips to the right size for the pellet mill.

CAUTION Wood shavings or sawdust are not suitable for processing into pellets, as the length exceeds the size that can be processed by the pellet mill and the thickness is less than the minimum required. The only suitable material are the wood chips produces by a garden shredder as stated above.

Technical features

The wood pellet machine, i.e. the machine that extrudes the pellets, features a flat rotating die with a 150 mm diameter. A pair of rollers equipped with 2 bearings each ensures pressing the wood chips. The pressing rollers are powered by a 7 Hp petrol engine.

The wood chips must be entered from the upper feeding hopper.

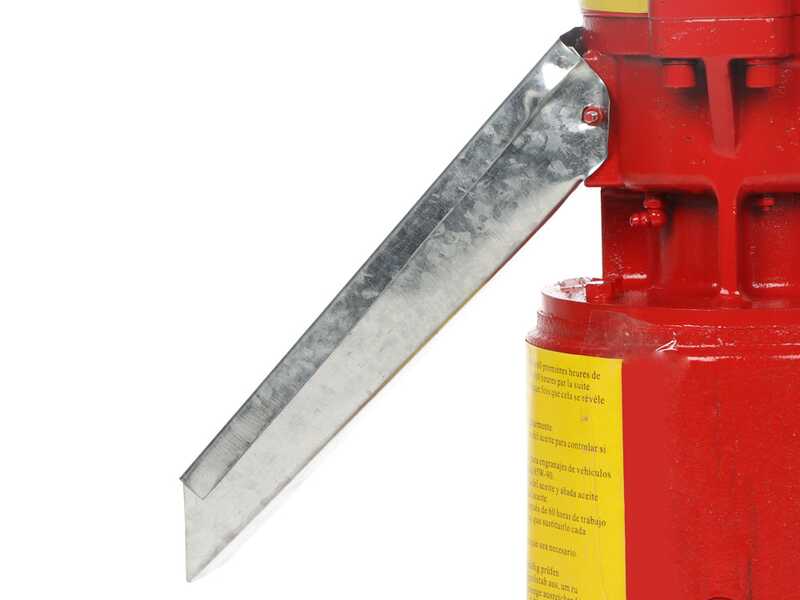

The pellet produced is discharged through the discharge chute.

The pellet mill's hourly output varies between 35 and 65 Kg and produces a pellet (thanks to the included die) with a diameter of 6 mm and a length of 25 to 35 mm.

Thanks to the possibility of changing the die, it is possible to produce pellet with different diameters ( 4 - 6 - 8 mm).

Overall dimensions:

Length: 750 mm
Width: 420 mm
Height: 700 mm

The machine is equipped with sturdy rubber wheels for transport.

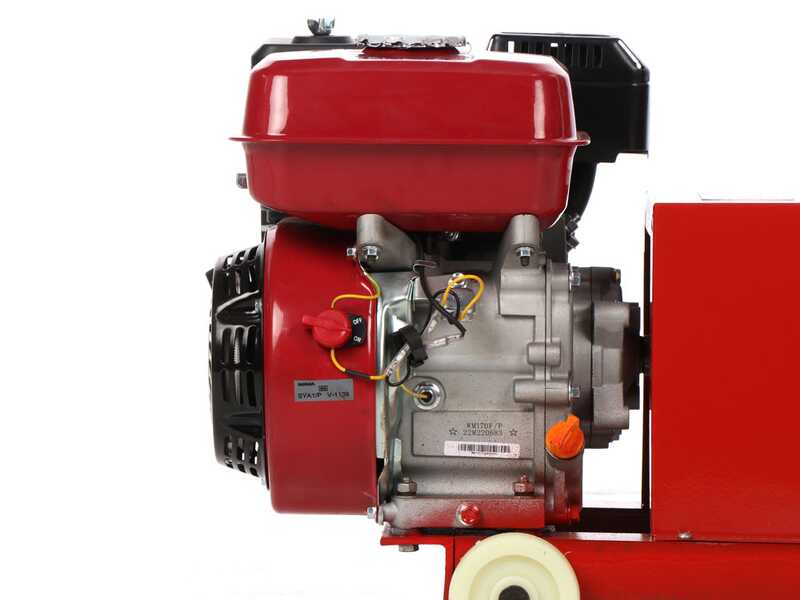

7 Hp motor




Features
:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
aluminium
Cubic capacity:
212 cc
Power
7 Hp

Latest generation 4-stroke petrol engine with overhead valve shaft “OHV".


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

Free items included

Instructions with maintenance and cleaning procedures.

Grease gun for maintenance

Tool for engine maintenance

The machine is shipped in a wooden box on pallet.
