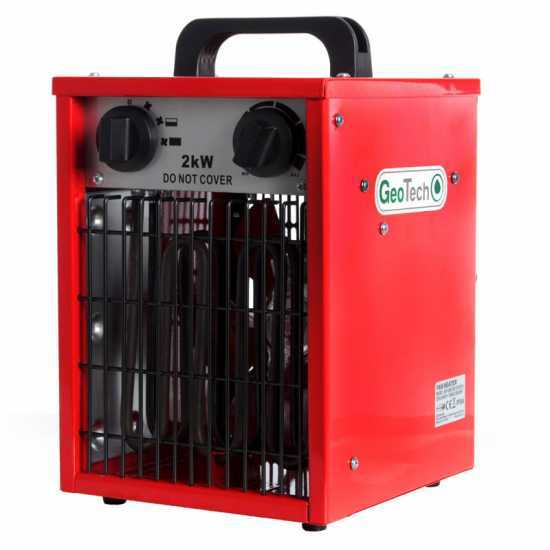

GeoTech EH 200 S Electric Hot Air Generator with Fan - Single-phase

Questions & Answers (1)
ID: 101531

EAN: 8053435090315

After-sales assistance & Spare parts
GeoTech EH 200 S Electric Hot Air Generator with Fan - Single-phase
Power supply
Single-phase electric
Max. heat output
2 kW
Body material
Enamelled steel
Product Features
EH 200 S
Power supply:
Single-phase electric
Body material:
Enamelled steel
Operating mode:
Electric 230 V
Max. heat output:
2 kW
9.1 A
Recommended for indoor areas:
Manufacturing country:
Thermal-protected motor:
Over-heating thermostat:
Built-in room thermostat :
Adjustable heat:
Free gifts/extra features
Instructions manual:
Dimensions and logistics
Net weight:
3.5 Kg
Original packaging
Original packaging/s dimensions in cm (L x W x H):
25x24x36 cm
Gross weight (packaging included) :
4 Kg
Assembly time:
Prompt Delivery
56 items in stock
Free Shipping
Estimated delivery: 21/06/2024 - 25/06/2024
€ 74,17
VAT Included

You're viewing:
Customers also viewed:

GeoTech EH 200 S hot air generator

The GeoTech EH 200 S is a hot air generator equipped with fan and single-phase power supply.

The Geotech electric hot air generator with fan is a localised heating system for small to medium-sized industrial, commercial or residential premises. Designed for hobby use. With no open flame or emissions, this heater can also be operated when it is forbidden to use it in closed rooms with poor ventilation and use fuels, such as gas or oil.

Machine equipped with a thermostat and a reset thermal fuse to control the heating elements. The thermostat detects the air temperature and controls the temperature of the surroundings. The fan motor is not controlled by the thermostat, so it will continue to run even when the thermostat has turned off the heating elements. The reset thermal fuse, with its switch, interrupts heat production if the machine overheats.

Main features:

  • No oxygen consumption
  • Low noise
  • 100% efficiency
  • Thermally-protected motor
  • Armoured heating elements
  • Adjustable heat level
  • Made of sturdy and long-lasting steel

This electric heater produces a high hot air flow rate thanks to the 2000W max. power.

It is a highly-versatile product, lightweight and easy to use and transport. It only needs easy and quick maintenance.

It allows you to heat your surroundings quickly.

How to select the ideal hot air generator according to your needs

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Technical specifications and other features

Max. thermal power: 2 kW

Power supply: 220-240/50 V/Hz

Power absorption: 8.3 - 9.1 A

Power required: 2 kW

Activation: manual

Power levels: 1000/2000 W

Water resistance rate: IPX4

Fusible features: 10A

Reset thermostat: 65°C

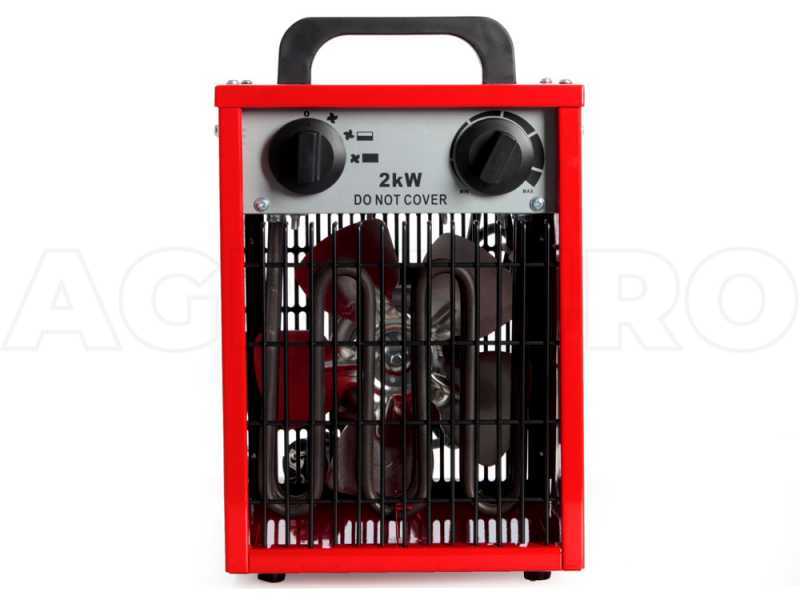

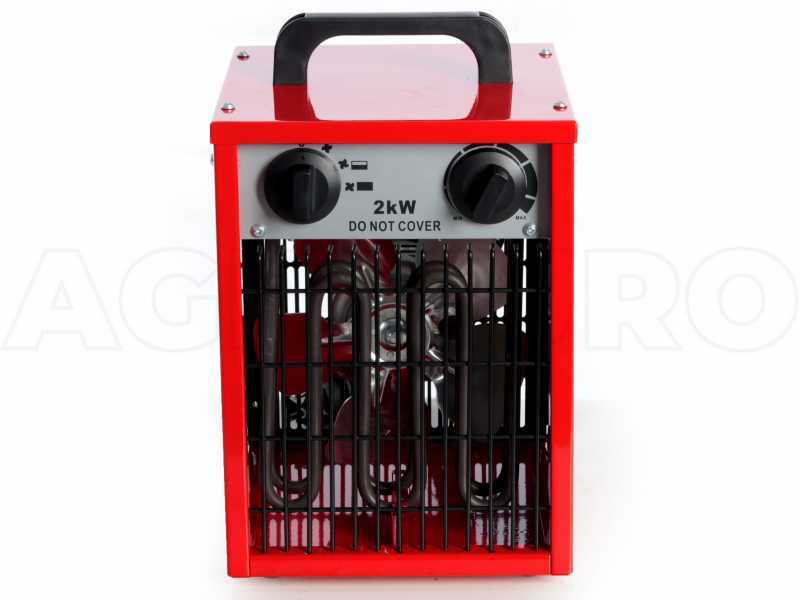

Focus on the front grid.

Carrying handle

Temperature adjustment knob

Thermostat adjustment knob

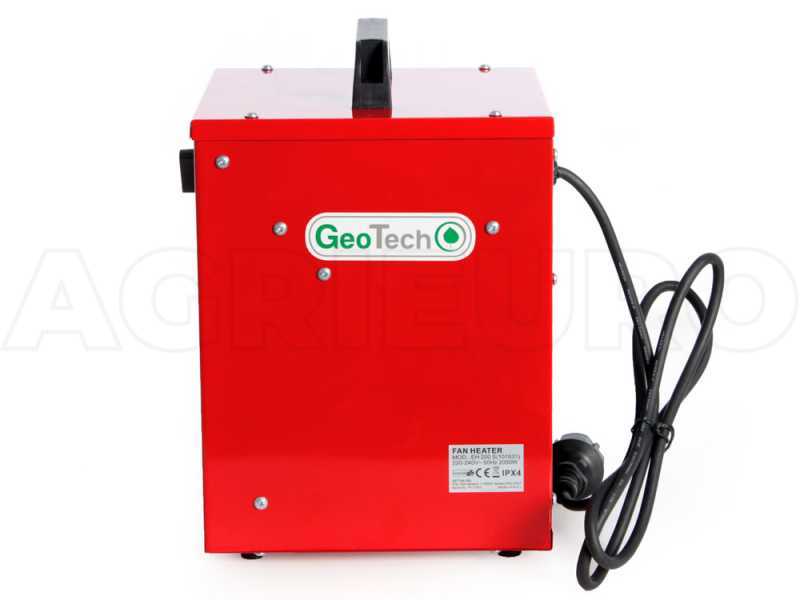

Plug with cable

Free items & Standard equipment

Free items included

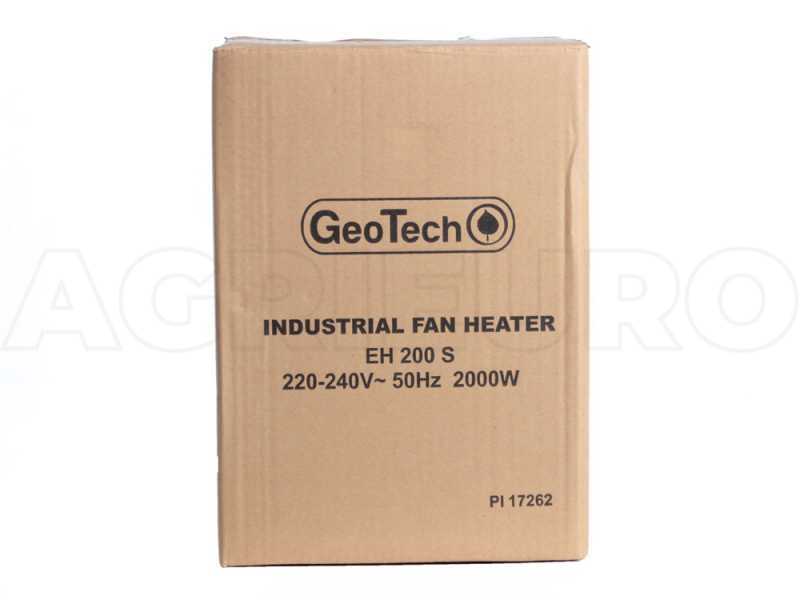

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Maintenance and instructions manual
  • Plug with cable
