GeoTech DH 3000 - Diesel Hot Air Generator - Direct Combustion

Questions & Answers (2)
ID: 112218

EAN: 8053435095983

MPN: DH3000

8,9/10
After-sales assistance & Spare parts
GeoTech DH 3000 - Diesel Hot Air Generator - Direct Combustion
Power supply
Diesel-powered
Max. heat output
30 kW
Body material
Steel
Thermostat
Yes
Starting mode
Electric
Standard trolley
Yes
Product Features
Model:
DH 3000
Power supply:
Diesel-powered
Body material:
Steel
Type:
Direct
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
30 kW
Nominal heat output:
30 kW
Power Btu/h:
100.000 approx.
Power Kcal/h:
25.000 approx.
Air flow:
720 m3/h
Absorption:
1.1 A
Tank capacity:
38 L
Thermostat:
Yes
Fuel consumption:
2.8 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Recommended for ventilated areas:
Yes
Manufacturing country:
China
Equipment
Thermal-protected motor:
Yes
Built-in room thermostat :
Yes
Adjustable heat:
Yes
Tank level indicator:
yes
Standard trolley:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

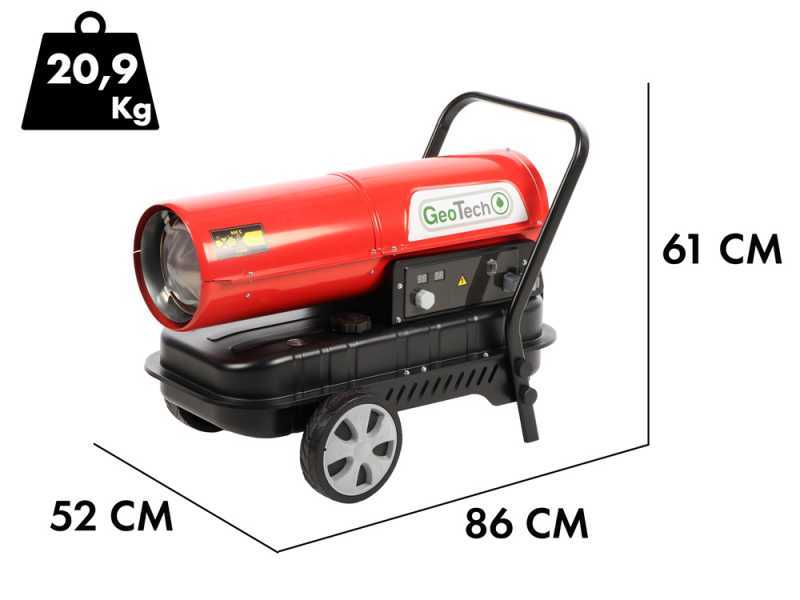

Product dimensions in cm (L x W x H):
86x52x61 cm
Net weight:
21 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
90x42x49 cm
Gross weight (packaging included) :
23 Kg
Assembly time:
15 minutes
Prompt Delivery
29 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 404,40
VAT Included

You're viewing:
Customers also viewed:
Description

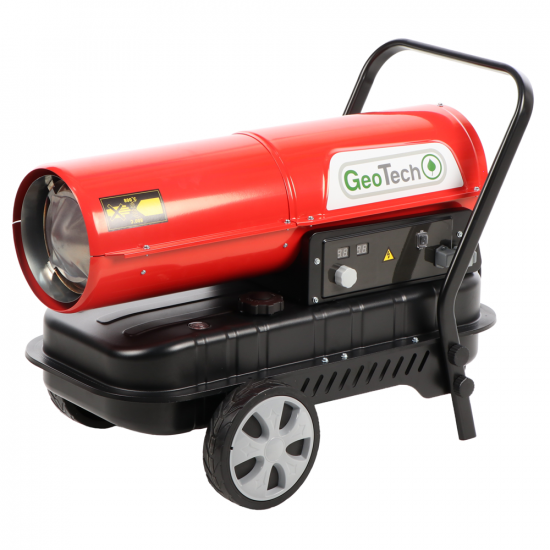

GeoTech DH 3000 hot air generator

The GeoTech DH 3000 hot air generator is a direct-heating device fuelled by diesel or kerosene, equipped with a trolley for transport.

Designed for open spaces or well-ventilated interiors, it has a robust steel body, suitable for outdoor use. Please read the instruction manual carefully in this regard.

With an output of 30 kW and an air flow rate of 750 m3/h, it ensures an efficient flow of warm air. It has a fuel consumption of 2.4 kg/h and a range of about 14 hours. These technical specifications make the GeoTech DH 3000 hot air generator a very high-performance and satisfying semi-professional product.

The digital display shows the set temperature and the current room temperature, thanks to the built-in room thermostat. The generator is activated when the room temperature is below the set value, which can be adjusted via a dedicated knob. The device will switch off or reduce the heating once the desired temperature has been reached.

The GeoTech DH 3000 hot air generator is easy to transport thanks to its two wheels and convenient handle that can be easily installed with the screws provided.

It is quick and easy to maintain, and allows various rooms to be heated quickly.

Technical features and additional details

Technical features:

  • Thermal power: 30 KW
  • Air flow rate: 750 m3/h
  • Fuel consumption: 2.4 kg/h
  • Fuse power: T3.15A
  • Tank capacity: 38 L
  • Power supply: AC 220-240V/ 50Hz
  • Absorption: 1.1 A
  • Built-in thermostat
  • Running time: 14 h
  • Electric consumption: 0.230 kW
  • Air pressure: 0.31 bar
  • Warning light for malfunction alarm: built-in

Details of the transport handle

Details of the transport wheels

Details of the control panel

Detail of the thermostat and the two displays:

  • Left display: set temperature
  • Right display: room temperature

Power switch

Detail of tank and fuel level

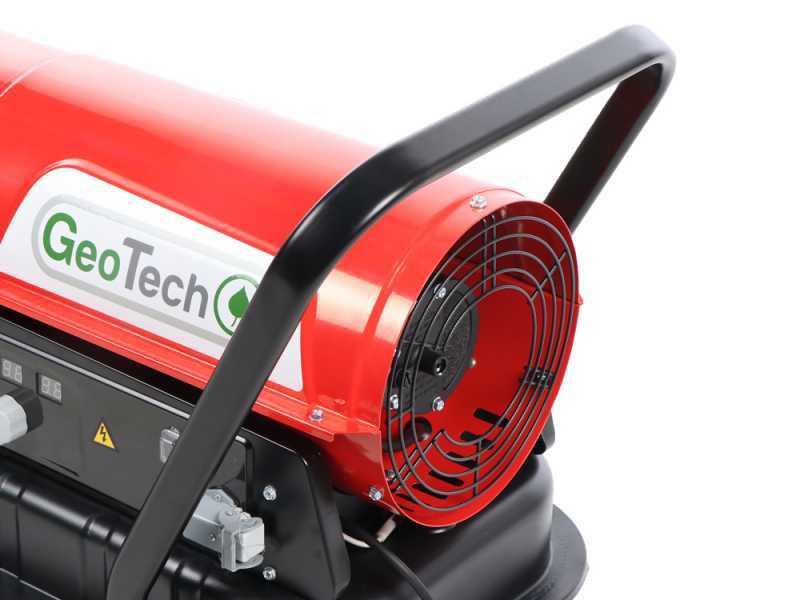

Detail of air filter and pressure adjustment

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The result is therefore 144 x 23 x 4 = 13 248 kcal/h and should be compared with what is stated on the machine's label, which is suitable as it produces more heat than would be required.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free gifts / Extra features

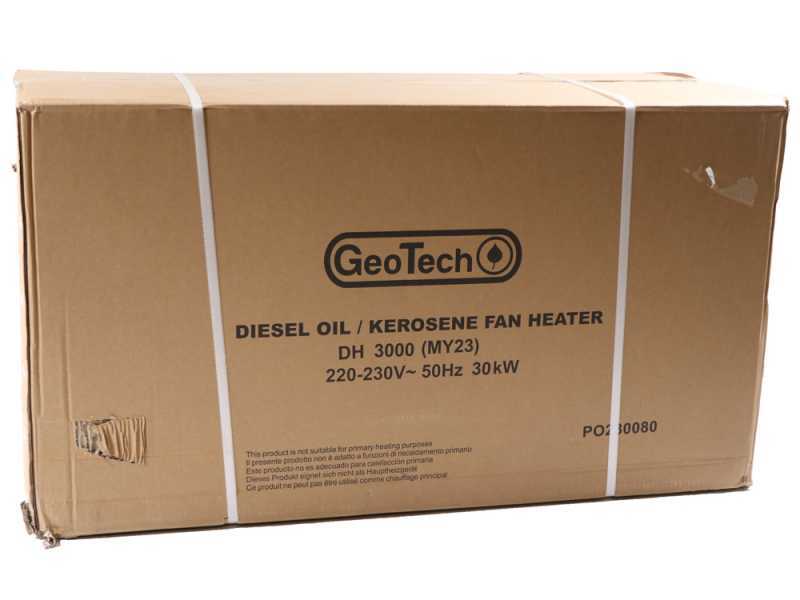

The hot air generator is shipped in its original packaging.

The package also includes:

  • Maintenance and instructions manual
  • wheel kit
  • Carrying handle
  • screws and bolts kit for wheels and handle
