GeoTech DH 1000 - Diesel Hot Air Generator - Direct Combustion

Questions & Answers (1)
ID: 112220

EAN: 8053435096003

MPN: DH1000

8,9/10
After-sales assistance & Spare parts
GeoTech DH 1000 - Diesel Hot Air Generator - Direct Combustion
Power supply
Diesel-powered
Max. heat output
10 kW
Body material
Steel
Thermostat
Yes
Starting mode
Electric
Product Features
Model:
DH 1000
Power supply:
Diesel-powered
Body material:
Steel
Type:
Direct
Handheld:
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
10 kW
Nominal heat output:
10 kW
Power Btu/h:
35.000 approx.
Power Kcal/h:
9.000 approx.
Air flow:
450 m3/h
Absorption:
0.8 A
Tank capacity:
22 L
Thermostat:
Yes
Fuel consumption:
0.82 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Recommended for ventilated areas:
Yes
Manufacturing country:
China
Equipment
Thermal-protected motor:
Yes
Built-in room thermostat :
Yes
Adjustable heat:
Yes
Tank level indicator:
yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

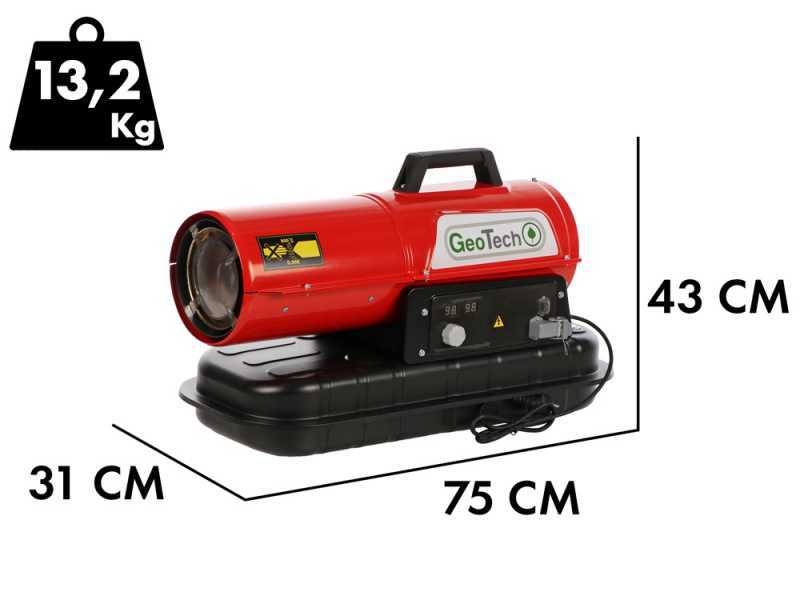

Product dimensions in cm (L x W x H):
75x31x43 cm
Net weight:
13.2 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
81x38x45,5 cm
Gross weight (packaging included) :
14.70 Kg
Assembly time:
5 minutes
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 344,28
VAT Included

You're viewing:
Customers also viewed:
Description

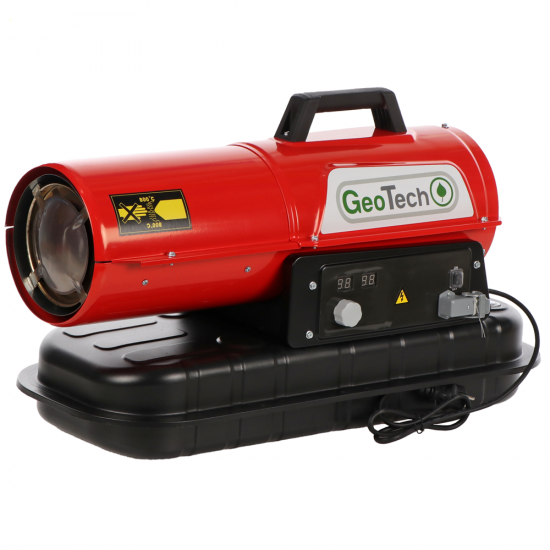

GeoTech DH 1000 hot air generator

The GeoTech DH 1000 hot air generator is a portable diesel-fuelled generator with direct heating. It is made of a robust steel shell, a durable material for outdoor use.

This generator is designed for open spaces or well-ventilated interiors. It is essential to consult the instruction manual for safe use.

With a thermal output of 10 KW, this diesel generator is perfect for large rooms, providing an efficient flow of warm air with a capacity of 450 m3/h. Fuel consumption is around 0.82 kg/h, for an estimated autonomy of around 23 hours of use.

The digital display shows the set temperature, with the ambient temperature alongside. The generator is activated when the ambient temperature is lower than the set temperature, which can be adjusted by means of a knob. As soon as the desired temperature is reached, the heating is interrupted or reduced.

The GeoTech DH 1000 hot air generator stands out for its versatility and ease of transport. The handle, easily installed with two screws, and its low weight make it extremely easy to handle. Maintenance is quick and easy, allowing several rooms to be heated in a short time.

Technical features and additional details

Technical features:

  • Thermal power: 10 KW
  • Air flow rate: 450 m3/h
  • Fuel consumption: 0.82 kg/h
  • Fuse power: T3.15A
  • Tank capacity: 22 L
  • Power supply: AC 220-240V/ 50Hz
  • Absorption: 0.8 A
  • Built-in thermostat
  • Running time: 23 h
  • Electric consumption: 0.186 kW
  • Air pressure: 0.35 bar
  • Warning light for malfunction alarm: built-in

Focus on the transport handle

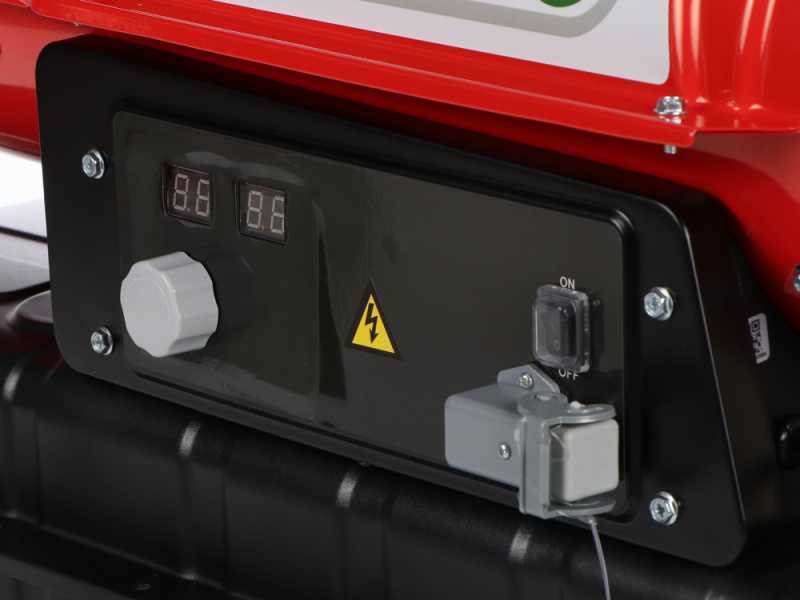

Focus on the control panel

Detail of the thermostat and the two displays:

  • Left display: set temperature
  • Right display: room temperature

Power switch

Detail of tank and fuel level

Detail of air filter and pressure adjustment

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The result is therefore 144 x 23 x 4 = 13 248 kcal/h and should be compared with what is stated on the machine's label, which is suitable as it produces more heat than would be required.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free items included

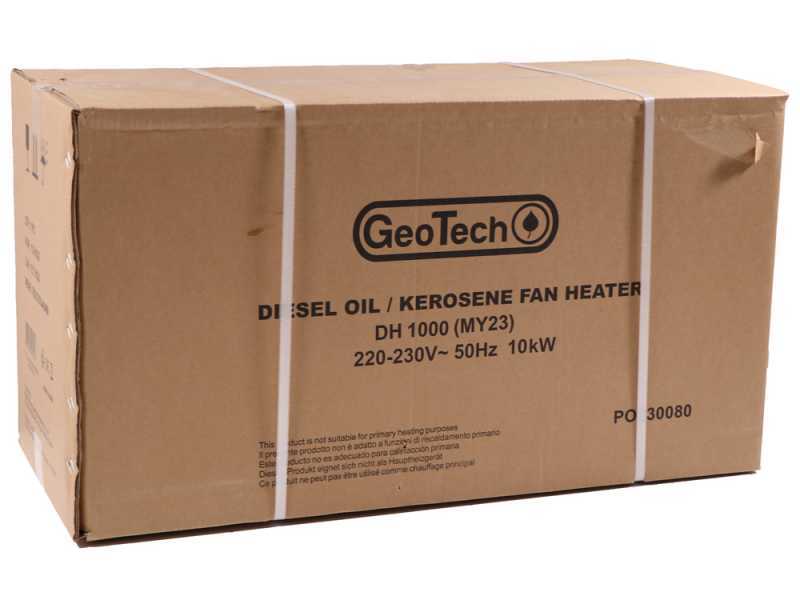

The hot air generator is shipped in its original packaging.

The package also includes:

  • Maintenance and instructions manual
  • Carrying handle
