HOME Workshop and Do-It-Yourself Electric Air Compressors Small Portable Air Compressors Portable Small-sized Oil-lubricated Air Compressors with tank GeoTech AC9-8-20

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

Limited
Questions & Answers (3)
ID: K502687

EAN: 9999237533430

MPN: AC9-8-20

GeoTech
Catalogue GeoTech
8,9/10
After-sales assistance & Spare parts
37Pictures
360° View
6Videos
22Customer pics
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
Free gifts from AgriEuro
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Prompt Delivery
32 items in stock
Free Shipping
Estimated delivery: 11/03/2026 - 13/03/2026
Free returns (up to 30 days after receipt)*
Suggested price:
€ 186,90
€ 140,17
Vat included
Technical data
Air compressor tank
8 L
Max. operating pressure
8 bar
Air intake flow
110 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model
AC9-8-20
Air compressor type
Portable
Handheld
yes
Operating mode
Single-phase 230 V
Operating mode
Electric 230 V
Max. operating pressure
8 bar
Number of tanks
1
Tank capacity
8 L
Air compressor tank
8 L
Noise level
94 LwA
Manufacturing country
China
Motor data
Motor type
Electric single-phase
Nominal power
2 HP
Manufacturing country
China
Pump data
Pump brand
GeoTech
Air intake flow
110 L/min
Pump type
Single-stage
Lubrication
Oil
No. of cylinders
1
Cooling manifold
No
Cylinders material
Cast iron
Manufacturing country
China
Transmission data
Transmission type
Coaxial type direct
Cylinder head rpm
1440 RPM
Equipment
No. of outlet couplings
1
Rubber-coated soft grip
Yes
Lifting handle
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
56x48x20
Net weight
14 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
60x24x55
Weight including packaging
16 Kg
Assembly time
5 minutes
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

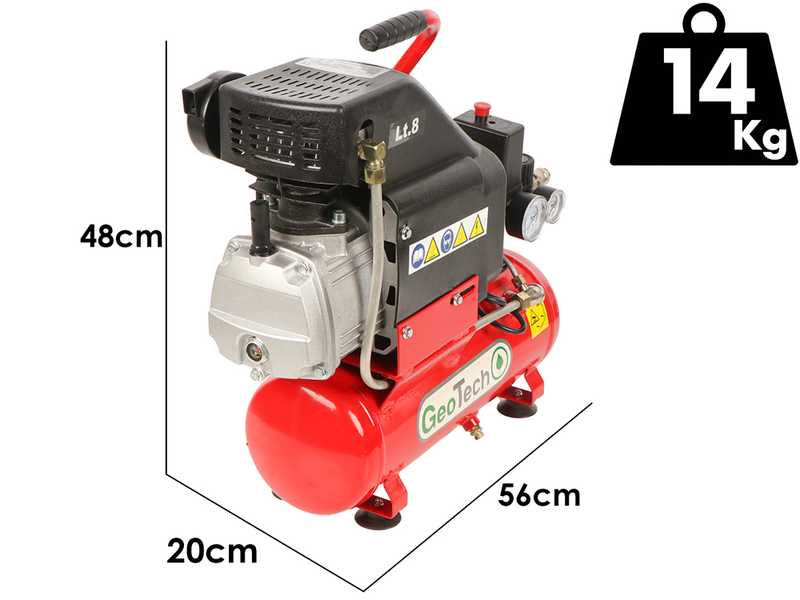

GeoTech AC9-8-20 Electric Air Compressor

GeoTech AC9-8-20 Air Compressor
Main features:

AC - Air Compressor

8–8 L Tank

8 - Pressure 8 Bar

20 -2 Hp motor

With noise emissions of 94 db, this compact air compressor can be used for many different applications.


Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 110 L/min. It is capable of reaching a maximum pressure of 8 bar.

Provided with an 8 L compressed air storage tank, it weighs 14 kg and can be easily transported thanks to the ergonomic top handle.

The pumping unit is oil-lubricated and is equipped with a comfortable porthole to easily check the oil level.

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

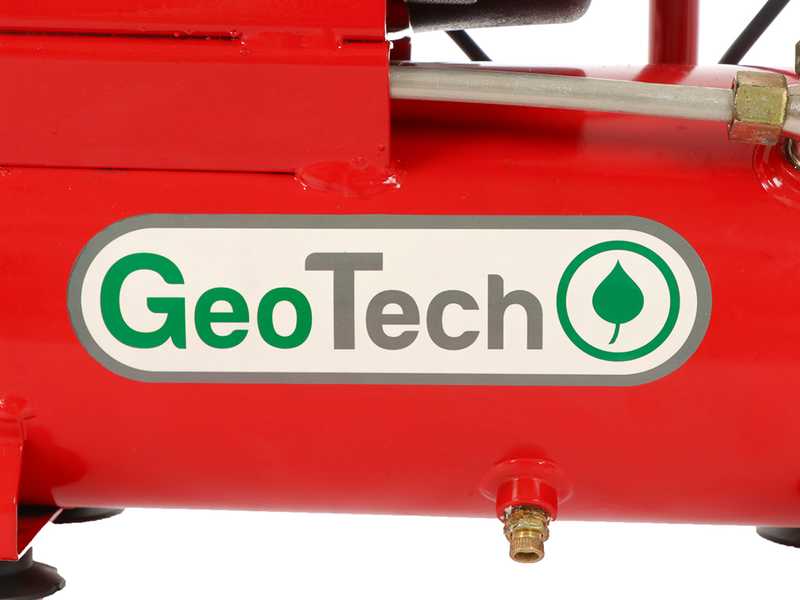

Technical features

Air intake flow: 110 L/min

Pumping unit type: coaxial

Litres of air drawn in: 110 litres/min

Pressure: 8 bar

Electric motor power: 2 Hp

Tank: 8 L

Dimensions:
- Width: 560 mm
- Height: 480 mm
- Depth (or thickness): 200 mm

Weight: 14 kg

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

Controls

The GeoTech AC9-8-20 air compressor features easy and user-friendly controls, which are divided into:

Tank air pressure gauge

Output air pressure gauge

Power switch

Female outlet fitting

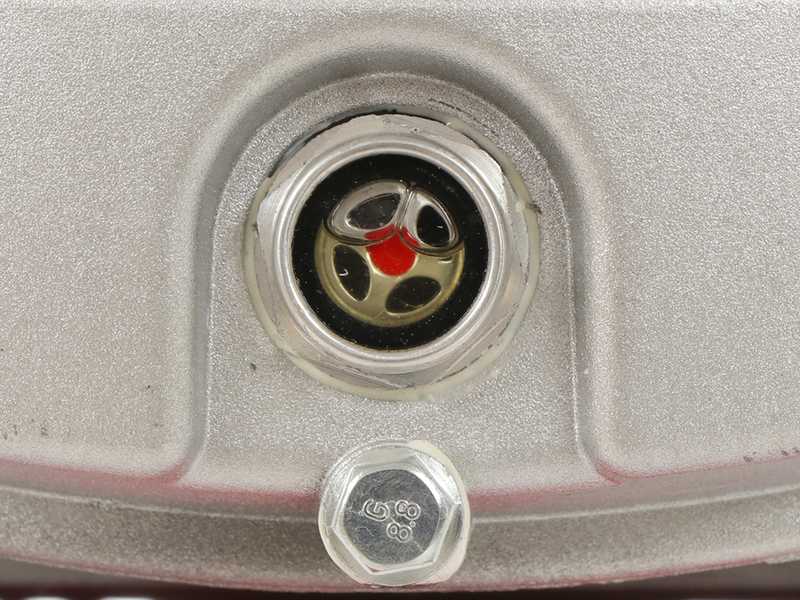

Porthole for oil level control

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

Other features

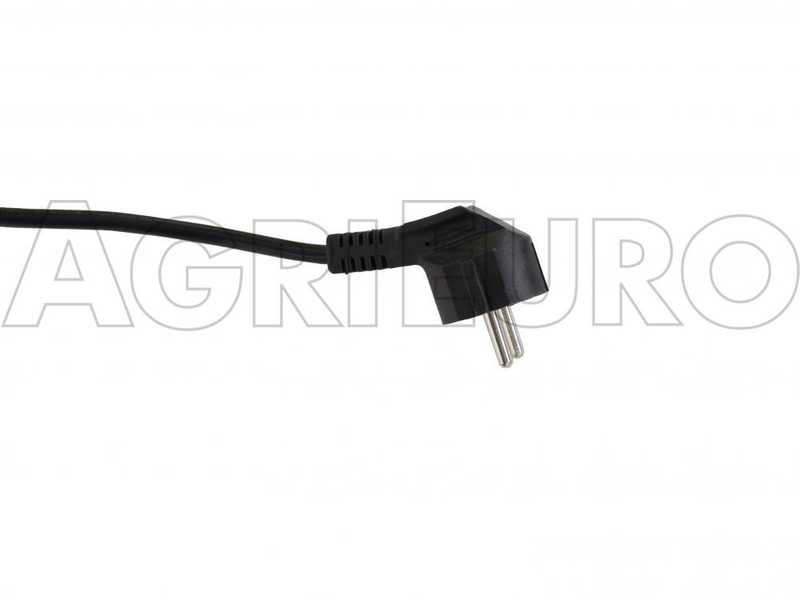

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

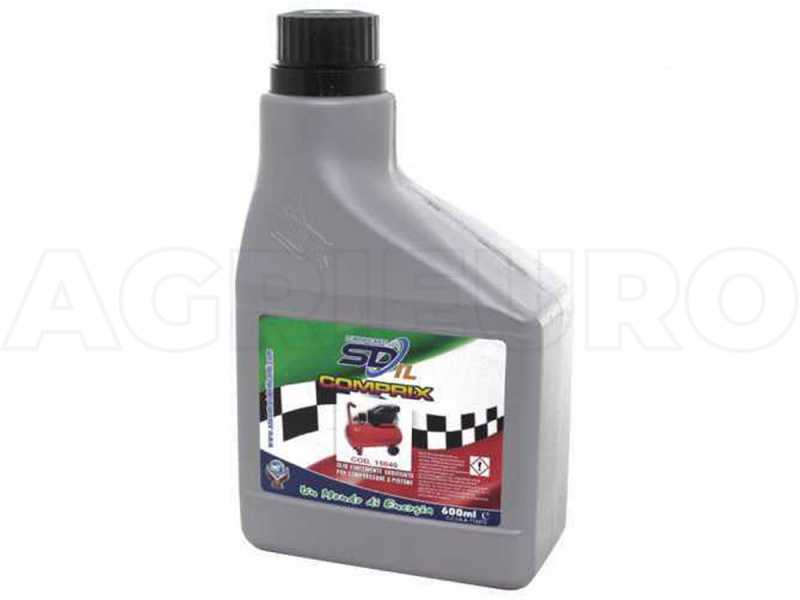

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air GeoTech AC9-8-20 - Compact portable electric air compressor - 2 HP motor - 8 litres of compressed air
