GeoTech S-AC50-8-10x2 - Double Head Silenced Electric Air Compressor - Oilless 50L - 2 Hp

Questions & Answers (17)
ID: K502195

EAN: 8053435093040

MPN: S-AC 50-8-10X2

8,9/10
After-sales assistance & Spare parts
GeoTech S-AC50-8-10x2 - Double Head Silenced Electric Air Compressor - Oilless 50L - 2 Hp
+1000 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
8 bar
Air intake flow
320 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Electric
Nominal power
2.0 HP
Operating mode
Single-phase 230 V
Product Features
Model:
S-AC50-8-10x2
Air compressor type 2:
Oilless
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
79 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric
Nominal power:
2.0 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Model:
S-AC 50.8.10x2
Air intake flow:
320 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
2
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
2
Rear wheels size:
190 mm
Rubber-coated soft grip:
Yes
Lifting handle:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
62x42x67
Net weight:
38 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
68x33x68
Gross weight (packaging included) :
40 Kg
Assembly time:
5 minutes
Out of stock
Free Shipping
€ 273,47
VAT Included

You're viewing:
Customers also viewed:
Description

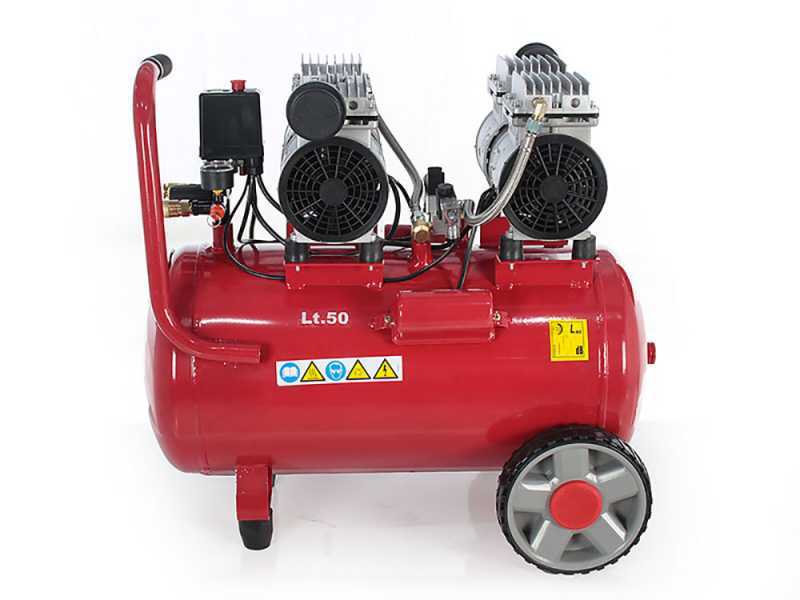

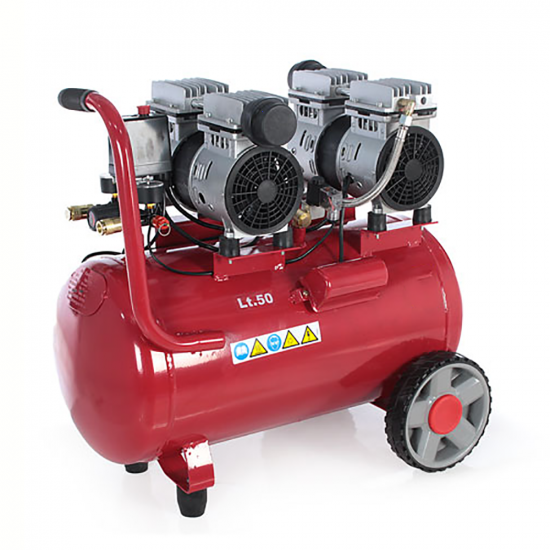

GeoTech S-AC50-8-10x2 Electric Air Compressor - 50 L Silenced 2 Hp Oilless

S-AC 50.8.10x2 Air Compressor
Main features:

S = SILENT (silenced, 79 dB only, with oil-free cylinder head)

AC = Air compressor

50 = 50 L tank

8 = 8 bar Maximum tank pressure

10x2 = 2.0 Hp motor power (1 Hp double cylinder head)

The GeoTech S-AC 50.8.10x2 air compressor is regarded as a top-quality choice among hobbyists looking for a lightweight and high-performing equipment.

Powered by two electric motors with a power of 1 Hp each (2 Hp in total), this air compressor features a compressed air suction capacity of 320 L. It is capable of reaching a maximum pressure of 8 bar.

It comes with a large-sized compressed air storage tank of 50 L. The compressor weighs 38 Kg and can be easily transported thanks to its wheels and the upper handle.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

Technical features

Pumping unit type: coaxial - oil free

Air intake flow: 320 L/min

Pressure: 8 bar

Electric motors power: 2 Hp

Tank: 50 L

SILENCED: only 79 dB Designed to overcome the issue related to the noise emissions while operated in working areas. This range of air compressors stands out on the market for the low noise level.


Overall dimensions:
- Width: 620 mm
- Height: 670 mm
- Depth (or thickness): 420 mm

Weight: 38 kg

Controls and other features

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge and tank air pressure gauge

2 Female outlet fittings

Pressure adjusting knob

Ergonomic transport handle

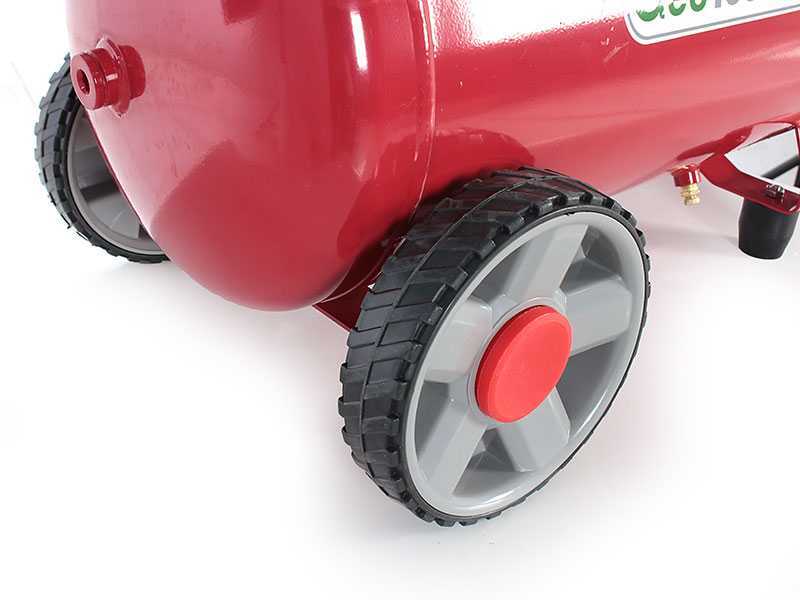

2 Sturdy plastic wheels 190 mm diameter

2 anti-vibration rubber pads which perfectly balance your compressor while in use

Condensate drain valve

Schuko plug

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
