GeoTech S-AC-9-8-07 - Portable Compact Silenced Electric Air Compressor - 0.7 Hp Motor - 8 bar

Questions & Answers (22)
ID: K502307

EAN: 8053435093026

8,9/10
After-sales assistance & Spare parts
GeoTech S-AC-9-8-07 - Portable Compact Silenced Electric Air Compressor - 0.7 Hp Motor - 8 bar
+1000 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
8 L
Max. operating pressure
8 bar
Air intake flow
100 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Nominal power
0.7 HP
Operating mode
Single-phase 230 V
Nominal power (W)
550 W
Product Features
Model:
S-AC-9-8-07
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Tank capacity:
8 L
Air compressor tank:
8 L
Noise level:
79 dBA LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
0.7 HP
Nominal power (W):
550 W
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Model:
S-AC-9-8-07
Air intake flow:
100 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x17x56cm
Net weight:
13 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
51x22,5x52cm
Gross weight (packaging included) :
16 Kg
Assembly time:
5 minutes
Out of stock
Free Shipping
€ 149,10
VAT Included
You're viewing:
Customers also viewed:
Description

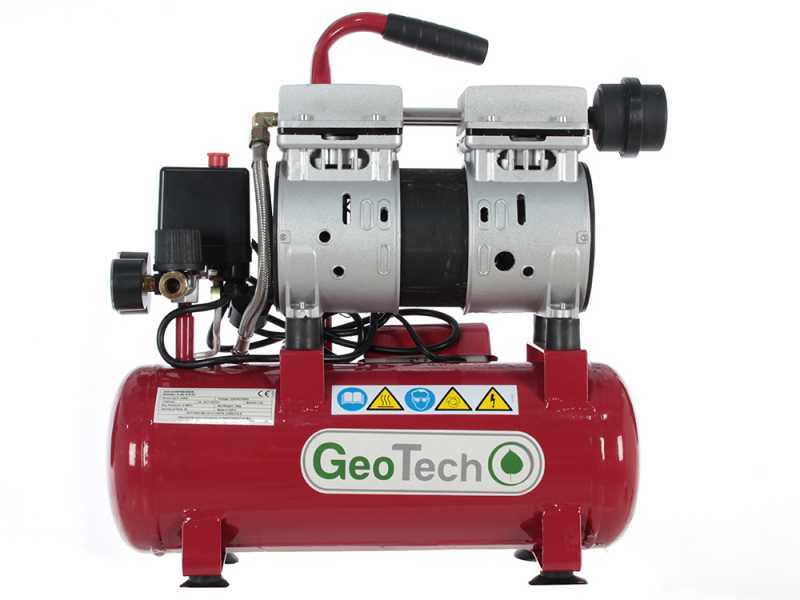

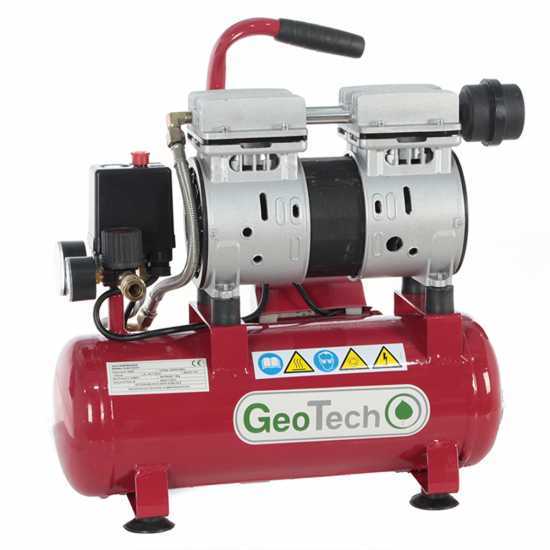

GeoTech S-AC-9-8-07 Electric Air Compressor

The Geotech S-AC-9-8-07 compressor is an ideal choice for doing it yourself enthusiast who want a practical tool designed to perform small jobs around the home with ease and peace of mind.

This model benefits from almost non-existent maintenance due to the absence of oil, eliminating the need for frequent checks or additions.

The design of the compressor contributes to ease of transport, its Oillessness eliminates the worry of potential leaks, allowing it to be stowed in any position, even sideways, as is often the case in the boot of the car.

With an 8 litre tank, the device maintains superior portability, adapting to tight and demanding spaces.

Lightweight at just 14.5kg, it is extremely manageable for anyone, making it perfectly suitable for home use.

The presence of a silencer drastically reduces the noise emitted by the unit to just 59dBA, allowing you to work without disturbing the quiet life.

Equipped with a 0.7 HP electric engine, this compressor has a suction performance of 100 Litres per minute and can exert a maximum pressure of 8 bar.

The Geotech S-AC-9-8-07 is part of the quiet, oil-free compressor range from Geotech, a brand synonymous with excellence and continuos technological innovation.

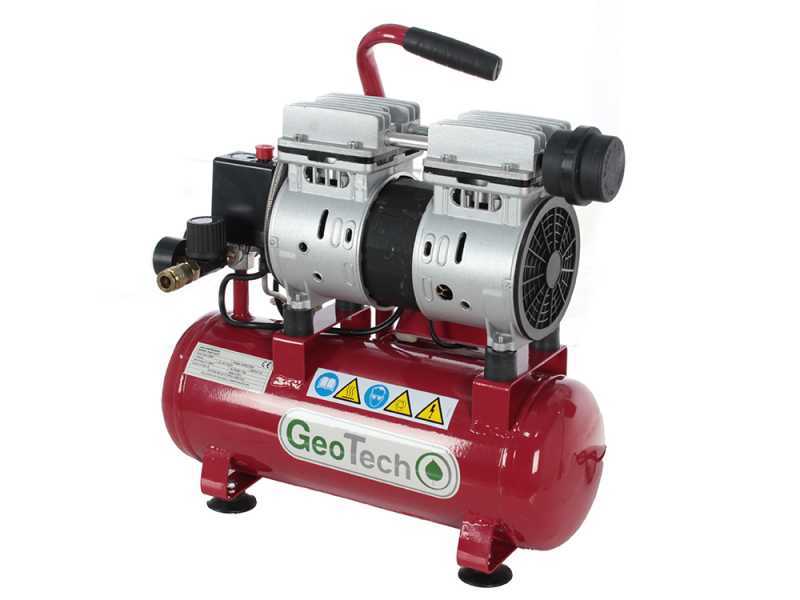

Technical features

Pumping unit type: coaxial

Air intake flow: 100 L/min

Pressure: 8 bar

Electric motor power: 0.7 Hp

Tank: 8 lt

The sound level can be measured in both dBA and Lwa. In detail:

Sound emission 59dBA

Sound emission in LwA 79dB


Dimensions:
- Width: 45 cm
- Height: 56cm
- Depth (or thickness): 17 cm

Weight: 14.5 kg

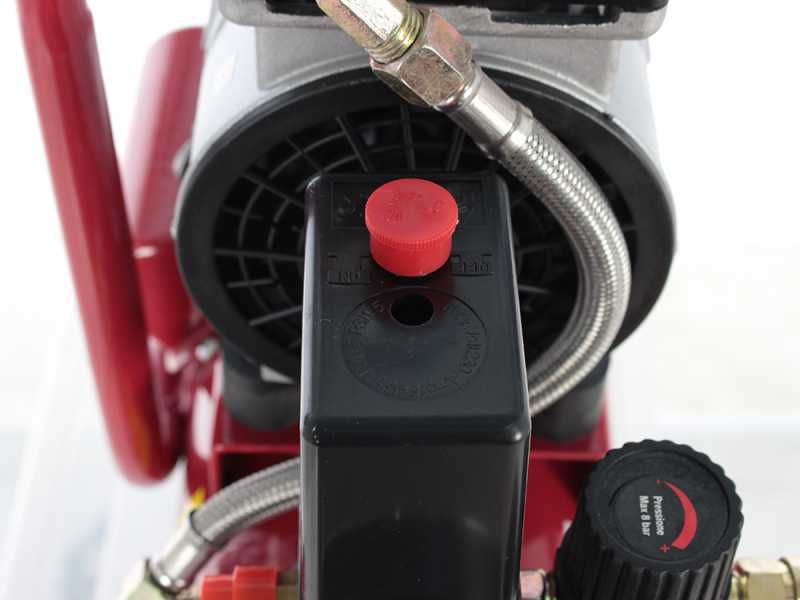

Controls

The S-AC-9-8-07 GeoTech air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Power switch

Pressure adjusting knob

Air compressor female outlet fitting

Other features

Intake air production: 100Lt/min

Head type: single-cylinder with cast iron cylinder

Suction type: single-stage

Lubrication: Oillies

Speed: 1440 rpm

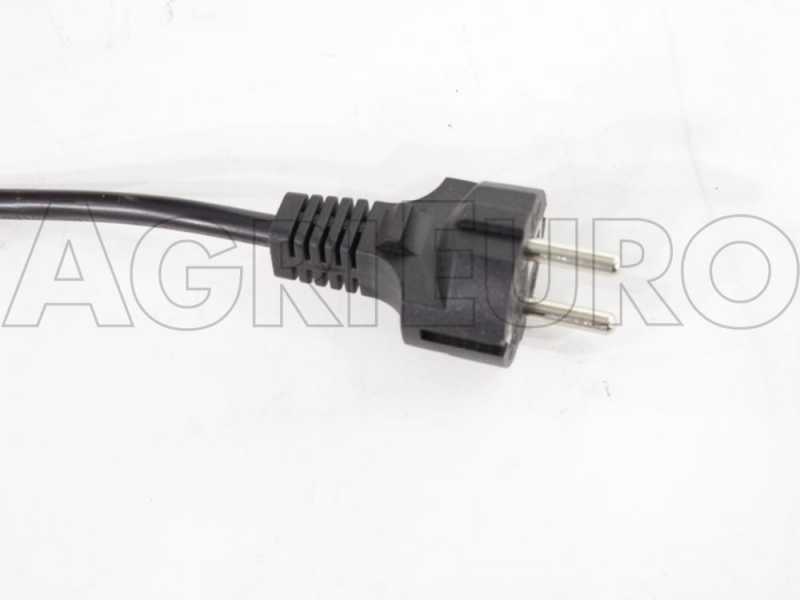

Schuko plug

Ergonomic lifting handle

Anti-vibration pads

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
