HOME Workshop and Do-It-Yourself Electric Air Compressors Coaxial Air Compressors for hobby use (25 - 50 L) 50 L Air Compressors 50 L Oil Lubricated Air Compressors GeoTech AC 50.8.20

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor

Hobby
Questions & Answers (1)
ID: K502197

EAN: 9999237533461

GeoTech
Catalogue GeoTech
8,9/10
After-sales assistance & Spare parts
26Pictures
3Videos
11Customer pics
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
+400 sold
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
8 bar
Air intake flow
200 L/min
Cylinder head rpm
2800 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
AC 50.8.20
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
94 dB(A)
Noise level:
94 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Model:
AC 50.8.20
Air intake flow:
200 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2800 RPM
Equipment
No. of outlet couplings:
2
Rear wheels size:
190 mm
Rubber-coated soft grip:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
67x42x62
Net weight:
24 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
68x33x68
Weight including packaging:
26 Kg
Assembly time:
5 minutes
Prompt Delivery
81 items in stock
Free Shipping
Estimated delivery: 21/05/2025 - 23/05/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 268,14
€ 201,10
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

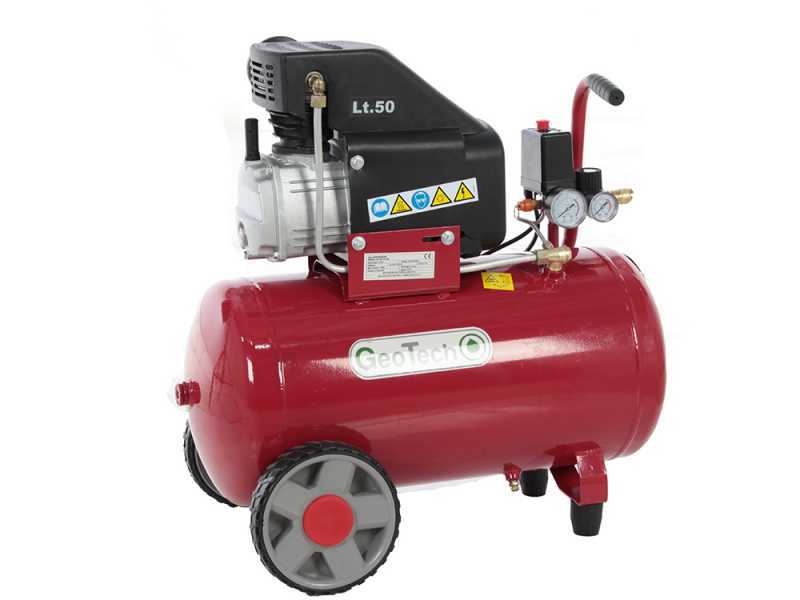

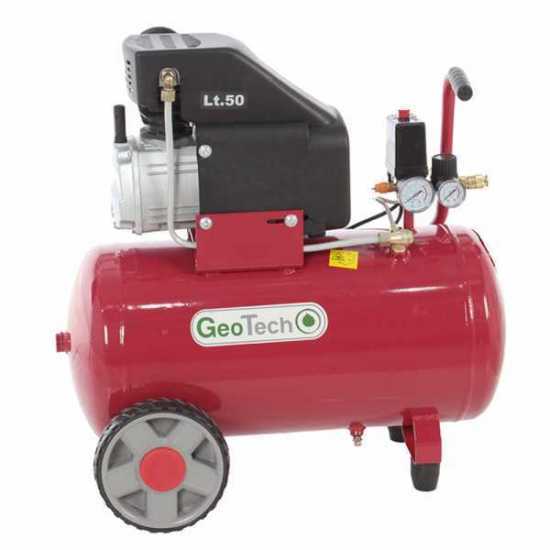

GeoTech AC 50.8.20 Electric Air Compressor - 50 L - 2 Hp

AC 50.8.20 Air Compressor
Main features:

AC = Air compressor

50 = 50 L tank

8 = 8 bar Maximum pressure

20 = 2.0 Hp Motor power

The GeoTech AC 50.8.20 air compressor is regarded as a top-quality choice among hobbyists looking for a cost-effective, lightweight and high-performing equipment.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 200 L/min. It is capable of reaching a maximum pressure of 8 bar.

It features a large-sized compressed air storage tank of 50 L. The air compressor weighs 24 Kg and can be easily transported thanks to its wheels and the upper handle.

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor

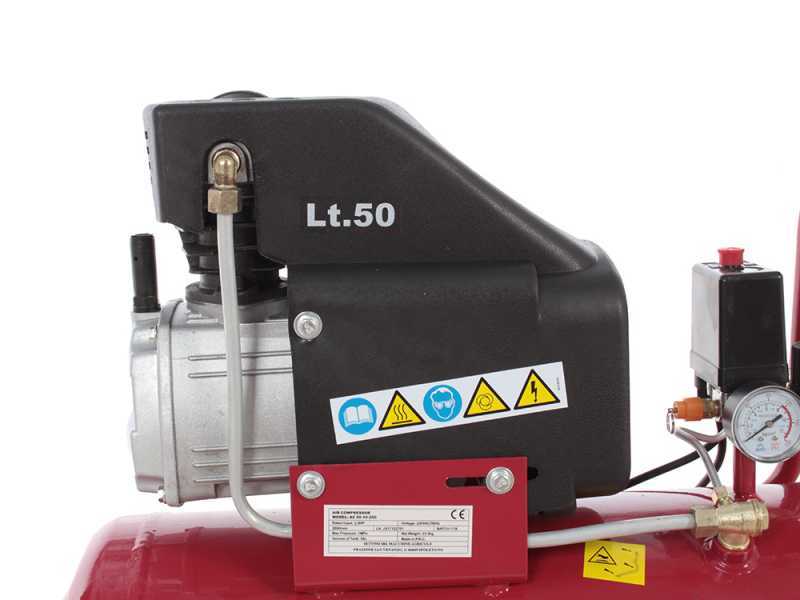

Technical features

Pumping unit type: coaxial

Air intake flow: 200 L/min

Pressure: 8 bar

Electric motor power: 2 Hp

Tank: 50 L


Overall dimensions:
- Width: 670 mm
- Height: 420 mm
- Depth (or thickness): 620 mm

Weight: 26 kg

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor

Controls and other features

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge and tank air pressure gauge

2 Female outlet fittings;

Pressure adjusting knob

Ergonomic transport handle

190 mm Diameter wheels in sturdy plastic

2 anti-vibration rubber pads for greater stability during use

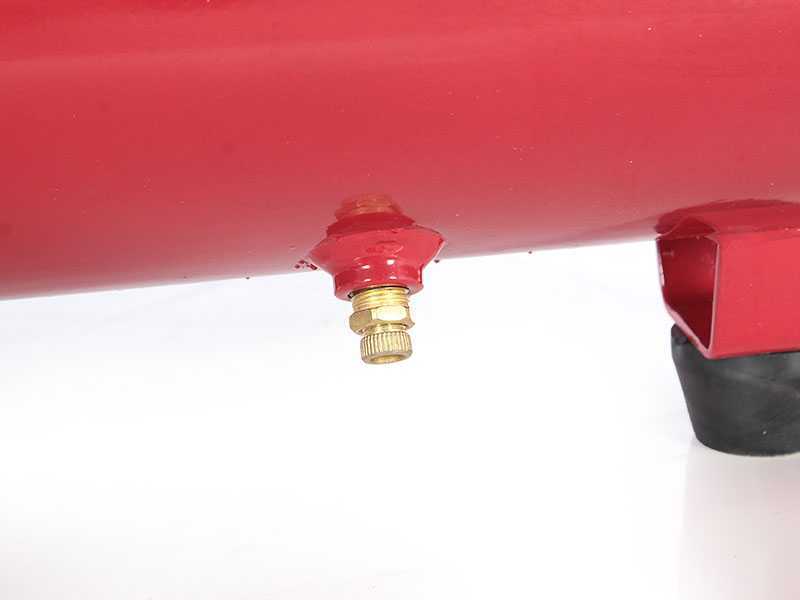

Condensate drain valve

Schuko plug

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor

Standard equipment

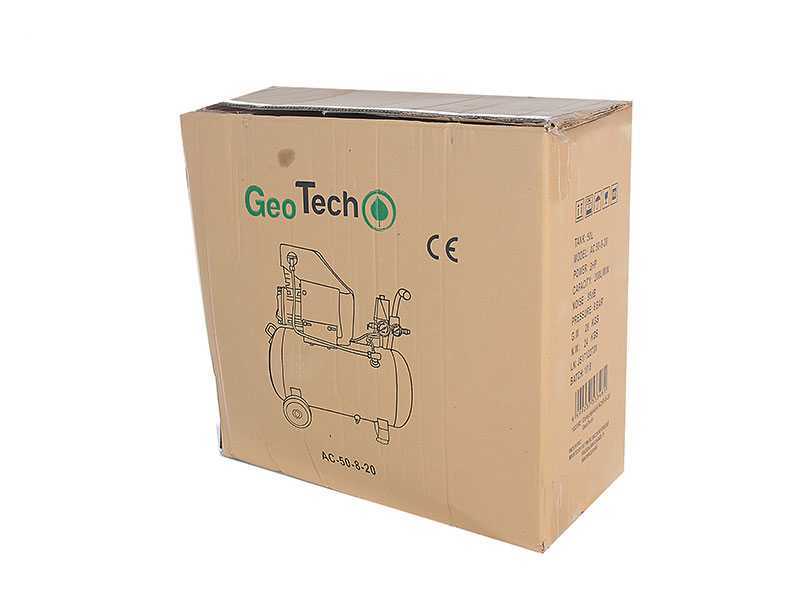

The air compressor is shipped in its original packaging

. Instruction manual is included.

GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor GeoTech AC 50.8.20 - Electric Air Compressor - 50 L compressed air - 2HP Motor
