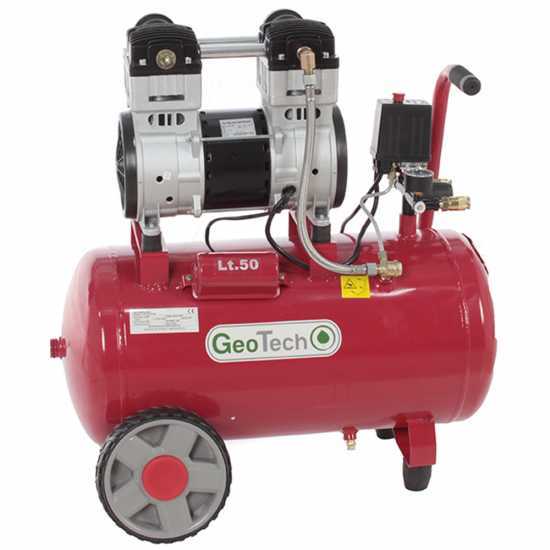

GeoTech S-AC 50-10-15C - 50L Oilless Silenced Electric Air Compressor - 1.5 Hp Motor

Questions & Answers (6)
ID: K502308

EAN: 8053435093057

8,9/10
After-sales assistance & Spare parts
GeoTech S-AC 50-10-15C - 50L Oilless Silenced Electric Air Compressor - 1.5 Hp Motor
Special offer
+500 sold
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
200 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Silenced
Yes
Motor type
Electric
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
S-AC 50-10-15C
Air compressor type 2:
Oilless
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
57 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric
Nominal power:
1.5 HP
Silenced:
Yes
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
GeoTech
Model:
S-AC 50-10-15C
Air intake flow:
200 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
2
Rear wheels size:
190 mm
Rubber-coated soft grip:
Yes
Lifting handle:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
62x38x65
Net weight:
35 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
70x35x70 cm
Weight including packaging:
35 Kg
Assembly time:
5 minutes
Prompt Delivery
32 items in stock
Free Shipping
Estimated delivery: 15/05/2025 - 19/05/2025
Lowest price:
€ 275,38
-8 %
€ 252,41
Vat included
You're viewing:
Customers also viewed:
Description

GeoTech S-AC 50-10-15C Electric Air Compressor - 50 L Silenced 1.5 Hp Oilless

S-AC 50-10-15C Air Compressor - Main features:

S = SILENT (silenced, 57 dB only, LWA 79 with oil-free cylinder head)

AC = Air compressor

50 = 50 L tank

10 = 10 bar Max. tank pressure

15 = 1.5 Hp Motor power

C - Copper Adder

The GeoTech S-AC 50-10-15C air compressor is regarded as a top-quality choice among hobbyists looking for a cost-effective, lightweight, silent and high-performing equipment.

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 200 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 50 L. The air compressor weighs 35 Kg and can be easily transported thanks to its wheels and the upper handle.

Copper-coated motor housing.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

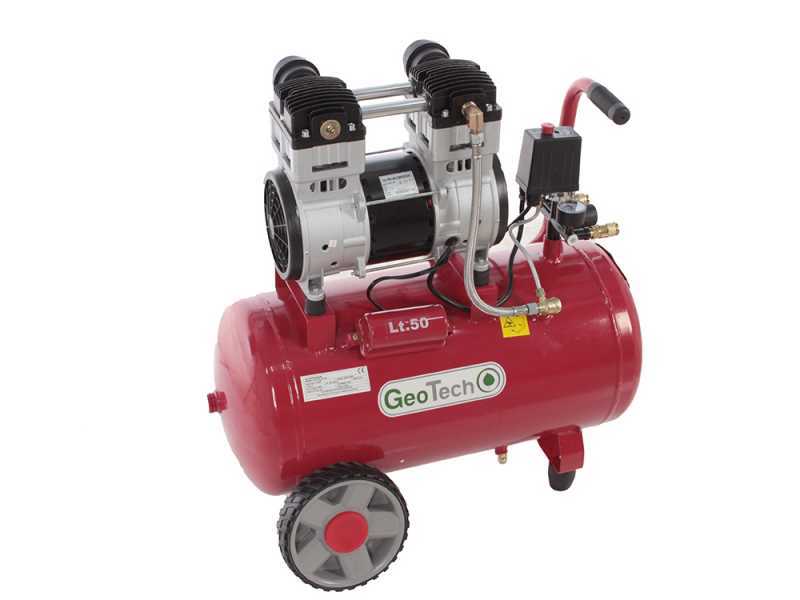

Technical features

Pumping unit type: coaxial - oil free

Air intake flow: 200 L/min

Pressure: 10 bar

Electric motor power: 1.5 Hp

Tank: 50 L

SILENCED: only 57 dB Designed to overcome the issue related to the noise emissions while operated in working areas. This range of compressors stands out on the market for the low noise level.


Overall dimensions:
- Width: 620 mm
- Height: 650 mm
- Depth (or thickness): 380 mm

Weight: 35 kg

The air compressor features a copper motor housing that makes it stand out from the economic ones, which are provided with aluminium coating.
This type of winding stands out to be more efficient, resulting in higher power featuring the same power requirements.

Controls

The GeoTech SAC50-10-15C air compressor features easy and user-friendly controls, which are divided into:

Power switch

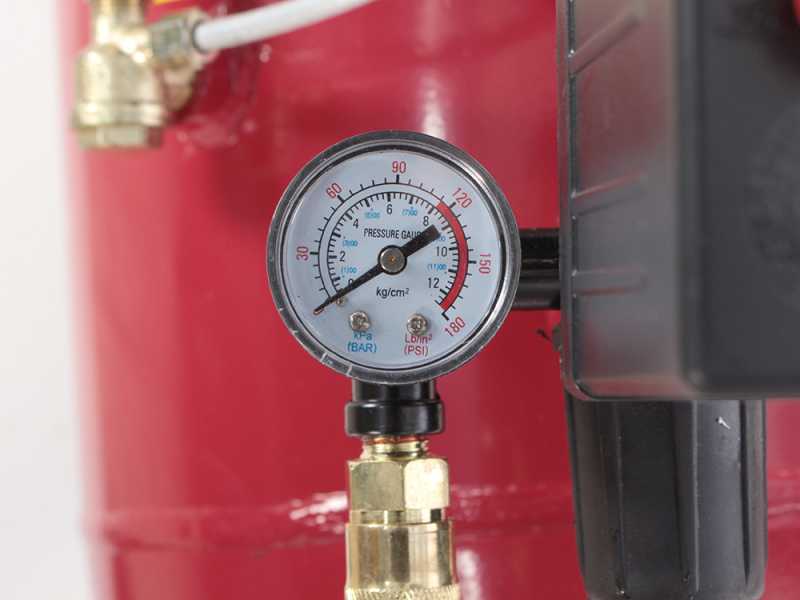

1 Output air pressure gauge

2 Output air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

The silenced twin-cylinder oil-free cylinder head of this air compressor stands out for a number of features.

Anti-vibration pads

Double air filter

Large heat sinks

Controls and other features

The GeoTech compressor has several unique features:

Ergonomic transport handle

2 Sturdy plastic wheels 190 mm in diameter

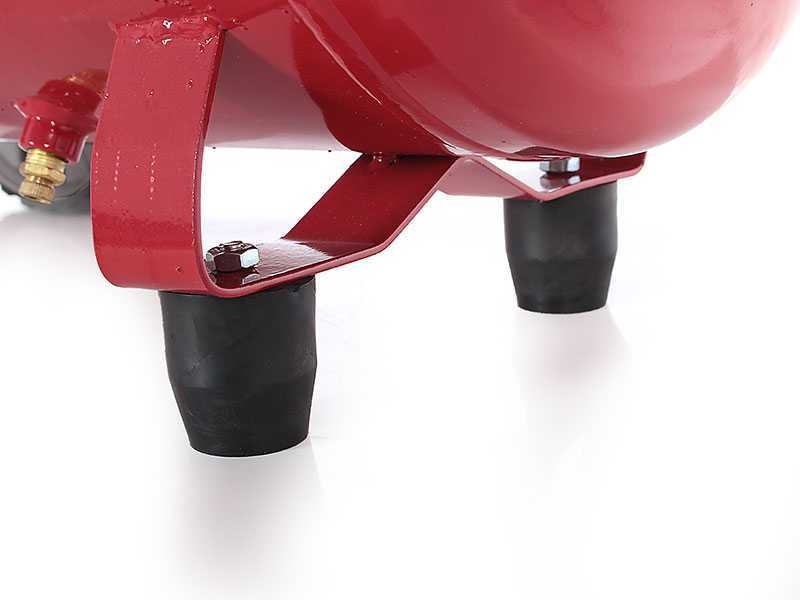

2 anti-vibration rubber pads which perfectly balance your compressor while in use

Condensate drain valve

Schuko plug

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
