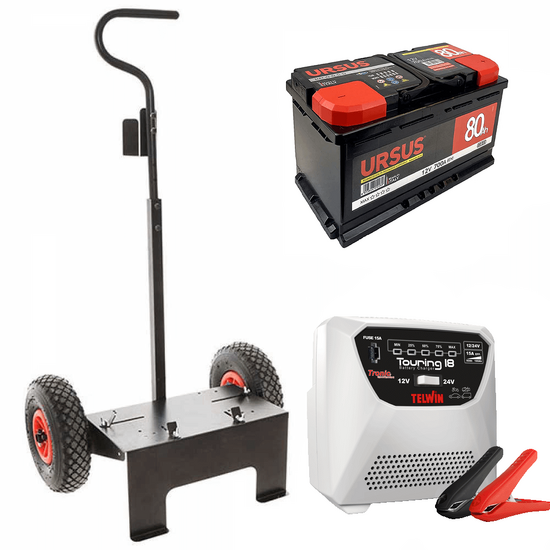

Full kit: Volpi trolley + 80 Ah battery + Telwin TOURING 18 battery charger

€ 194,66
VAT Included
Prompt Delivery
86 items in stock
|
Free Shipping
You should receive it by 03/11/2020
ID: K500376
EAN: 8020581027540
MPN: 702/800

What's on kit

It is a full kit for the olive harvesting intended for battery-powered olive harvesters.

Battery trolley + battery + battery charger.

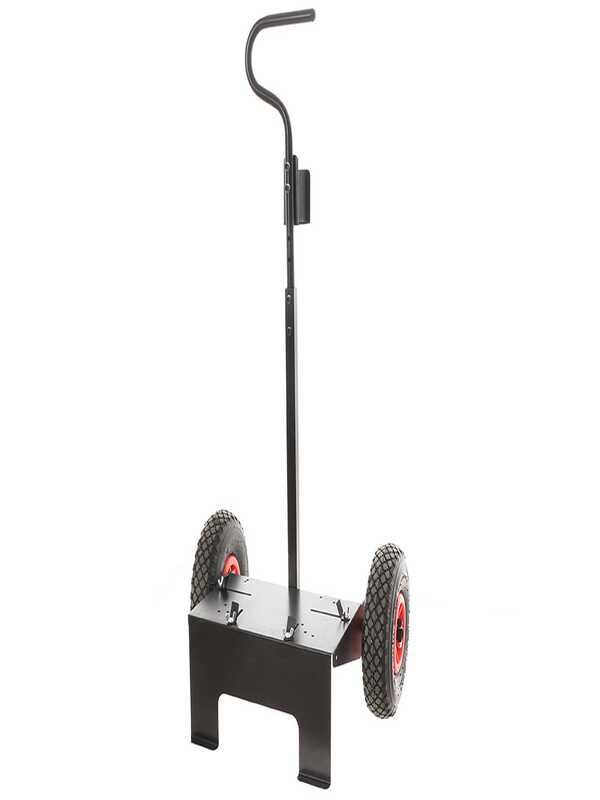

Trolley: heavy-duty battery trolley with sturdy hot galvanized steel frame. It is equipped with wheels for transport and practical support to roll the cable up. This trolley is also suitable to hold big batteries by means of the support bracket. The support bracket allows to securely fixing the battery to the trolley and is equipped with 2 threaded stay rods on the sides. These stay rods are very long and allow fixing battery with any size.
It is suitable for any olive harvester on market.

Battery charger: Telwin battery charger is ideal for the 12 V battery charger used for olive harvesters. 9Ah charge capacity. The 12 V battery chargers are filled with electrolyte (WET type).

  • Overload protection;
  • Reverse polarity protection;
  • A Led shows the status of the battery level.

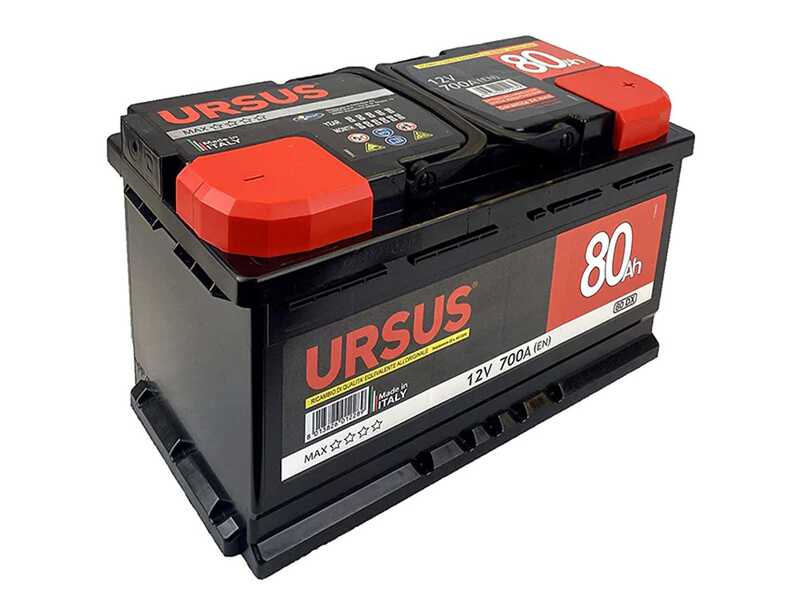

80 Ah battery

This big size battery guarantees more than 8 hours of operating time. It is suitable for the olive harvesters purchased in our web site.

You can use it for the full working day.

It is provided with folding handle for an easy transport by hand.

CAPACITY: 80 ampere.

12V - 640 A (EN1)

MISURA: 280 X 175 X 175 mm.

WEIGHT: 18 KG.

It is a high quality sealed lead acid battery (a standard 80Ah car battery).

The battery is supplied with acid and it is already charged and ready to use.

We suggest you to charge the battery by using a battery charger with a minimum capacity of 12-14 amp/hour. You can charge the battery during the night, as it will take just few hours.

Telwin Touring 18 battery charger

Perfect size battery charger for the 12V-24V olive harversters' batteries.

Big loading capaciy: 13 Amper per hour loading (high value for the need, as an olive harvester battery is 60 Ampere capacity in general).

Overnight no problem loading to be ready for job in the morning.

Suggested for 12 V flooded cell batteries (WET).

  • Overload protection
  • Reversal polarity protection
  • [189091] Battery charge level LED[/x]
  • Fuse
  • Focus on the 12/24V mode selecting button
  • Effective charging current: 13A (12V) - 8A (24V)
  • Charging current: EN60335-2-29: 9A (12V) - 6A (24V)

TECHNICAL DATA:

Mains Frequency: 50 - 60 Hz
Single-phase mains voltage: 230 V
Power absorption during charge: 230 W
Charging Voltage: 12 - 24 V
Nominal capacity min/max: 60/180 - 12V Ah
Nominal capacity min/max: 50/115 - 24V Ah
Dimensions (L x W x H): 19 x 10 x 19 cm Weight: 2.9 Kg
