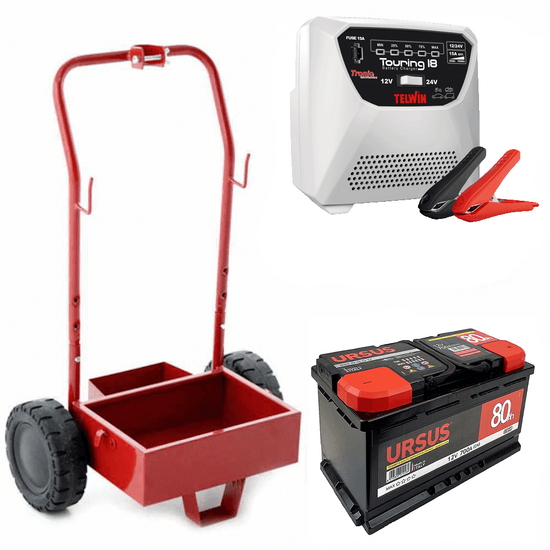

Full kit: metal trolley + 80 Ah battery + Telwin TOURING 18 battery charger

€ 174,00
VAT Included
Prompt Delivery
69 items in stock
|
Free Shipping
You should receive it by 05/11/2020
ID: K500371
EAN: 9993081523142
MPN: 18029 CPB

What's on kit

It is a full kit for the olive harvesting intended for battery-powered olive harvesters.

Battery trolley + battery + battery charger.

Trolley: red trolley made of metal with wheels for transport and battery compartment. It is suitable also for big size batteries. Moreover, it is equipped with clamp with wing nut to transport the extension pole.

Battery: 80Ah (80 Ampere) battery. You can use this battery for more than 8 operating hours, which means that you can use it for a full working session, and is suitable for any olive harvester purchased in our web-site. The battery is supplied with acid and it is already charged and ready to use.

Battery charger:Telwin battery charger is ideal for 12 V battery chargers used for the olive harvester. It can supply 9Ah/h charge capacity. The 12 V battery chargers are filled with electrolyte (WET type)

  • Overload protection;
  • Reverse polarity protection;
  • Ammeter;

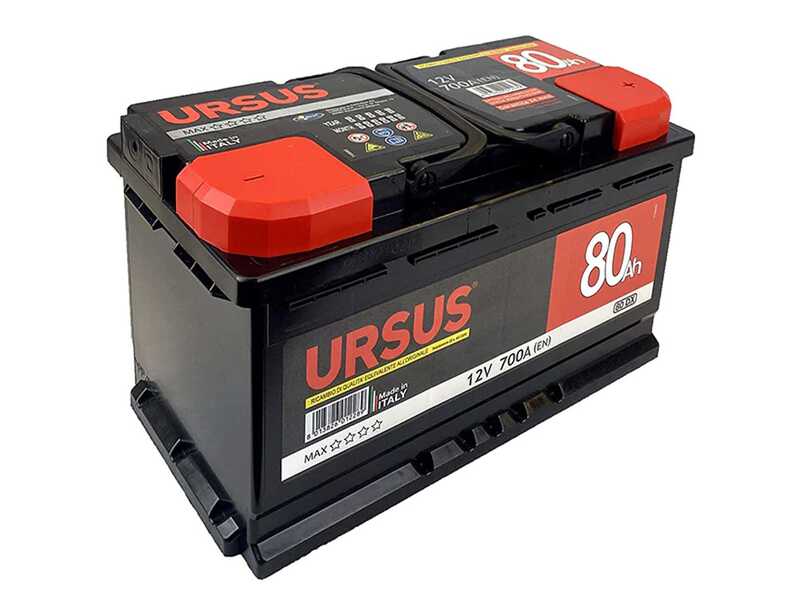

80 Ah battery

This big size battery guarantees more than 8 hours of operating time. It is suitable for the olive harvesters purchased in our web site.

You can use it for the full working day.

It is provided with folding handle for an easy transport by hand.

CAPACITY: 80 ampere.

12V - 640 A (EN1)

MISURA: 260x170x200  mm.

WEIGHT: 18 KG.

It is a high quality sealed lead acid battery (a standard 80Ah car battery).

The battery is supplied with acid and it is already charged and ready to use.

We suggest you to charge the battery by using a battery charger with a minimum capacity of 12-14 amp/hour. You can charge the battery during the night, as it will take just few hours.

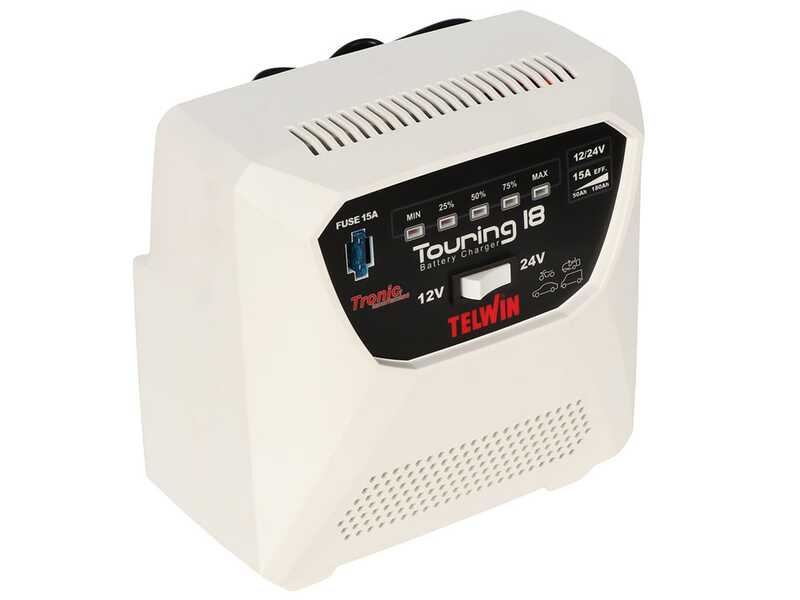

Telwin Touring 18 battery charger

Perfect size battery charger for the 12V-24V  olive harversters' batteries.

Big loading capaciy: 13 Amper per hour loading (high value for the need, as an olive harvester battery is 60 Ampere capacity in general).

Overnight no problem loading to be ready for job in the morning.

Suggested for 12 V flooded cell batteries (WET).

  • Overload protection
  • Reversal polarity protection
  • [189091] Battery charge level LED[/x]
  • Fuse
  • Focus on the 12/24V mode selecting button
  • Effective charging current: 13A (12V) - 8A (24V)
  • Charging current: EN60335-2-29: 9A (12V) - 6A (24V)

TECHNICAL DATA:

Mains Frequency: 50 - 60 Hz
Single-phase mains voltage: 230 V
Power absorption during charge: 230 W
Charging Voltage: 12 - 24 V
Nominal capacity min/max: 60/180 - 12V Ah
Nominal capacity min/max: 50/115 - 24V Ah
Dimensions (L x W x H): 19 x 10 x 19 cm Weight: 2.9 Kg
