Francini P 190 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Add a question
ID: 113614

EAN: 8053435097444

MPN: P190

Francini P 190 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels
Body material
Enamelled steel
Sturdiness/Series
Heavy
Load capacity
700 Kg
Body tipping
Manual
Bucket width
190 cm
Bucket depth
90 cm
Manufacturing country
Italy
Product Features
Model:
P 190
Type:
Transporter - Transport Box
Body material:
Enamelled steel
Sturdiness/Series:
Heavy
Operating mode:
Tractor-driven PTO
Load capacity:
700 Kg
Body tipping:
Manual
Bucket width:
190 cm
Bucket depth:
90 cm
Manufacturing country:
Italy

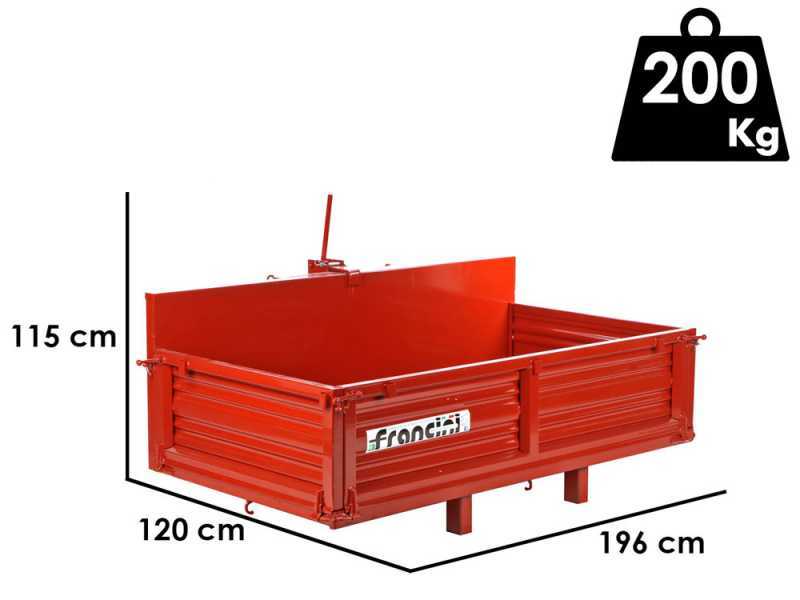

Dimensions and logistics
Product dimensions in cm (L x W x H):
196x120x115
Net weight:
200 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
200x125x120
Weight including packaging:
215 Kg
Assembly time:
30 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 12/06/2025 - 16/06/2025
€ 1.422,14
Vat included
You're viewing:
Customers also viewed:
Description

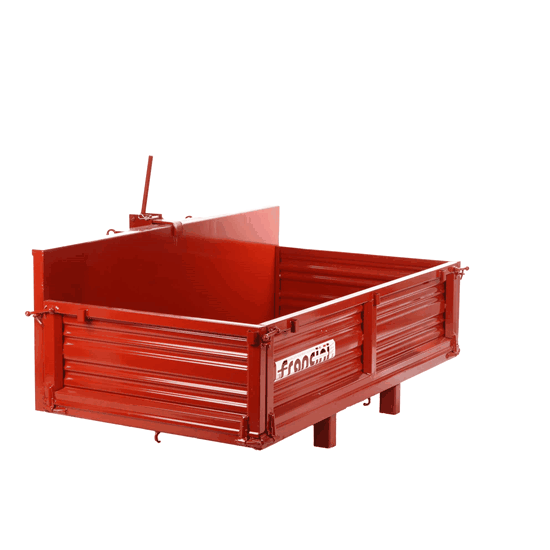

Francini P 190 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

The Francini P 190 tipping transporter box is designed to facilitate the transport of a wide range of loads, such as equipment, grain, wood and manure. This model stands out for its practicality and robustness, making it an indispensable tool for agriculture and much more.

Main features:

  • Openable panels: equipped with three 46 cm high, openable and removable plates, which improve loading and unloading operations. The side rails are located on both the rear and the sides.
  • Quick-release tipping lever: allows quick and safe load tipping, optimising working time.
  • Compact and robust design: suitable for intensive and prolonged use, ensuring strength and durability.
  • Easy storage: designed to maximise space efficiency.

Technical specifications:

  • Maximum capacity: 700 Kg
  • Box dimensions: Width 190 cm, with a useful interior of 190x90x40 cm.
  • Weight: 200 Kg
  • Sheet metal thickness: 45 mm
  • 3-point hitch: compatible with 1-2 (ø 19.0-22.0 mm / 25.0-28.0 mm) categories.
  • Distance between the two lower hitches: 750 mm.

The Francini P 190 transporter box is an excellent choice for anyone looking for an effective and reliable solution for transporting materials in agriculture and beyond, guaranteeing high performance in the daily work routine.

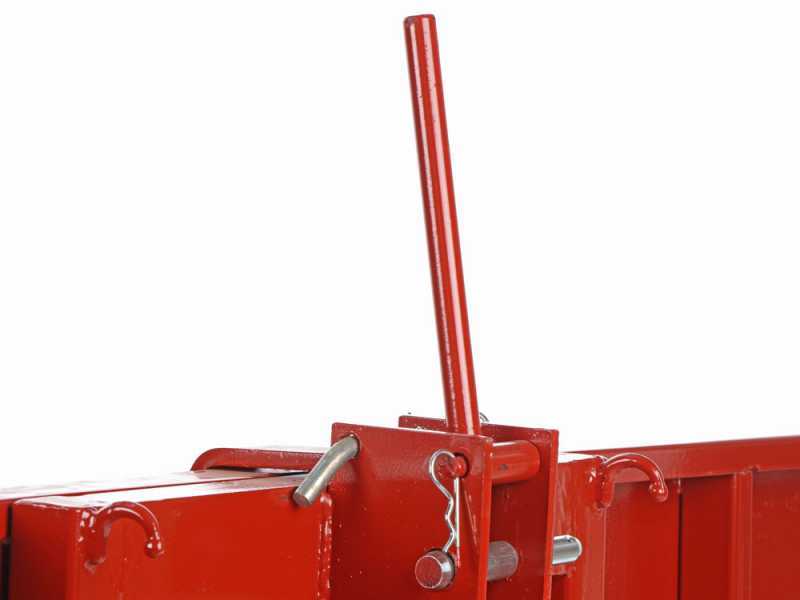

Manual Tipping

This tractor transport box is equipped with a quick-tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box

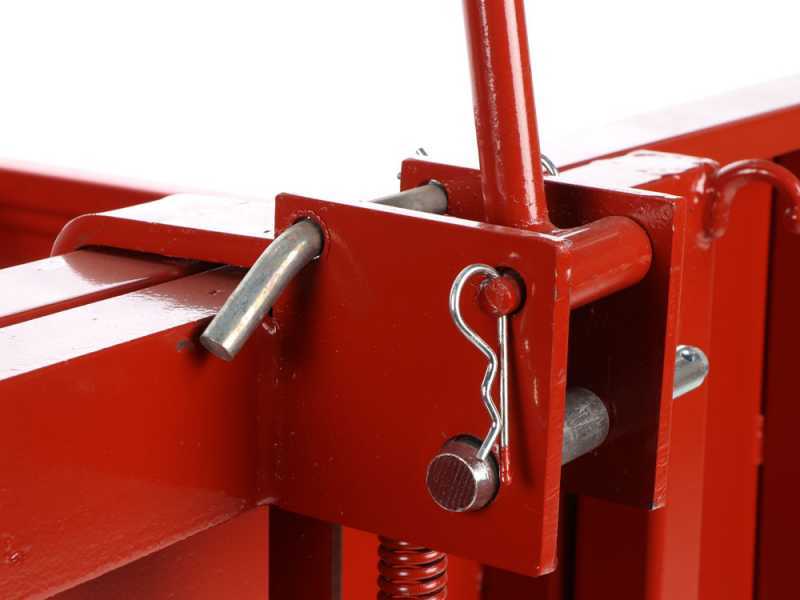

  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

3 Removable Panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Focus on the side panel engagement / disengagement
  • Detail of the hinges allowing the removal of the side panel
Free items & Standard equipment

Standard equipment

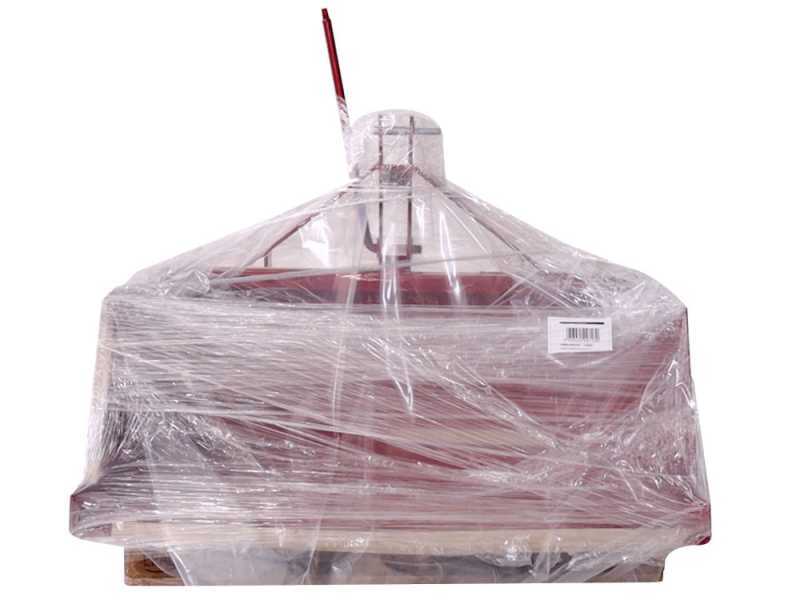

The product is shipped on a pallet.
