Francini P 170 - Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Add a question
ID: 113613

EAN: 8053435097437

MPN: P170

Francini P 170 - Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panels
Technical data
Body material
Enamelled steel
Sturdiness/Series
Heavy
Load capacity
700 Kg
Body tipping
Manual
Bucket width
170 cm
Bucket depth
90 cm
Manufacturing country
Italy
Product Features
Model
P 170
Type
Transporter - Transport Box
Body material
Enamelled steel
Sturdiness/Series
Heavy
Operating mode
Tractor-driven PTO
Load capacity
700 Kg
Body tipping
Manual
Bucket width
170 cm
Bucket depth
90 cm
Manufacturing country
Italy

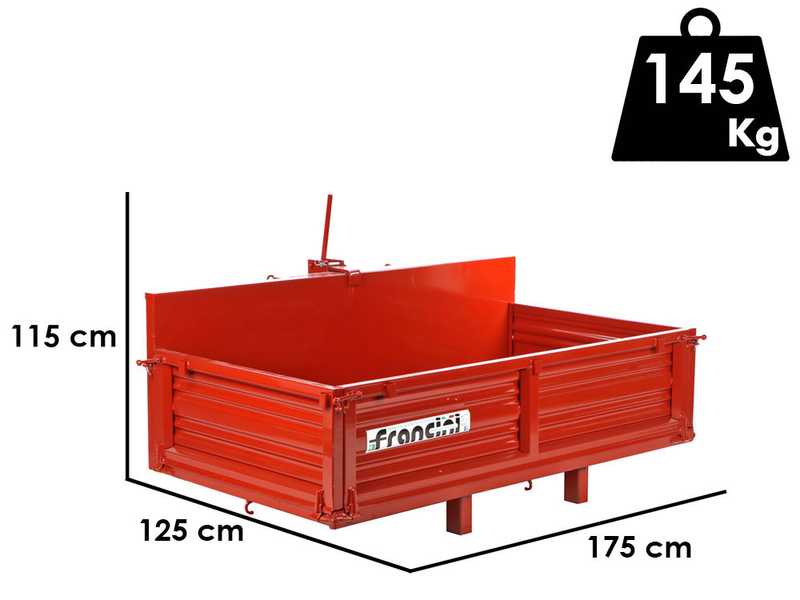

Dimensions and logistics
Product dimensions in cm (L x W x H)
175x125x115
Net weight
145 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
190x110x100
Weight including packaging
160 Kg
Assembly time
30 minutes
Arriving on 29/08/25
Free Shipping
Estimated delivery: 09/09/2025 - 11/09/2025
€ 1.157,72
Vat included
You're viewing:
Customers also viewed:
Description

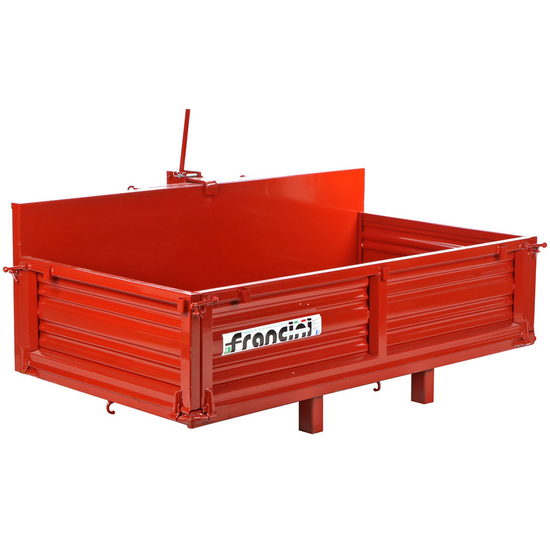

Francini P 170 - Tractor-mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

The Francini P 170 tipping transport box is designed to facilitate the transport of a wide range of loads, such as equipment, grain, wood and manure. This model stands out for its practicality and robustness, making it an indispensable tool for agriculture and much more.

Main features:

  • Openable panels: equipped with three 46 cm high, openable and removable plates, which improve loading and unloading operations. The side rails are located on both the rear and the sides.
  • Quick-release tipping lever: allows quick and safe load tipping, optimising working time.
  • Compact and robust design: suitable for intensive and prolonged use, ensuring strength and durability.
  • Easy storage: designed to maximise space efficiency.

Technical specifications:

  • Maximum capacity: 700 Kg
  • Box dimensions: Width 170 cm, with a useful interior of 170x90x40 cm.
  • Weight: 145 Kg
  • Sheet metal thickness: 45 mm
  • 3-point hitch: compatible with 1-2 (ø 19.0-22.0 mm / 25.0-28.0 mm) categories.
  • Distance between the two lower hitches: 750 mm.

The Francini P 170 transport box is an excellent choice for anyone looking for an effective and reliable solution for transporting materials in agriculture and beyond, guaranteeing high performance in the daily work routine.

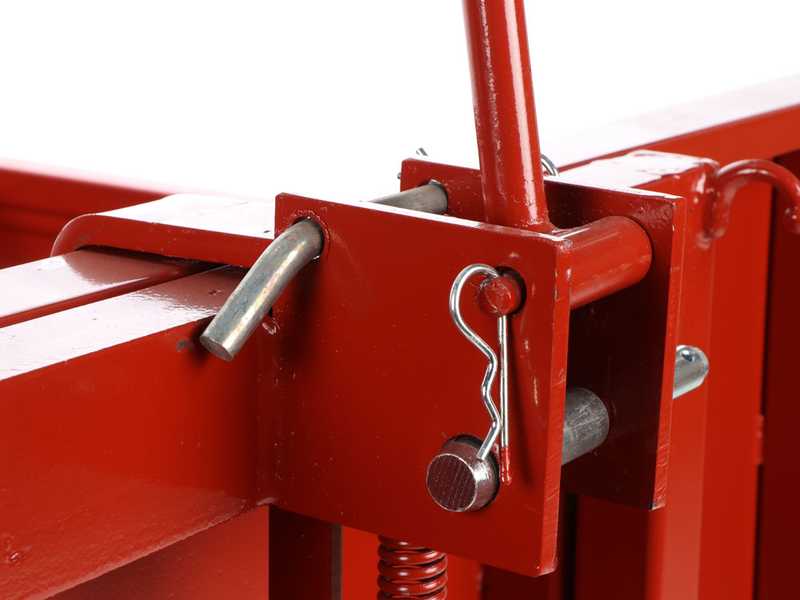

Manual Tipping

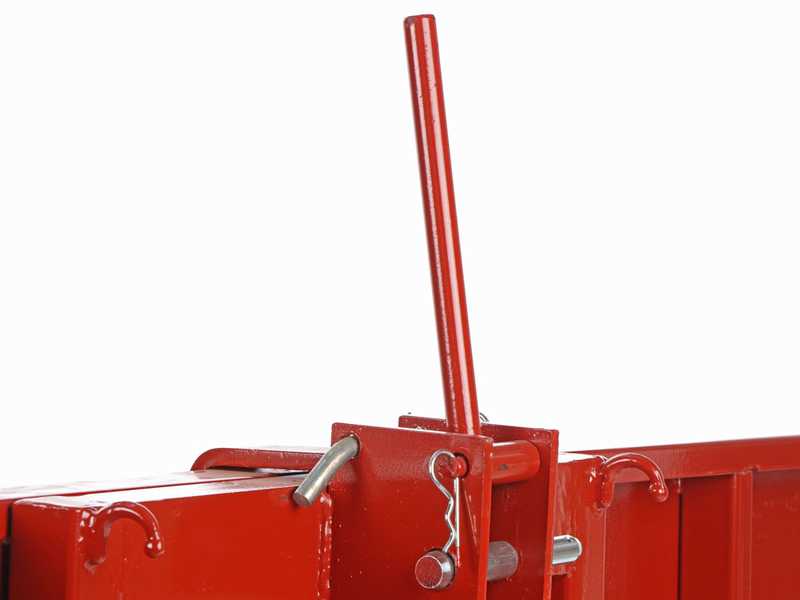

This tractor transport box is equipped with a quick-tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box
  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

3 Removable Panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Detail of the side panel engagement / disengagement
  • Detail of the hinges allowing the removal of the side panel
Free items & Standard equipment

Standard Equipment

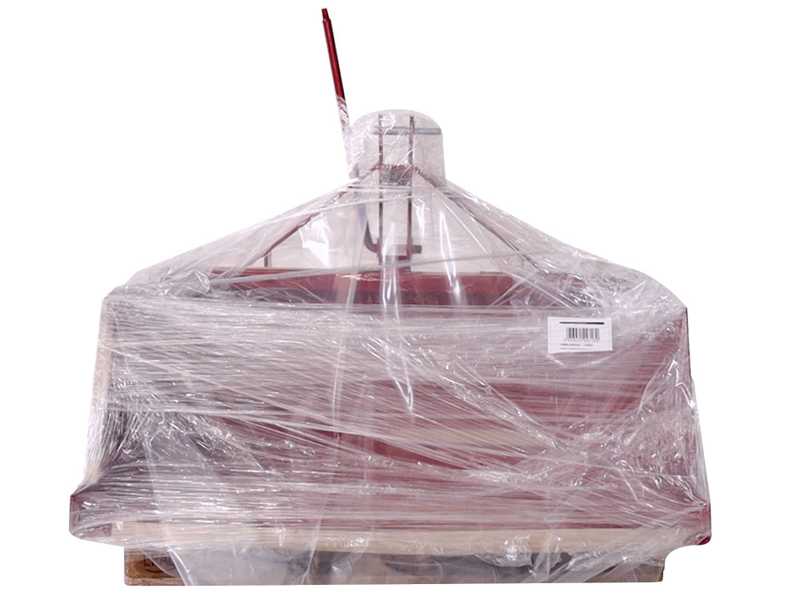

The product is shipped on a pallet.
