Francini P 150 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Add a question
ID: 113612

EAN: 8053435097420

MPN: P150

Francini P 150 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels
Body material
Enamelled steel
Sturdiness/Series
Medium-heavy
Load capacity
500 Kg
Body tipping
Manual
Bucket width
150 cm
Bucket depth
90 cm
Manufacturing country
Italy
Product Features
Model:
P 150
Type:
Transporter - Transport Box
Body material:
Enamelled steel
Sturdiness/Series:
Medium-heavy
Operating mode:
Tractor-driven PTO
Load capacity:
500 Kg
Body tipping:
Manual
Bucket width:
150 cm
Bucket depth:
90 cm
Manufacturing country:
Italy

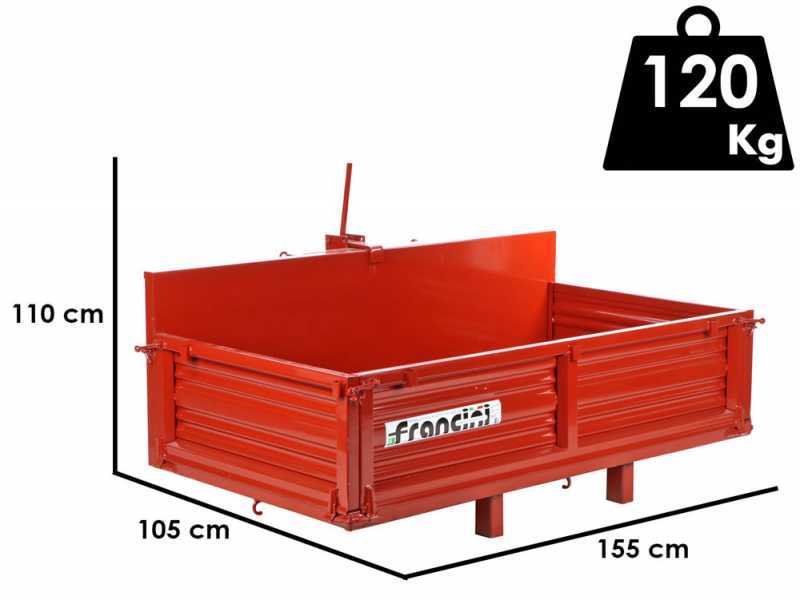

Dimensions and logistics
Product dimensions in cm (L x W x H):
156x105x110
Net weight:
120 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
160x105x115
Weight including packaging:
135 Kg
Assembly time:
30 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 13/06/2025 - 17/06/2025
Suggested price:
€ 1.143,84
€ 1.081,00
Vat included
You're viewing:
Customers also viewed:
Description

Francini P 150 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Francini P 150 Tipping Transporter Box: designed to improve the transport of different types of loads such as equipment, grain, wood and manure, the Francini P 150 stands out for its practicality and robustness. This makes it an essential tool in agriculture and other sectors.

Main features:

  • Openable side panels: The model is equipped with 46 cm high side rails, which can be opened and removed, arranged on the rear and sides. This system greatly facilitates loading and unloading.
  • Quick Release Tipping Lever: ensures quick and safe load tipping, optimising working time.
  • Compact and Robust Design: ideal for intensive and prolonged use, it guarantees strength and durability.
  • Ease of Storage: designed to maximise space efficiency.

Technical Specifications:

  • Maximum load capacity: 500 Kg
  • Box dimensions: Width 150 cm, internal use of 150x90x40 cm.
  • Weight: 120 Kg
  • Sheet metal thickness: 45 mm
  • 3-point hitch: compatible with 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) categories.
  • Distance between the two lower hitches: 650 mm.
  • Height between the two hitches: 46 cm

The Francini P 150 transporter box is an optimal solution for those looking for reliability and efficiency when transporting materials, guaranteeing high performance in the daily work routine.

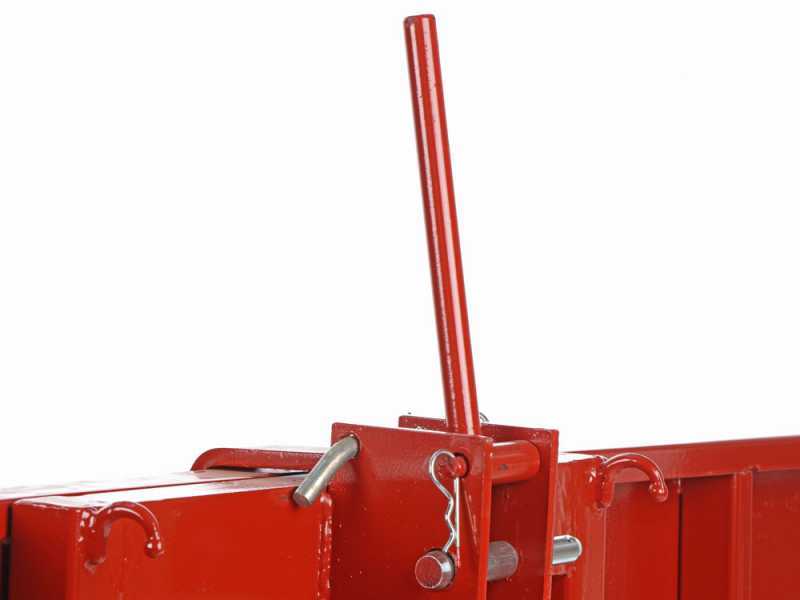

Manual Tipping

This tractor transport box is equipped with a quick-tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box

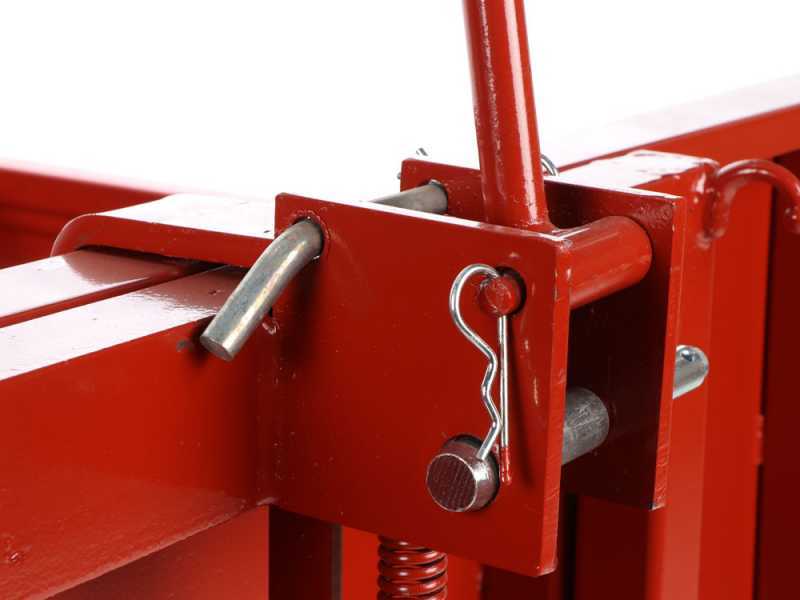

  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

3 Removable Panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Focus on the side panel engagement / disengagement
  • Detail of the hinges allowing the removal of the side panel
Free items & Standard equipment

Standard Equipment

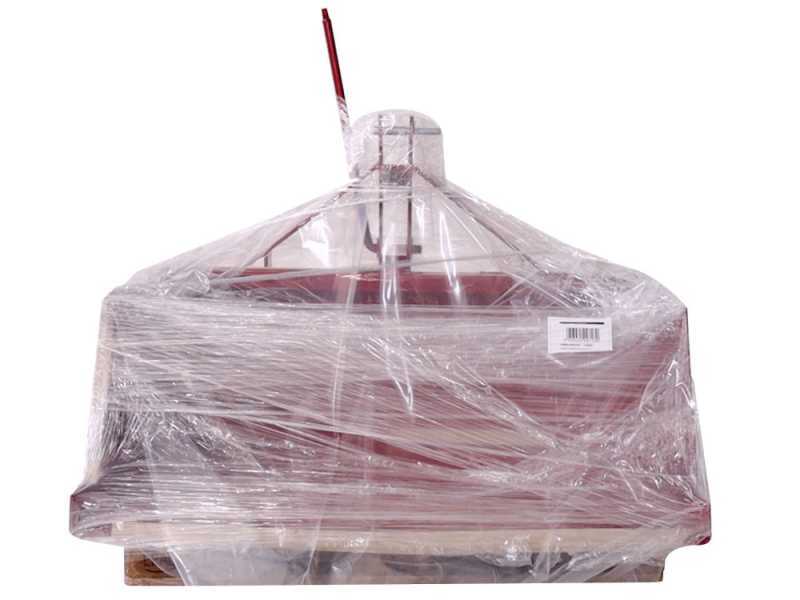

The product is shipped on a pallet.
