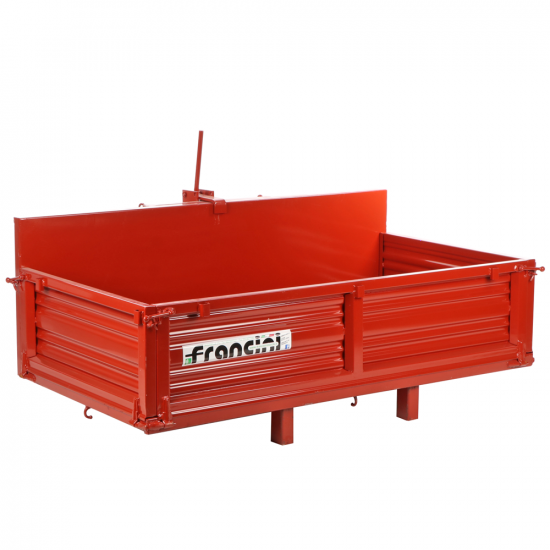

Francini P 130 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Questions & Answers (1)
ID: 113611

EAN: 8053435097413

MPN: P130

Francini P 130 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels
Body material
Enamelled steel
Sturdiness/Series
Medium-heavy
Load capacity
500 Kg
Body tipping
Manual
Bucket width
130 cm
Bucket depth
90 cm
Manufacturing country
Italy
Product Features
Model:
P 130
Type:
Transporter - Transport Box
Body material:
Enamelled steel
Sturdiness/Series:
Medium-heavy
Operating mode:
Tractor-driven PTO
Load capacity:
500 Kg
Body tipping:
Manual
Bucket width:
130 cm
Bucket depth:
90 cm
Manufacturing country:
Italy

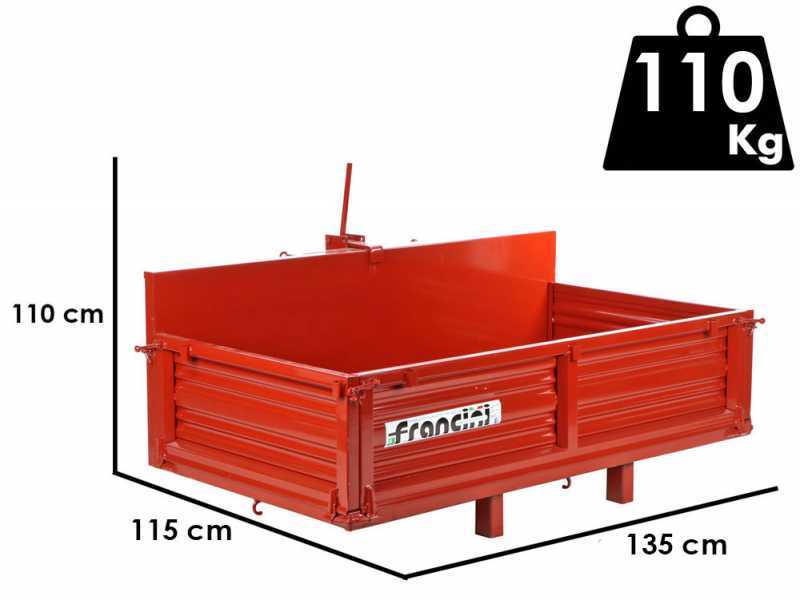

Dimensions and logistics
Product dimensions in cm (L x W x H):
135x115x110
Net weight:
110 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
175x110x115
Weight including packaging:
125 Kg
Assembly time:
30 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 09/06/2025 - 11/06/2025
€ 1.155,44
Vat included
You're viewing:
Customers also viewed:
Description

Francini P 130 - Tractor-Mounted Transport Box - Tipping Transporter - 3 Openable Side Panels

Francini P 130 Tipping Transport Box: created to facilitate the transport of various materials such as equipment, grain, wood and manure, the Francini P 130 is distinguished by its practicality and robustness. These qualities make it essential not only in agriculture, but also in other areas of work.

Main features:

  • Openable side rails: the box is equipped with 46 cm high side rails, which can be opened and removed easily. These are positioned on the rear and at the sides, making loading and unloading significantly easier.
  • Quick Release Tipping Lever: allows quick and safe load tipping, improving work efficiency.
  • Compact and Robust Design: designed for intensive use, it offers great strength and durability.
  • Ease of Storage: optimises the efficiency of the available storage space.

Technical Specifications:

  • Maximum load capacity: 500 Kg
  • Box dimensions: Width 130 cm, useful internal space 130x90x40 cm.
  • Weight: 110 Kg
  • Sheet metal thickness: 45 mm
  • 3-point hitch: compatible with 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) categories.
  • Distance between the two lower hitches: 650 mm.
  • Height between the two hitches: 46 cm

The Francini P 130 is the ideal choice for those who need a reliable, high-performance vehicle for transporting materials, ensuring high performance in the daily routine.

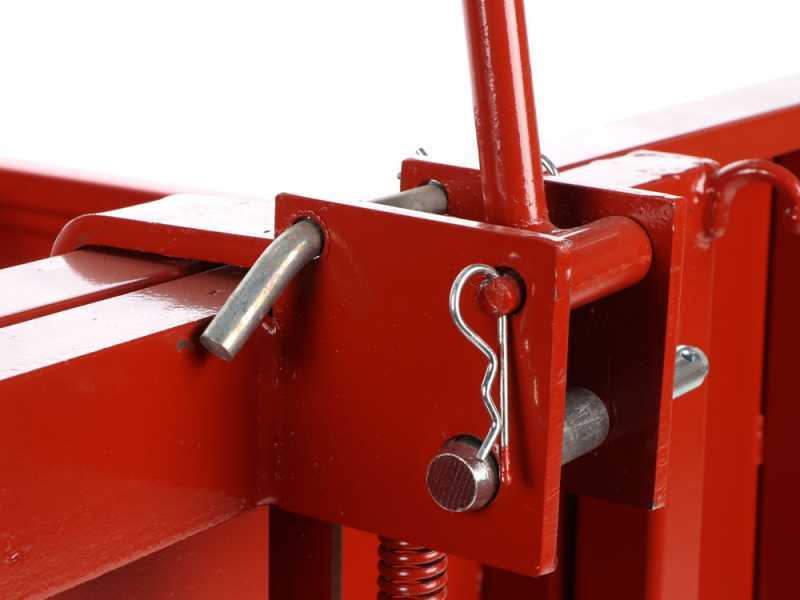

Manual Tipping

This tractor transport box is equipped with a quick-tipping lever.

The quick release system is managed by a manual lever:

  • The box is released by simply pulling the lever
  • This allows overturning the box
  • Focus on the pin that locks the tilting mechanism

Possibility to lower or remove only one or even all three sides, transforming the box according to your needs.

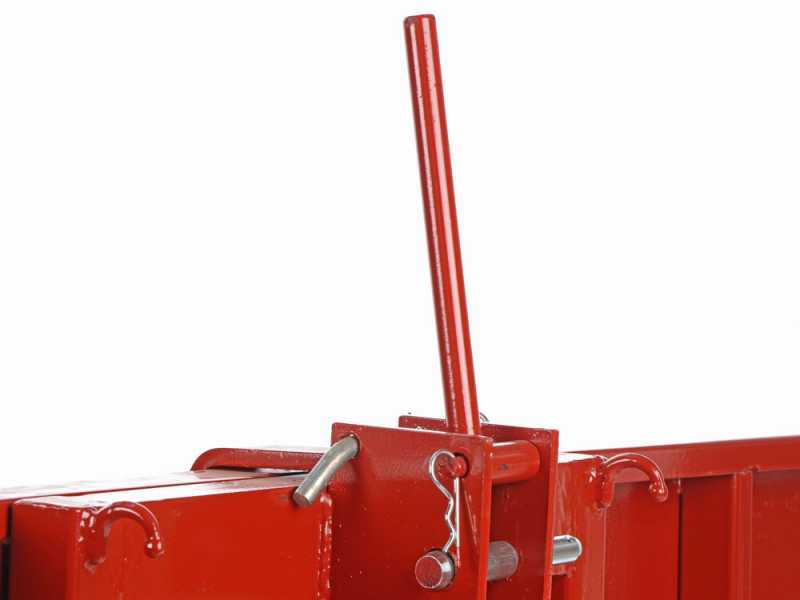

3 Removable Panels

Removable rear and side panels.

By removing the side panels, this transport box can also be used in various configurations. It is also intended for loading soil, sand, grain, and many others.

  • Detail of the side panel engagement / disengagement
  • Detail of the hinges allowing the removal of the side panel
Free items & Standard equipment

Standard Equipment

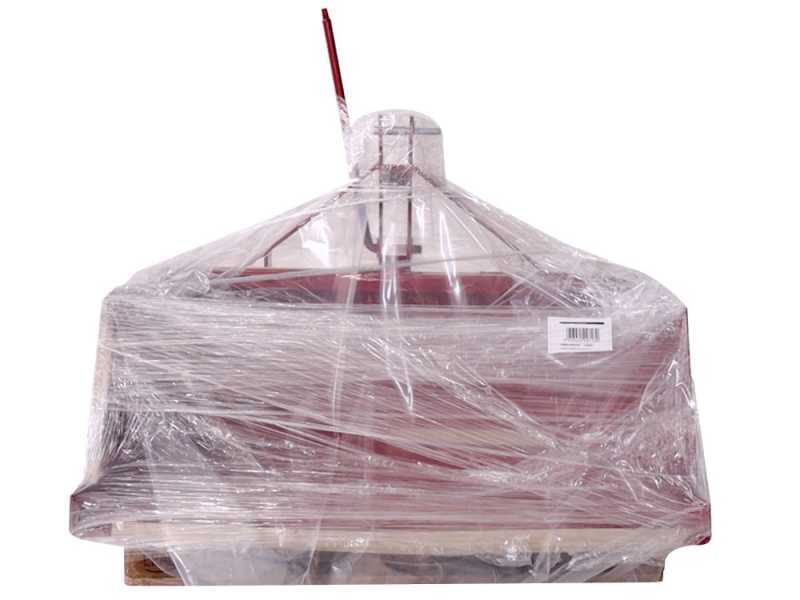

The product is shipped on a pallet.
