Fontana People - Built-in Wood-fired Oven 80x45 cm

Add a question
ID: 113980

EAN: 8033776080541

MPN: PEOPLE INCASSO

8,0/10
After-sales assistance & Spare parts
Fontana People - Built-in Wood-fired Oven 80x45 cm
FREE
Pizza shovel for wood-fired ovenPizza shovel for wood-fired oven
Pair of oven gloves for free!Pair of oven gloves for free!
Wood
Cooking surfaces:
3
Cooking chamber base
rectangular
Cooking chamber depth
80 cm
Cooking chamber width
45 cm
Cooking chamber height
40 cm
Cooking surface
10800 cm²
No. of pizzas per time
4 pizzas
Refractory oven base
Yes
Refractory type
Standard
Removable panels for cleaning
Yes
No. of diners
34 People
Weight
170 Kg
Steam vent
Yes
Anthracite body
Manufacturing country
Italy
Product Features
Model:
People incasso
Type:
Wood
Type:
Built-in
Wood:
Fuel:
Wood
Combustion:
indirect
Hourly consumption:
3.4 Kg
Cooking chamber height:
40 cm
Cooking chamber base:
rectangular
No. of pizzas per time:
4 pizzas
Bread kg:
8
General dimensions:
Large
Max. servings:
34
Cooking surface:
10800 cm²
Anthracite body:
Cooking surfaces::
3
Cooking chamber depth:
80 cm
Cooking chamber width:
45 cm
No. of diners:
34 People
Manufacturing country:
Italy
Equipment
External covering:
Steel panels
Standard ventilation:
Yes
Refractory oven base:
Yes
Refractory type:
Standard
Removable panels for cleaning:
Yes
Door material:
Enameled steel
Stainless steel chimney:
Yes
Steam vent:
Yes
Smoke regulation valve:
Yes
Thermometer:
Yes
12 V current transformer:
Yes
Interior light:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Chrome-plated racks:
2
Long baking tray:
1 (37x73 cm)
Fire poker:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
94x90x74 cm
Net weight:
170 Kg
Chimney diameter:
15 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
110x104x87 cm
Gross weight (packaging included) :
190 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
€ 2.052,00
Vat included
You're viewing:
Customers also viewed:
Description

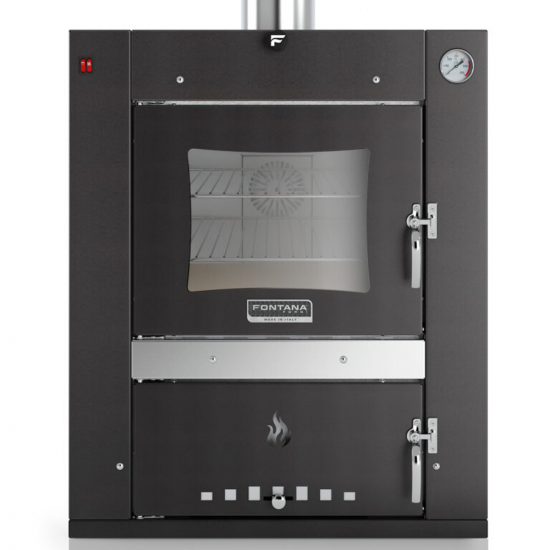

Fontana People Built-in Oven

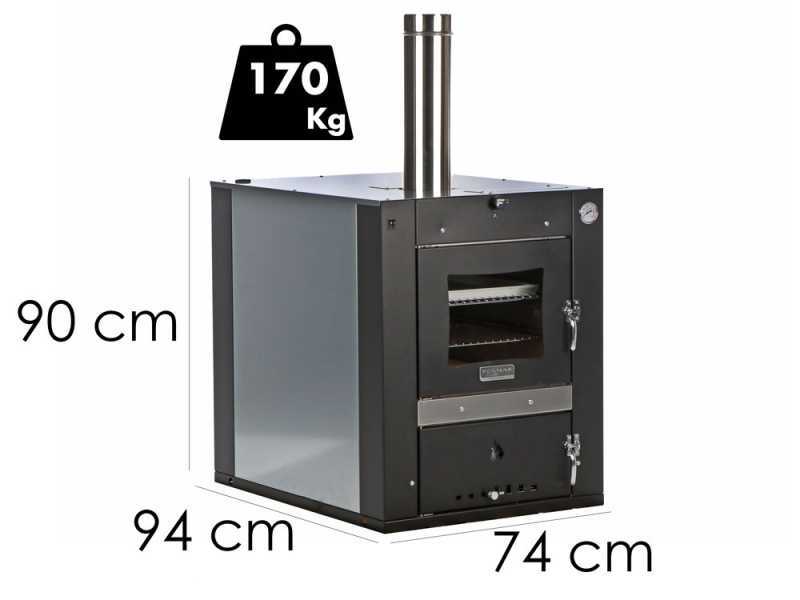

The Fontana People built-in wood-fired oven is an ideal solution for those looking for a traditional wood-fired cooking with the convenience of a fixed installation. This oven is designed for use with wood, guaranteeing authentic flavour and even cooking thanks to the CLEVER ventilation system. The outer dimensions are D 94 x W 74 x H 90 cm, while the cooking chamber measures D 80 x W 45 x H 40 cm, allowing cooking on three levels at once.

The People built-in features sleek, minimalist lines that blend perfectly into any environment. Indirect cooking is one of the strengths of this oven, ensuring that the heat coats the food evenly without direct contact with the flame. The addition of internal lighting facilitates the monitoring of cooking phases, improving user-friendliness.

The included accessories consist of a refractory plate, a food pan, two chrome-plated grills, a fire poker, a chimney and a thermometer, offering everything needed for a complete cooking experience. The nominal heat output of the oven is 6 kW, with a flue gas temperature of up to 190° and a chimney diameter of 150 mm. The total weight of the oven is 170 kg, making it sturdy and stable.

Distinctive features of the Fontana People built-in wood-fired oven:

  • Type of fuel: wood
  • Outer dimensions: D 94 x W 74 x H 90 cm
  • CLEVER ventilation system: enables cooking on three levels simultaneously
  • Accessories included: refractory plate, frying pan, chromed grates, fire poker, chimney, thermometer
  • Weight: 170 kg

This built-in wood-fired oven is ideal for those looking for a robust and functional product that guarantees excellent cooking results with the tradition of wood-fired cooking.

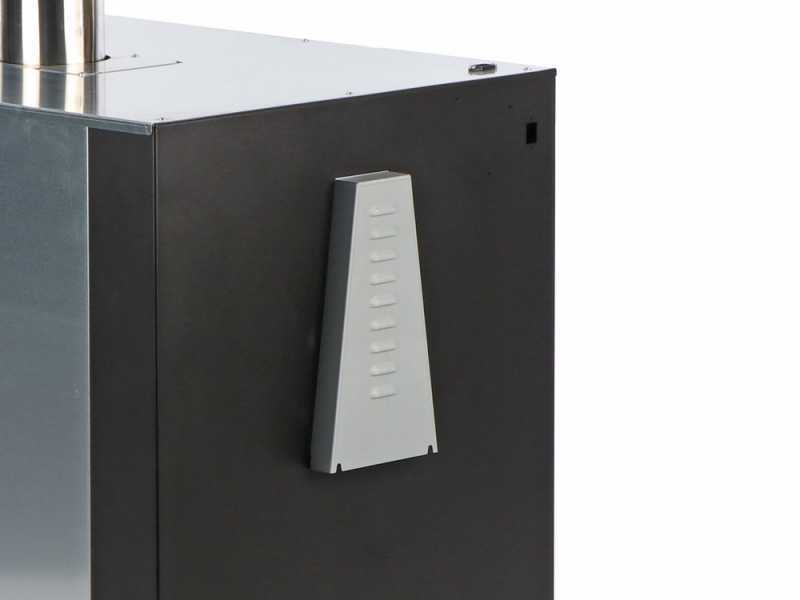

Oven Exterior and Materials

The Fontana Built-in Wood-Fired Oven offers excellence and durability thanks to high quality materials. The exterior is available in two options: electro-galvanised, powder-coated sheet metal for resistance to corrosion and weathering, and stainless steel for maximum strength and hygiene. The inside of the cooking chamber and the chimney are made of stainless steel, ensuring excellent thermal properties and easy maintenance.

The central body, which includes the combustion and cooking chamber, is insulated with rock wool. This insulating layer keeps the temperature constant, preventing the outer sheets from overheating and reducing heat loss. As a result, the oven offers high thermal efficiency and significant savings in wood consumption.

The main advantages of the Fontana Built-in Wood-Fired Oven include durability, energy efficiency, easy maintenance and elegant aesthetics. Investing in this oven means choosing a product that combines quality, efficiency and design, guaranteeing excellent performance and a long service life.

Ventilation System and Refractory Slab

The ventilation system is certainly one of the most high-tech among those currently fitted in ovens on the market. The cooking chamber, made of special stainless steel, is separated from the combustion chamber by a triple layer consisting of:

  • A steel top;
  • Refractory plate.

This allows even heat distribution over the entire surface of the oven and prevents the formation of zones at different temperatures, which are detrimental to even baking. The vast majority of wood-fired ovens on the market today are equipped with the ventilation motor at the bottom of the cooking chamber, with direct air emission from the rear of the chamber.

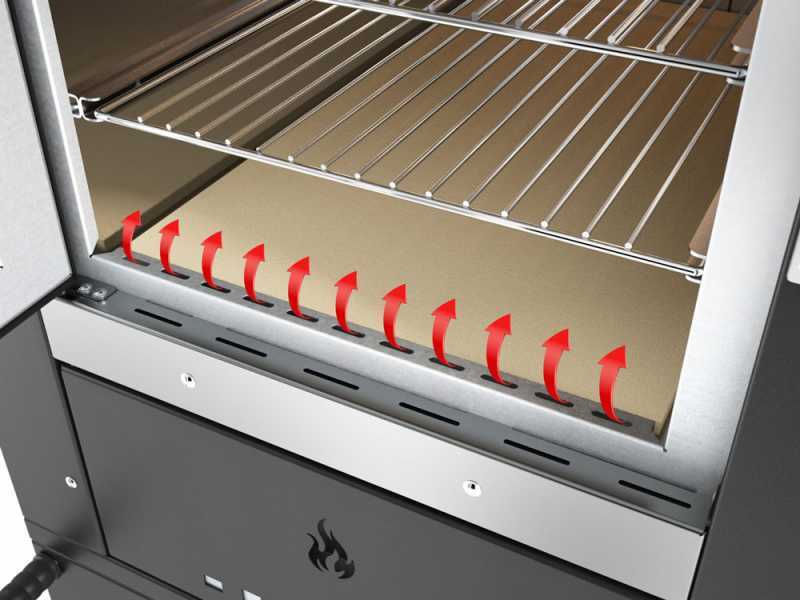

Ventilation is channelled under the refractory slab, as well as laterally.

Detail of the basic refractory slab that can be used directly for baking pizzas, bread, cakes, etc…

Detail of the removable refractory slab.

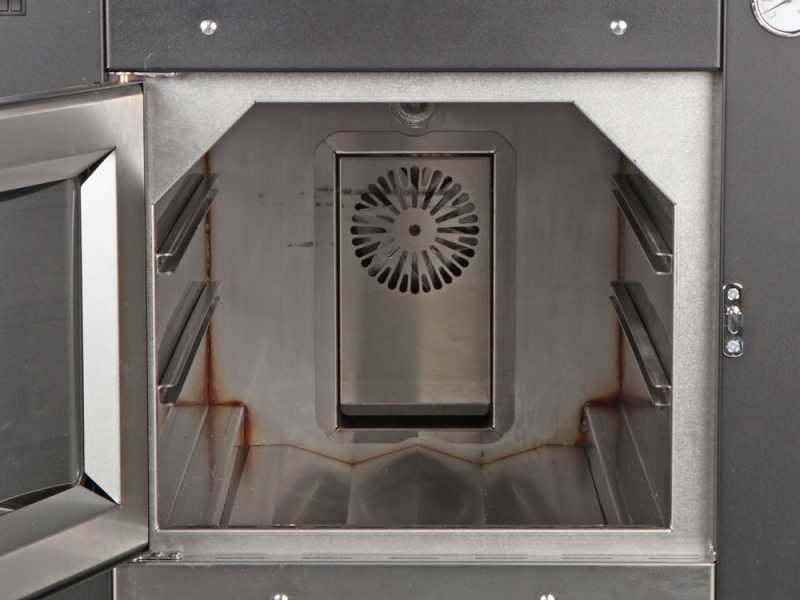

Cooking Chamber - Removable Panels

The central body of the oven, consisting of the combustion chamber and the cooking chamber, is insulated with a layer of rock wool, allowing for a constant temperature to be maintained inside the chamber, thus avoiding excessive heating of the oven's outer sheets and excessive heat loss to the outside, which could cause a drop in thermal efficiency with a consequent increase in wood consumption. Interior of the cooking chamber and ventilation chimney made of stainless steel.

To eliminate air humidity and make the environment drier inside the cooking chamber, a special "exhaust" is provided for the vapour outlet.

This vapour "exhaust" must absolutely not be modified or connected to piping.

The oven is equipped with 2 convenient support grids.

Adjacent Doors and Finishes

Exceptionally sturdy doors, which emphasise the great robustness of this oven.

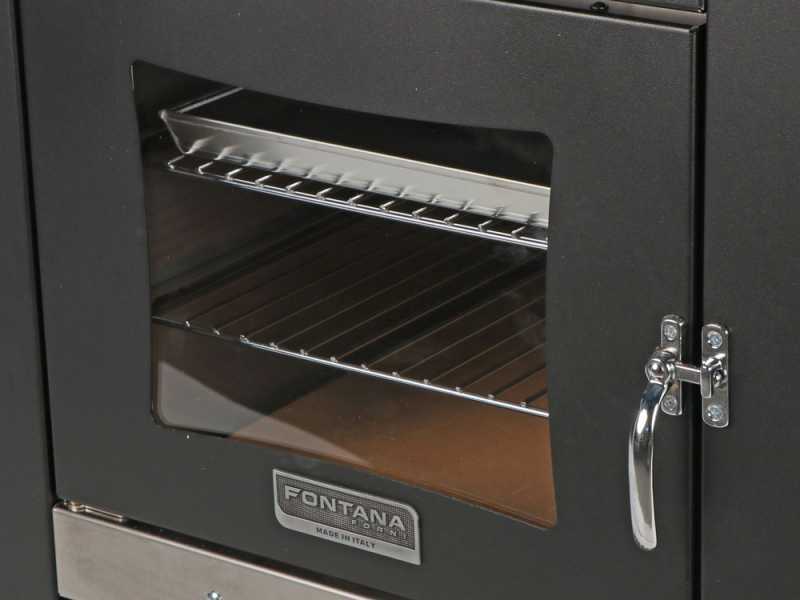

The upper door is equipped with a large, high-visibility glass pane, to achieve an almost hermetic seal of the door

Detail of the gasket insulating the door.

Detail of combustion chamber door

Stainless steel handles

Equipment, Combustion Chamber and Chimney

Focus on the thermostat for checking the cooking temperature.

The firewood support grate is made of sturdy sheet metal and it is equipped with various deformation-resistant grooves, with an ash drawer at the bottom. It can be easily removed thanks to the convenient side guides.

Focus on the embers collection tray

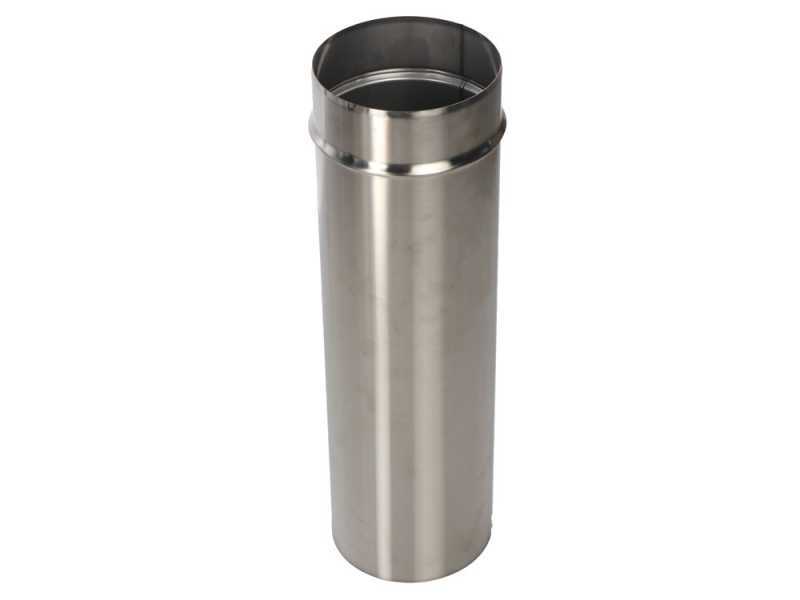

The flue pipe is fitted with a regulating valve: once the desired temperature is reached, reducing the smoke outlet means keeping the heat generated inside and thus a more stable temperature and less wood consumption.

Flue pipe diameter: 15 cm.

Max. smoke temperature: 190°

- Detail of the closed valve inside the flue pipe

- Detail of the open valve inside the flue pipe

The oven is equipped with electric lighting.

Detail of internal light.

The position of the chimney has been designed to optimise the "suction" and the path of the hot fumes, which evenly lap the cooking chamber without the formation of "preferential paths" that could cause excessive heating of certain parts.

SMOKE VALVE AIR ADJUSTMENT: When the air register is closed, a flow of air passing through the lower part of the door is still guaranteed. The same thing happens with the smoke valve in closed mode, where a flow of smoke out is guaranteed to avoid stagnation and a build-up of carbon dioxide.

Other Features

Additional oven features are:

Rear-mounted power transformer (transforms power for ventilation and interior lighting operation)

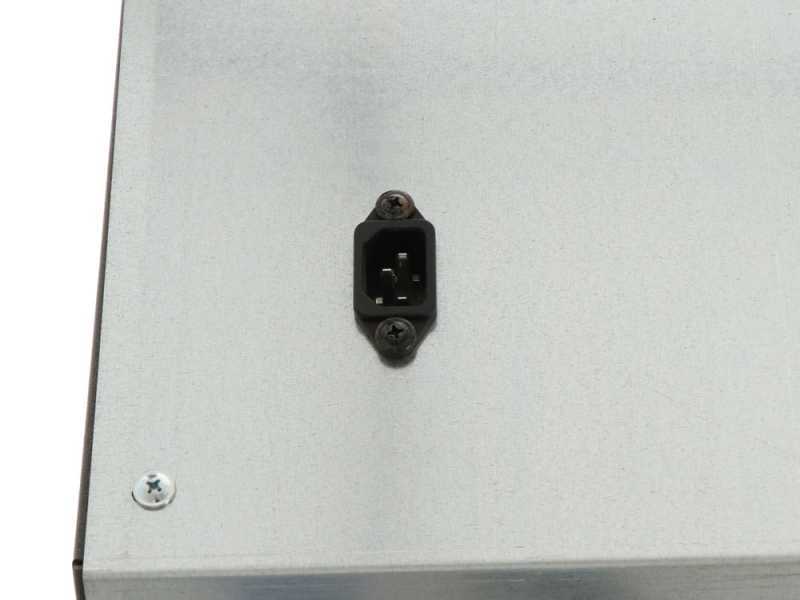

Detail of the oven socket.

Free items & Standard equipment

Standard Equipment

The product is shipped in its original pallet, and it comes complete with:

  • 2x grids (one for each surface);

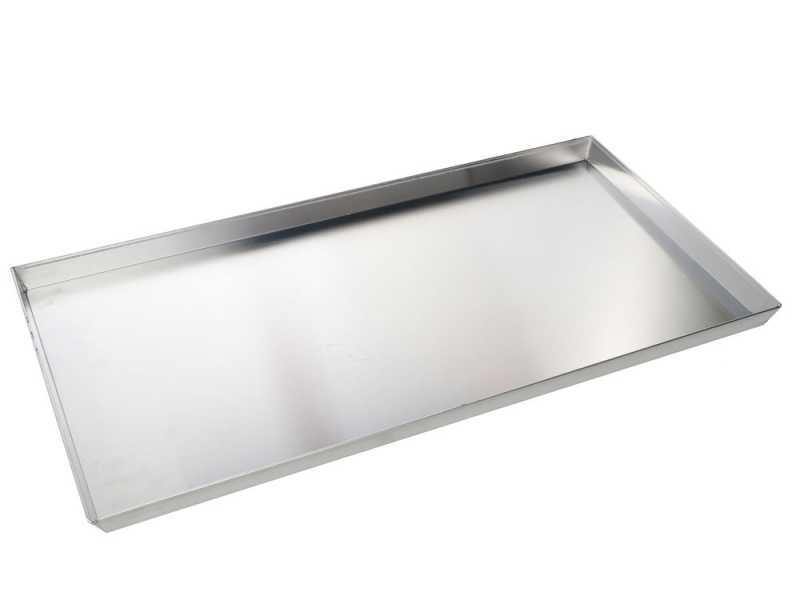

  • 1 larger pan;
  • Instructions manual;
  • Practical poker for the combustion chamber.

Complimentary: pair of oven gloves + pizza peel

This offer is unique for the quality, value and usefulness of the products that compose it.

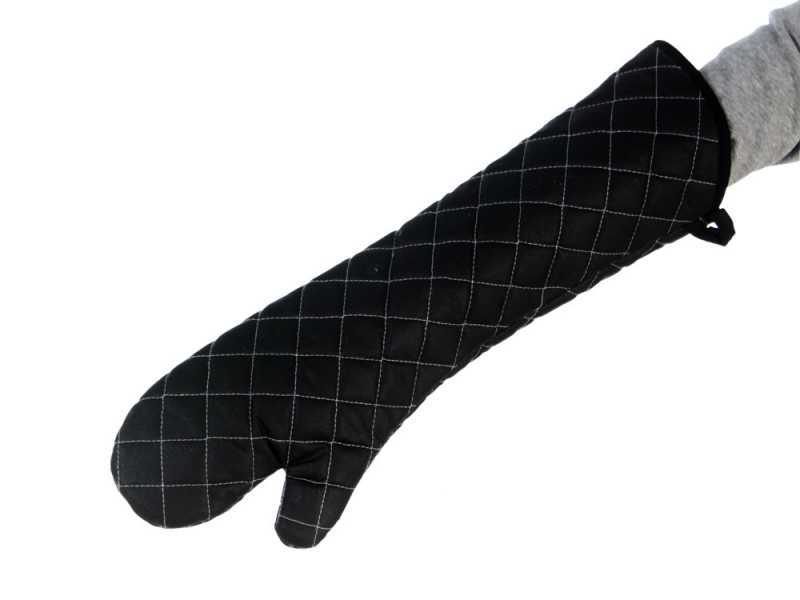

Pair of wood-fired oven gloves: the only true wood-fired oven glove model that can guarantee maximum protection. These gloves are able to protect up to three-quarters of the arm.

Unique, functional and effective model Pizza shovel for wood-fired oven: practical and handy aluminium shovel with comfortable wooden handle.

The handle can be held for its entire length, it is the perfect fit for a wood-fired oven.

Size: 12” x 14". Resistant and efficient model.
