Fontana INC100X65QV - Built-in wood-fired oven

Questions & Answers (2)
ID: 113975

EAN: 8033776078098

MPN: INC100X65QV. NEW

8,0/10
After-sales assistance & Spare parts

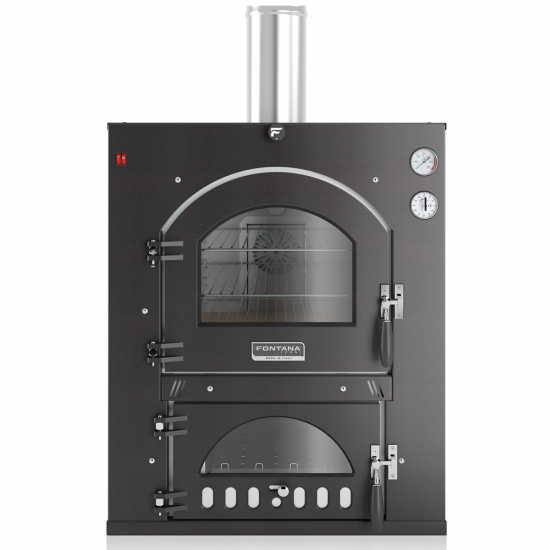

Fontana INC100X65QV - Built-in wood-fired oven
Special offer
FREE
Pizza shovel for wood-fired ovenPizza shovel for wood-fired oven
Pair of oven gloves for free!Pair of oven gloves for free!
Wood
Cooking surfaces:
3
Cooking chamber depth
100 cm
Cooking chamber width
65 cm
Cooking chamber height
45 cm
Cooking surface
19500 cm²
Round cooking chamber
Yes
No. of pizzas per time
12 pizzas
Roof Colour
Stainless steel
Refractory oven base
Yes
Removable panels for cleaning
Yes
No. of diners
77 People
Weight
420 Kg
Steam vent
Yes
Manufacturing country
Italy
Product Features
Model:
INC QV 100x65
Type:
Wood
Type:
Built-in
Wood:
Fuel:
Wood
Combustion:
indirect
Hourly consumption:
4 Kg
Cooking chamber height:
45 cm
Round cooking chamber:
Yes
No. of pizzas per time:
12 pizzas
Bread kg:
36
General dimensions:
Large
Roof Colour:
Stainless steel
Cooking surface:
19500 cm²
Cooking surfaces::
3
Cooking chamber depth:
100 cm
Cooking chamber width:
65 cm
No. of diners:
77 People
Manufacturing country:
Italy
Equipment
External covering:
Zinc-plated panels
Standard ventilation:
Yes
Side ventilation:
Yes
Refractory oven base:
Yes
Refractory sides:
Yes
Removable panels for cleaning:
Yes
Transparent lower cooking chamber door:
Yes
Steam vent:
Yes
Smoke regulation valve:
Yes
Thermometer:
Yes
Timer:
Yes
12 V current transformer:
Yes
Interior light:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Chrome-plated racks:
3
Long baking tray:
1 (55x92 cm)
Medium baking tray:
2 (55x46 cm)
Fire poker:
Yes
Instructions manual:
Yes
Dimensions and logistics

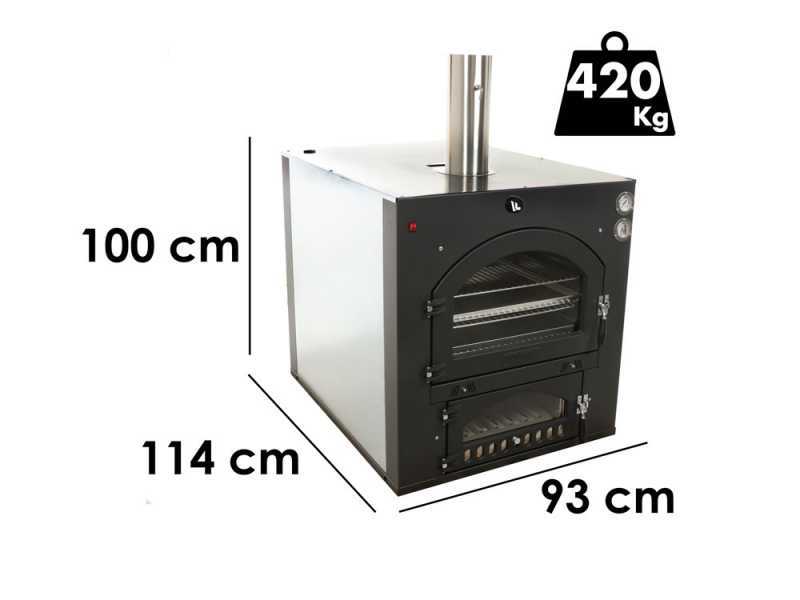

Product dimensions in cm (L x W x H):
93x114x100 cm
Net weight:
420 Kg
Chimney diameter:
16 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
100x131x140 cm
Gross weight (packaging included) :
440 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
Lowest price:
€ 3.955,80
-5 %
€ 3.758,01
Vat included
You're viewing:
Customers also viewed:
Description

Fontana INC100X65QV Built-in Oven

Fontana's INC QV built-in oven line combines tradition and efficient performance in a square, linear exterior design. These ovens offer superior functionality, durability and refined aesthetics, ideal for those seeking a high quality product.

INC QV ovens have three cooking decks, each capable of baking 3-4 pizzas or 8-12 kg of bread, allowing large quantities of food to be handled with ease. The spacious cooking chamber measures 100 cm in depth, 65 cm in width and 45 cm in height, offering all the necessary space.

A major advantage of these ovens is their low wood consumption: only 4 kg is needed to carry out several consecutive firings, guaranteeing considerableenergy efficiency . In addition, removable shelves make cleaning easy and keep food away from ash, embers and wood, preventing contamination.

Cooking management is made easy by the separation of cooking and heating environments, allowing precise temperature control. The heating time is reduced, quickly reaching the desired cooking temperature.

Wood-fired cooking offers unsurpassed flavour and fragrance , making each dish unique and delicious. In addition, it is a natural way of cooking that is extremely low in fat and healthy.

In summary, Fontana's INC QV line of built-in ovens is the perfect choice for those looking for a product that combines tradition, efficiency and fine aesthetics, always guaranteeing excellent results in the kitchen.

Technical Specifications:

  • Number of hobs: 3
  • Cooking Chamber Depth: 100 cm
  • Firing chamber width: 65 cm
  • Cooking Chamber Height: 45 cm
  • Weight: 420 kg

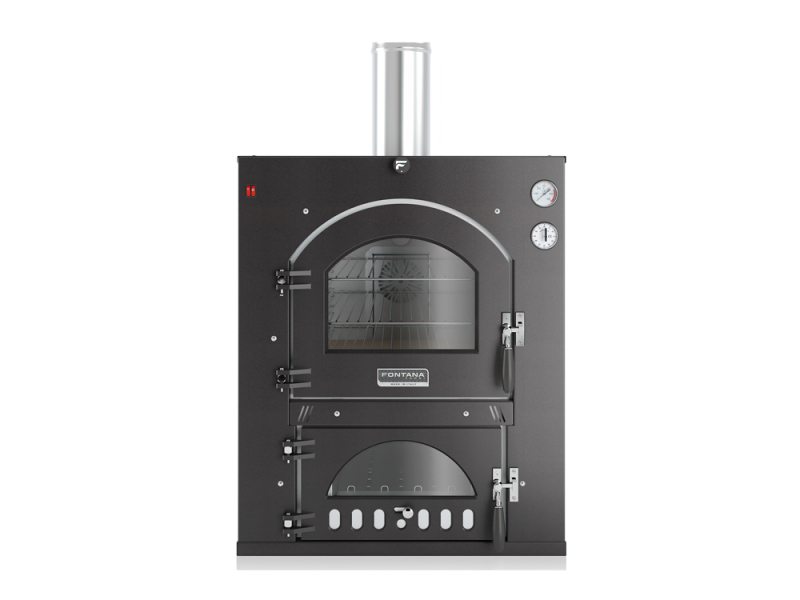

External structure and materials

The oven is made of steel sheets treated for use at high temperatures and the outer casing is made of electro-galvanised sheet metal painted by oven baking.

The doors are also incredibly strong and robust, with a practical release system for complete closure. In general, the entire structure of this wood-fired oven is very robust thanks to the thickness and quality of the various types of steel used: this particularity leads to it having a high weight in its category: 420 kg.

Ventilation system and refractory floor

The ventilation system is certainly state-of-the-art among those currently fitted in ovens on the market.

The baking chamber, made of special stainless steel, is separated from the combustion chamber by a double layer consisting of:

  • A steel top,
  • Refractory plate,

This allows even heat distribution over the entire oven surface and avoids the formation of zones at different temperatures, which are detrimental to even baking.

The vast majority of wood-fired ovens on the market today are equipped with the ventilation motor at the bottom of the chamber, with direct air emission from the rear of the chamber.

Ventilation is channelled not only laterally but also underneath the refractory slab.

- Detail of the basic refractory slab that can be used directly for baking pizzas, bread, cakes, etc

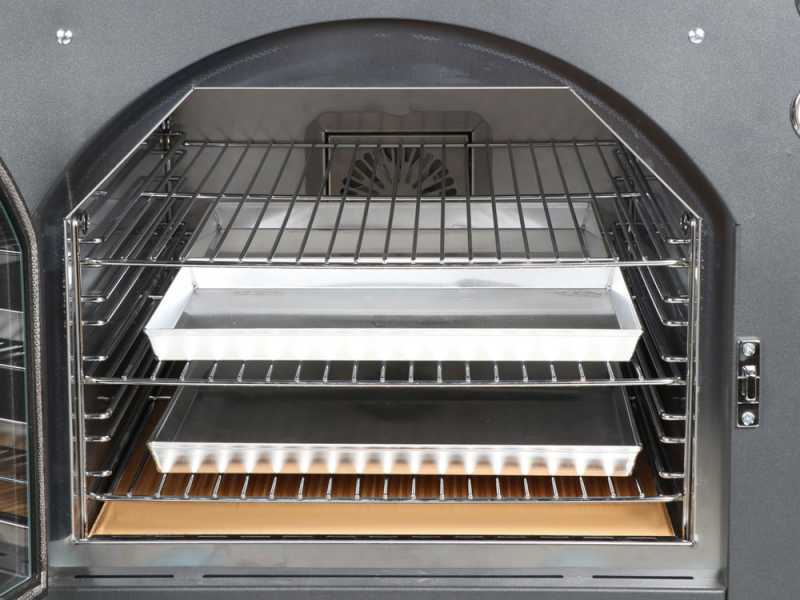

Cooking chamber - removable side walls

The central body of the kiln, consisting of the combustion chamber and firing chamber, is insulated with a thick layer of rock wool, which allows the temperature inside the chamber to be kept constant, preventing excessive heating of the outer kiln sheets.

This would undoubtedly cause a lowering of the thermal efficiency with a consequent increase in wood consumption.

Interior of cooking chamber and ventilation chimney made of stainless steel.

To eliminate air humidity and make the environment drier inside the cooking chamber, a special 'exhaust' is provided for the vapour outlet.

This vapour 'exhaust' must absolutely not be modified or connected to piping.

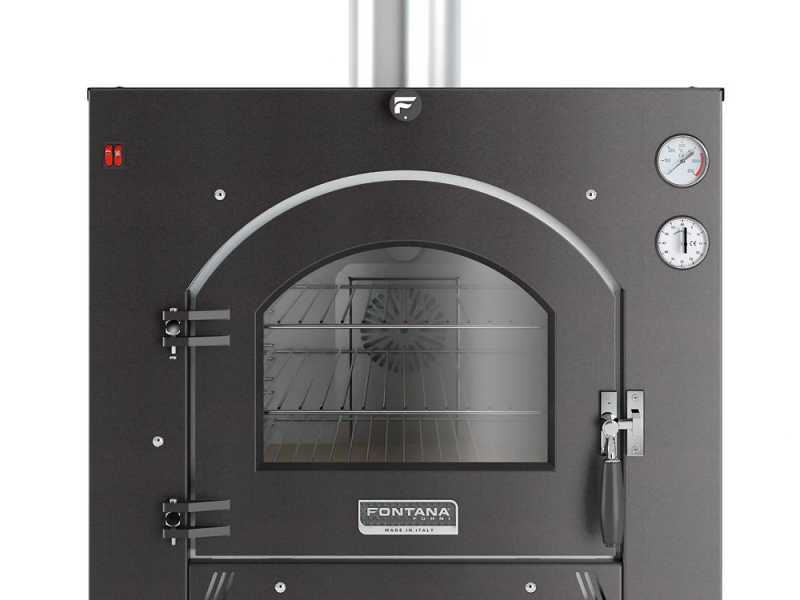

Adjacent doors and finishing

Exceptionally robust doors, which underline the great solidity of this oven.

The upper door is equipped with a large, high-visibility glass pane to achieve an almost hermetic closure of the door.

- Detail of the gasket insulating the door.

The combustion door is also fitted with glass , which allows a constant view of the combustion status.

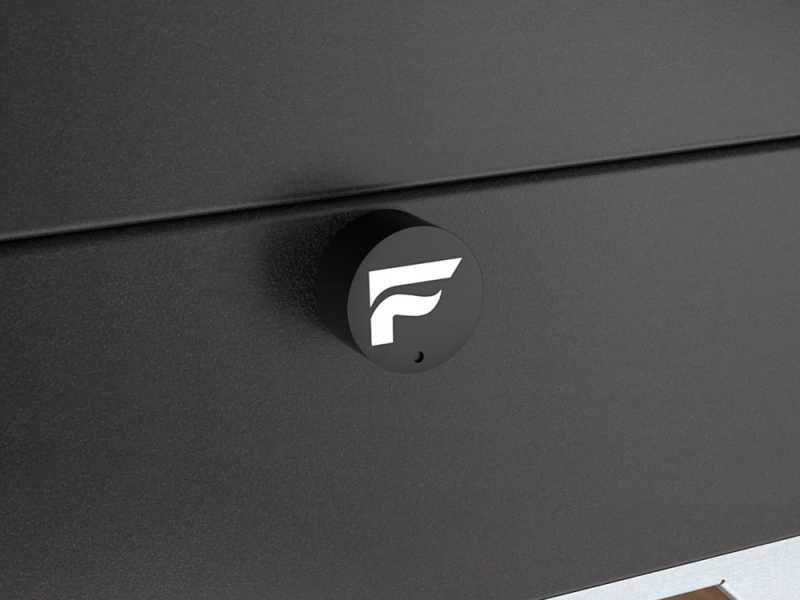

Handles with knob, covered in black ceramic.

Equipment, combustion chamber and flue pipe

-Detail of the thermostat for controlling the cooking temperature.

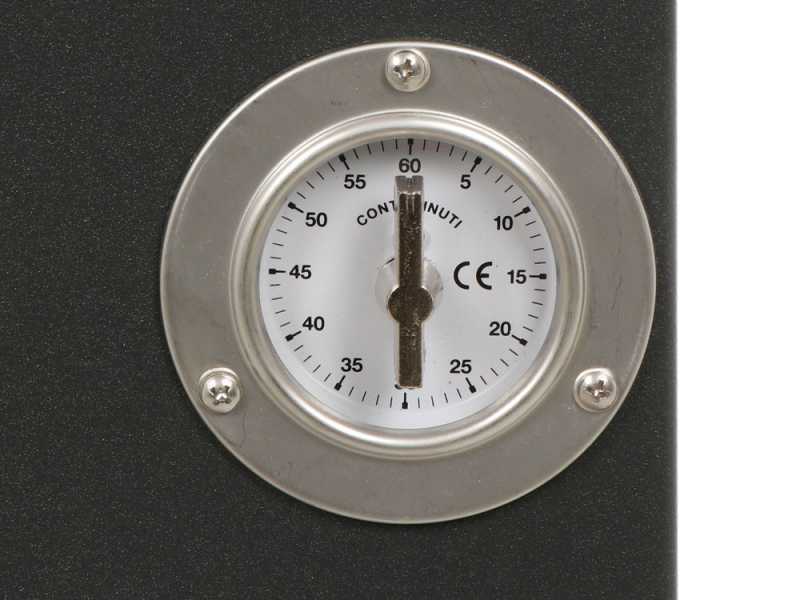

-Detail of the timer, useful for setting the timer according to cooking time.

The wood support grate is made of sturdy sheet metal and is equipped with various anti-deformation slots, and has an ash drawer at the bottom. It can be easily removed thanks to the convenient side guides.

- Detail of the grill pan.

The chimney is fitted with a regulating valve: once the desired temperature is reached, reducing the smoke outlet means keeping the heat generated inside and thus a more stable temperature and less wood consumption.

Flue diameter: 16 cm.

Max. flue gas temperature: 190°

- Detail of the closed valve inside the chimney.

- Detail of the open valve inside the chimney.

The oven is equipped with electric lighting.

- Detail of the double interior light.

The position of the chimney is designed to optimise the 'draught' and the path of the hot fumes, which evenly lap the cooking chamber without the formation of 'preferential paths' that could cause excessive heating of certain parts.

SMOKE VALVE AIR REGULATION: When the air register is closed, there is still a guaranteed flow of air passing through the lower part of the door. The same thing happens with the flue gas valve in closed mode, where a flue gas outlet flow is guaranteed to prevent stagnation and a build-up of CO2.

Other features

Other features of the oven are:

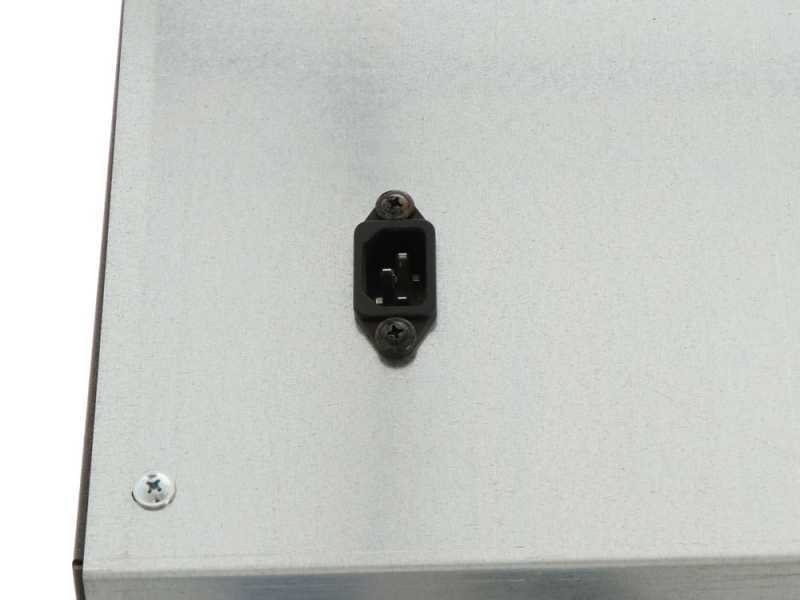

Rear-mounted current transformer (transforms current, for ventilation and interior light operation)

Detail of the oven grip.

- Detail of the vapour vent valve.

Free items & Standard equipment

Free Items Included

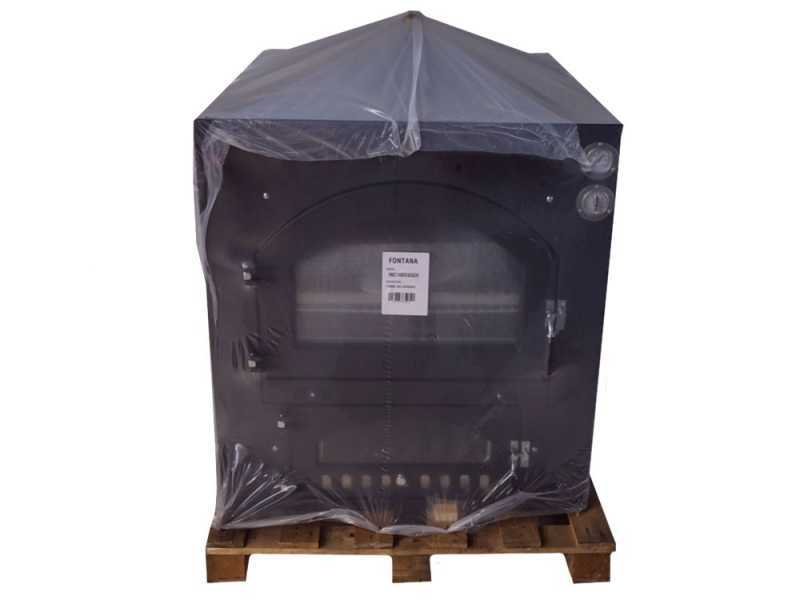

The product arrives on its original pallet:

  • 3 grids (one for each floor);
  • 2 smaller frying pans;
  • 1 larger pan;
  • Instructions;
  • Practical combustion chamber fork.

Complimentary: pair of oven gloves + pizza peel

This offer is unique for the quality, value and usefulness of the products that compose it.

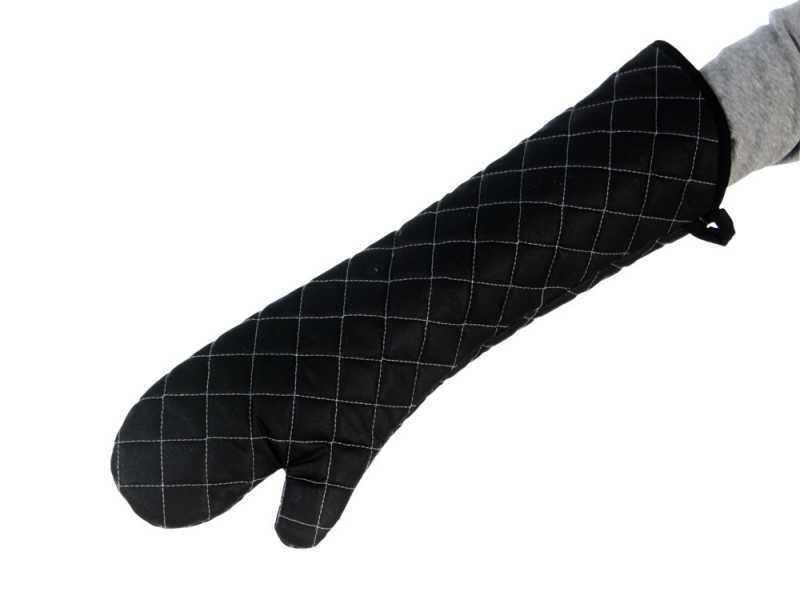

Pair of wood-fired oven gloves: the only true wood-fired oven glove model that can guarantee maximum protection. These gloves are able to protect up to three-quarters of the arm.

Truly unique, functional and effective model. Pizza shovel for wood-fired oven: practical and handy aluminium shovel with comfortable wooden handle.

The handle can be held for its entire length, it is the perfect fit for a wood-fired oven.

Dimensions: 12” x 14". Resistant and efficient model.
