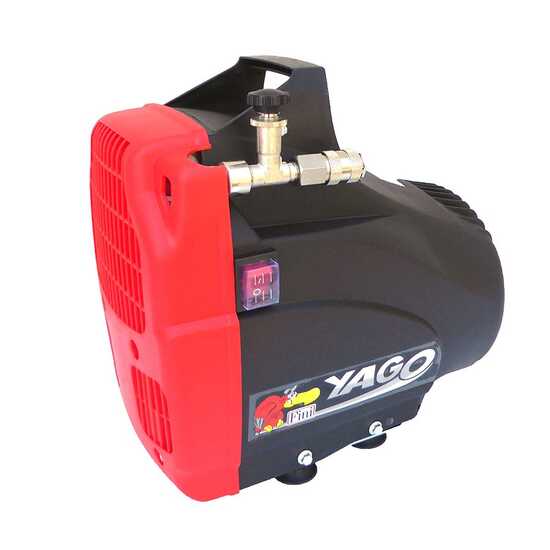

FINI YAGO 1850 compact portable electric air compressor - 1,5 HP motor - oilless

Max. operating pressure
8 bar
Air displacement
179 L/min
Portable
Pump unit revolutions per minute
2850 RPM
Lubrication
Oil-less
Rated output
1.5 HP
Activation
Single-phase
Compressor types
portable
FREE:
FREE:
€ 136,52
VAT Included
Prompt Delivery
4 items in stock
|
Free Shipping
You should receive it by 17/07/2020
ID: K501318
EAN: 8017750229263
MPN: FOAA304FNM127

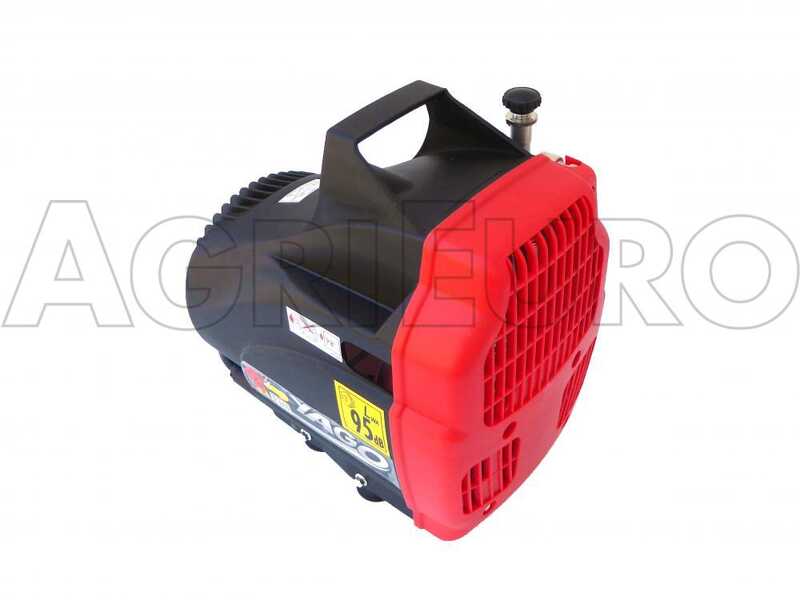

FINI YAGO 1850 electric air compressor

This compact air compressor can be used for many different applications.

The compressor comes with an air blow gun, spiral hose and various connections, which allow carrying out many different tasks (like inflating tyres).

Equipped with a 1,5 HP electric motor. Compressed air suction capacity: 179 litres per minute.  Maximum pressure: 8 bar.

With a 10 kg weight it can be carried easily thanks to the ergonomic upper handle.

Since you don't have to check the oil fill level or add lubricating oil, the compressor doesn't require much maintenance work. Moreover, transporting these portable compressors is a lot easier. You don't risk spilling oil, even when placing the equipment on its side in a car boot, for instance.

Free items: oilless air compressor maintenance kit.

Technical features

The moving parts (piston and shaft) were manufactured according to innovative design solutions using materials with a low friction coefficient and high resistance to wear and tear. They don't require any lubrication during use. Thus, the product is very reliable and the compressed air will not contain oil particles at all.


Air displacement: 179 L/min.

Pump Unit type: coaxial, oil-less
- no lubrication
- no maintenance

Absorbed air: 179 L/min

Pressure: 8 bar

Electric motor power: 1,5 HP

Overall dimensions:
- Width: 320 mm
- Height: 200 mm
- Depth (or thickness): 270 mm


Weight: 10 kg

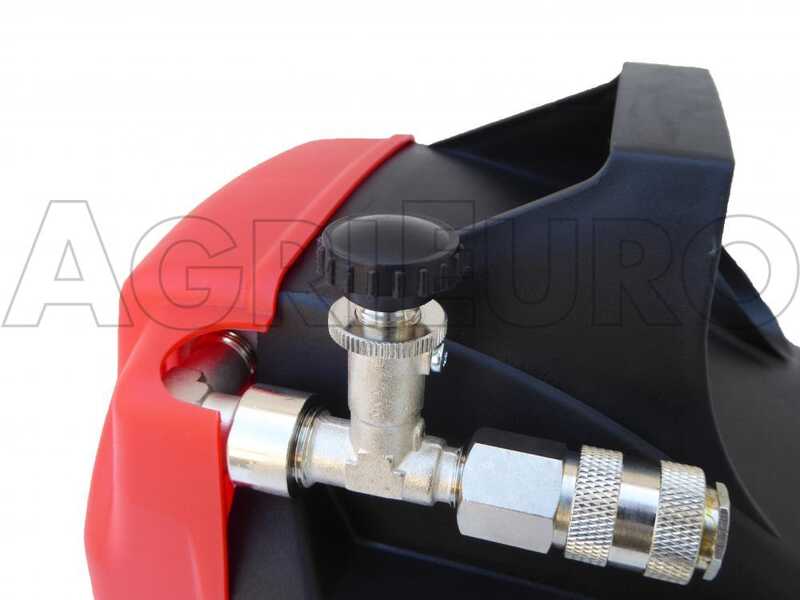

Controls

YAGO Fini compressor controls are very simple and user-friendly.

Blow gun with pressure gauge

Master switch

Female air outlet

Pressure setting knob

Other characteristics

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber feet

Blow gun with pressure gauge

Spiral cable

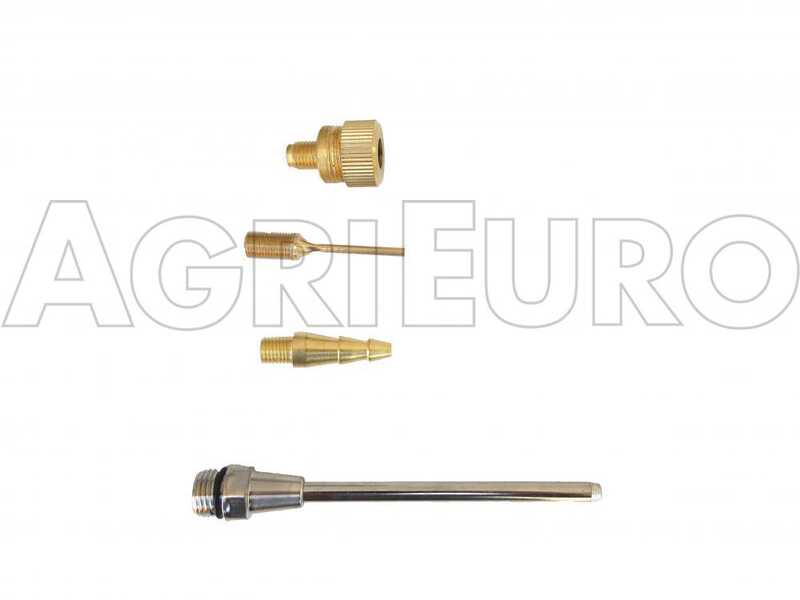

Blowing accessories

Product Features
Model:
YAGO 1850
Compressor types:
portable
Portable:
Typology:
coaxial - oilless
Activation:
Single-phase
Max. operating pressure:
8 bar
Number of tanks:
No tank
Noise level:
74 dB(A)/7m
Manufacturing Country:
China
Motor data
Motor type:
Electric single-phase
Rated output:
1.5 HP
silenced:
no
Pump data
Pump brand:
FINI
Model:
OL1850
Air displacement:
179 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
Number of cylinders:
1
Cooling down side collector:
no
Transmission data
Transmission type:
direct coaxial type
Pump unit revolutions per minute:
2850 RPM
Equipment
Number of exits:
1
Handle for lifting the machine:
Yes
Free gifts/extra features
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
32x20x27 cm
Net weight:
9 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
33x22x35 cm
Gross weight (packaging incuded) :
9 Kg
Assembly time:
5 minutes
Free items: air compressor maintenance kit

The compressor maintenance kit includes:

  • 1 "COMPRIX" oil bottle (600 ml). High-quality oil specifically created for compressor pump units. Perfect for oil refill and first oil replacement (the compressor is provided with oil.
  • Quick male joint, designed to convert the quick female joint (provided as standard equipment) to quick bayonet joint (so you can also use the bayonet hose.
  • Quick male joint for connecting tools that feature a standard bayonet quick joint with hoses that come with a quick female joint.
  • Teflon roll for the main maintenance operations.
  • Spare drain plug
Gifts and standard equipment

The compressor will be shipped in its original packaging.

Blow gun with pressure gauge

Spiral cable

Blowing accessories

Instructions manual included in the package
