Fini Super Tiger MK 312 - Wheeled Electric Air Compressor - 3HP Motor - 50 L

Questions & Answers (3)
ID: K501144

EAN: 8017750230955

MPN: FMDC504FNM076

7,3/10
After-sales assistance & Spare parts
Fini Super Tiger MK 312 - Wheeled Electric Air Compressor - 3HP Motor - 50 L
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
10 bar
Air intake flow
284 L/min
Cylinder head rpm
2850 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Nominal power
3 HP
Operating mode
Single-phase 230 V
Product Features
Model:
SUPER TIGER MK 312 50
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
3 HP
Pump data
Pump brand:
FINI
Model:
MK312
Air intake flow:
284 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
Yes
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2850 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
87x35x70 cm
Net weight:
36 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
87x35x70 cm
Gross weight (packaging included) :
40 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
€ 434,58
VAT Included

You're viewing:
Customers also viewed:
Description

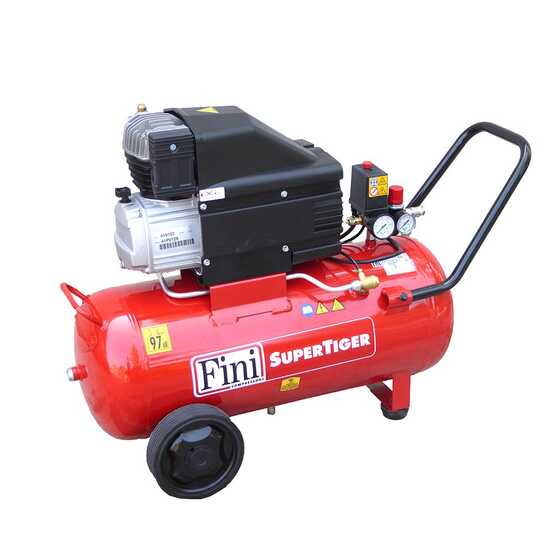

FINI SUPER TIGER MK 312/50 Electric Air Compressor

The SUPERT TIGER MK 312/50 air compressor is regarded as a great choice among demanding hobbyists and professionals looking for a reliable, lightweight and performing equipment.

Powered by a 3 Hp electric motor, this air compressor features a compressed air suction capacity of 284 L/min. It is capable of reaching a maximum air pressure of 10 bar.

Overload motor protection. The air compressor is equipped with an electromechanical pressure switch, pressure reducer with pressure gauge and universal quick release valve.

This air compressor comes with outstanding features, among which there are the electromechanical pressure switch and the pressure reducer.

It comes with a large compressed air storage tank of 50 L. It weighs 36 kg and it can be easily transported thanks to the wheels and to the upper handle.

FINI Compressors is a renowned brand which stands for high quality.

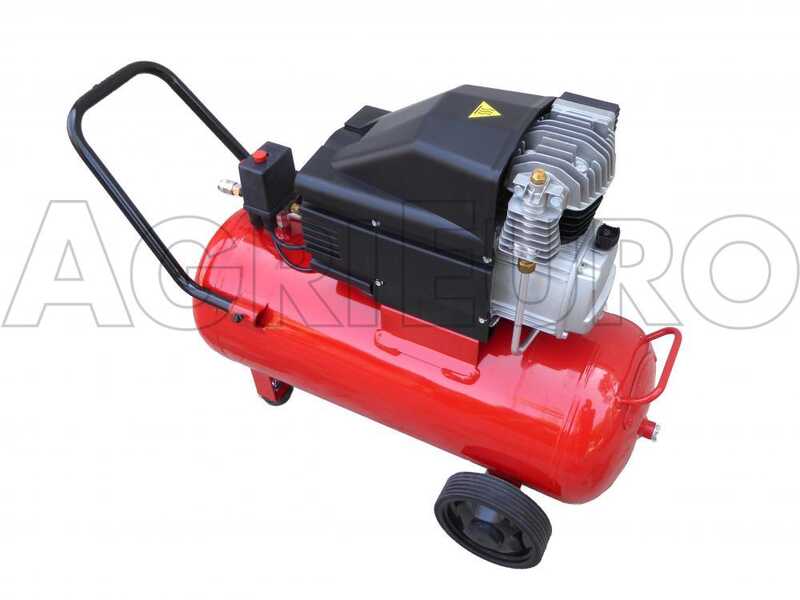

Technical features

Air intake flow: 284 L/min

Pump type: coaxial

Suction air capacity: 284 L/min

Pressure: 10 bar

Electric motor power: 3 Hp

Cooling manifold, used to cool the output air from the air compressor


Tank: 50 L

Dimensions:
- Width: 870 mm
- Height: 700 mm
- Depth (or thickness): 400 mm

Weight: 36 kg

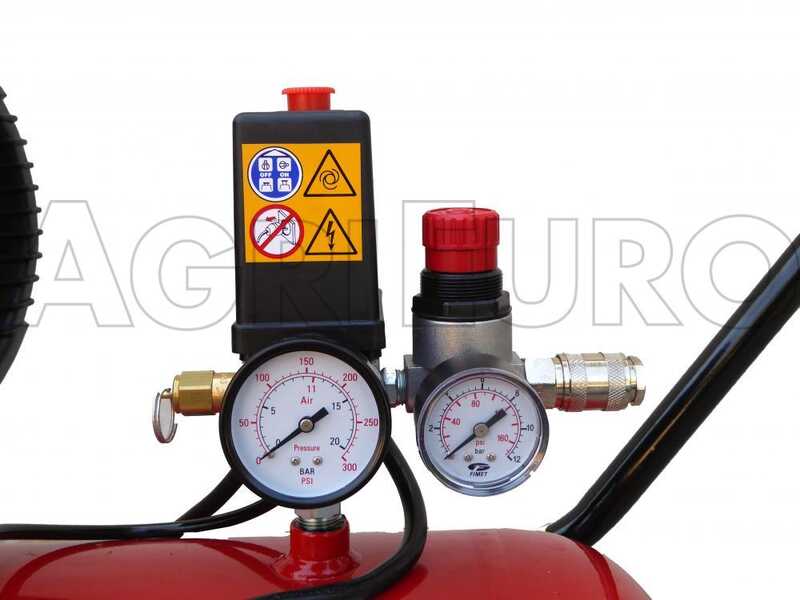

Controls

The Fini SUPER TIGER MK 312/50 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Other features

Schuko plug

Ergonomic lifting handle

Large wheels in sturdy plastic

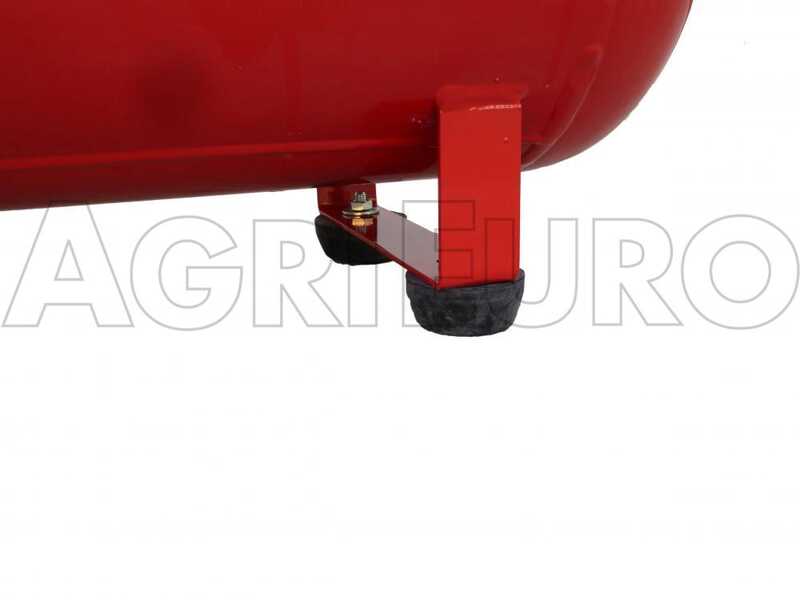

Anti-vibration rubber pad

Condensate drain valve

Oil pump dipstick

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
