Fini Siltek TB 24 - Electric air compressor - 24 litre tank - Pressure 8 Bar

Add a question
ID: K607161

EAN: 8017750263014

MPN: B2CC304FNN557

7,3/10
After-sales assistance & Spare parts
Fini Siltek TB 24 - Electric air compressor - 24 litre tank - Pressure 8 Bar
FREE
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
24 L
Max. operating pressure
8 bar
Air intake flow
160 L/min
Cylinder head rpm
1450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
Siltek TB 24
Air compressor type 2:
Coaxial
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
24 L
Noise level:
59 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
Fini
Air intake flow:
160 L/min
Pumping unit:
Piston
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
2
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1450 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
67x35.5x55 cm
Net weight:
22.6 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
58x25x57 cm
Gross weight (packaging included) :
24 Kg
Assembly time:
15 minutes
Prompt Delivery
30 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 234,58
VAT Included

You're viewing:
Customers also viewed:
Description

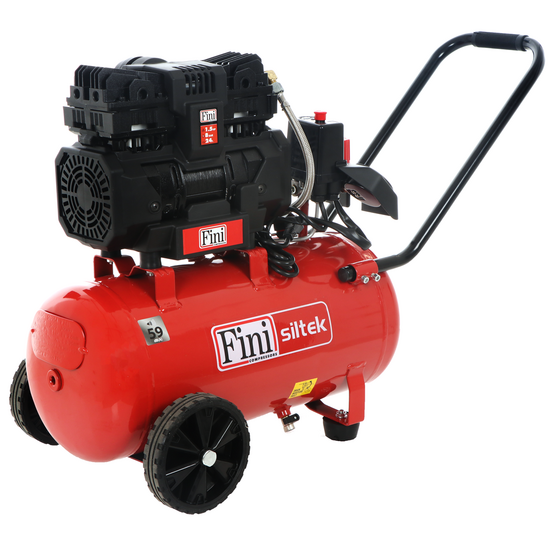

Fini Siltek TB 24 Electric Electric Air Compressor

The Fini Siltek TB 24 compressor stands out thanks to its two cylinder heads, making it suitable for a wide range of applications. It is the perfect ally for both semi-professional and professional jobs, offering reliable power without excessive compromises.

It has a capacity of 24 litres and is also capable of operating for long periods of time. This product represents a real innovation, as it is one of the first oilless electric air compressors, characterized by two pump heads with silent operation.

The compressor weighs 22.6 Kg and can be easily transported thanks to its large wheels and the upper handle. The addition of anti-vibration rubber pads at the front improves manoeuvrability when moving, helping to reduce both noise and vibration.

The unit is equipped with two silenced pump heads, each with a power of 1.5 HP. Its compressed air suction capacity is up to 160 litres per minute, while the maximum deliverable pressure is 8 bar. Thanks to its advanced structure, it can operate without the use of oil (oilless), ensuring superior performance.

It is suitable for various types of work, such as:

  • Air blowing
  • Inflation
  • Airbrush
  • Nailing - Stapling
  • Atomising
  • Painting
  • Professional painting
  • Tightening
  • Washing
  • Chiselling
  • Polishing
  • Grinding

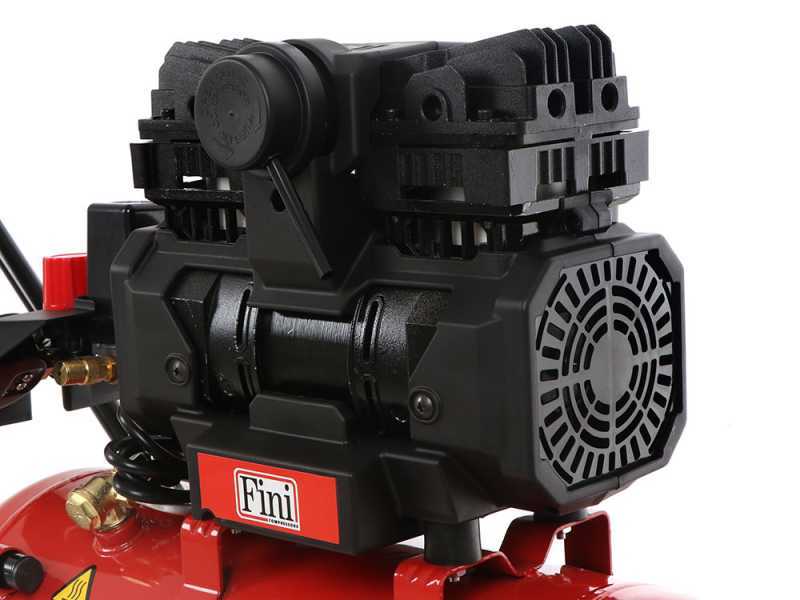

Technical features

This air compressor, while remaining compact, offers high performance thanks to the 2 pumping units

Pumping unit type: coaxial

Air displacement: 150 L/ min

Pressure: 8 bar

Electric engine power: 1.5 HP

Tank: 24 litres

The noise emissions can be measured both in DBA and Lwa. In detail:

Noise emissions: 59dBA

Same value expressed in LwA: 79 dB

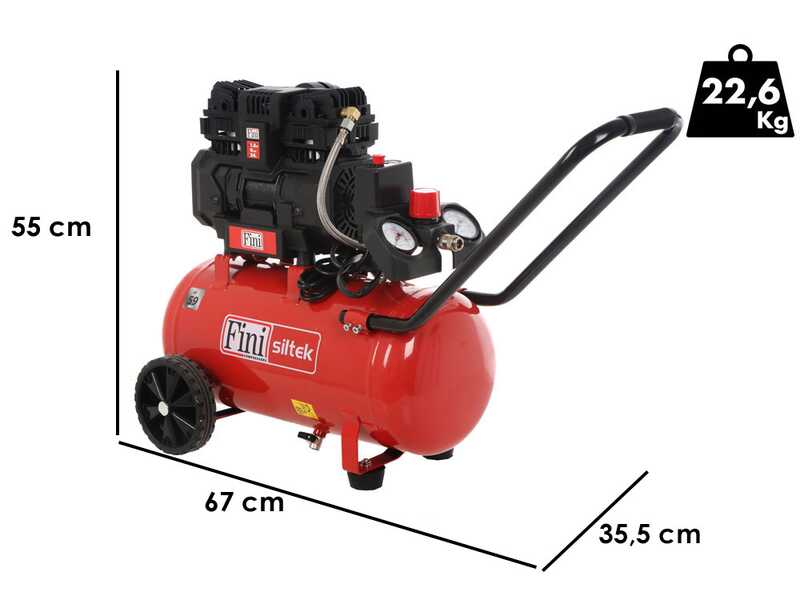

Size:

Length: 670 mm

Width: 355 mm

Height: 550 mm

Weight: 22.6 kg

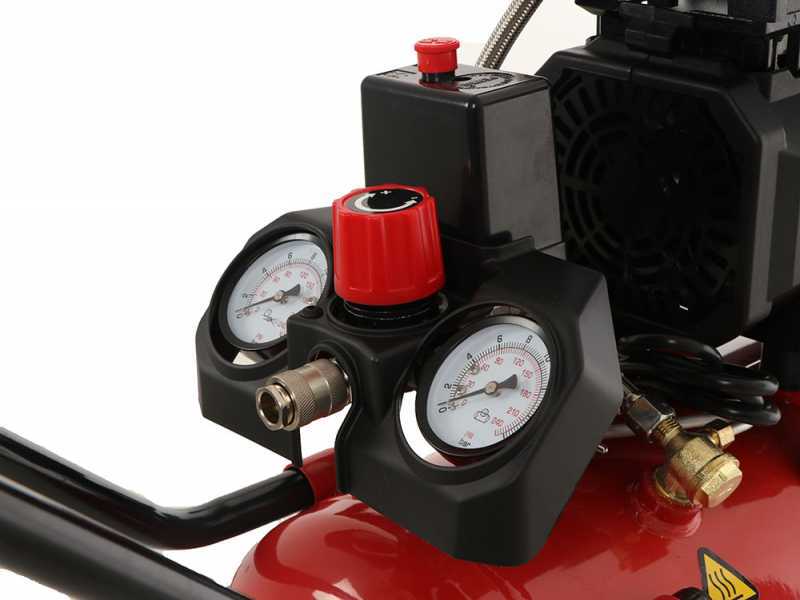

Controls

The Fini Siltek TB 24 air compressor features easy and user-friendly controls, which are divided into:

Air outlet pressure gauge

Tank pressure gauge

Compressor outlet female connection

Pressure adjusting knob

Power switch

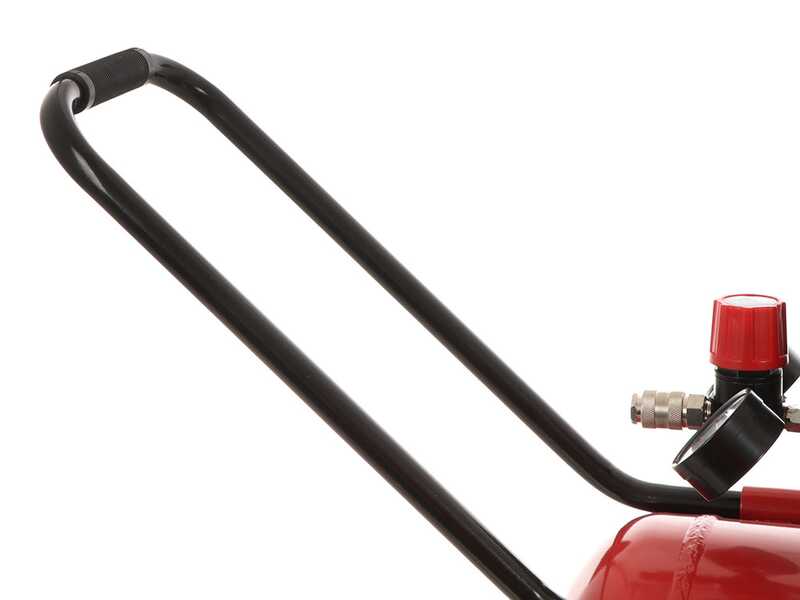

Other features

Schuko socket.

Ergonomic handle

Large wheels in sturdy plastic

Front anti-vibration rubbers

Air purge valve

Anti-vibration pads placed under the cylinder heads

Focus on the oil filter

Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors - 3 tools

This extensive air compressor accessories kit includes:

- Tyre inflating gun with
integrated pressure gauge

- Air blowing gun

- Coiled air hose

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instruction manual included in the package.
