Fini Pioneer 244 - Electric Portable Air Compressor - 1.5 Hp Motor - 8 Bar

Add a question
ID: K601845

EAN: 8017750262512

MPN: B4PP304FNN277

Fini Pioneer 244 - Electric Portable Air Compressor - 1.5 Hp Motor - 8 Bar
FREE
2 guns with container2 guns with container
2 compressor guns2 compressor guns
Spiral hose 5 metresSpiral hose 5 metres
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
10 L
Max. operating pressure
10 bar
Air intake flow
130 L/min
Cylinder head rpm
1450 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
Pioneer 224
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Tank capacity:
12 L
Air compressor tank:
10 L
Noise level:
64 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Pump data
Pump brand:
FINI
Air intake flow:
130 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1450 RPM
Equipment
Anti-vibrating system:
Yes
No. of outlet couplings:
1
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
37x38x67 cm
Net weight:
25.4 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
38x41x70 cm
Gross weight (packaging included) :
27.5 Kg
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 27/05/2024 - 29/05/2024
Suggested price:
€ 404,91
€ 388,71
VAT Included
You're viewing:
Customers also viewed:
Description

FINI PIONEER 244 Electric Air Compressor

The FINI PIONEER 244 air compressor is regarded as the best choice among hobbyists looking for a reliable, silent, lightweight and high-performing equipment.

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 130 L/min. It is capable of reaching a maximum air pressure of 8 bar.

It comes with a large 10 L compressed air storage tank. The air compressor weighs 25,4 Kg and can be easily transported thanks to its wheels and the upper handle.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

The FINI PIONEER 244 is a compact medium-powered air compressor suitable for a variety of applications, such as:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting

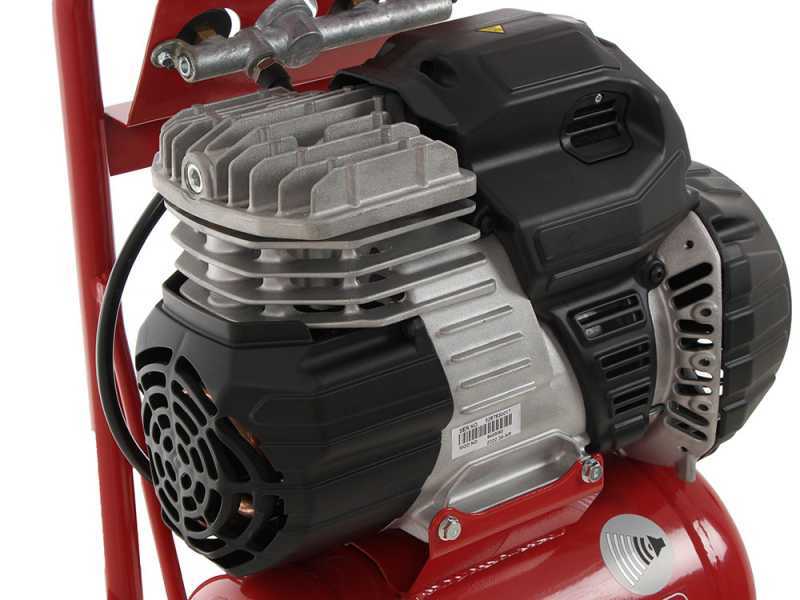

Technical features

Air intake flow: 130 L/min

Pumping unit type: coaxial - oilless

Pressure: 10 bar

Electric motor power: 1.5 Hp

Tank: 10 L

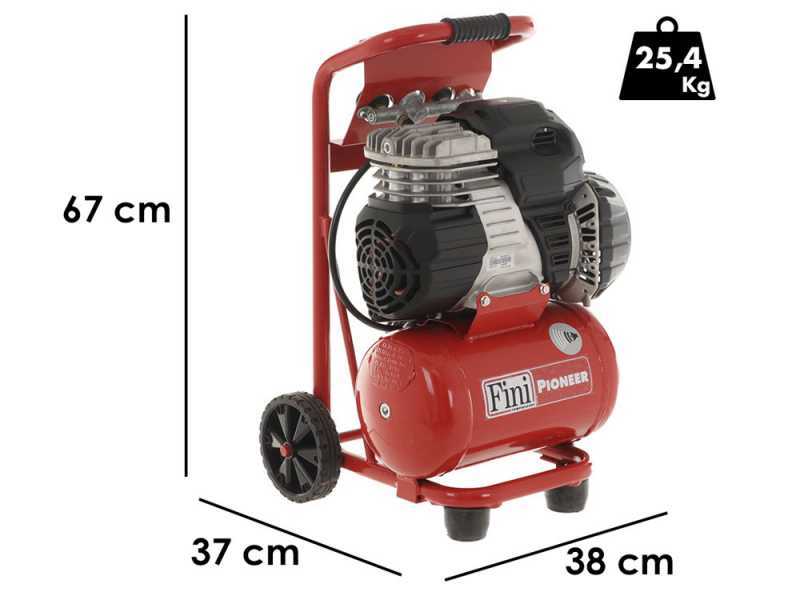

Dimensions:
- Width: 380 mm
- Length: 370 mm
- Height 670 mm

Weight: 25.4 Kg

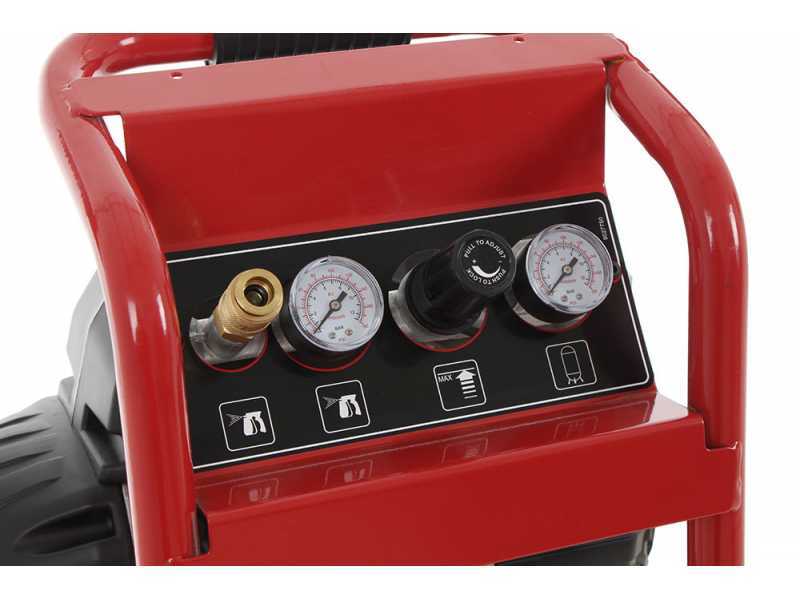

Controls

The Fini Pioneer 244 air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Tank air pressure gauge.

Power switch

Female outlet fitting

Pressure adjusting knob

Other features

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

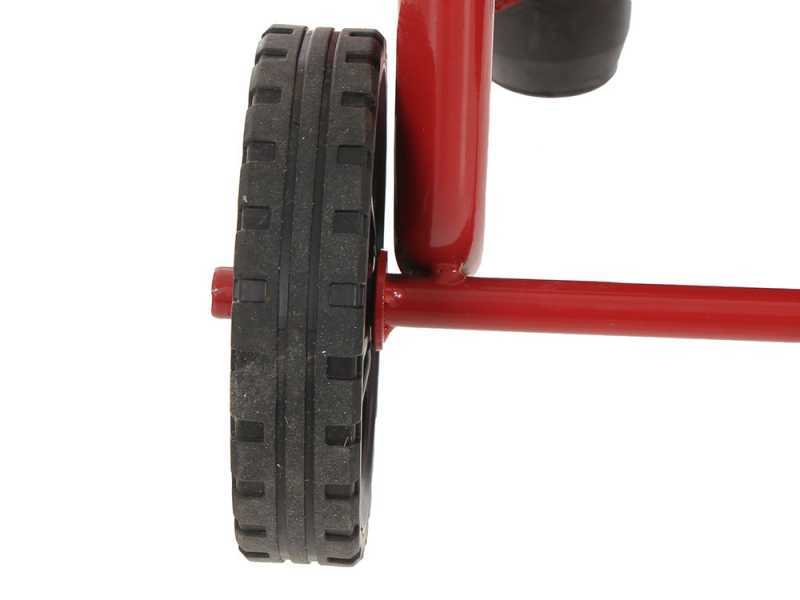

Wheels for transportation

Free items & Standard equipment

GeoTech accessories kit for air compressor - 5 tools

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blowing gun

- Air brushing gun

- Coiled air hose

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

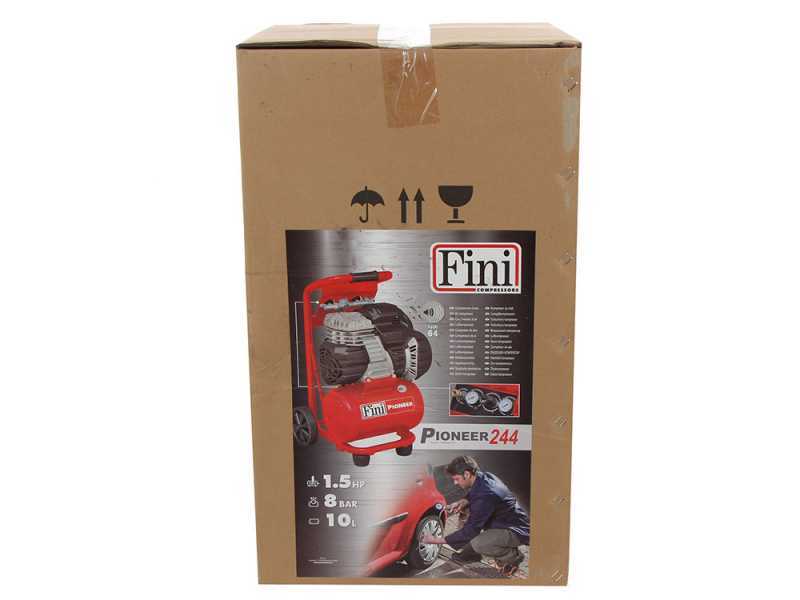

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
