Fini Advanced MK 113-200-4 - Three-phase Belt-driven Electric Air Compressor - 4 Hp Motor - 200L

Add a question
ID: K501136

EAN: 8017750175737

MPN: BPLC601FNM870

Fini Advanced MK 113-200-4 - Three-phase Belt-driven Electric Air Compressor - 4 Hp Motor - 200L
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
200 L
Max. operating pressure
10 bar
Air intake flow
500 L/min
Cylinder head rpm
1300 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Motor type
Induction
Nominal power
4 HP
Operating mode
Three-phase 400 V
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
ADVANCED MK 113-200-4
Air compressor type:
Horizontal
Operating mode:
Three-phase 400 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
200 L
Noise level:
78 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
4 HP
Pump data
Pump brand:
FINI
Model:
MK113
Air intake flow:
500 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
Yes
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1300 RPM
Pulleys material:
Metal alloy
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
146x55x98 cm
Net weight:
100 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
160x52x105 cm
Gross weight (packaging included) :
100 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
Suggested price:
€ 1.306,98
€ 1.202,42
VAT Included
You're viewing:
Customers also viewed:
Description

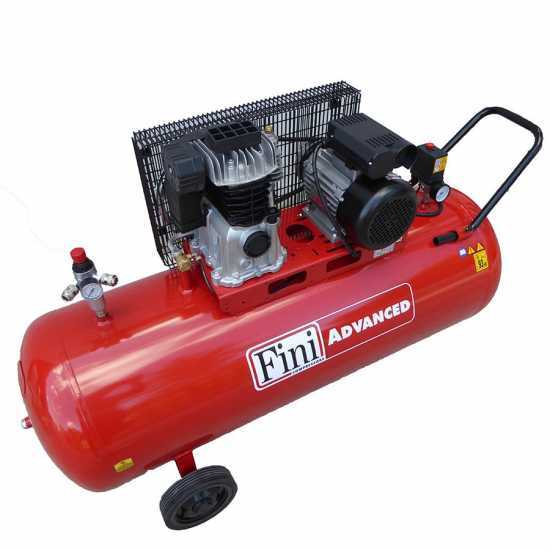

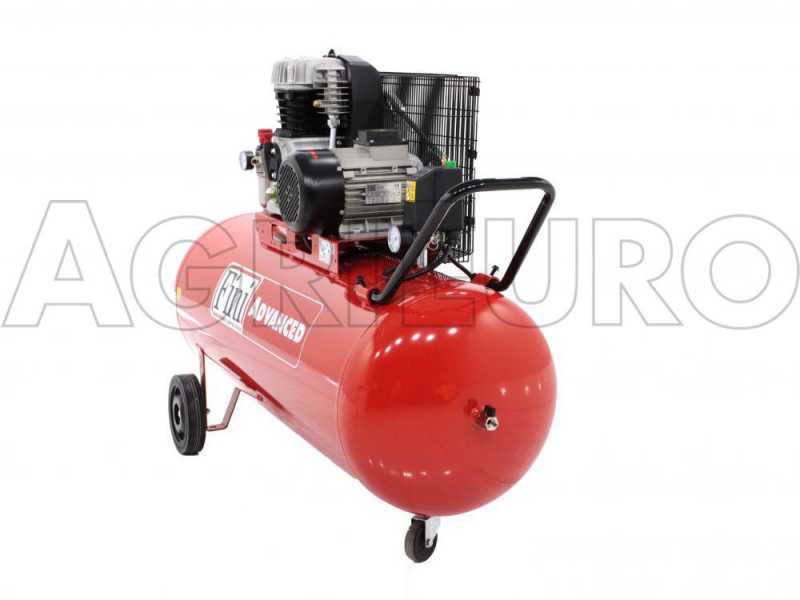

FINI ADVANCED MK 113-200-4 Twin Cylinder Electric Air Compressor

Air compressor maintenance kit included.

The FINI ADVANCED MK 113 200-4 air compressor is regarded as the best choice among hobbyists looking for a reliable, silent and high-performing equipment.

Powered by a 4 Hp electric motor, this air compressor features a compressed air suction capacity of 70 L/min. It is capable of reaching a maximum pressure of 10 bar.

It features a large-sized compressed air storage tank of 200 L.

It weighs 100 kg and can be easily transported thanks to the three wheels and to the upper handle.

FINI Compressors is a renowned brand which stands for high quality.

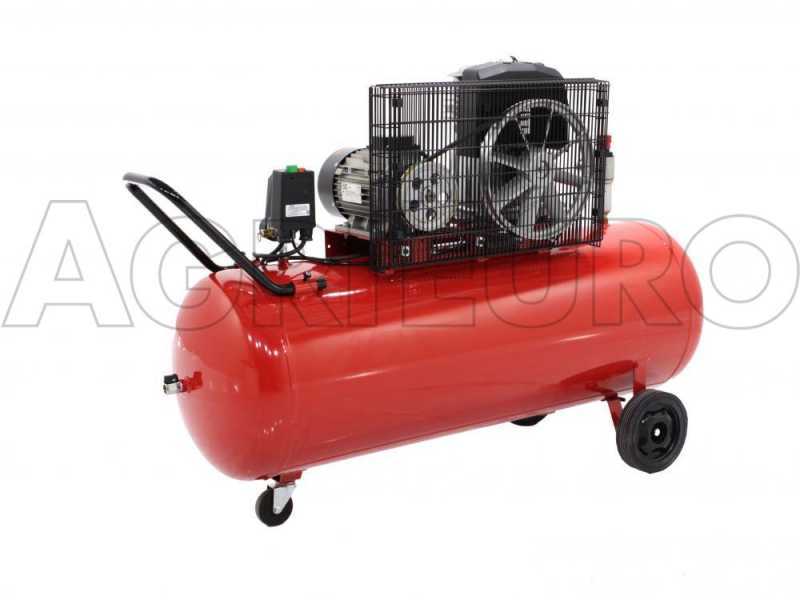

Technical features

Air intake flow: 500 L/min

Pump type: belt-driven

Pressure: 10 bar

Electric motor power: 4 Hp

Tank: 200 L


Overall dimensions:
- Width: 1460 mm
- Height: 550 mm
- Depth (or thickness): 980 mm

Weight: 100 kg

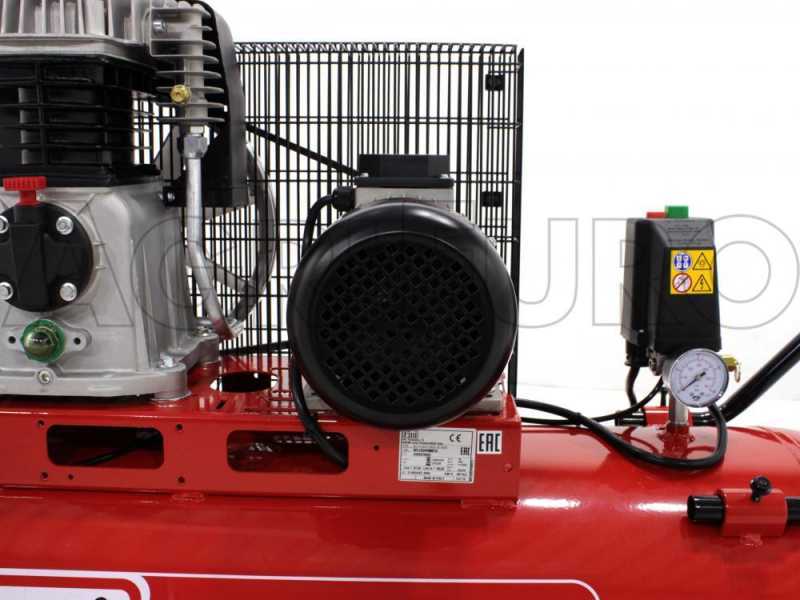

4 Hp three-phase electric induction motor

Power supply: 400 V three-phase

Power: 4 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

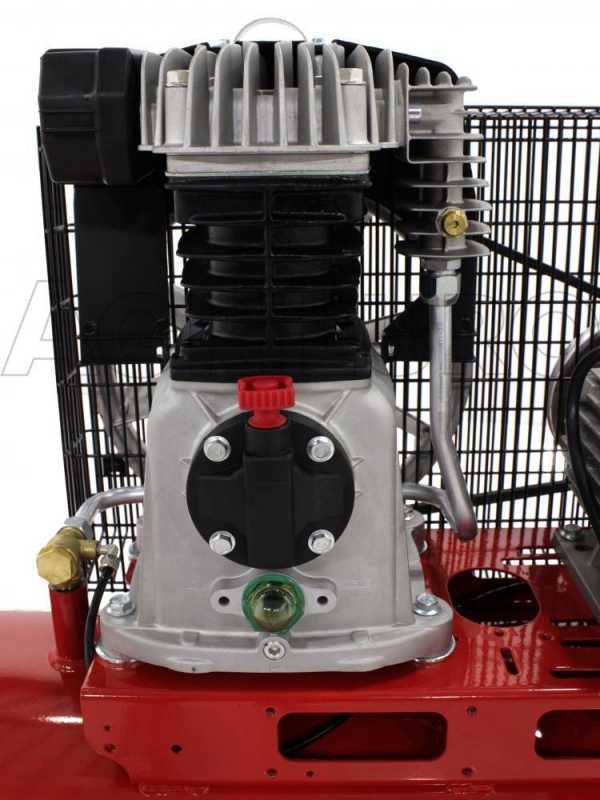

FINI MK 113 cylinder head

Air intake flow: 500 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1300 rpm


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Focus on the porthole for oil control

Focus on the cooling manifold

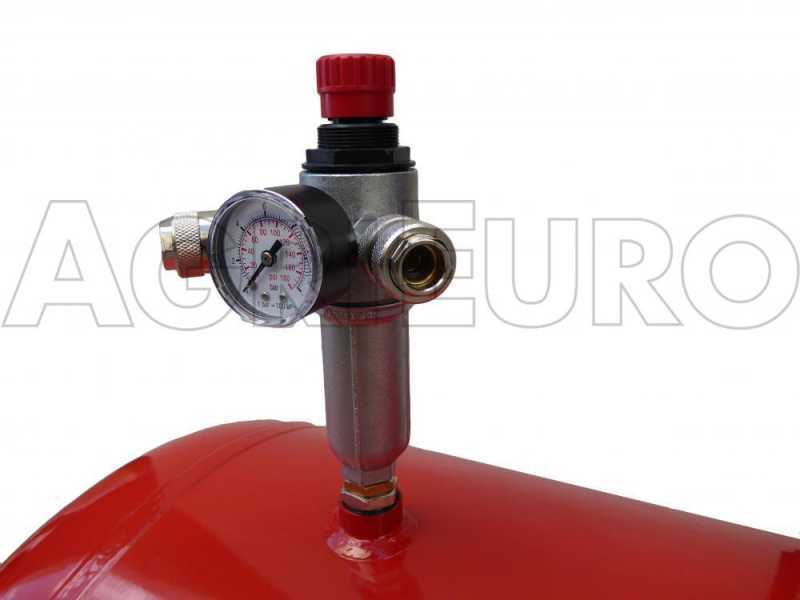

Controls

The Fini ADVANCED MK 113 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

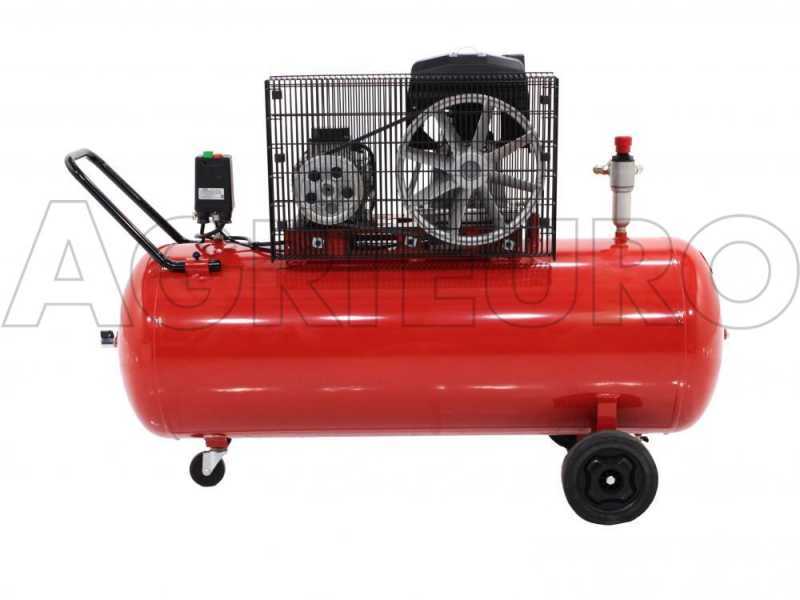

Belt drive

These FINI air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Other features

Three-phase cable.

Ergonomic handle

Large wheels in sturdy plastic
Central direction wheel

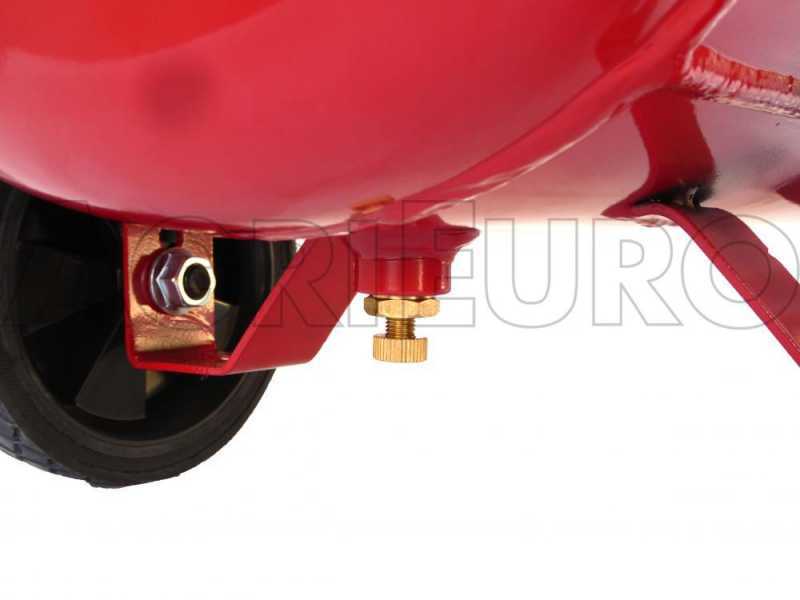

Condensate drain valve

Free items & Standard equipment

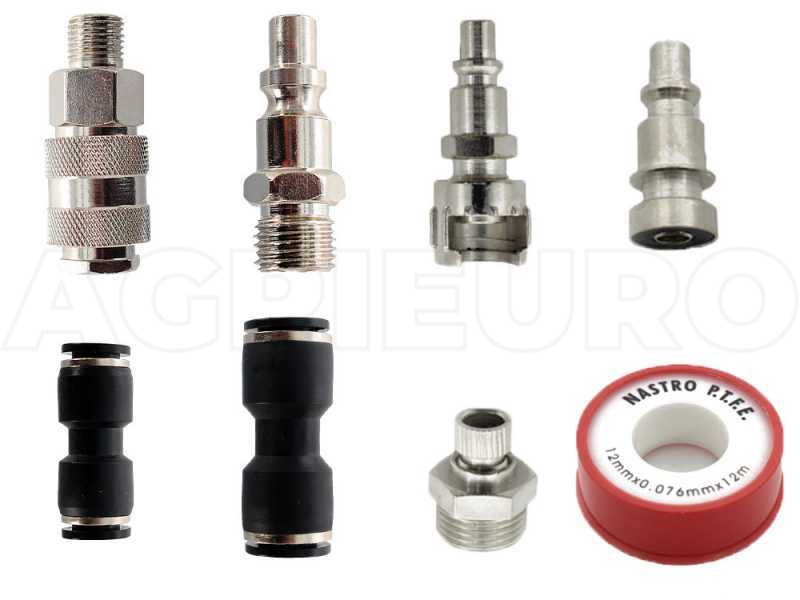

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

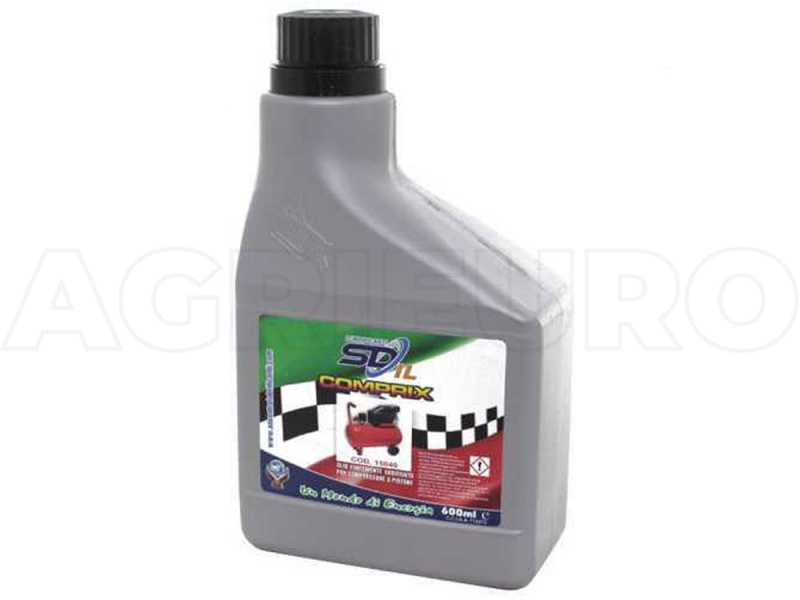

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
