Fini Advanced MK 103-90V-3M - Vertical Electric Air Compressor - 3 Hp Motor

Questions & Answers (2)
ID: K601841

EAN: 8017750262994

MPN: BNGY504FNN289

7,3/10
After-sales assistance & Spare parts
Fini Advanced MK 103-90V-3M - Vertical Electric Air Compressor - 3 Hp Motor
+100 sold
Free gifts from AgriEuro
2 compressor guns2 compressor guns
2 guns with container2 guns with container
Extension hoseExtension hose
Universal adaptors kitUniversal adaptors kit
Air compressor tank
90 L
Max. operating pressure
10 bar
Air intake flow
365 L/min
Cylinder head rpm
1375 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Motor type
Induction
Nominal power
3 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
103-90V-3M
Air compressor type 2:
Twin-cylinder belt-driven - single stage
Air compressor type:
Vertical
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
90 L
Noise level:
94 Lwa
Manufacturing country:
China
Motor data
Motor type:
Induction
Nominal power:
3 HP
Air compressors engine speed:
2850 RPM
Pump data
Air intake flow:
365 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
Yes
Cylinders material:
Cast iron
Transmission data
Belt-driven:
Transmission type:
Belt
Cylinder head rpm:
1375 RPM
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Folding/removable handle/s:
No
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
40x50x111 cm
Net weight:
64.6 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
60x5x113 cm
Weight including packaging:
68 Kg
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 12/06/2025 - 16/06/2025
€ 819,93
Vat included
You're viewing:
Customers also viewed:
Description

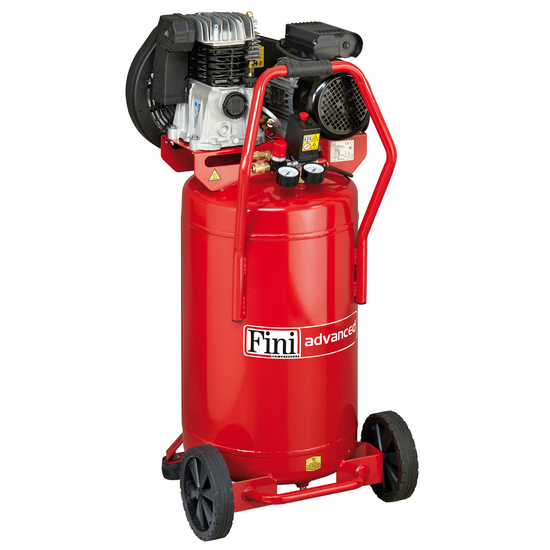

FINI Advanced MK 103-90V-3M Electric Air Compressor

The FINI Advanced MK 103-90V-3M is a belt-driven single-phase electric air compressor equipped with a powerful 2,2 kW electric motor. It features a compressed air suction capacity of 365 L/min and is capable of reaching a maximum pressure of 10 bar. It features a powerful 3 Hp electric motor and is equipped with a 90 L tank. This compact air compressor can be used for a variety of applications. It is the ideal tool for the most demanding craftsmen and hobbyists to carry out domestic work. It comes with a large compressed air storage tank of 90 L.

The compressor weighs 64,6 Kg and can be easily transported thanks to its large wheels and the upper handle. Thanks to its compact, vertically developed shape, it takes up little space, allowing it to be easily stored.

Suitable for a number of applications:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

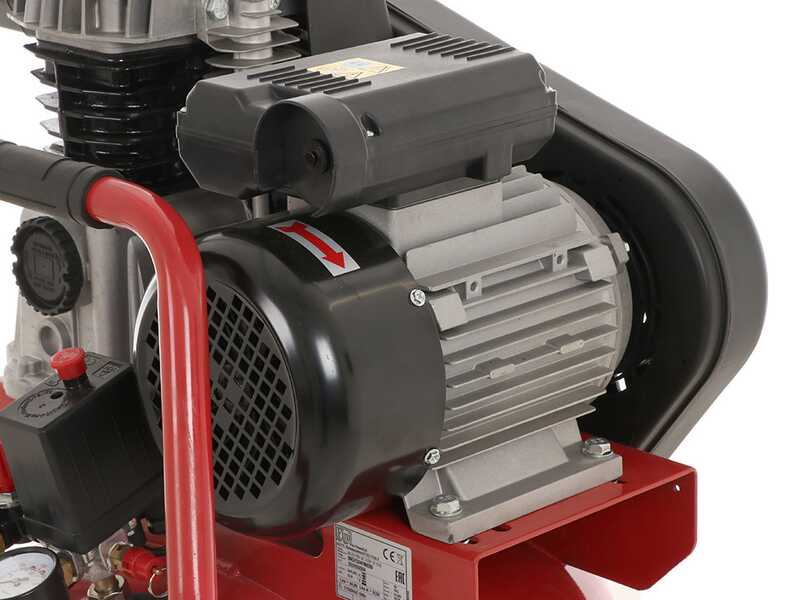

3 Hp induction electric motor

Power supply: 230 V

Power: 3 Hp
The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor. It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

Air intake flow: 365 L/min

Motor rpm: 2850 rpm

Pump type: coaxial

Air intake flow: 365 L/min

Pressure: 10 bar

Tank capacity: 90 L

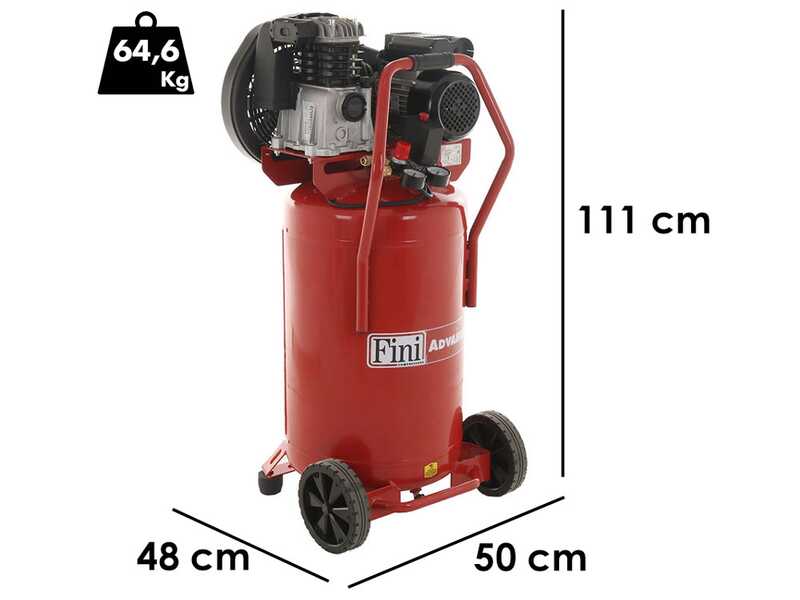

Dimensions:
- Width: 50 cm
- Length: 48 cm
- Height: 111 cm

Weight: 64.6 kg

Fini MK103 cylinder head

Air intake flow: 365 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1375 rpm

Focus on the side cooling manifold


The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

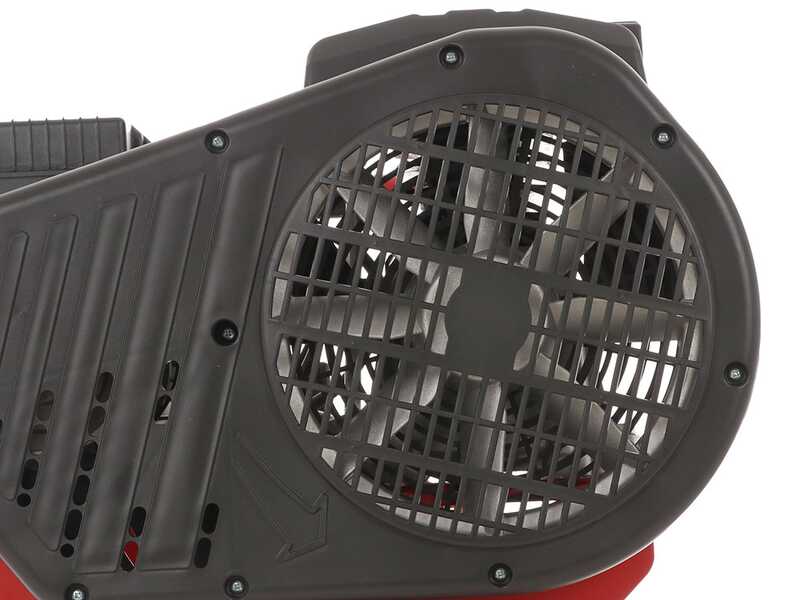

Belt drive

The belt drive characterizes these Fini compressors.

The use of the belt, combined with an induction motor, contributes to the durability of this compressor, drastically reducing the number of revolutions of the head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

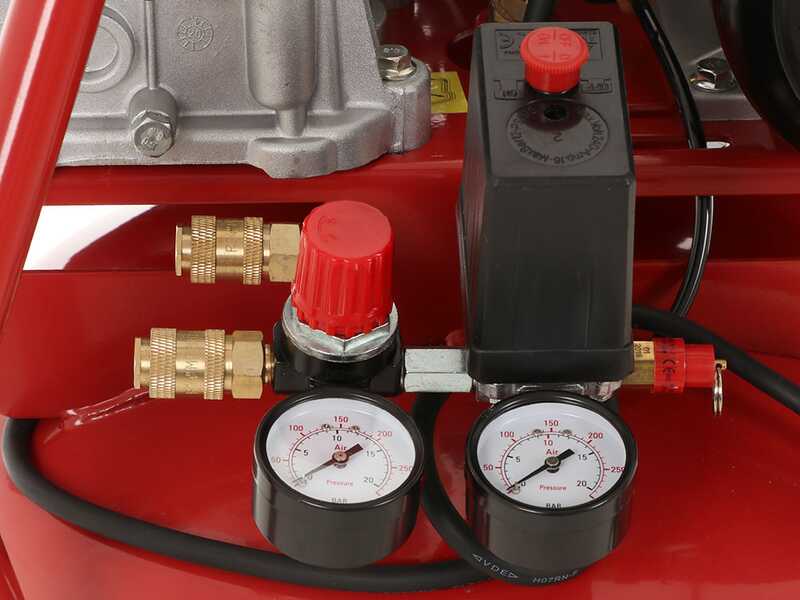

Controls

The air compressor features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Output air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

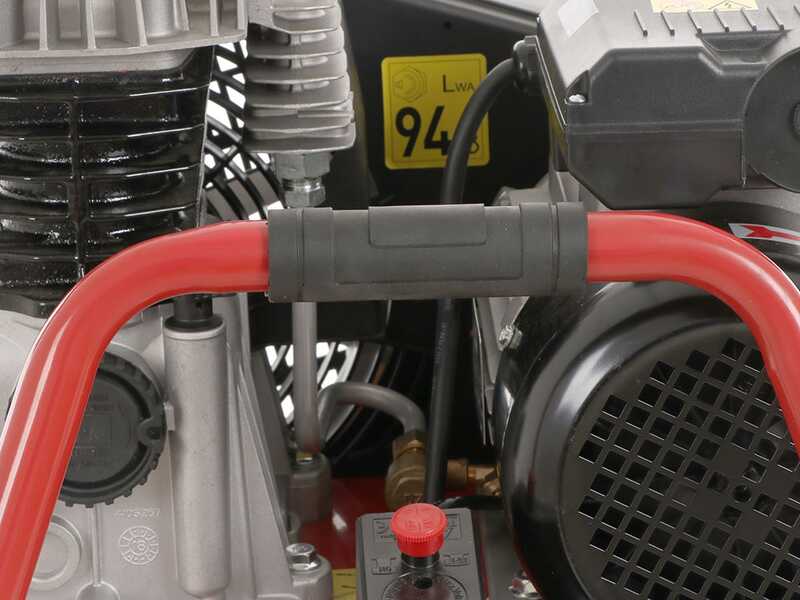

Other features

The air compressor is powered by a Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Large wheels for transportation

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: GeoTech accessories kit for air compressors

This extensive air compressor accessory kit includes:

- Tire inflating gun with
integrated pressure gauge

- Wash gun

- Air blow gun

- Air brushing gun

- Fittings for inflation ideal for inflating camping equipment and/or balloons.

This kit includes

-10 mt professional straight rubber braided hose.

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
