Ferroni ML.I. 25 - Pump for Tractor PTO - 30-19 mm Fittings

Questions & Answers (22)
ID: 2329

EAN: 9900000002442

MPN: 0031.0411

7,9/10
After-sales assistance & Spare parts
Ferroni ML.I. 25 - Pump for Tractor PTO - 30-19 mm Fittings
+2000 sold
Operating mode
Tractor-driven PTO
Pump material
Cast iron
Fittings diameter
19 mm
Flow rate
180 L/min
Max. head lift
250 m
Max. suction height
8 m
Water pump type
Self-priming
Engine speed
540 RPM
Brass fittings
Yes
Manufacturing country
Italy
Product Features
Model:
ML.I. 25 (30/19)
Power supply:
Tractor-driven
Operating mode:
Tractor-driven PTO
Manufacturing country:
Italy
Pump data
Pump brand:
Ferroni
Water pump type:
Self-priming
Pump material:
Cast iron
Engine speed:
540 RPM
Fittings diameter:
19 mm
Flow rate:
180 L/min
Max. head lift:
250 m
Max. suction height:
8 m
Brass fittings:
Yes
Manufacturing country:
Italy
Equipment
Pressure control valve:
Yes
Power take-off:
1 3/8" Z6 female coupling
Free gifts/extra features
Hose clamps:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
18x22x19 cm
Net weight:
11 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
18x23x20 cm
Gross weight (packaging included) :
13 Kg
Assembly time:
Assembled
Prompt Delivery
103 items in stock
Free Shipping
Estimated delivery: 21/11/2024 - 25/11/2024
€ 212,27
VAT Included

You're viewing:
Customers also viewed:
Description

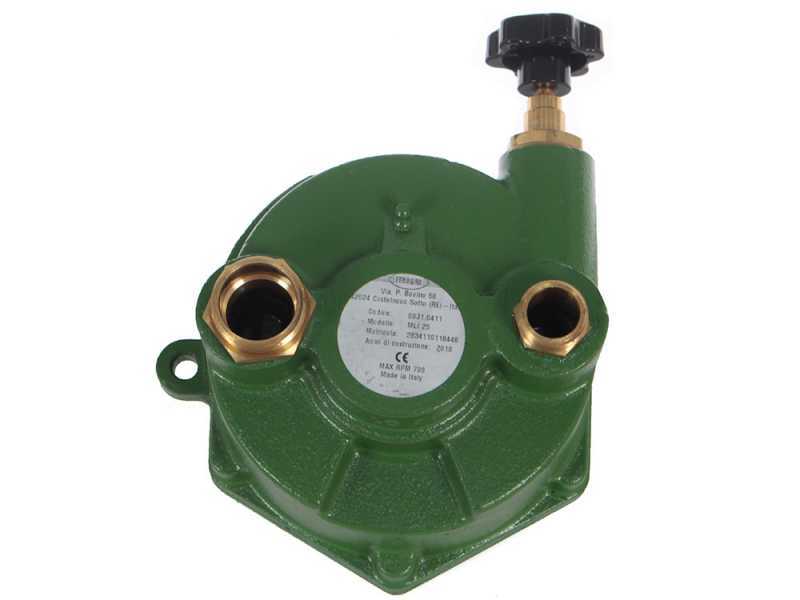

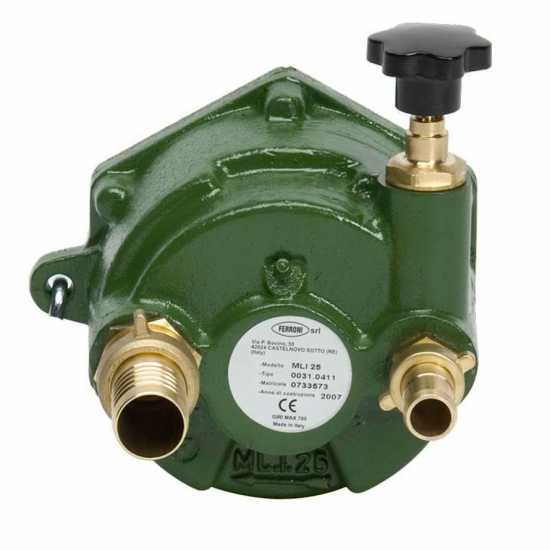

Ferroni ML.I 25 PTO Water Pump, 30-19 mm Fittings

ML series pumps are self-priming with nylon rollers that are applied directly to the PTO of the tractor or two-wheel tractor, without using the cardan shaft.

The ML.I. 25 PTO water pump allows you to adjust the delivery flow thanks to the brass pressure control valve.

The pump can draw the liquid by itself, it is not necessary to fill it before.

It works smoothly even on grounds with high differences in height. It has a maximum head lift of 250 m.

The pump is suitable for irrigation operations (with or without sprinklers) or transferring any non-corrosive liquid (not suitable for wine) and high-pressure washing.

Made in Italy

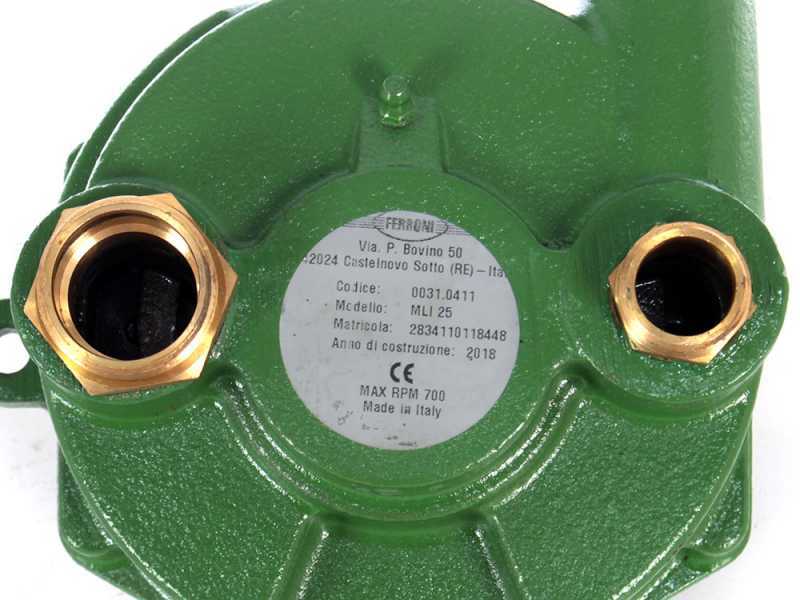

Pump Features

  • Max. flow rate: 160 L/min
  • Max. suction depth: 7-8 m
  • Clockwise rotation
  • Power consumption: 5.5 Hp - 4 kw
  • Dimensions: 18 x 22 x 19 cm
  • Weight: 11 kg
  • Cast iron pump body
  • Rotor with nylon rollers
  • Cast iron cover
  • Chain for securing the pump to the tractor

The difference in diameter between the suction and delivery fitting (30-19 mm) allows different pressures

ML.I. 25 PTO pumps allow you to adjust the outlet flow thanks to the brass pressure adjustment valve.

Through a recirculation system of the liquid that it increases or reduces, it allows:

  • vary the flow rate in L per minute of the pump
  • vary the pressure


* the other models of Ferroni pumps work with high flow and pressure since they do not have a liquid recirculation valve, therefore pressure and flow rate can only be varied by increasing or reducing the rotation of the power take-off.

Chain with quick fastening carabiner.

It is applied directly to the tractor PTO, by directly inserting the female groove on the male thread of the tractor.
The chain is then fastened to a fixed point on the tractor.
This must be sufficiently taut and fixed to a point in front of it, in such a way as not to allow the pump to slip out of the power take-off

The chart shows the flow rate in L per minute of our tractor-mounted pumps based on the head.
(i.e. the difference in height through which the water is pushed, if necessary, with the hoses that are applied to it).
This information results from a tractor PTO rotation of 540 rpm.

Free items & Standard equipment

Free Items Included

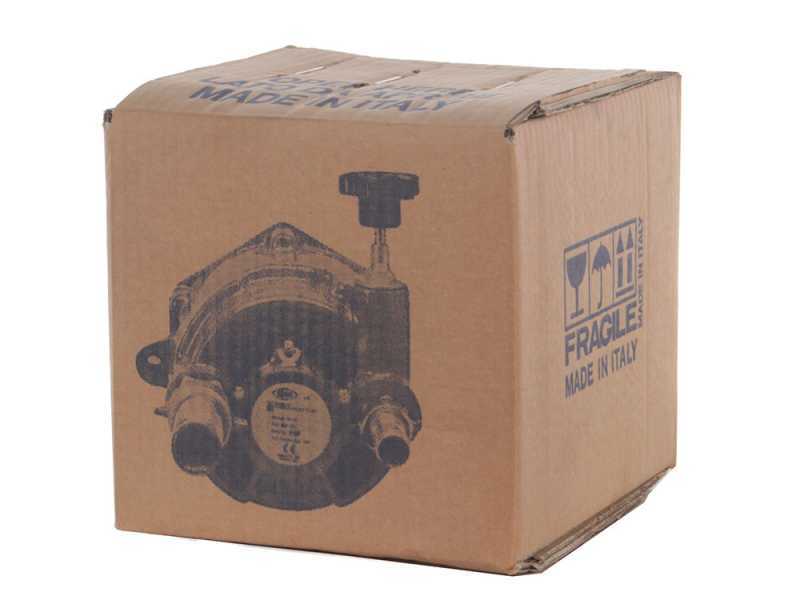

The machine is shipped in its .

Fittings, and are included in the packaging
