FBC BIO.S2.PF - Tractor-mounted garden shredder - Cardan-driven professional

Questions & Answers (16)
ID: 10183

EAN: 9900000000370

MPN: 10183

7,9/10
After-sales assistance & Spare parts
FBC BIO.S2.PF - Tractor-mounted garden shredder - Cardan-driven professional
+300 sold
Operating mode
Tractor-driven PTO
Tractor power
Up to 25 HP
Cutting Rotor Type
Knives + hammers
No. of blades
2
No. of hammers
6
Max. Branch Diameter
50 mm
Wood Chip size
2 - 3 cm
N° of hoppers
1
Discharge chute rotation
Manual
Transmission type
Belt
Manufacturing country
Italy
Product Features
Model:
BIO.S2.PF
Operating mode:
Tractor-driven PTO
Hydraulic self-dragging:
No
Discharge chute:
Medium
N° of hoppers :
1
Hopper opening size (height):
34 cm
Hopper opening size (width):
35 cm
Chip size reducing sieve:
Yes
Electric start:
No
Min. power:
14 Hp
Max. power:
25 HP
Tractor power:
Up to 25 HP
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
50 mm
Cutting Rotor Type:
Knives + hammers
No. of blades:
2
No. of hammers:
6
Blade movement:
Rotating
N° of chopper blades:
6
Counter blades:
1
Wood Chip size:
2 - 3 cm
Equipment
Discharge chute rotation:
Manual
Rear wheels size:
2.50 - 4"
Free gifts/extra features
Cardan shaft:
Optional
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x65x121 cm
Net weight:
61 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75x75x100 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
30 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.346,81
VAT Included
You're viewing:
Customers also viewed:
Description

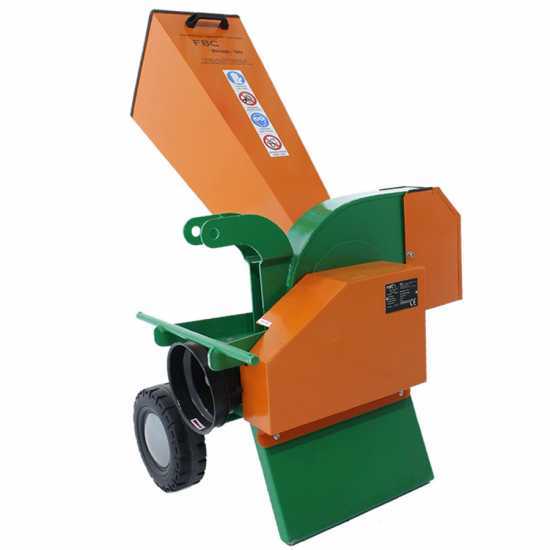

PTO tractor-mounted garden shredder

The BIO.S2.PF is a heavy-duty tractor-mounted garden shredder, specifically intended for shredding large quantities of vegetable waste; it is entirely Made in Italy and equipped with a large hopper to facilitate entering branches into the machine.

It can shred branches of up to 50 mm diameter and it is equipped with 3-point hitch for tractor + PTO drive.
The wood chipper is also equipped with a heavy-duty multiplier featuring gears in oil bath.

Hopper opening: 35 x 30/35 cm

The rotor is fitted with 2 interchangeable blades, a counter-blade and 6 rotating hammers.


Warning: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

Unified hopper

The machine is equipped with a large 35x/30/35 cm steel hopper and can process even very bulky branches and leaves, without having to pre-shred them.

Thus, it also features a higher capacity that allows entering large volumes of material at a time.

General features

Focus on the rubber bulkheads placed on the hopper opening.

Tractor PTO, which allows operating the garden shredder.

Sturdy and large rubber wheels, useful for moving the garden shredder on rough terrain.

The handle on the upper part of the unified hopper allows easily transporting the machine.

Central rotor and shredding chamber

The cutting system consists of:
- No. 2 + 1 large and thick cutting blades (3 in total), mounted on a rotating steel plate place at the end of the hopper.
They pre-shred the wood into the hopper reducing it in coarse wood chips.
- No. 6 hardened steel hammers rotating at high speed (placed behind the 3 blades). Thanks to their centrifugal motion they shred the branches in small wood chips.

INTERMEDIATE BELT DRIVE.
This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback. Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, the transmission is directly connected to the shredding cutting system.

The discharge chute is equipped with a sieve that allows discharging wood chips only once finely shredded by the hammers.

The machine is provided with a large and sturdy shredding chamber featuring a rounded shape. It guarantees excellent productivity, as well as the durability of the system.

The counter-blade is mounted directly into the inner part of the hopper. This allows pre-shredding the material entered into the hopper before preparing it for shredding with the hammers.

The deflector of the discharge chute can be adjusted in different positions: up or down.
